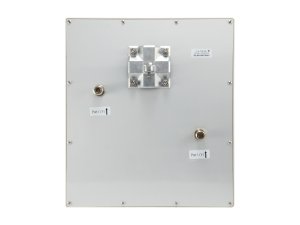

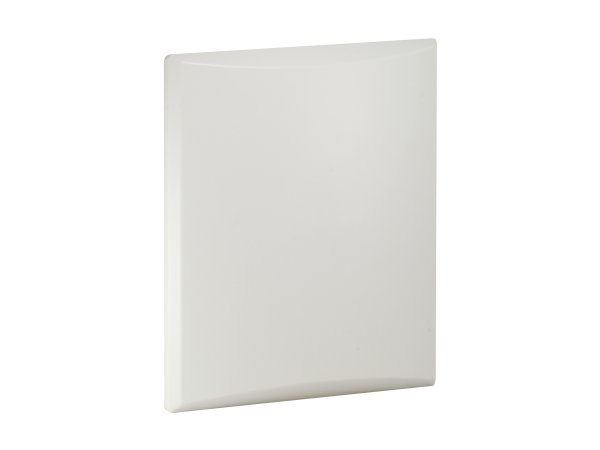

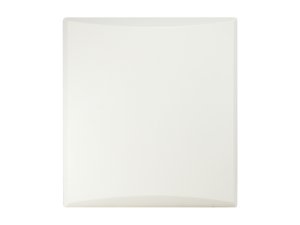

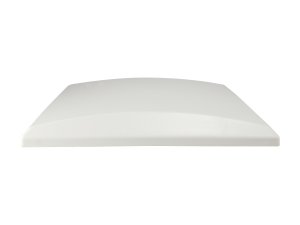

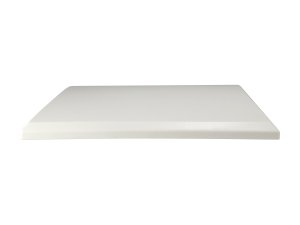

LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor

Name: LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: WAN-7151

SKU: WAN-7151

LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor, 15 dBi, 2.4 ~ 2.5 GHz, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 50 Ω, 30°, 15°

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
WAN-7151

EAN
4015867203576

Features

Antenna connector type
N-type

Antenna type
Directional antenna

Country of origin
Taiwan

Maximum cable loss with connectors
-10 dB

Polarization
Dual polarization

Product colour
Grey

Protection features
Dust resistant, Snow resistant, Water resistant

Purpose
Indoor & outdoor

Survival wind speed
180 km/h

Voltage Standing Wave Ratio (VSWR)
2.0

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
20 kg

Master (outer) case height
370 mm

Master (outer) case length
447 mm

Master (outer) case width
460 mm

Products per master (outer) case
10 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

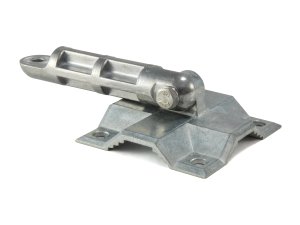

Mounting kit
Yes

Package type
Box

Quick installation guide
Yes

Performance

Antenna gain level (max)
15 dBi

Frequency band
2.4 ~ 2.5 GHz

Horizontal beam width
30°

Impedance
50 Ω

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Vertical beam width
15°

Weight & dimensions

Depth
330 mm

Height
35 mm

Package depth
354 mm

Package height
84 mm

Package weight
1.81 kg

Package width
333 mm

Weight
904 g

Width
295 mm

Description

LevelOne 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor. Antenna gain level (max): 15 dBi, Frequency band: 2.4 ~ 2.5 GHz, Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Dual polarization. Width: 295 mm, Depth: 330 mm, Height: 35 mm. Package type: Box. Master (outer) case width: 460 mm, Master (outer) case length: 447 mm, Master (outer) case height: 370 mm

Directional antenna N-type Grey
15 dBi
2.4 ~ 2.5 GHz
50 Ω
Dual polarization
Survival wind speed: 180 km/h
