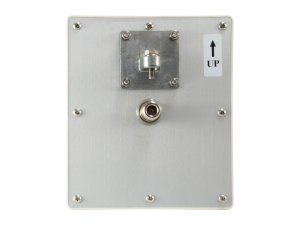

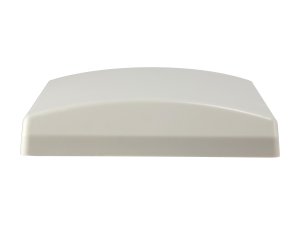

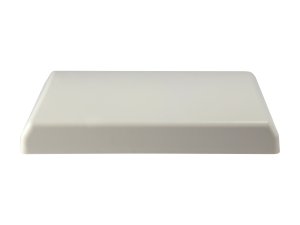

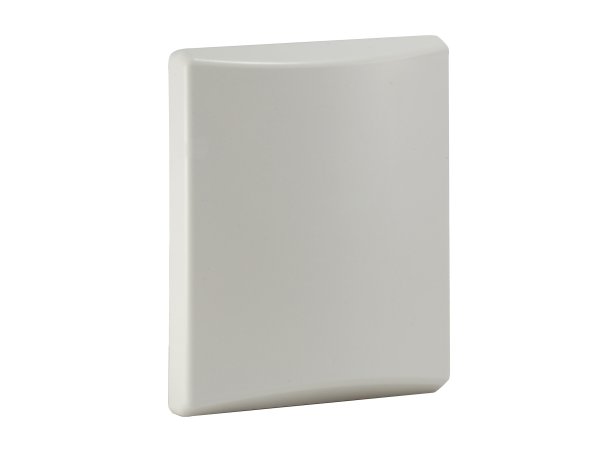

LevelOne 12dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 12dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor

Name: LevelOne 12dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: WAN-2121

SKU: WAN-2121

LevelOne 12dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor, 12 dBi, 2.4 GHz, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 50 Ω, 50.1°, 39.1°

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
WAN-2121

EAN
4015867203538

Features

Antenna connector type
N-type

Antenna type
Directional antenna

Country of origin
Taiwan

Maximum cable loss with connectors
-10 dB

Polarization
Vertical polarization

Product colour
Grey

Protection features
Dust resistant, Snow resistant, Water resistant

Purpose
Indoor & outdoor

Survival wind speed
180 km/h

Voltage Standing Wave Ratio (VSWR)
2.0

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
17 kg

Master (outer) case height
390 mm

Master (outer) case length
460 mm

Master (outer) case width
440 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

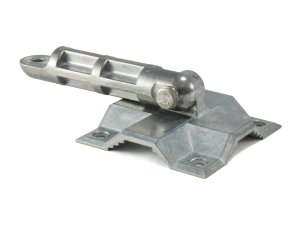

Mounting kit
Yes

Package type
Box

Quick installation guide
Yes

Performance

Antenna gain level (max)
12 dBi

Frequency band
2.4 GHz

Horizontal beam width
50.1°

Impedance
50 Ω

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Vertical beam width
39.1°

Weight & dimensions

Depth
166 mm

Height
30 mm

Package depth
85 mm

Package height
85 mm

Package weight
790 g

Package width
185 mm

Weight
304 g

Width
140 mm

Description

LevelOne 12dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor. Antenna gain level (max): 12 dBi, Frequency band: 2.4 GHz, Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 140 mm, Depth: 166 mm, Height: 30 mm. Package type: Box. Master (outer) case width: 440 mm, Master (outer) case length: 460 mm, Master (outer) case height: 390 mm

Directional antenna N-type Grey
12 dBi
2.4 GHz
50 Ω
Vertical polarization
Survival wind speed: 180 km/h
