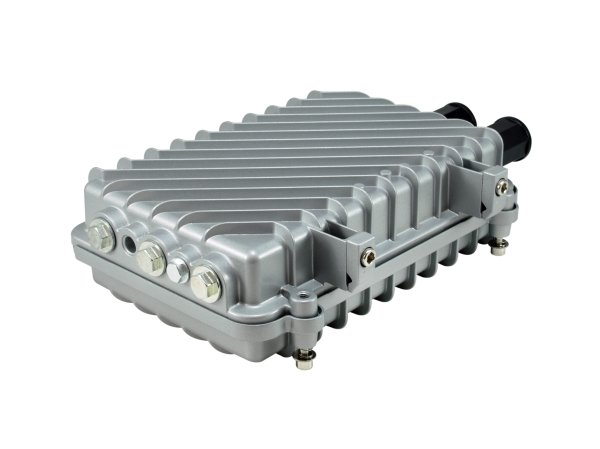

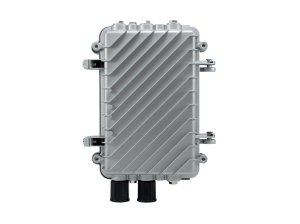

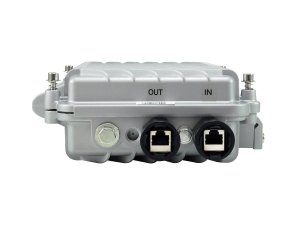

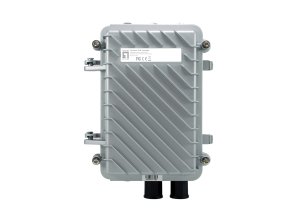

LevelOne Outdoor PoE Repeater, Cascadable,

Roll over image to zoom inClick to Open expanded view

LevelOne Outdoor PoE Repeater, Cascadable,

Name: LevelOne Outdoor PoE Repeater, Cascadable,
Brand: LevelOne
SKU: POR-1100

SKU: POR-1100

LevelOne Outdoor PoE Repeater, Cascadable,, Network repeater, 100 m, IP66, 10/100Base-T(X), IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Silver

hypertec

CE Marking (Download)

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
POR-1100

EAN
5050914833749

Bullet points

Point
Extends PoE connection for another 100 meters

Forwards 802.3af/High-Power PoE to remote device

Forwards Power over Ethernet (PoE) to remote device

High Power PoE compliant to simplify deployment and installation

Multiple PoE repeaters can be deployed by daisy chain to extend range

No additional power supply required

Simple Plug and Play installation

Weatherproof IP66-rated housing

Design

Country of origin
Taiwan

Product colour
Silver

Logistics data

Master (outer) case gross weight
9.5 kg

Master (outer) case height
280 mm

Master (outer) case length
440 mm

Master (outer) case width
560 mm

Products per master (outer) case
10 pc(s)

Network

Cabling technology
10/100Base-T(X)

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Packaging content

Quick start guide
Yes

Packaging data

Package depth
80 mm

Package height
210 mm

Package type
Box

Package weight
1.08 kg

Package width
300 mm

Performance

International Protection (IP) code
IP66

Maximum transfer distance
100 m

Plug and Play
Yes

Type
Network repeater

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Technical details

Master (outer) cases per pallet (sea)
15 pc(s)

Pallet gross length
80 cm

Pallet gross width
120 cm

Pallet height (air)
170 cm

Weight & dimensions

Depth
70 mm

Height
270 mm

Weight
1.08 kg

Width
200 mm

Description

LevelOne Outdoor PoE Repeater, Cascadable,. Type: Network repeater, Maximum transfer distance: 100 m, International Protection (IP) code: IP66. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Product colour: Silver, Country of origin: Taiwan. Width: 200 mm, Depth: 70 mm, Height: 270 mm. Package type: Box, Package width: 300 mm, Package depth: 80 mm

Network repeater 100 m
10/100Base-T(X)
Silver
High Power PoE compliant to simplify deployment and installation
Multiple PoE repeaters can be deployed by daisy chain to extend range
Forwards Power over Ethernet (PoE) to remote device
Forwards 802.3af/High-Power PoE to remote device
Extends PoE connection for another 100 meters
No additional power supply required
Simple Plug and Play installation
Weatherproof IP66-rated housing
