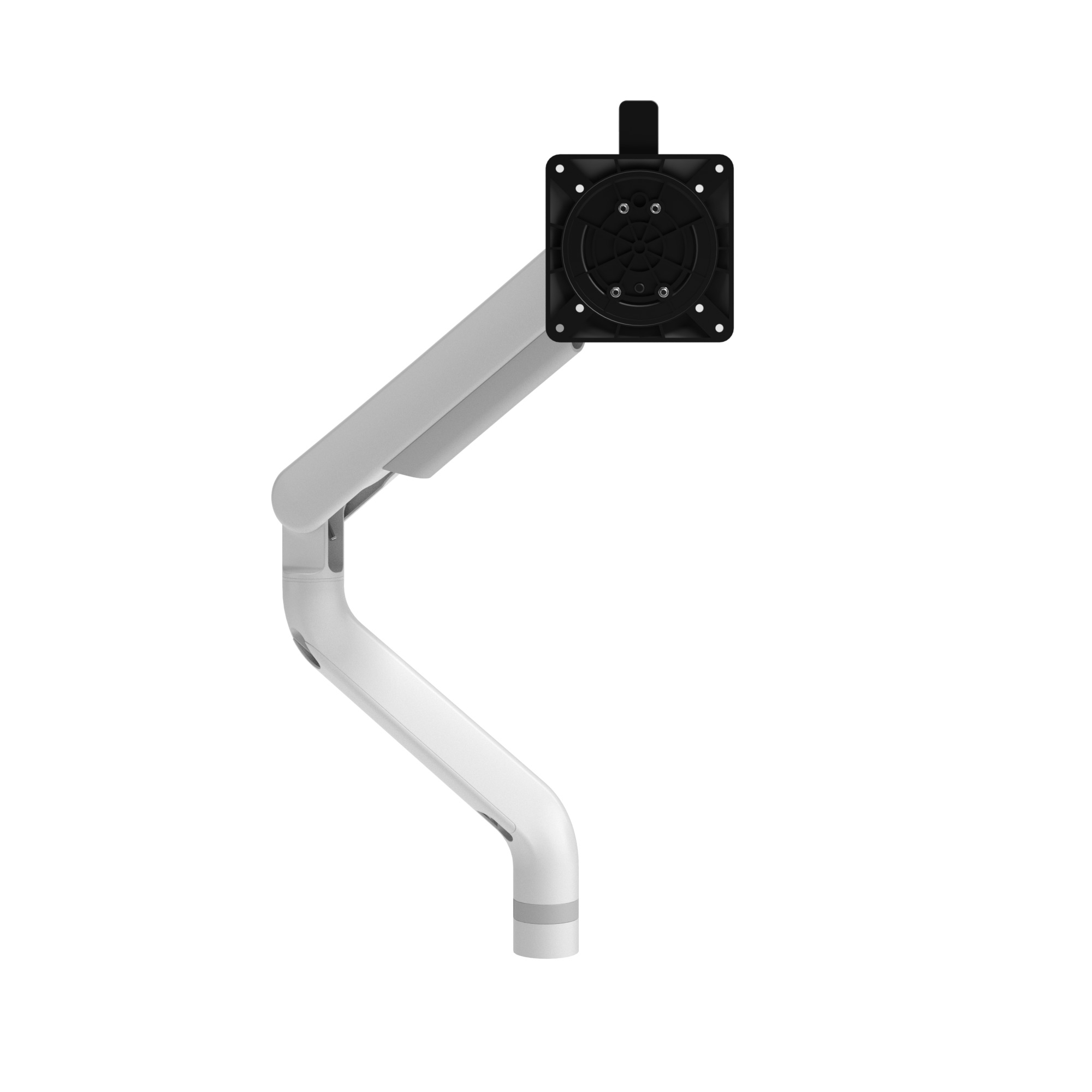

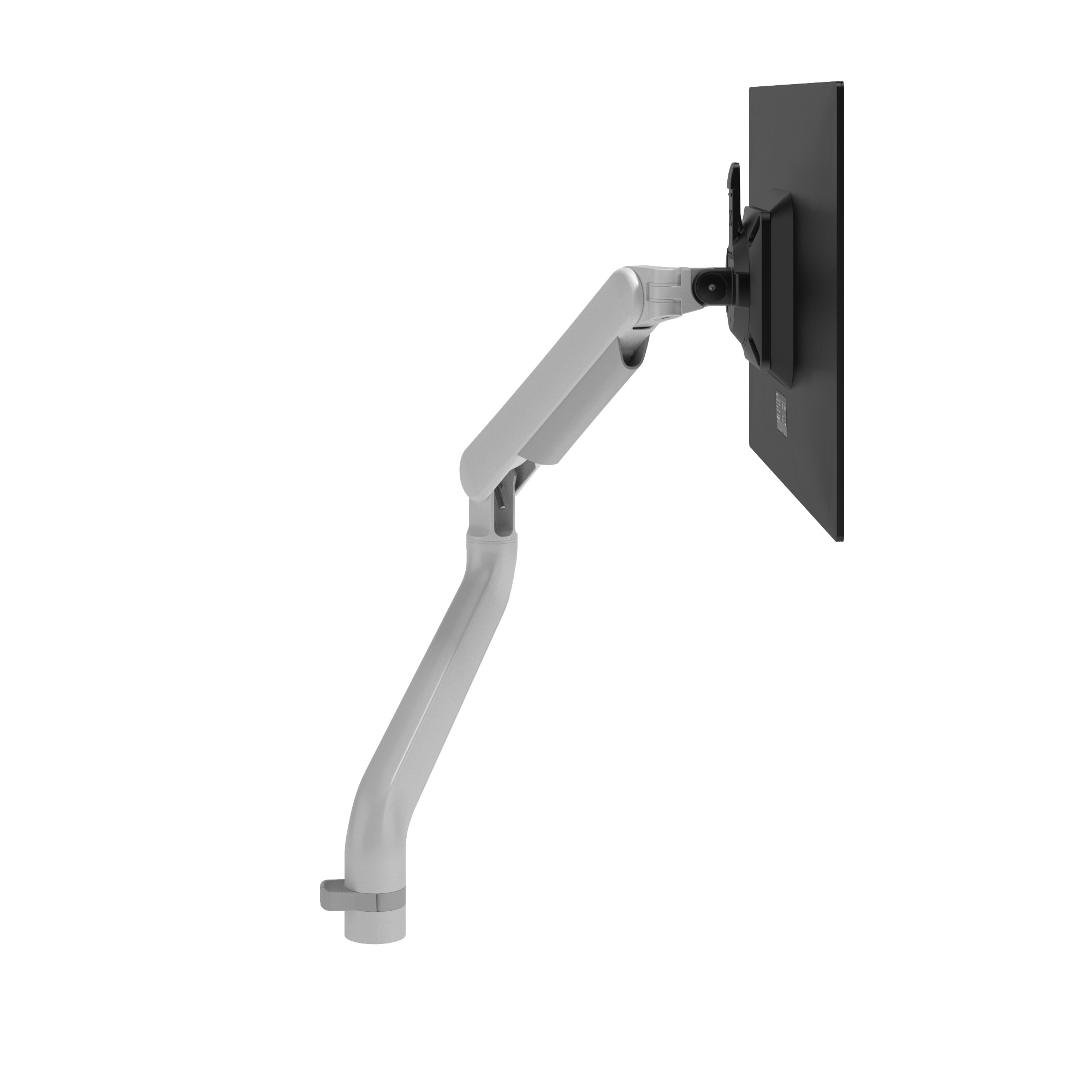

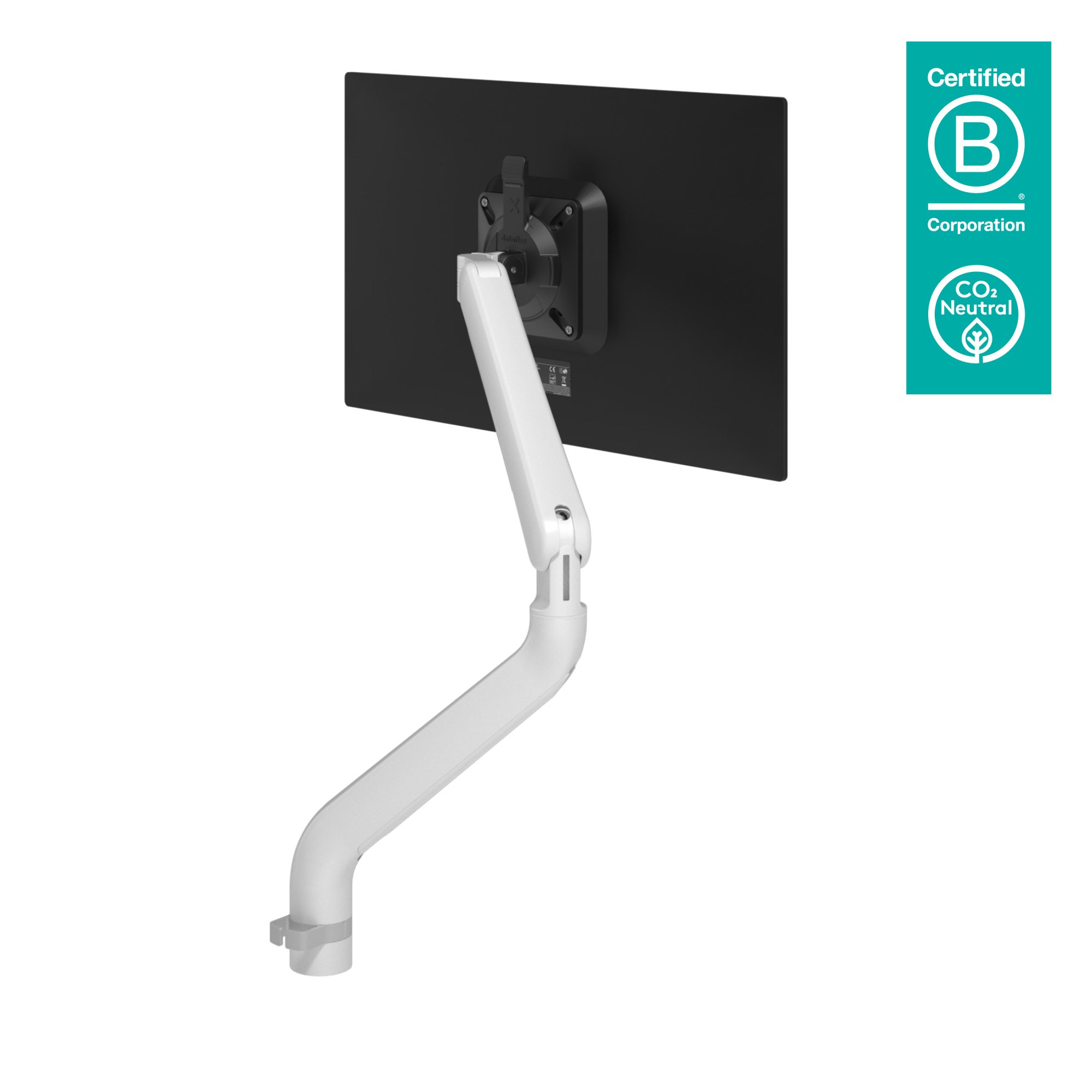

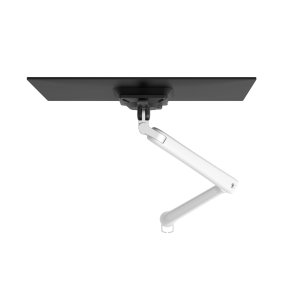

Dataflex 65.110 monitor mount / stand 131.6 cm (51.8") White Desk

Roll over image to zoom inClick to Open expanded view

Dataflex 65.110 monitor mount / stand 131.6 cm (51.8") White Desk

Name: Dataflex 65.110 monitor mount / stand 131.6 cm (51.8") White Desk
Brand: Dataflex
SKU: 65.110

SKU: 65.110

Log In to View Pricing

Dataflex 65.110, Clamp/Bolt-through, 9 kg, 131.6 cm (51.8"), 100 x 100 mm, Height adjustment, White

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Dataflex

Warranty
5 Years

SKU
65.110

Bullet points

Point
Arm: swivel 360°, limit can be set to 180º

Built-in gas spring

Capable of portrait and landscape orientation (±90º VESA rotation)

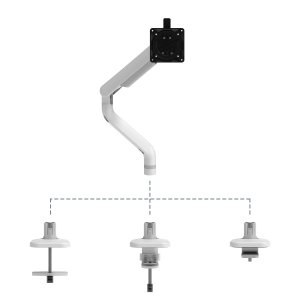

Desk mount not included, various options available: 65.810, 65.910, 65.930

Dynamic height adjustment range of 355 mm (14,0")

Independent depth adjustment of 516 mm (20,3")

INTEGRATED CABLE MANAGEMENT

Monitor size limit: height 1034 mm

Monitor: tilt +90°/-50°, swivel ±90º, rotate ±90º

Quick release included

Tension adjustment indicator for fast and precise installation

VESA MIS-D 75 x 75/100 x 100 mm compatible

Weight capacity 1,5 - 9 kg (3,3 - 19,8lb.)

Design

Product colour
White

Ergonomics

Adjustable depth
Yes

Angle of rotation
90°

Built-in gas spring
Yes

Cable management
Yes

Height adjustment
Yes

Height adjustment type
Gas spring

Number of arms
1

Swivel angle
360°

Tilt adjustment
Yes

Tilt angle range
-50 - 90°

Logistics data

Harmonized System (HS) code
85299097

Mounting

Depth (min)
51.6 cm

Maximum screen size
131.6 cm (51.8")

Maximum VESA mount
100 x 100 mm

Maximum weight capacity
9 kg

Maximum weight capacity (per display)
9 kg

Minimum VESA mount
75 x 75 mm

Monitor height (max)
103.4 cm

Mounting
Clamp/Bolt-through

Mounting type
Desk

Number of displays supported
1

Panel mounting interface
75 x 75,100 x 100 mm

Suitable for TV
No

Packaging content

Clamp included
No

Manual
Yes

Mounting kit
Yes

VESA mount included
Yes

Weight & dimensions

Package depth
318 mm

Package height
125 mm

Package type
Box

Package weight
3.1 kg

Package width
488 mm

Description

Dataflex 65.110. Mounting: Clamp/Bolt-through, Maximum weight capacity: 9 kg, Maximum screen size: 131.6 cm (51.8"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -50 - 90°. Product colour: White

Maximum weight capacity: 9 kg
Maximum screen size: 131.6 cm (51.8")
Number of displays supported: 1
Clamp/Bolt-through Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Gas spring Height adjustment Tilt adjustment
Cable management
White
Dynamic height adjustment range of 355 mm (14,0")
Independent depth adjustment of 516 mm (20,3")
Capable of portrait and landscape orientation (±90º VESA rotation)
Built-in gas spring
Tension adjustment indicator for fast and precise installation
Integrated cable management
Quick release included
VESA MIS-D 75 x 75/100 x 100 mm compatible
Monitor: tilt +90°/-50°, swivel ±90º, rotate ±90º
Arm: swivel 360°, limit can be set to 180º
Weight capacity 1,5 - 9 kg (3,3 - 19,8lb.)
Monitor size limit: height 1034 mm
Desk mount not included, various options available: 65.810, 65.910, 65.930
