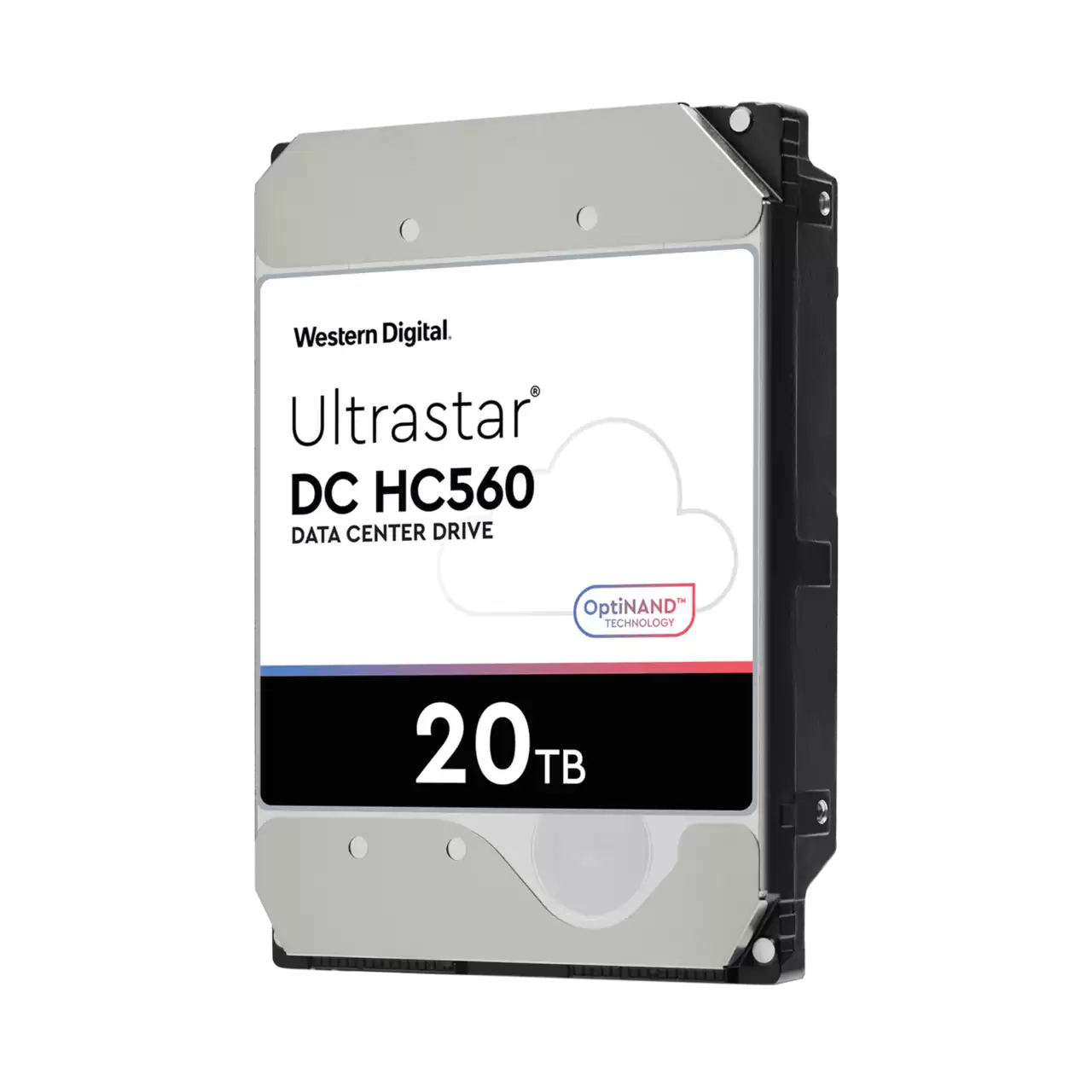

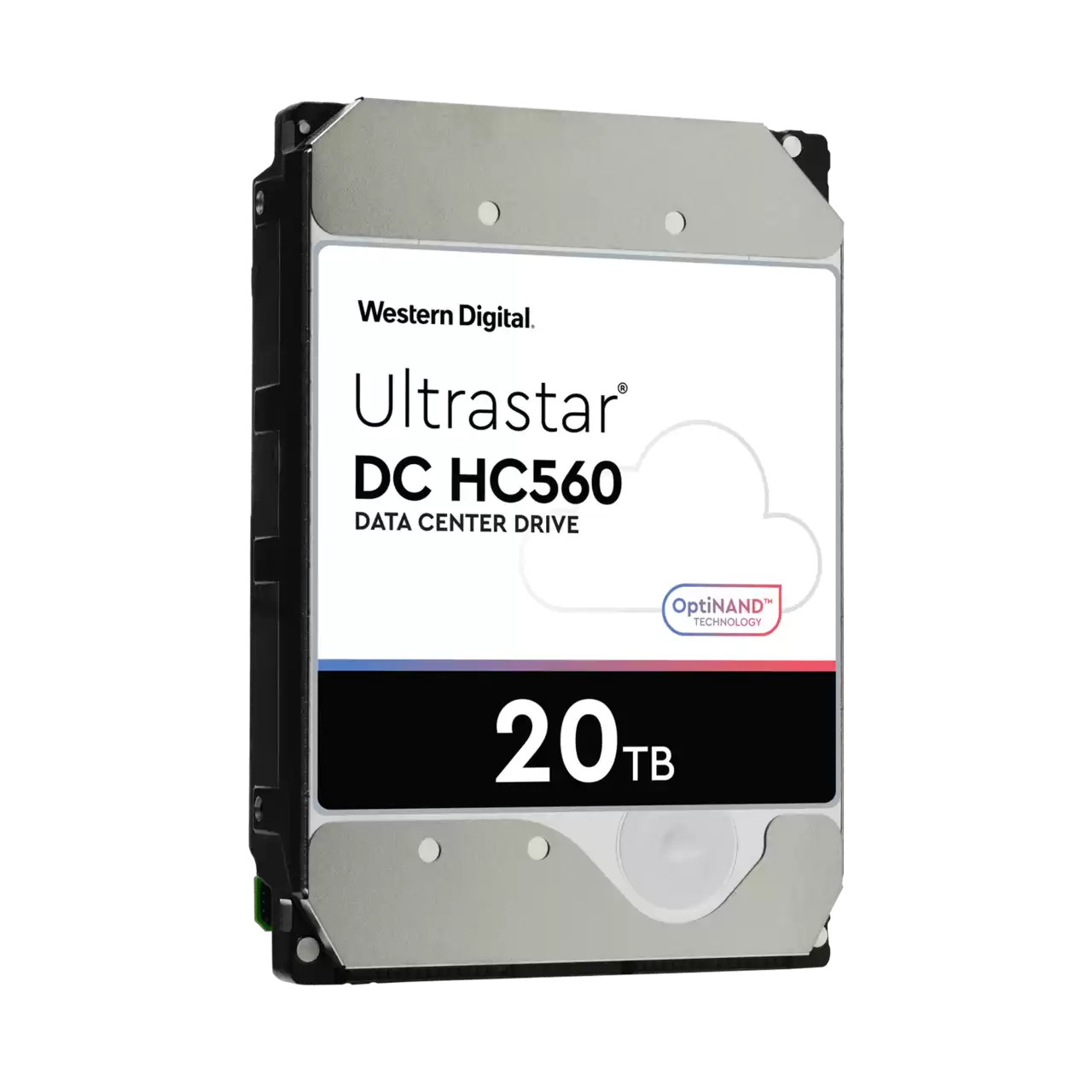

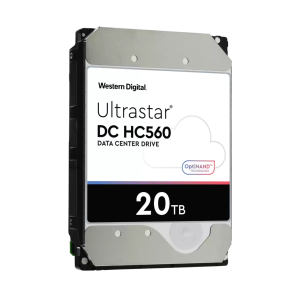

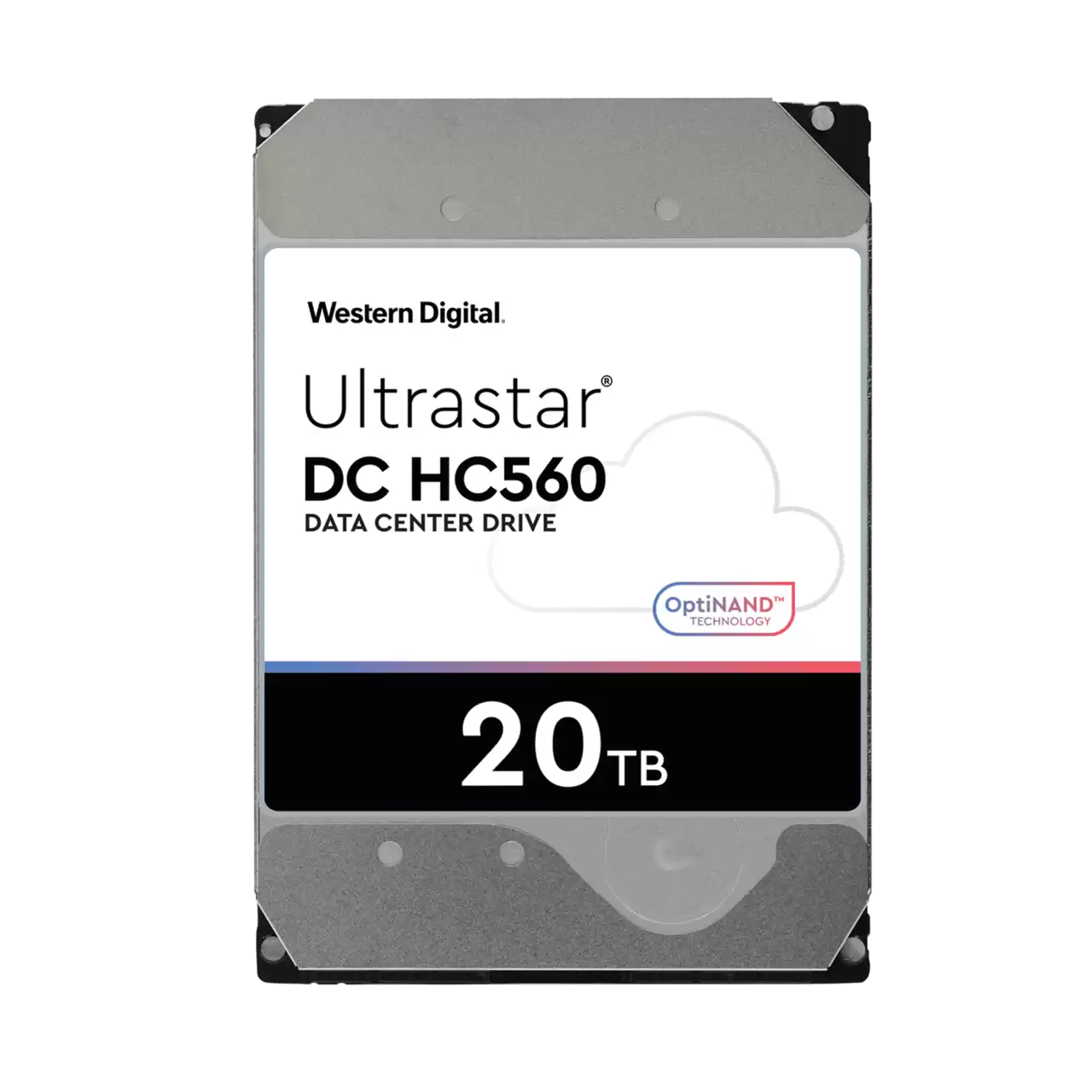

Western Digital Ultrastar DC HC560 internal hard drive 20 TB 7200 RPM 512 MB 3.5" SAS / Serial ATA II

Roll over image to zoom inClick to Open expanded view

Western Digital Ultrastar DC HC560 internal hard drive 20 TB 7200 RPM 512 MB 3.5" SAS / Serial ATA II

Name: Western Digital Ultrastar DC HC560 internal hard drive 20 TB 7200 RPM 512 MB 3.5" SAS / Serial ATA II
Brand: Western Digital
SKU: 0F38651

SKU: 0F38651

Log In to View Pricing

Western Digital Ultrastar DC HC560, 20 TB, 7200 RPM, 512 MB, 3.5", SAS / Serial ATA II

Add to compare

Product Properties

Manufacturer
Western Digital

Warranty
3 Years

SKU
0F38651

EAN
829686008441

Features

24/7 operation
Yes

Average latency
4.16 ms

Component for
Server/workstation

HDD capacity
20 TB

HDD interface transfer rate
12 Gbit/s

HDD size
3.5"

HDD speed
7200 RPM

Hot-swap
No

Interface
SAS / Serial ATA II

Mean time between failures (MTBF)
2500000 h

Noise level (idle)
2 dB

Storage drive buffer size
512 MB

Type
HDD

Workload rate limit
550 TB/year

Operational conditions

Operating temperature (T-T)
5 - 60 °C

Storage temperature (T-T)
-40 - 70 °C

Other features

Certification
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

Linux operating systems supported
Yes

Windows operating systems supported
Yes

Power

Operating voltage
5 / 12 V

Power consumption (idle)
6.1 W

Power consumption (write)
9.3 W

Weight & dimensions

Depth
147 mm

Height
26.1 mm

Weight
690 g

Width
101.6 mm

Description

Western Digital Ultrastar DC HC560. HDD capacity: 20 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: SAS / Serial ATA II

20 TB 3.5" 7200 RPM SAS / Serial ATA II
Server/workstation HDD
Storage drive buffer size: 512 MB
12 Gbit/s
690 g
