4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg
Roll over image to zoom inClick to Open expanded view
4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg
4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg
4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg
4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg
4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg
4U, SAS 12Gb/s, 6 x Mini-SAS HD, hot-swap, 1600 W, 27.3 kg

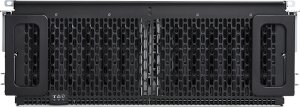

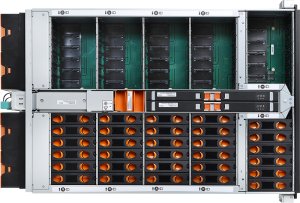

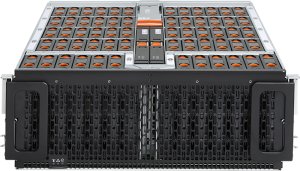

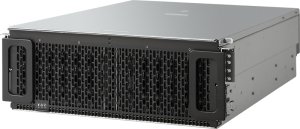

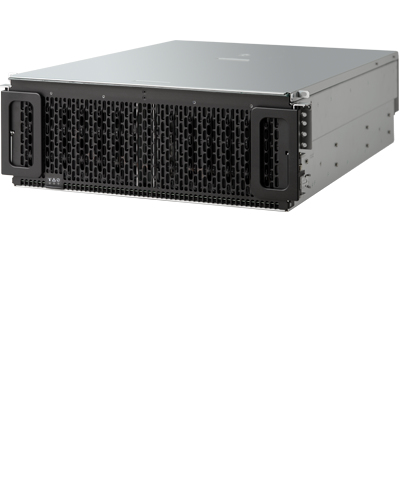

Western Digital Ultrastar Data60 disk array 1080 TB Rack (4U) Black

SKU: 1ES1865
Western Digital Ultrastar Data60, 1080 TB, HDD, Serial Attached SCSI (SAS) III, 3.5", Rack (4U), Black
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 5 Years
  • SKU
  • 1ES1865
  • EAN
  • 5050914204488
  • Bullet points
  • Design
  • Redundant fans support
  • Yes
  • Logistics data
  • Operational conditions
  • Performance
  • Ports & interfaces
  • Number of mini-SAS host ports
  • 12
  • USB connectivity
  • No
  • Power
  • Number of power supply units
  • 2
  • Power supply unit (PSU) capacity
  • 1600 W
  • Redundant power supply (RPS) support
  • Yes
  • Storage
  • Hot-swap drive bays
  • Yes
  • Installed storage drive type
  • HDD
  • Number of storage drives installed
  • 60
  • Number of storage drives supported
  • 60
  • Storage drives installed
  • Yes
  • Weight & dimensions

Description

Western Digital Ultrastar Data60. Total installed storage capacity: 1080 TB, Installed storage drive type: HDD, Storage drive interface: Serial Attached SCSI (SAS) III, Storage drive size: 3.5". Chassis type: Rack (4U). Device class: Small & Medium Business. Number of storage drives supported: 60, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: SAS-3, Serial ATA III. Width: 447 mm, Depth: 712 mm, Height: 175 mm, Weight: 79.4 kg. Product colour: Black
  • Small & Medium Business
  • Rack (4U) Black
  • HDD Storage drives installed 1080 TB
  • Hot-swap drive bays
  • 1600 W
  • Up to 60 Ultrastar HDDs (SAS or SATA)
  • Up to 1.2PB1 raw capacity in 4U using forthcoming 20TB SMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost

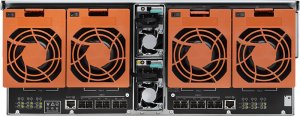

  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
