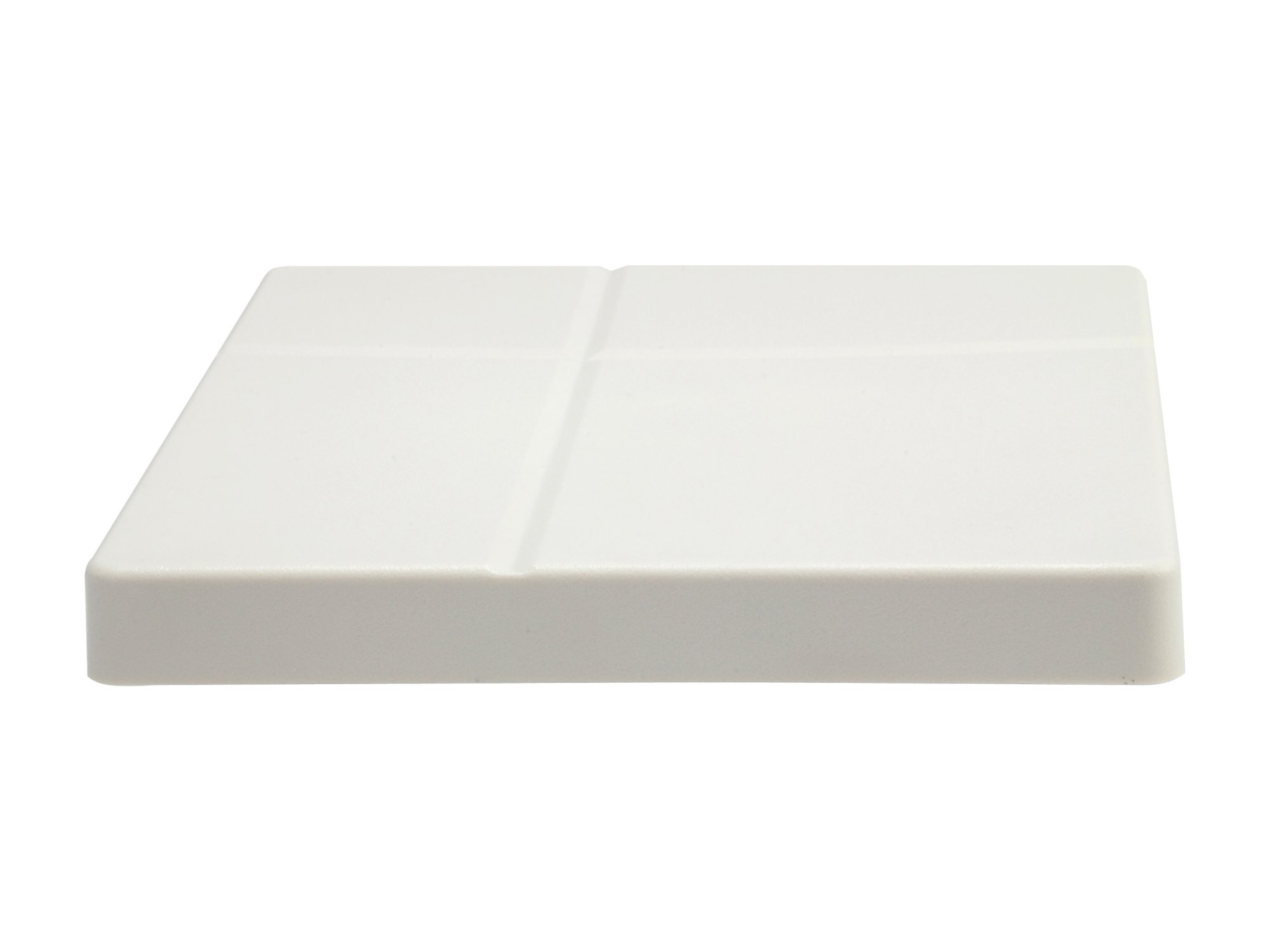

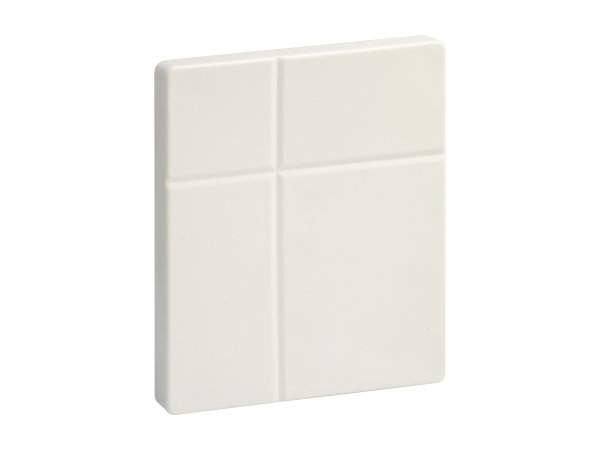

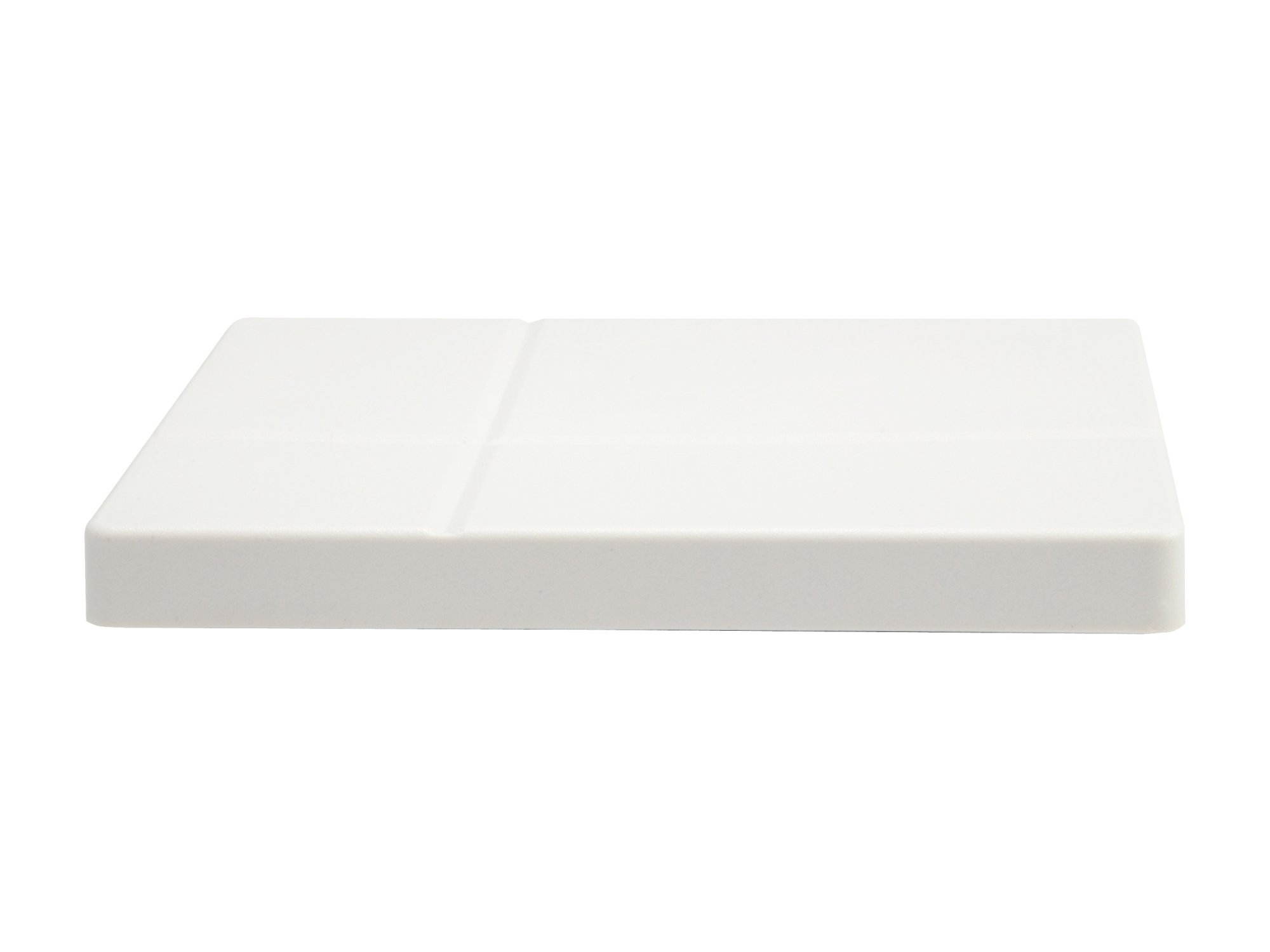

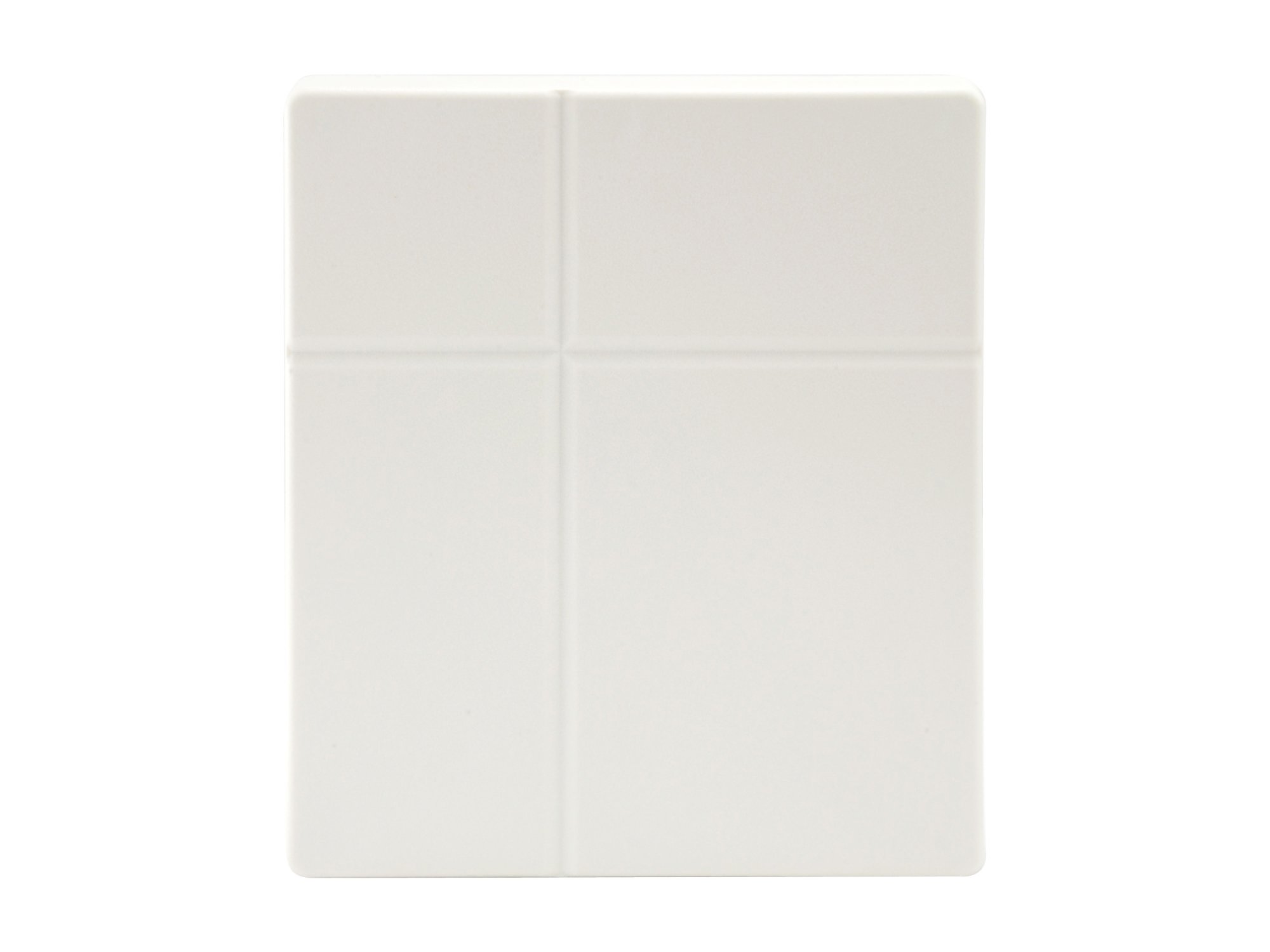

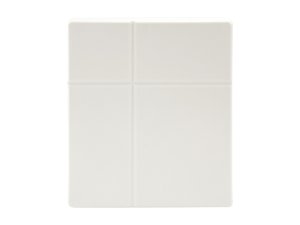

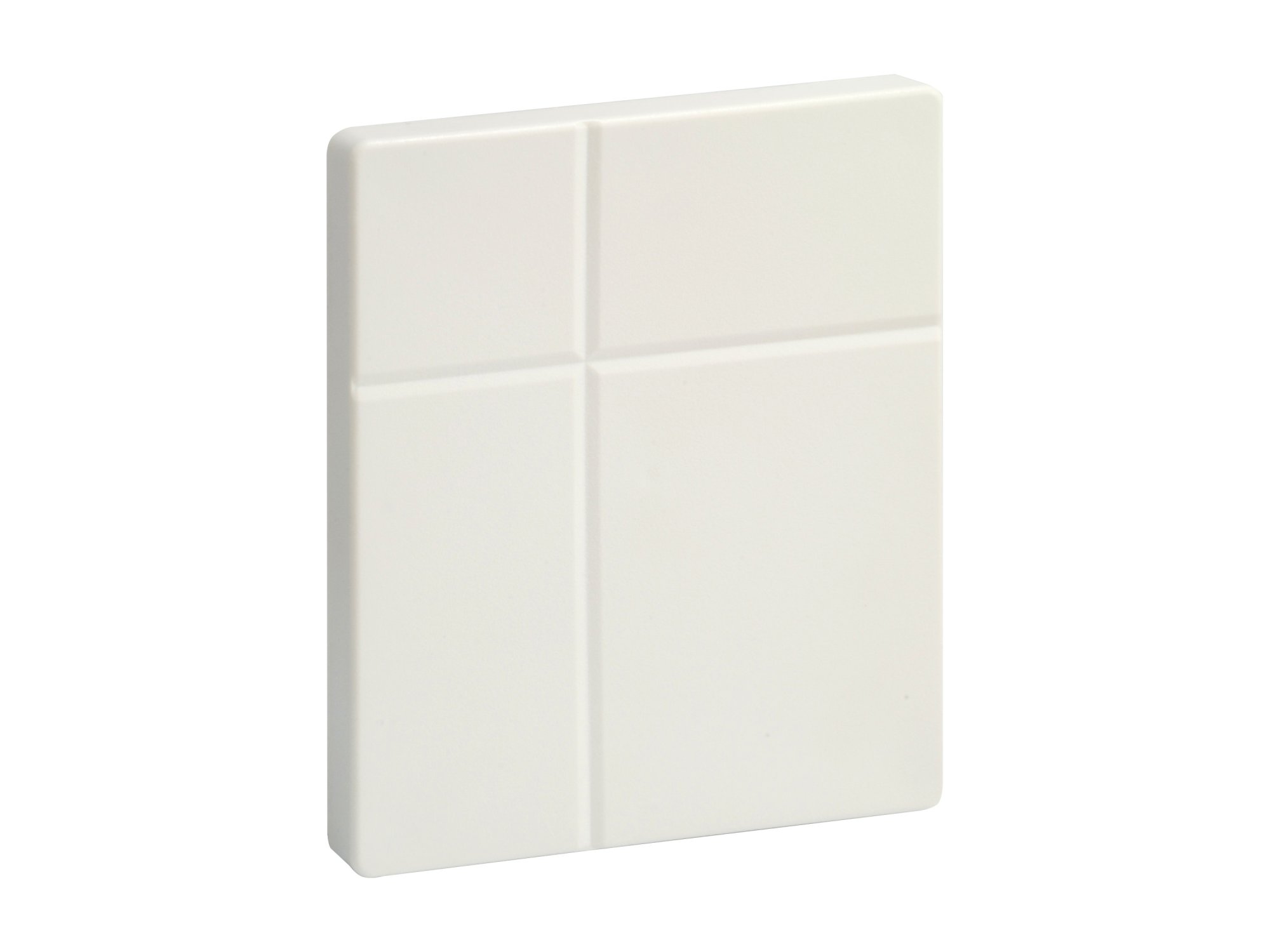

LevelOne 15dBi 5GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 15dBi 5GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor

Name: LevelOne 15dBi 5GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: WAN-9151

SKU: WAN-9151

LevelOne 15dBi 5GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor, 15 dBi, 5.1 ~ 5.9 GHz, IEEE 802.11a, IEEE 802.11n, 50 Ω, 22°, 15°

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
WAN-9151

EAN
4015867203583

Features

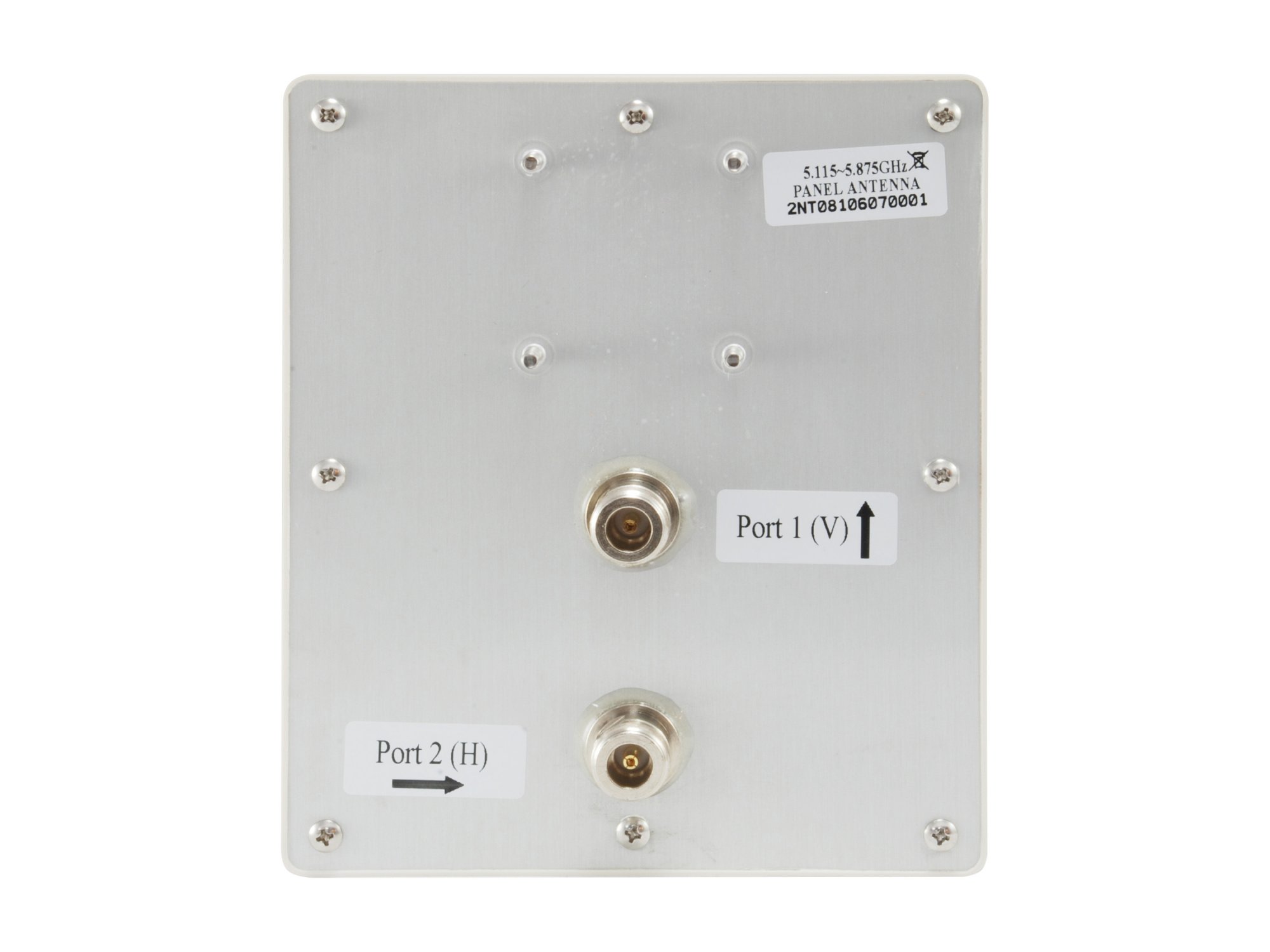

Antenna connector type
N-type

Antenna type
Directional antenna

Country of origin
Taiwan

Maximum cable loss with connectors
-10 dB

Polarization
Dual polarization

Product colour
Grey

Protection features
Dust resistant, Snow resistant, Water resistant

Purpose
Indoor & outdoor

Survival wind speed
180 km/h

Voltage Standing Wave Ratio (VSWR)
2.0

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
15.5 kg

Master (outer) case height
340 mm

Master (outer) case length
450 mm

Master (outer) case width
370 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

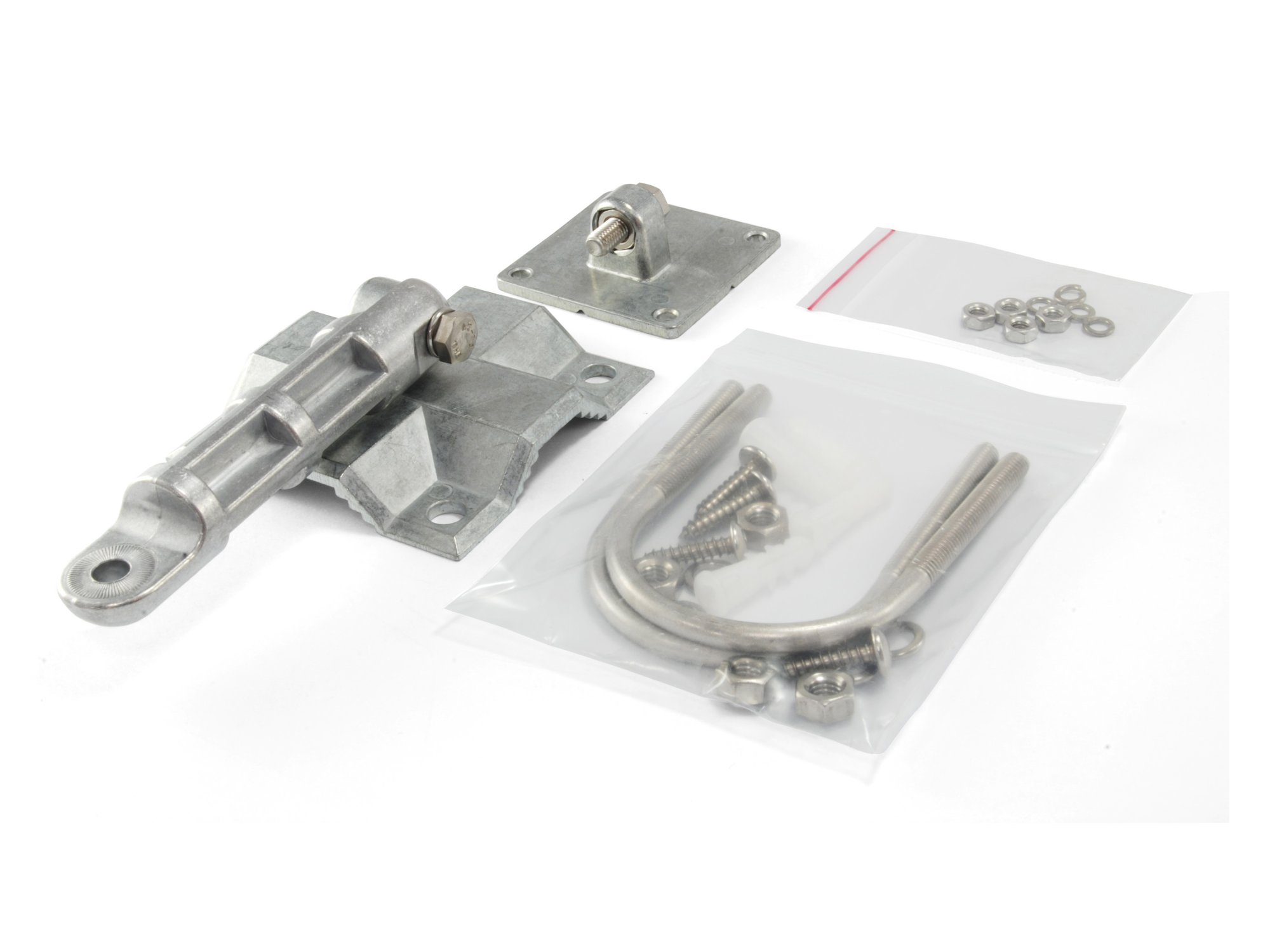

Mounting kit
Yes

Package type
Box

Quick installation guide
Yes

Performance

Antenna gain level (max)
15 dBi

Frequency band
5.1 ~ 5.9 GHz

Horizontal beam width
22°

Impedance
50 Ω

Networking standards
IEEE 802.11a, IEEE 802.11n

Vertical beam width
15°

Weight & dimensions

Depth
162.5 mm

Height
16 mm

Package depth
218 mm

Package height
74 mm

Package weight
726 g

Package width
161 mm

Weight
208 g

Width
137.5 mm

Description

LevelOne 15dBi 5GHz Directional Dual-Polarization Panel Antenna, Indoor/Outdoor. Antenna gain level (max): 15 dBi, Frequency band: 5.1 ~ 5.9 GHz, Networking standards: IEEE 802.11a, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Dual polarization. Width: 137.5 mm, Depth: 162.5 mm, Height: 16 mm. Package type: Box. Master (outer) case width: 370 mm, Master (outer) case length: 450 mm, Master (outer) case height: 340 mm

Directional antenna N-type Grey
15 dBi
5.1 ~ 5.9 GHz
50 Ω
Dual polarization
Survival wind speed: 180 km/h
