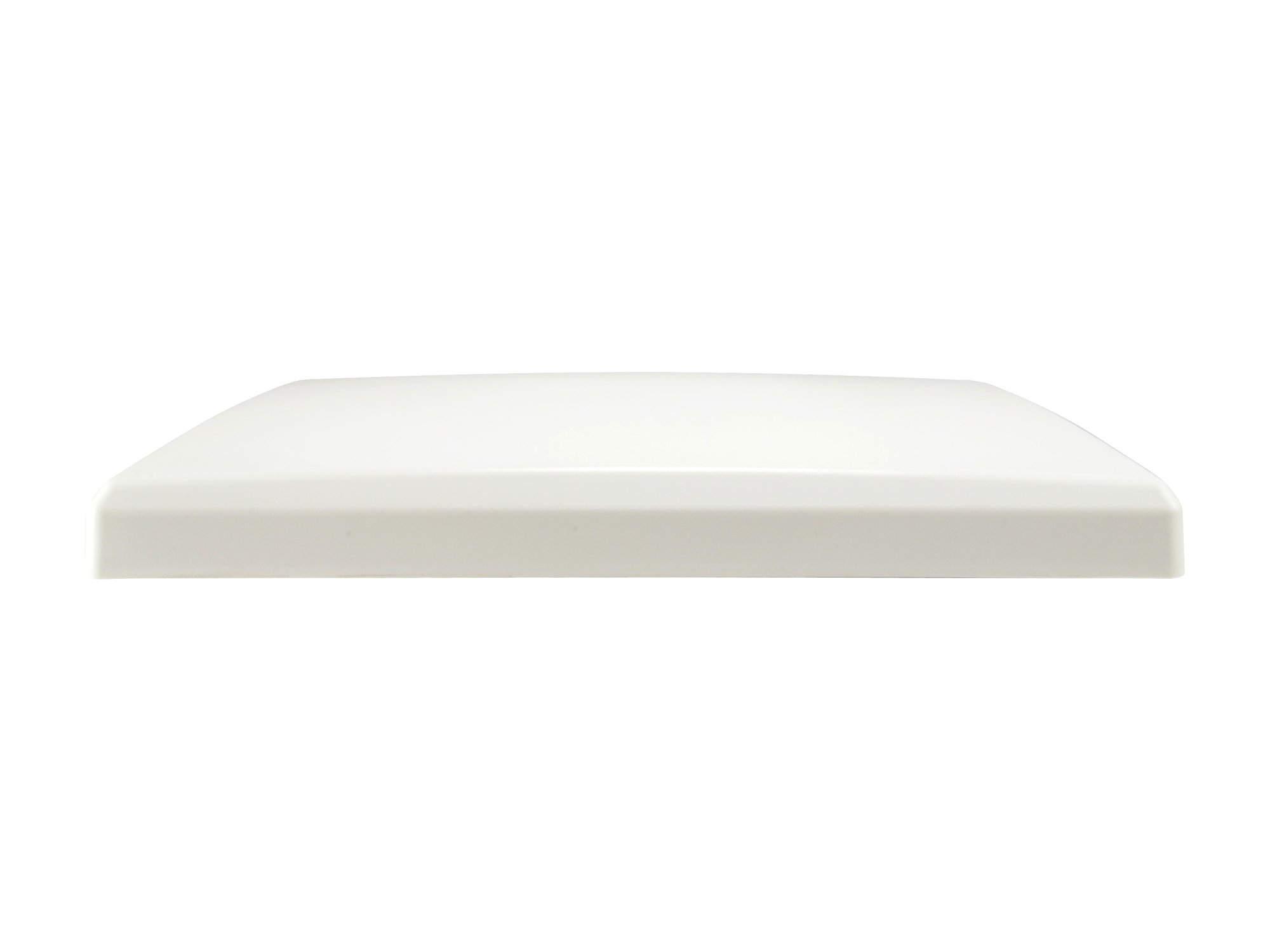

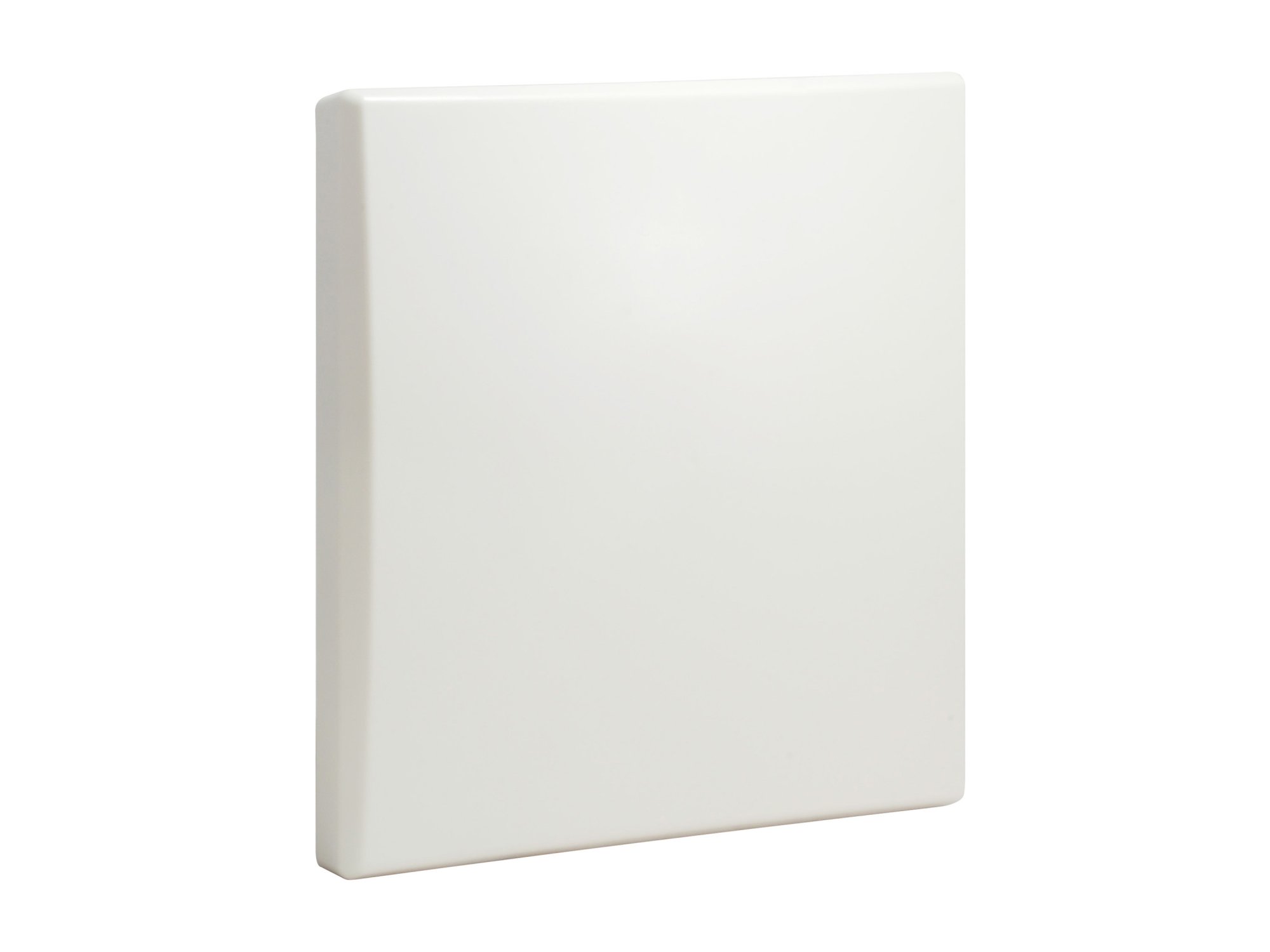

LevelOne 20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor

Name: LevelOne 20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: WAN-2201

SKU: WAN-2201

LevelOne 20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor, 20 dBi, 2.3 ~ 2.7 GHz, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 50 Ω, 20°, 20°

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
WAN-2201

EAN
4015867203552

Features

Antenna connector type
N-type

Antenna type
Directional antenna

Country of origin
Taiwan

Maximum cable loss with connectors
-10 dB

Polarization
Vertical polarization

Product colour
Grey

Protection features
Dust resistant, Snow resistant, Water resistant

Purpose
Indoor & outdoor

Survival wind speed
180 km/h

Voltage Standing Wave Ratio (VSWR)
2.0

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
16 kg

Master (outer) case height
430 mm

Master (outer) case length
430 mm

Master (outer) case width
530 mm

Products per master (outer) case
5 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

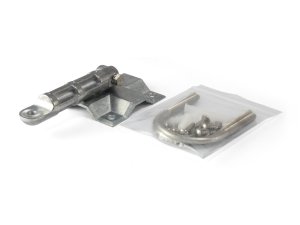

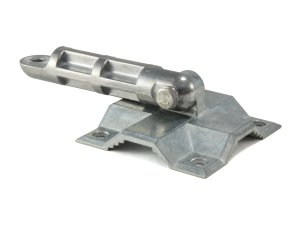

Mounting kit
Yes

Package type
Box

Quick installation guide
Yes

Performance

Antenna gain level (max)
20 dBi

Frequency band
2.3 ~ 2.7 GHz

Horizontal beam width
20°

Impedance
50 Ω

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Vertical beam width
20°

Weight & dimensions

Depth
410 mm

Height
44 mm

Package depth
515 mm

Package height
100 mm

Package weight
2.87 kg

Package width
415 mm

Weight
1.68 kg

Width
410 mm

Description

LevelOne 20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor. Antenna gain level (max): 20 dBi, Frequency band: 2.3 ~ 2.7 GHz, Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 410 mm, Depth: 410 mm, Height: 44 mm. Package type: Box. Master (outer) case width: 530 mm, Master (outer) case length: 430 mm, Master (outer) case height: 430 mm

Directional antenna N-type Grey
20 dBi
2.3 ~ 2.7 GHz
50 Ω
Vertical polarization
Survival wind speed: 180 km/h
