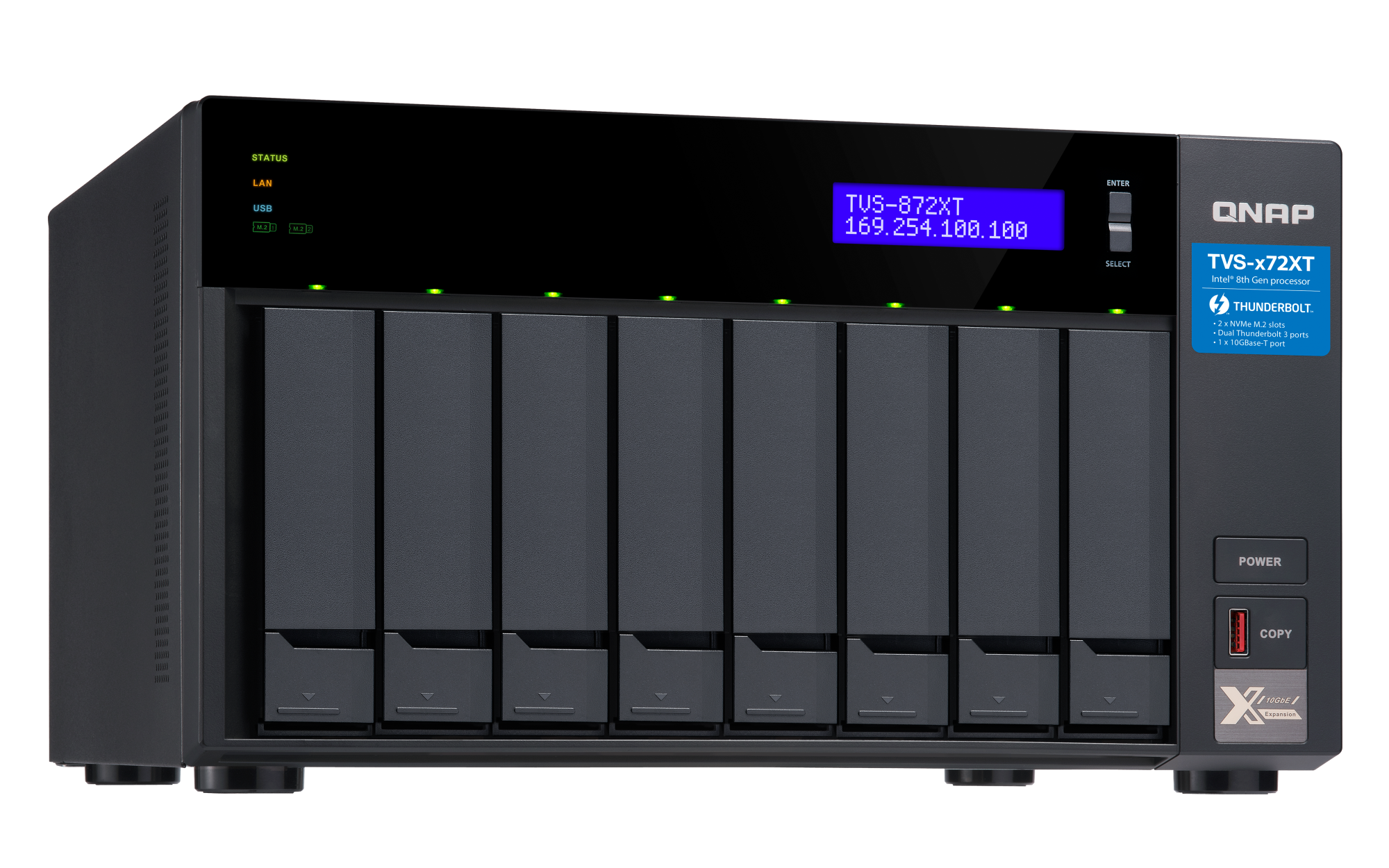

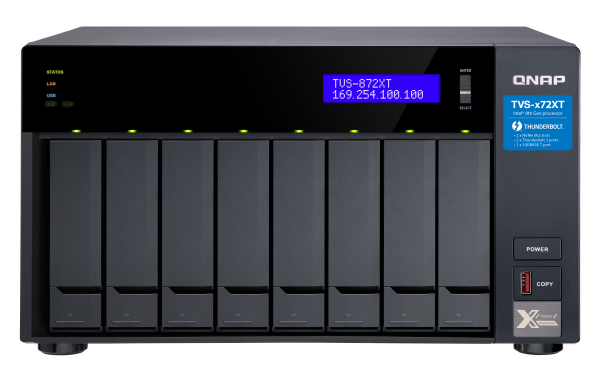

QNAP TVS-872XT-i5-16G 32TB (Seagate Ironwolf Pro) 8-Bay NAS; Intel core i5-8400T 6-core 1.7 GHz Processor Tower Ethernet LAN Black

Roll over image to zoom inClick to Open expanded view

QNAP TVS-872XT-i5-16G 32TB (Seagate Ironwolf Pro) 8-Bay NAS; Intel core i5-8400T 6-core 1.7 GHz Processor Tower Ethernet LAN Black

Name: QNAP TVS-872XT-i5-16G 32TB (Seagate Ironwolf Pro) 8-Bay NAS; Intel core i5-8400T 6-core 1.7 GHz Processor Tower Ethernet LAN Black
Brand: QNAP
SKU: TVS-872XT-I5-16G/32TB-IWPRO

SKU: TVS-872XT-I5-16G/32TB-IWPRO

Log In to View Pricing

QNAP TVS-872XT-i5-16G 32TB (Seagate Ironwolf Pro) 8-Bay NAS; Intel core i5-8400T 6-core 1.7 GHz Processor, NAS, Tower, Black

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
1 Year

Drive
With drives

SKU
TVS-872XT-I5-16G/32TB-IWPRO

EAN
5050914114015

Design

Built-in display
Yes

Built-in speaker(s)
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Fan diameter
12 cm

Fan diameter 2
6 cm

LED indicators
HDD, LAN, USB

Number of built-in speakers
1

Number of fans
4 fan(s)

Product colour
Black

Graphics

Maximum on-board graphics card memory
64 GB

Number of displays supported (on-board graphics)
3

On-board graphics card base frequency
350 MHz

On-board graphics card dynamic frequency (max)
1050 MHz

On-board graphics card ID
0x3E92

Memory

Flash memory
4000 MB

Internal memory type
DDR4

Maximum RAM supported
32 GB

Memory Installed
16 GB

Memory slots
2

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
10,100,1000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Supported network protocols
TCP/IP, IPv4, IPv6

Wake-on-LAN ready
Yes

Wi-Fi
No

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Other features

Digital Living Network Alliance (DLNA) certified
Yes

Packaging content

Cables included
AC, LAN (RJ-45)

Quick installation guide
Yes

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox

Built-in FTP server
Yes

Built-in iTunes server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SNMPv3, SSH, SSL/TLS

Share folder
CIFS/SMB

System log
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

USB copy function
Yes

Web-based management
Yes

Ports & interfaces

3.5 mm (1/8-inch) out
Yes

Ethernet LAN (RJ-45) ports
3

HDMI ports
1

Microphone in
Yes

PCI Express x4 (Gen 3.x) slots
1

Thunderbolt 3 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
1

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Bus type
DMI3

Configurable TDP-down frequency
1.2 GHz

Conflict-Free processor
Yes

CPU configuration (max)
1

ECC supported by processor
No

Maximum internal memory supported by processor
64 GB

Memory bandwidth supported by processor (max)
41.6 GB/s

PCI Express configurations
1x16, 1x8+2x4, 2x8

PCI Express slots version
3.0

Processor boost frequency
3.3 GHz

Processor cache
9 MB

Processor cache type
Smart Cache

Processor code
SR3X6

Processor frequency
1.7 GHz

Processor lithography
14 nm

Processor operating modes
64-bit

Processor package size
37.5 x 37.5 mm

Scalability
1S

Stepping
U0

System bus rate
8 GT/s

Thermal Design Power (TDP)
35 W

Tjunction
100 °C

Processor special features

Embedded options available
No

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Clear Video Technology
Yes

Intel Enhanced Halt State
Yes

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Stable Image Platform Program (SIPP)
No

Intel Trusted Execution Technology
No

Intel TSX-NI
No

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Clear Video HD Technology (Intel® CVT HD)
Yes

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
No

Intel® Identity Protection Technology (Intel® IPT)
Yes

Intel® InTru™ 3D Technology
Yes

Intel® OS Guard
Yes

Intel® Quick Sync Video Technology
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Maximum number of PCI Express lanes
16

Memory channels supported by processor
Dual

Memory types supported by processor
DDR4-SDRAM

Thermal Monitoring Technologies
Yes

Thermal solution specification
PCG 2015A

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operating system version
4.4.0

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Storage

Bad block scan
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives supported
8

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
279.6 mm

Height
188.2 mm

Weight
7.06 kg

Width
329.3 mm

Description

QNAP TVS-872XT-i5-16G 32TB (Seagate Ironwolf Pro) 8-Bay NAS; Intel core i5-8400T 6-core 1.7 GHz Processor. Installed storage drive type: HDD, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA III. Processor frequency: 1.7 GHz, Processor boost frequency: 3.3 GHz, Processor cache: 9 MB. Internal memory: 16 GB, Internal memory type: DDR4, Maximum RAM supported: 32 GB. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: TCP/IP, IPv4, IPv6. On-board graphics card base frequency: 350 MHz, On-board graphics card dynamic frequency (max): 1050 MHz, On-board graphics card ID: 0x3E92

Small & Medium Business NAS Tower Black
4.4.0
Number of storage drives supported: 8 HDD & SSD Serial ATA III
1.7 GHz
16 DDR4 Memory slots: 2
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 250 W
High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices
PCIe expandability allows the use of an entry-level graphics card to accelerate NAS video processing and GPU computing
Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency
4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
