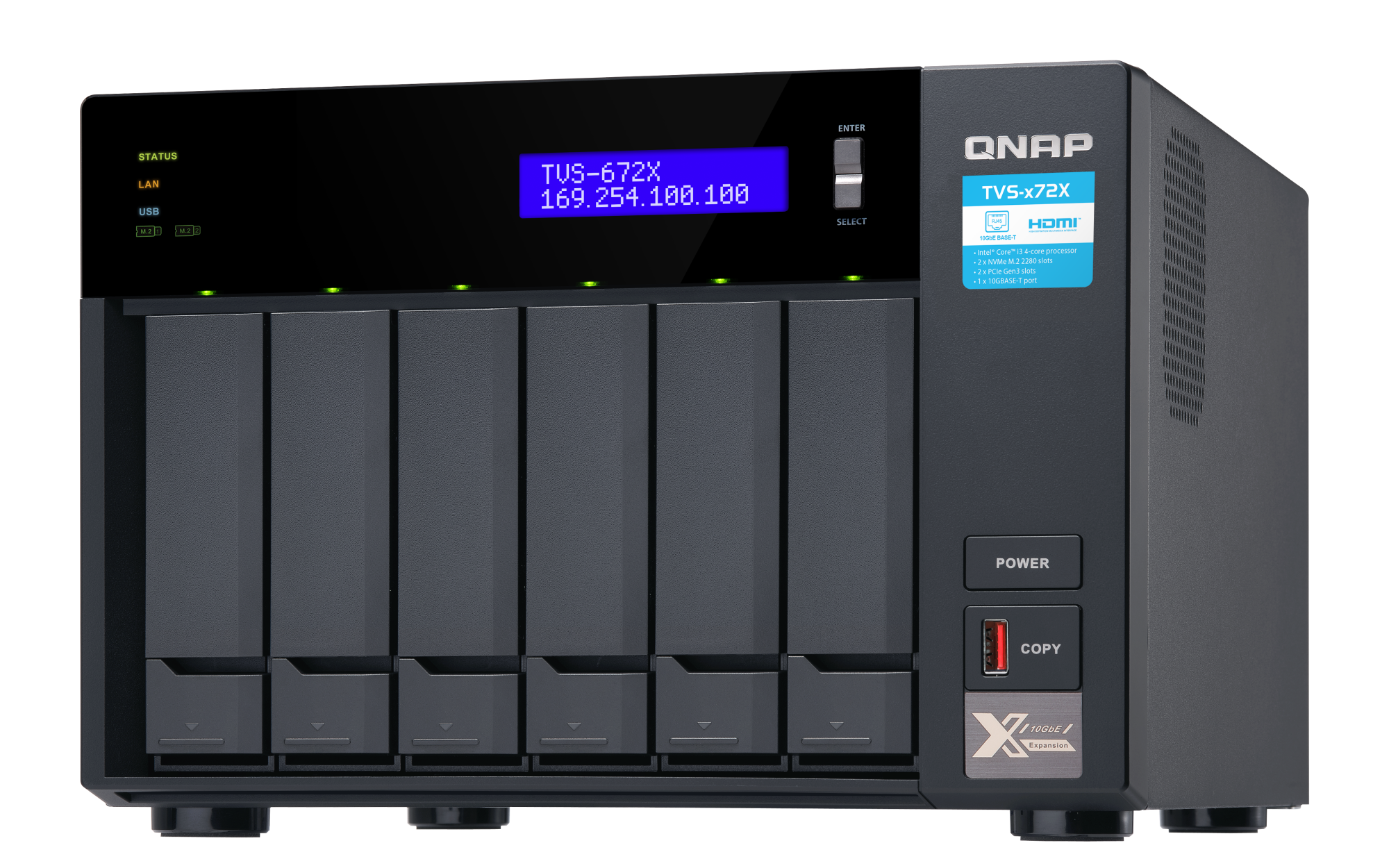

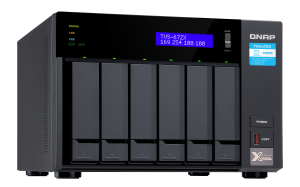

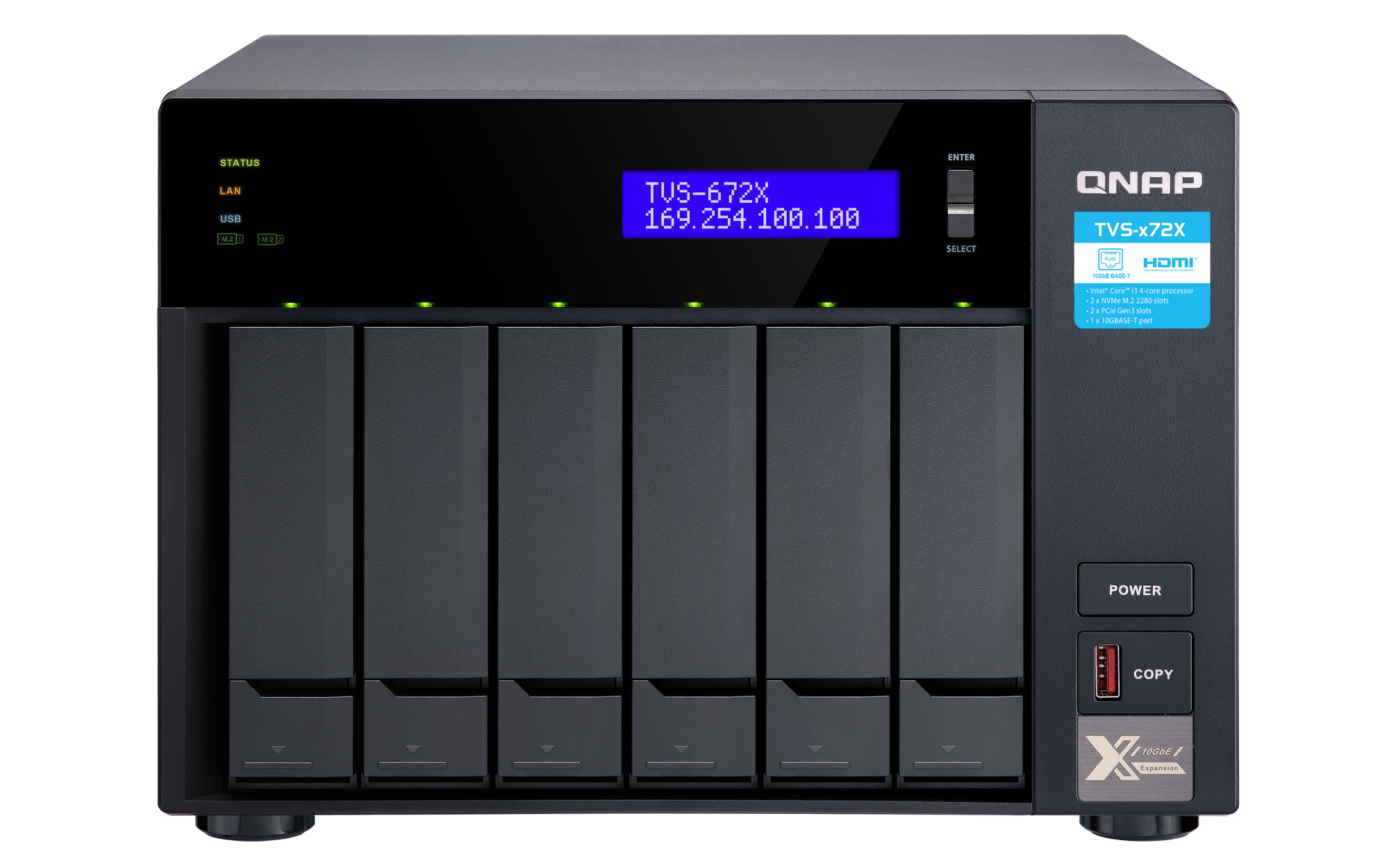

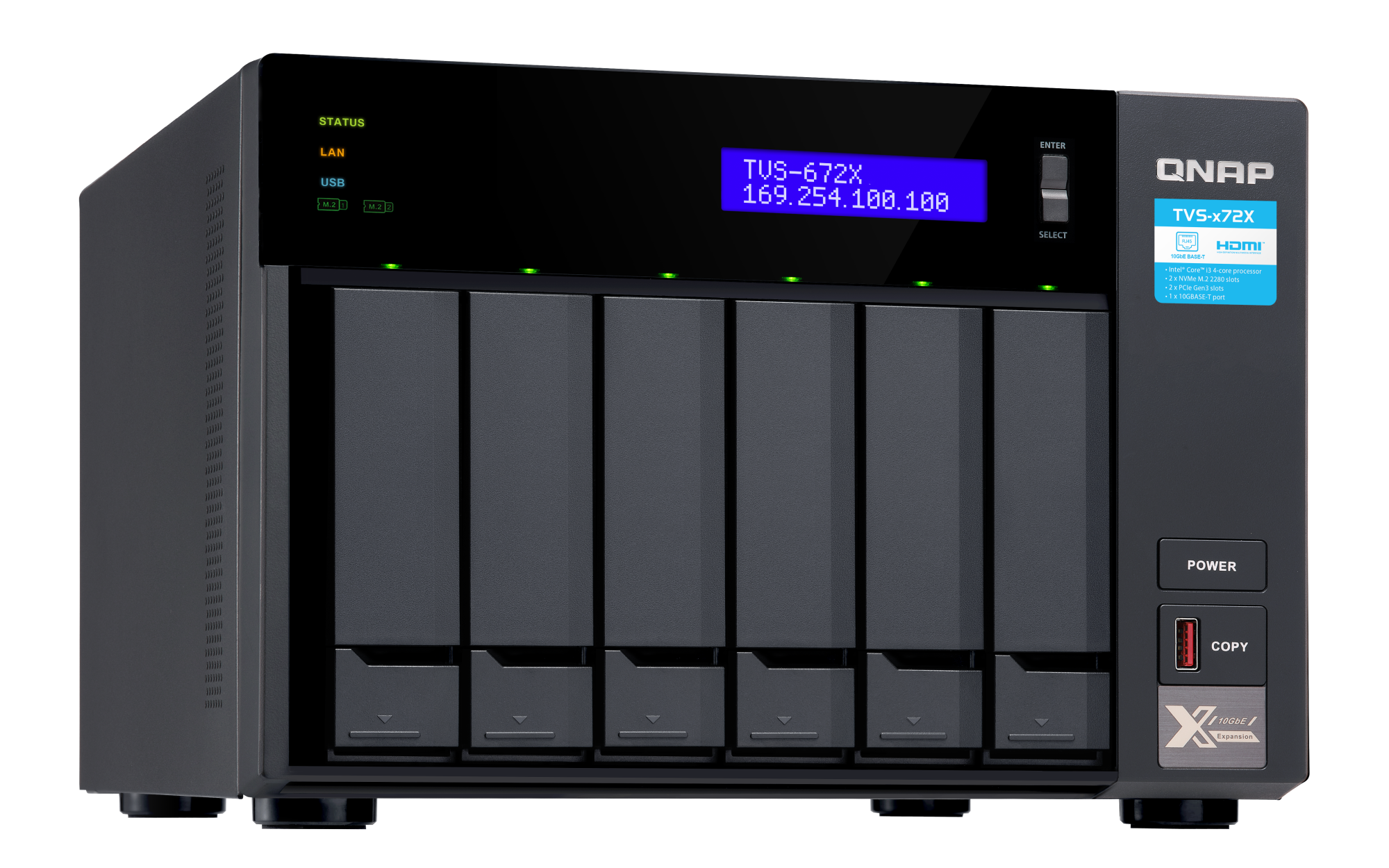

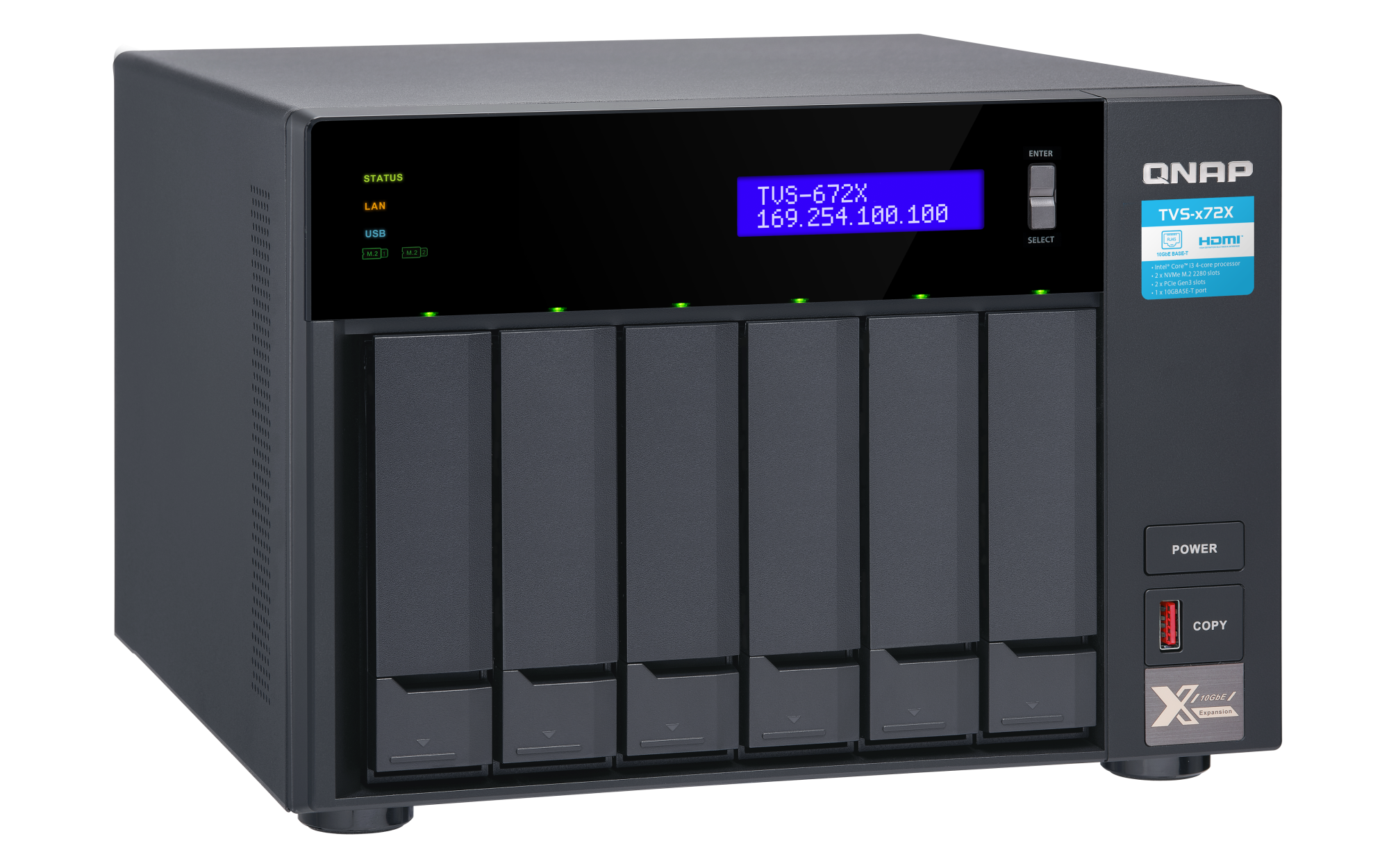

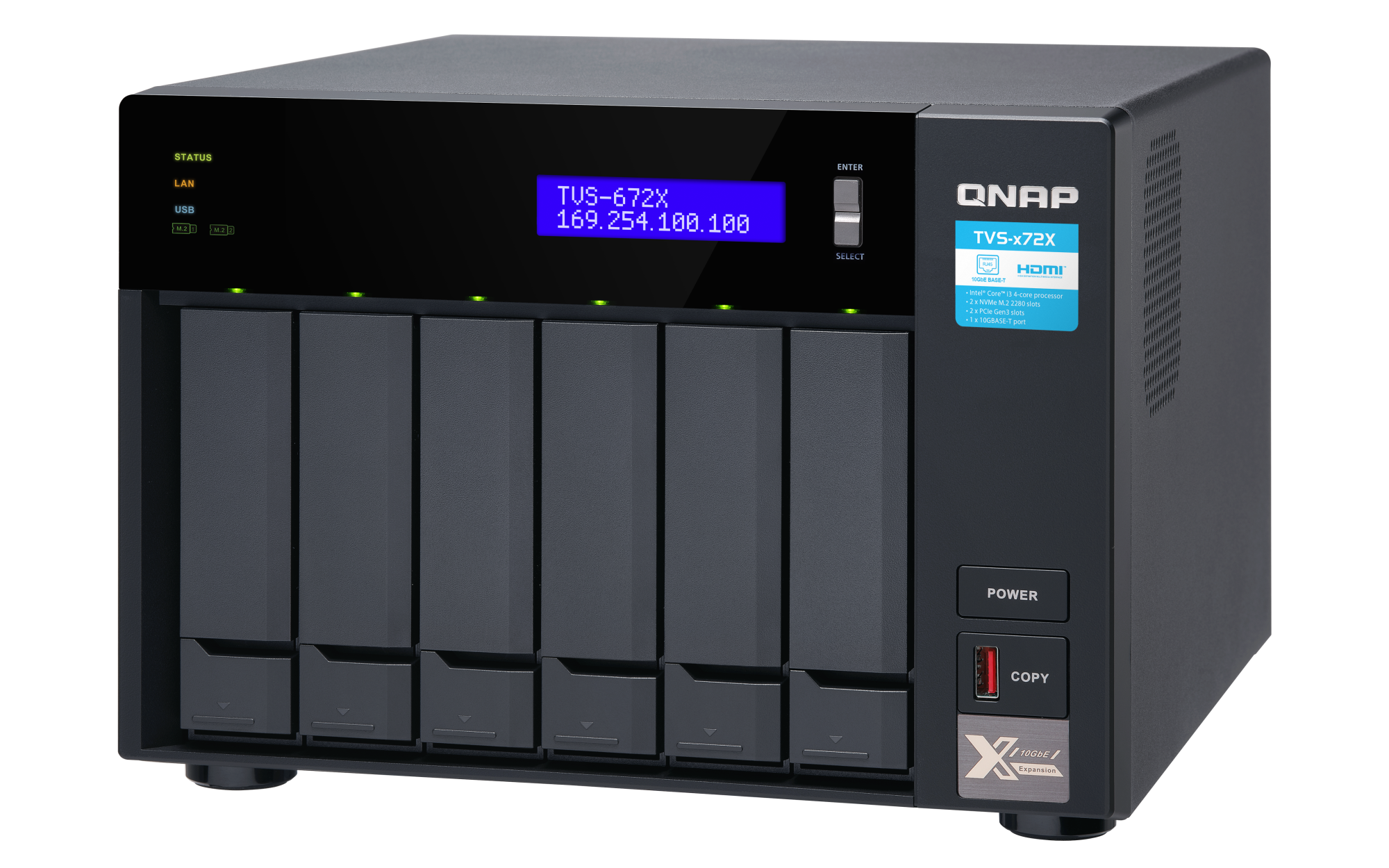

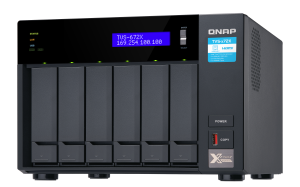

QNAP TVS-672X-I3-8G/24TB-EXOS NAS/storage server Tower Ethernet LAN Black i3-8100T

Roll over image to zoom inClick to Open expanded view

QNAP TVS-672X-I3-8G/24TB-EXOS NAS/storage server Tower Ethernet LAN Black i3-8100T

Name: QNAP TVS-672X-I3-8G/24TB-EXOS NAS/storage server Tower Ethernet LAN Black i3-8100T
Brand: QNAP
SKU: TVS-672X-I3-8G/24TB-EXOS

SKU: TVS-672X-I3-8G/24TB-EXOS

Log In to View Pricing

QNAP TVS-672X-I3-8G/24TB-EXOS, NAS, Tower, Intel® Core™ i3, i3-8100T, 24 TB, Black

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
With drives

SKU
TVS-672X-I3-8G/24TB-EXOS

Bullet points

Design

Built-in display
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Display type
LCD

Drive bay locking
No

Fan diameter
12 cm

Fan diameter 2
6 cm

LED indicators
Yes

Number of fans
3 fan(s)

Product colour
Black

Memory

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Wake-on-LAN ready
Yes

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Power cables quantity
1

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, USB drive, iSCSI LUN

Backup function
Yes

Browser supported
Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari

Built-in BitTorrent client
Yes

Built-in FTP server
Yes

Built-in UPnP AV media server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Disk scan
Yes

Hot spare
Yes

Multilingual support
Yes

Noise level
23.8 dB

Number of users
4096 user(s)

On/off switch
Yes

Password authentication
Yes

Remotely operated
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS, TLS

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Third-party support
Yes

Type
NAS

USB copy function
Yes

Web-based management
Yes

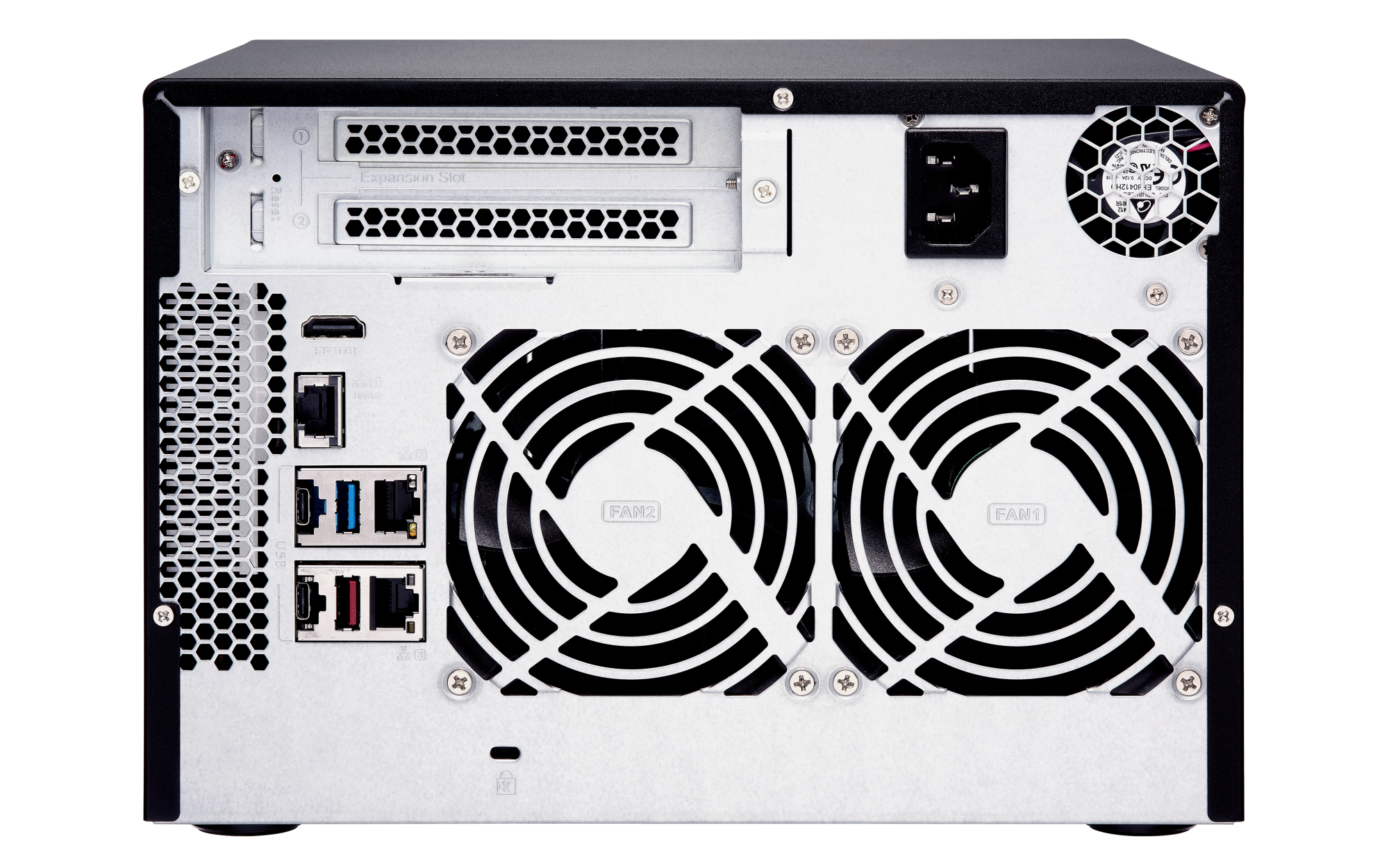

Ports & interfaces

Ethernet LAN (RJ-45) ports
3

HDMI ports
1

HDMI version
2.0

PCI Express x4 (Gen 3.x) slots
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
1

Power consumption (HDD standby)
26.52 W

Power consumption (typical)
45.6 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Bus type
DMI3

Configurable TDP-down frequency
2.4 GHz

CPU configuration (max)
1

Number of Cores
4

Number of processors supported
1

On-board graphics card model
Intel® UHD Graphics 630

Processor
i3-8100T

Processor family
Intel® Core™ i3

Processor frequency
3.1 GHz

Processor generation
8th gen Intel® Core™ i3

Processor manufacturer
Intel

Processor threads
4

Processor special features

Embedded options available
Yes

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Clear Video Technology
Yes

Intel Enhanced Halt State
Yes

Intel Identity Protection Technology version
1.00

Intel Secure Key Technology version
1.00

Intel Stable Image Platform Program (SIPP)
No

Intel Stable Image Platform Program (SIPP) version
0.00

Intel Trusted Execution Technology
No

Intel TSX-NI
No

Intel TSX-NI version
0.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Operating system installed
QNAP Turbo System

Operating system version
4.5.1

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Storage

Bad block scan
Yes

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
6

Number of storage drives supported
6

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
M.2, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
24 TB

Weight & dimensions

Depth
279.6 mm

Height
188.2 mm

Width
264.3 mm

Description

QNAP TVS-672X-I3-8G/24TB-EXOS. Total installed storage capacity: 24 TB, Installed storage drive type: HDD, Supported storage drive types: HDD & SSD. Processor family: Intel® Core™ i3, Processor manufacturer: Intel, Processor model: i3-8100T. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s. Chassis type: Tower, Cooling type: Active, Product colour: Black

Small & Medium Business NAS Tower Black
QNAP Turbo System 4.5.1
Total installed storage capacity: 24 TB Number of storage drives supported: 6 HDD & SSD M.2, Serial ATA II, Serial ATA III
Intel® Core™ i3 i3-8100T 3.1 GHz Intel® UHD Graphics 630
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active LCD
Backup features: Cloud, USB drive, iSCSI LUN 250 W
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization, intensive file access, large backup/restoration tasks, and media transfer
Dual M.2 PCIe Gen 3 x2 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance
PCIe expansion allows for 2.5/5/10/25GbE network cards, QM2 card, QXP storage expansion cards, or graphics cards
4K media playback and real-time transcoding; display multimedia content saved on the NAS via HDMI 2.0 (4K @60Hz) output
Host multiple virtual machines and containers to run a wide range of applications and services
A business-class backup center supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V)
