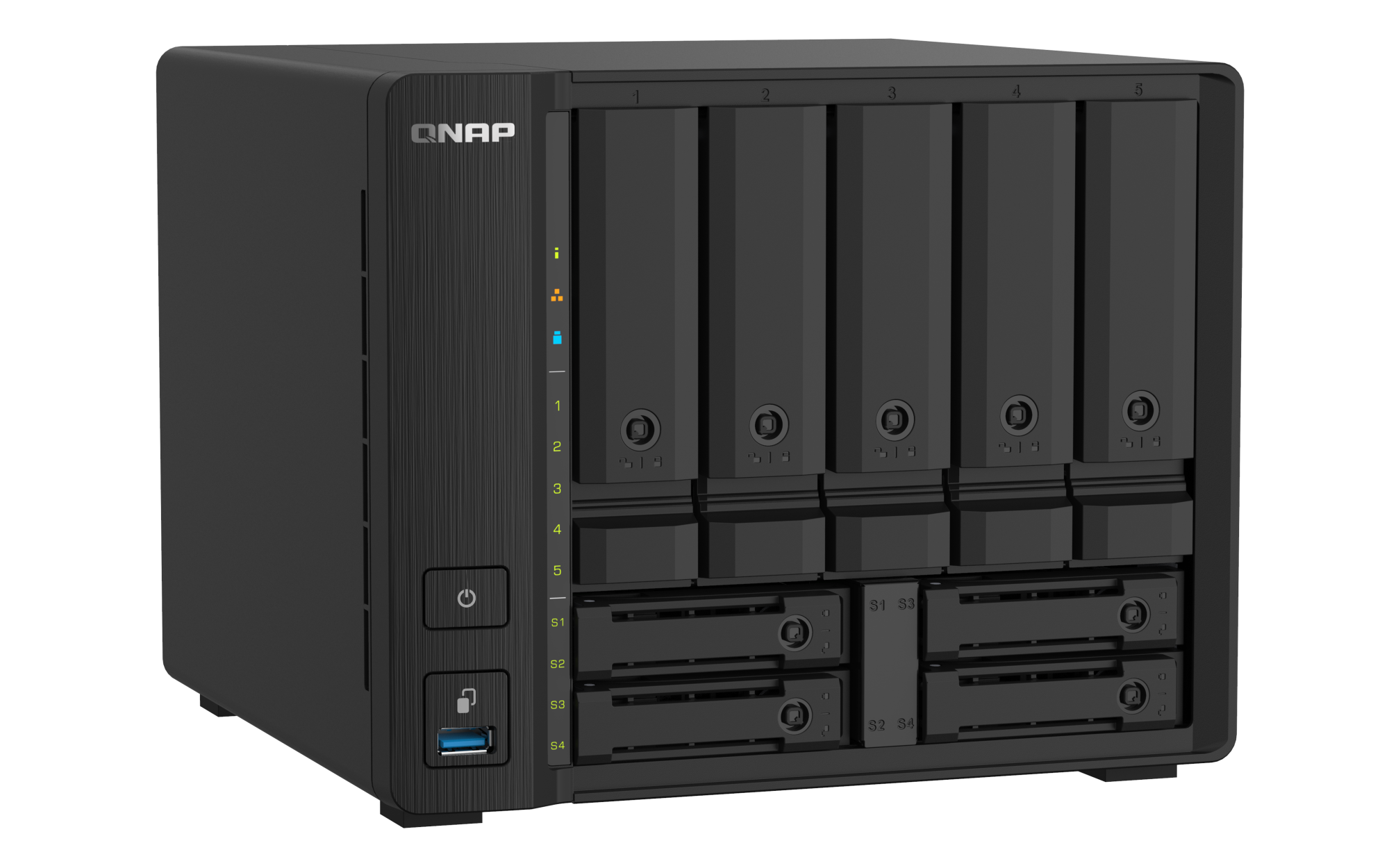

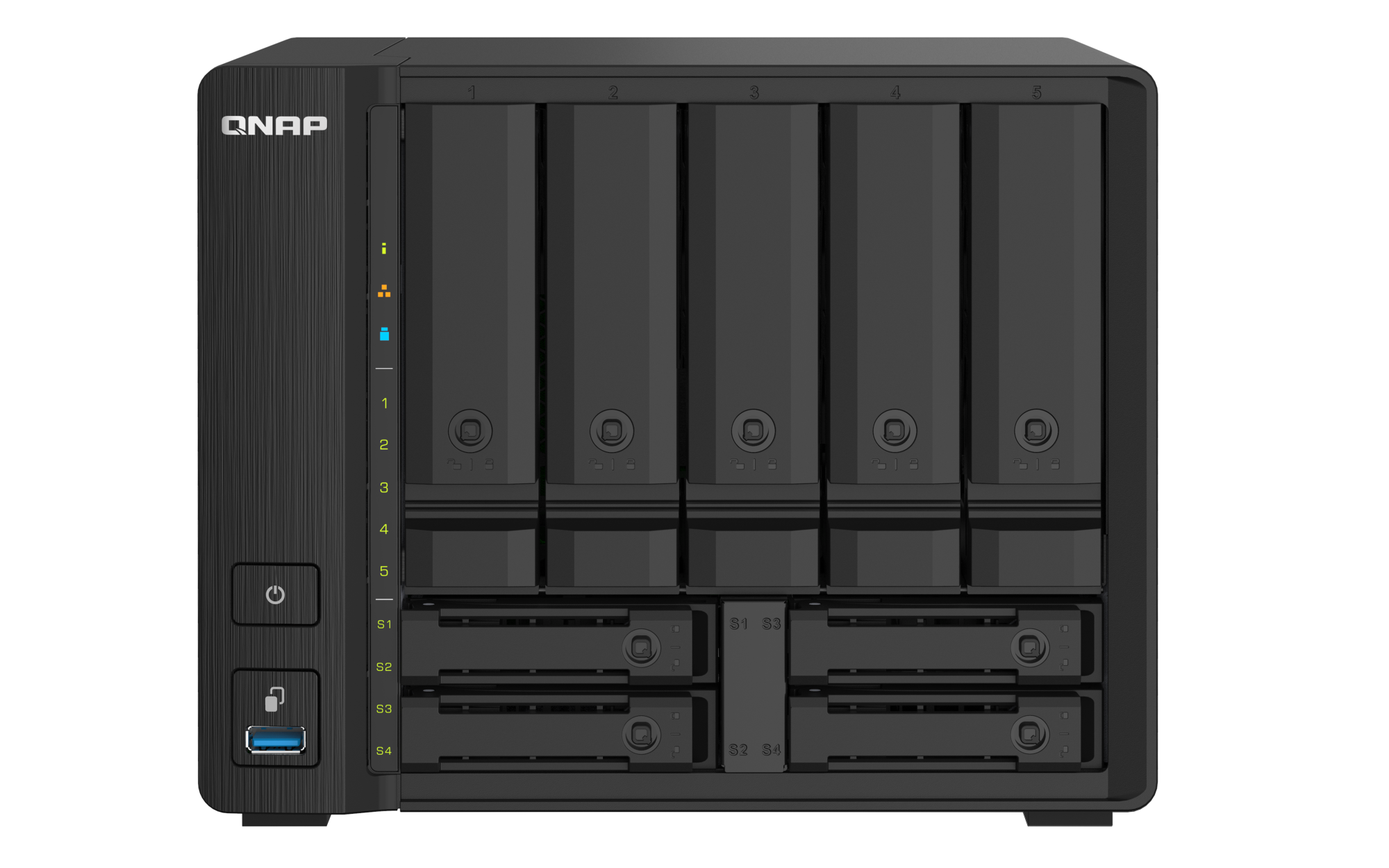

QNAP TS-932PX NAS Tower Ethernet LAN Black Alpine AL-324

Roll over image to zoom inClick to Open expanded view

QNAP TS-932PX NAS Tower Ethernet LAN Black Alpine AL-324

Name: QNAP TS-932PX NAS Tower Ethernet LAN Black Alpine AL-324
Brand: QNAP
SKU: TS-932PX-4G

SKU: TS-932PX-4G

Log In to View Pricing

QNAP TS-932PX, NAS, Tower, Annapurna Labs, Alpine AL-324, Black

hypertec

Slides (Download)

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
1 Year

Drive
Without Drives

SKU
TS-932PX-4G

EAN
4713213517963

Bullet points

Point
Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Fan diameter
14 cm

LED indicators
HDD, LAN, SSD, Status, USB

Number of fans
1 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84714100

Memory

Flash memory
512 MB

Internal memory type
DDR4

Maximum RAM supported
16 GB

Memory form factor
SO-DIMM

Memory Installed
4 GB

Memory slots
1

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
100,1000,2500,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Supported network protocols
FTP, SFTP, TFTP, ec, OpenVPN, QBelt

Wake-on-LAN ready
Yes

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Packaging content

External power adapter
Yes

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

Noise level
18.6 dB

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS

Share folder
CIFS/SMB

Snapshot
Yes

System log
Yes

Type
NAS

USB copy function
Yes

Web-based management
Yes

Ports & interfaces

Concurrent connections
700

Ethernet LAN (RJ-45) ports
2

Fiber optic connector
SFP+

Fiber ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
1

Power supply location
External

Power supply unit (PSU) capacity
120 W

Processor

Number of Cores
4

Processor
Alpine AL-324

Processor architecture
ARM Cortex-A57

Processor family
Annapurna Labs

Processor frequency
1.7 GHz

Processor manufacturer
Annapurna Labs

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina

Operating system installed
QNAP Turbo System

Operating system version
5.0.0

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Storage

Bad block scan
Yes

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
No

Number of storage drives supported
9

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5"

Storage drives installed
No

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
224.1 mm

Height
182.7 mm

Weight
3.39 kg

Width
224.6 mm

Description

QNAP TS-932PX. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Annapurna Labs, Processor manufacturer: Annapurna Labs, Processor model: Alpine AL-324. Internal memory: 4 GB, Internal memory type: DDR4, Maximum RAM supported: 16 GB. Ethernet LAN data rates: 100,1000,2500,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: FTP, SFTP, TFTP, ec, OpenVPN, QBelt. Fiber optic connector: SFP+

Small & Medium Business NAS Tower Black
QNAP Turbo System 5.0.0
Number of storage drives supported: 9 HDD & SSD Serial ATA, Serial ATA II, Serial ATA III
Annapurna Labs Alpine AL-324 1.7 GHz
4 DDR4 Memory slots: 1 SO-DIMM
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 120 W
Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing
HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times
Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization
Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD
