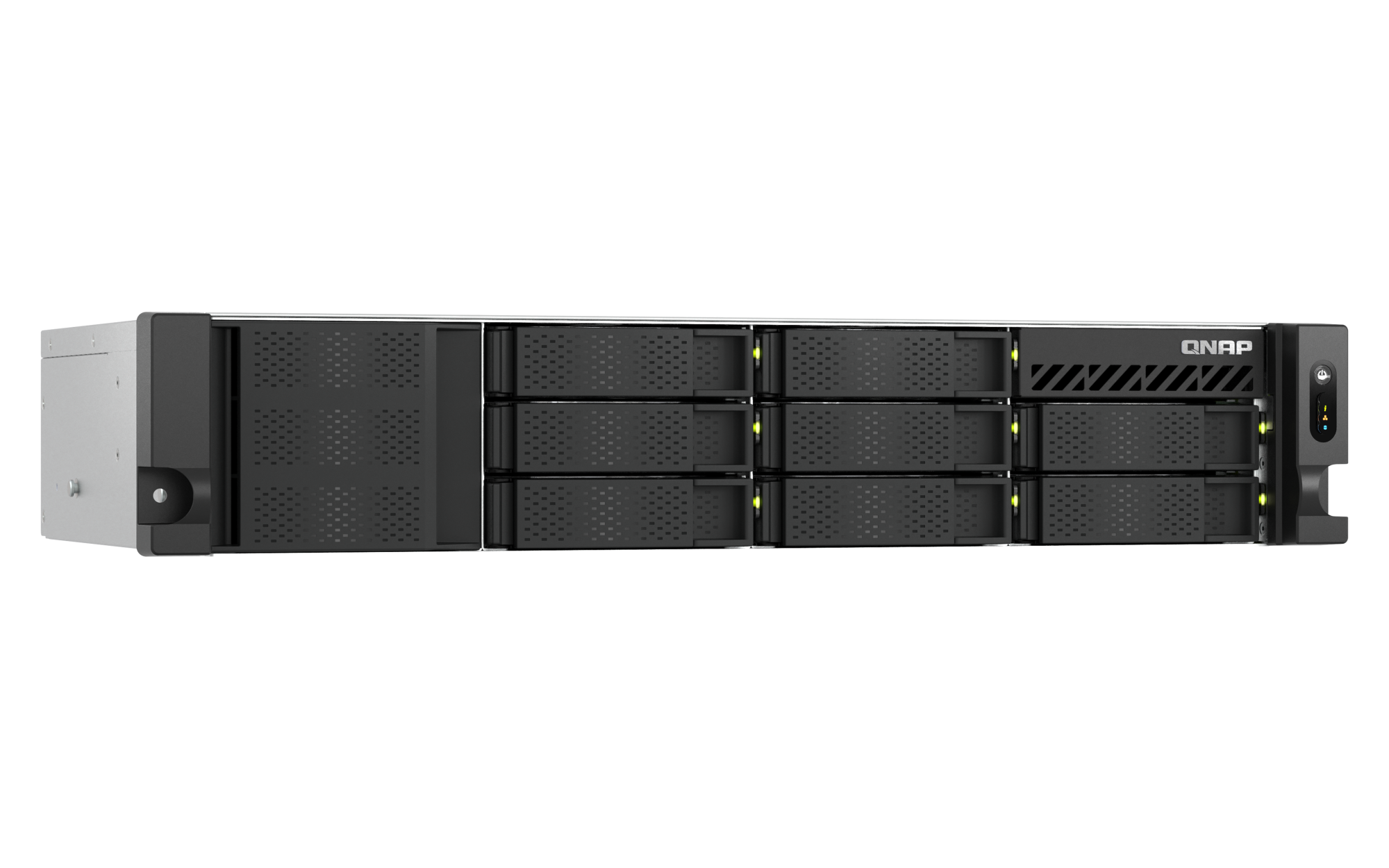

QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125
Roll over image to zoom inClick to Open expanded view
QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125
QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125
QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125
QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125
QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125
QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125

QNAP TS-855eU NAS Rack (2U) Ethernet LAN Black C5125

SKU: TS-855EU-8G/112TB-REDPRO
QNAP TS-855eU, NAS, Rack (2U), Intel Atom®, C5125, 112 TB, Black
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 3 Years
  • SKU
  • TS-855EU-8G/112TB-REDPRO
  • EAN
  • 5050914226480
  • Bullet points
  • Design
  • Memory
  • Network
  • Jumbo frames support
  • Yes
  • Operational conditions
  • Packaging content
  • Number of screws
  • 96
  • Power cables quantity
  • 1
  • Performance
  • Access Control List (ACL)
  • Yes
  • Built-in FTP server
  • Yes
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 2
  • Fiber optic connector
  • MTP
  • PCI Express x4 (Gen 3.x) slots
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • Power
  • Number of power supply units
  • 1
  • Power supply unit (PSU) capacity
  • 250 W
  • Processor
  • Number of Cores
  • 8
  • Processor threads
  • 8
  • Software
  • Storage
  • Hot-swap drive bays
  • Yes
  • Number of M.2 (M & B) slots
  • 2
  • Number of storage drives supported
  • 8
  • Online RAID expansion
  • Yes
  • Online RAID migration
  • Yes
  • Storage drives installed
  • Yes
  • Total installed storage capacity
  • 112 TB
  • Weight & dimensions

Description

QNAP TS-855eU. Total installed storage capacity: 112 TB, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA II, Serial ATA III. Processor family: Intel Atom®, Processor manufacturer: Intel, Processor model: C5125. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Supported network protocols: IPv4, IPv6. Fiber optic connector: MTP
  • Small & Medium Business NAS Rack (2U) Black
  • QuTS hero h5.0.1
  • Total installed storage capacity: 112 TB Number of storage drives supported: 8 HDD & SSD Serial ATA II, Serial ATA III
  • Intel Atom® C5125 2.8 GHz

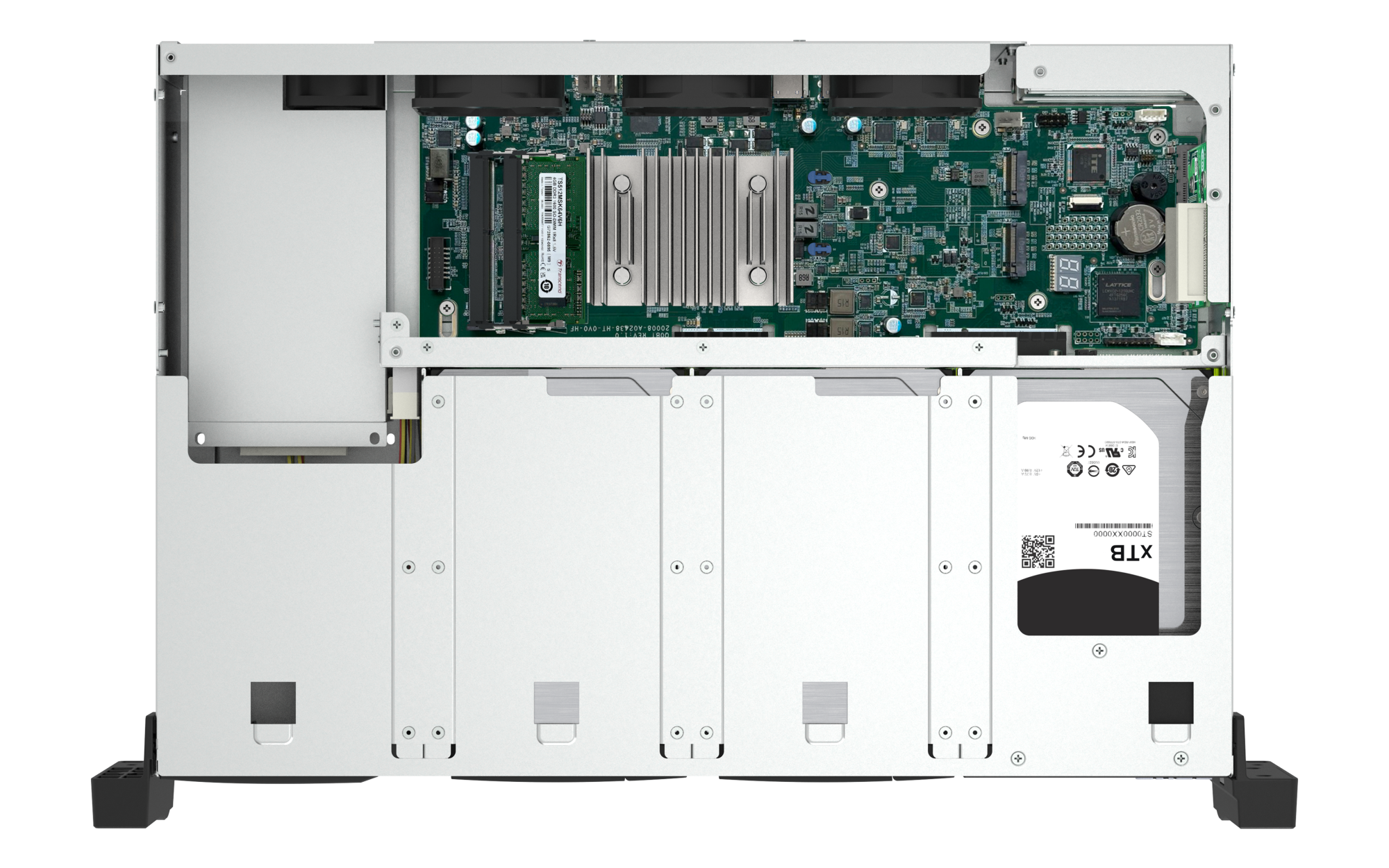

  • 8 DDR4 Memory slots: 2 x SODIMM SO-DIMM
  • Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
  • Cooling type: Active
  • Backup features: USB drive, iSCSI LUN 250 W

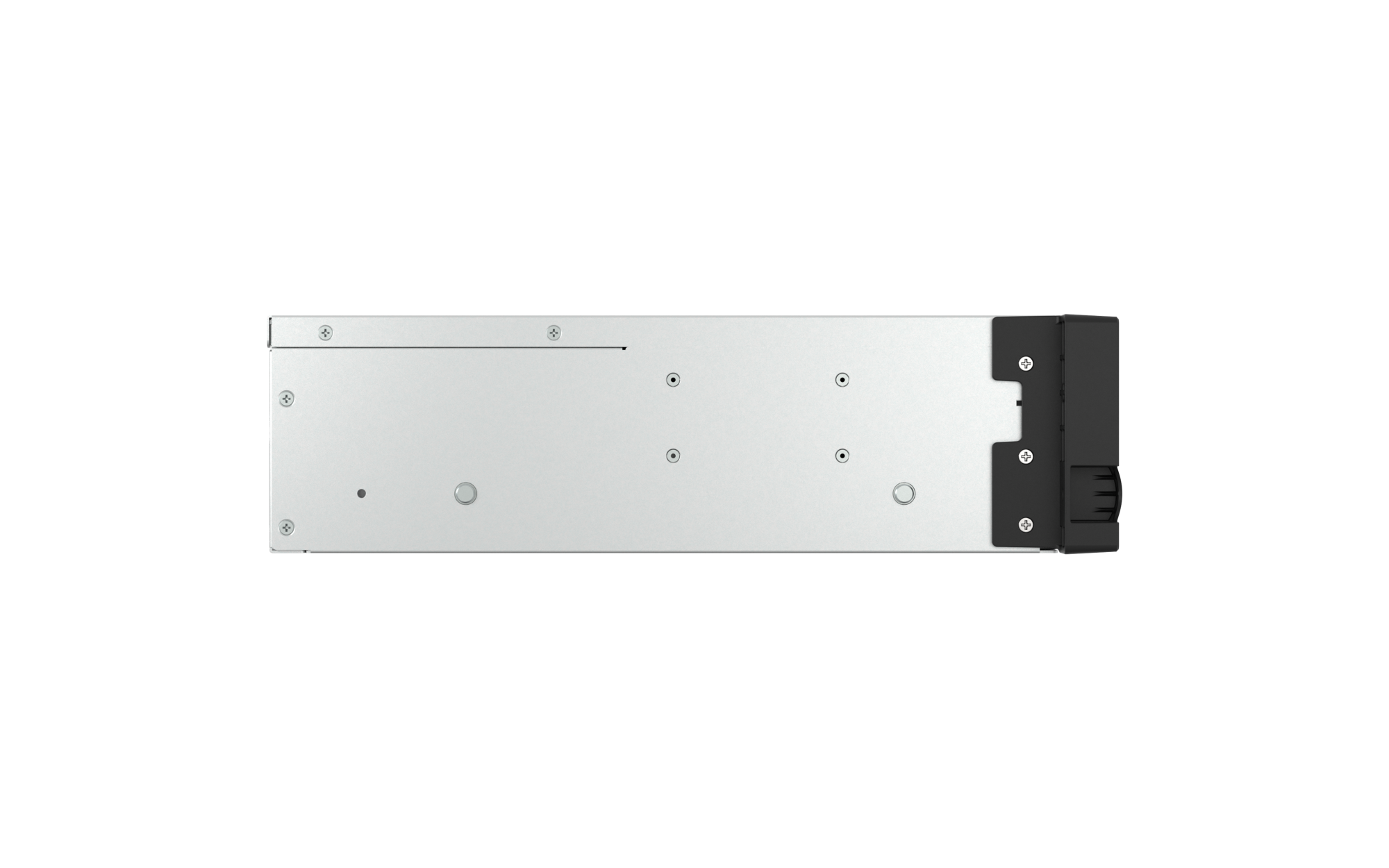

  • Compact, space saving: The TS-855eU has a depth of only 11.7 inches (297.4 mm) and is perfectly suited for installation in a compact rack, or places with a lot of cabling
  • Flexible storage expansion: Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855eU for adding up to 48 additional drive capacity to match your business growth

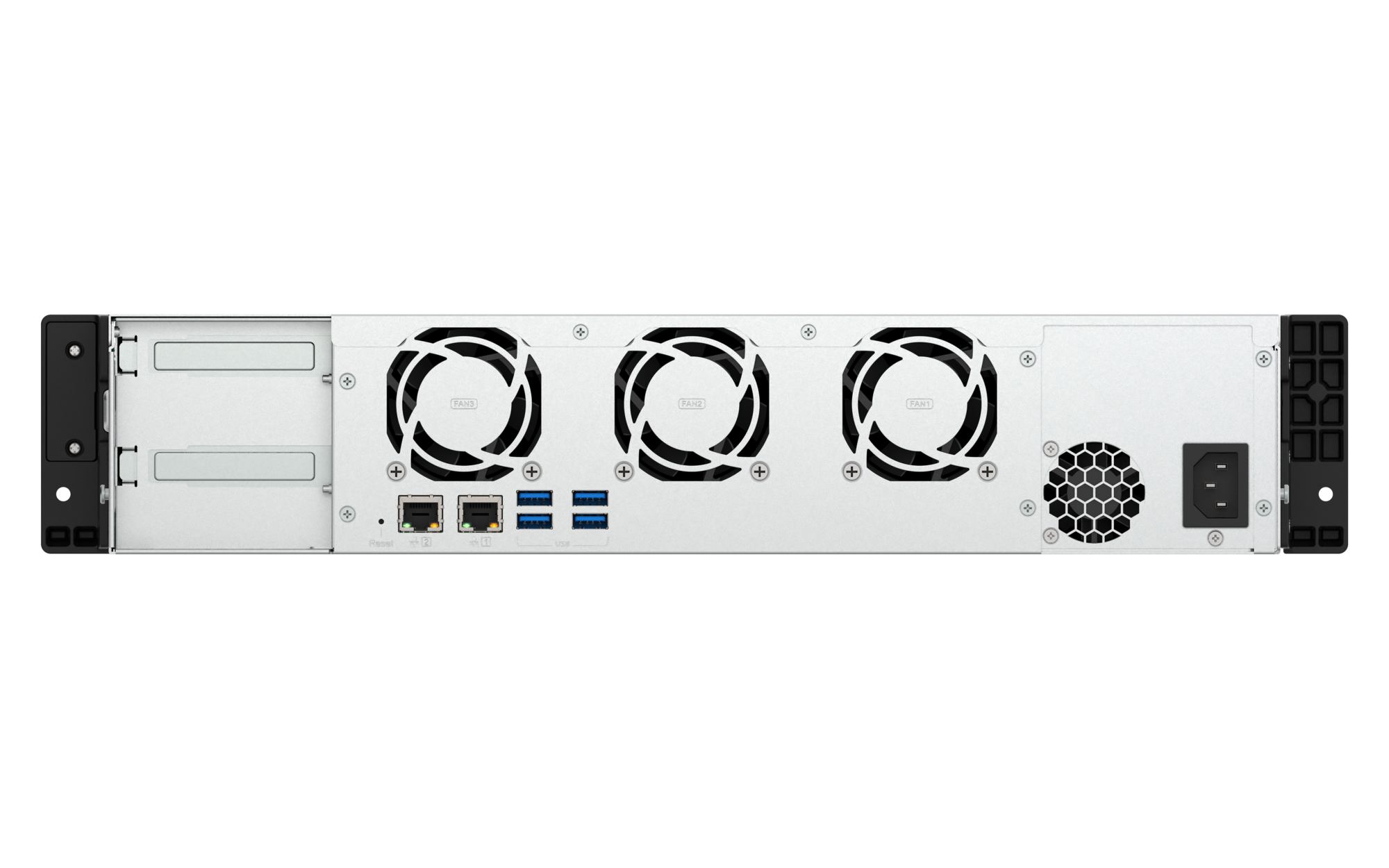

  • Dual 2.5GbE connectivity: Features two 2.5GbE ports (backwards compatible with 1G/100M). Supports port trunking for enhanced performance and fault tolerance
  • PCIe expandability: Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards
  • Optimized SSD performance: Dual M.2 PCIe NVMe slots enable SSD caching, SSD storage pools, or Qtier™ auto-tiered storage
  • Virtual machines and containers: Centralize your virtualization storage, and host multiple virtual machines and containerized apps
