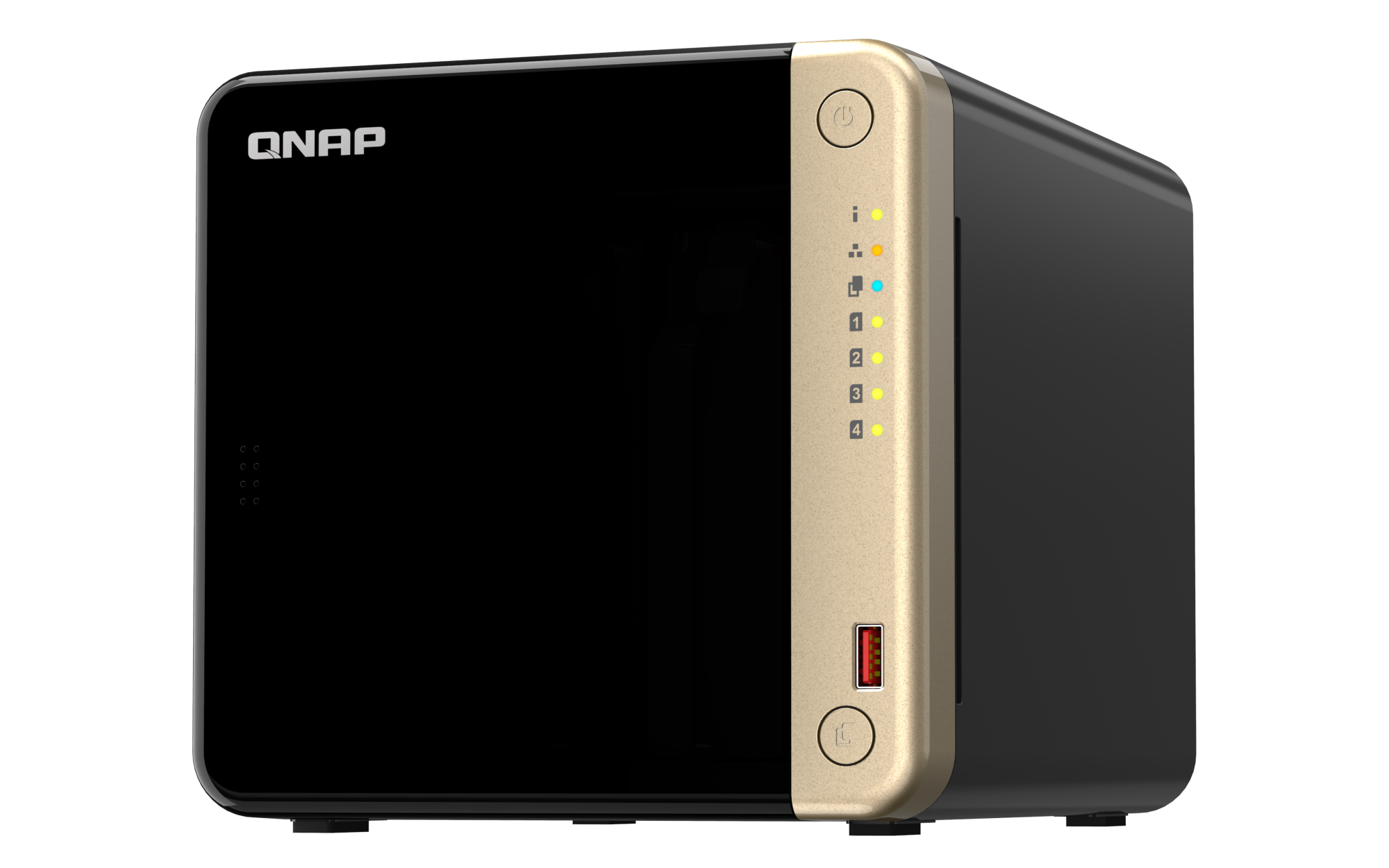

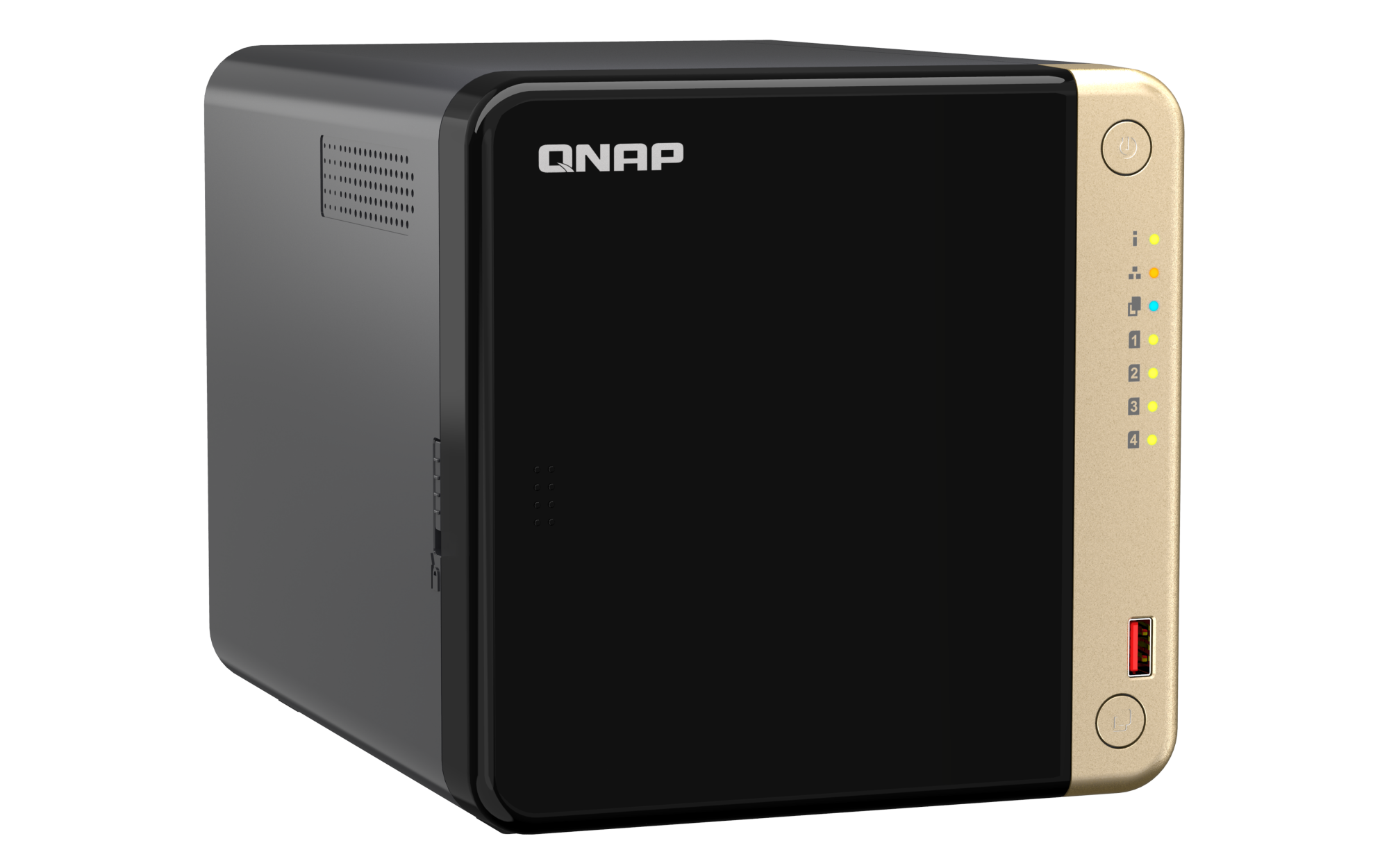

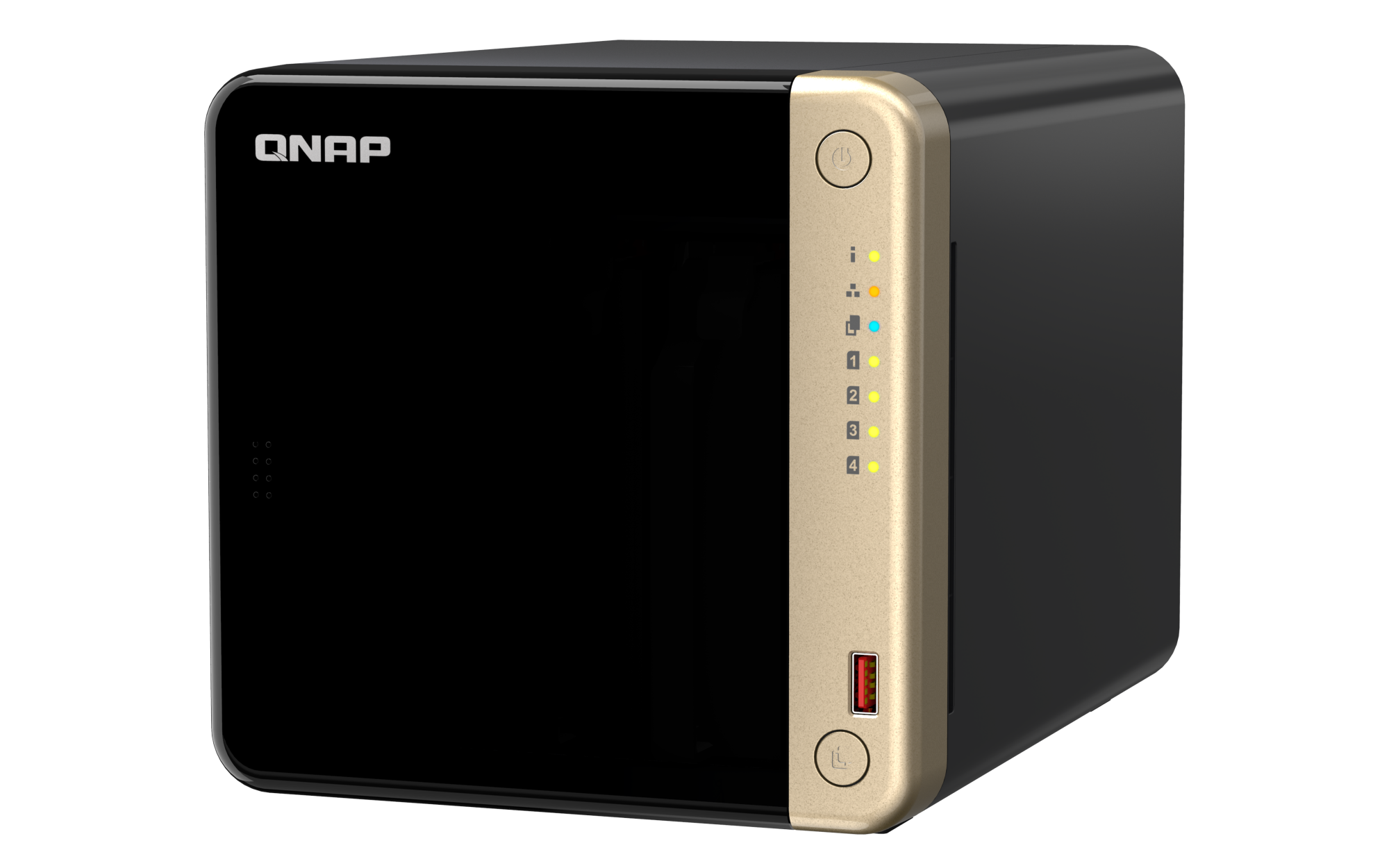

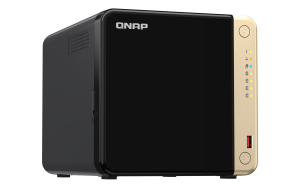

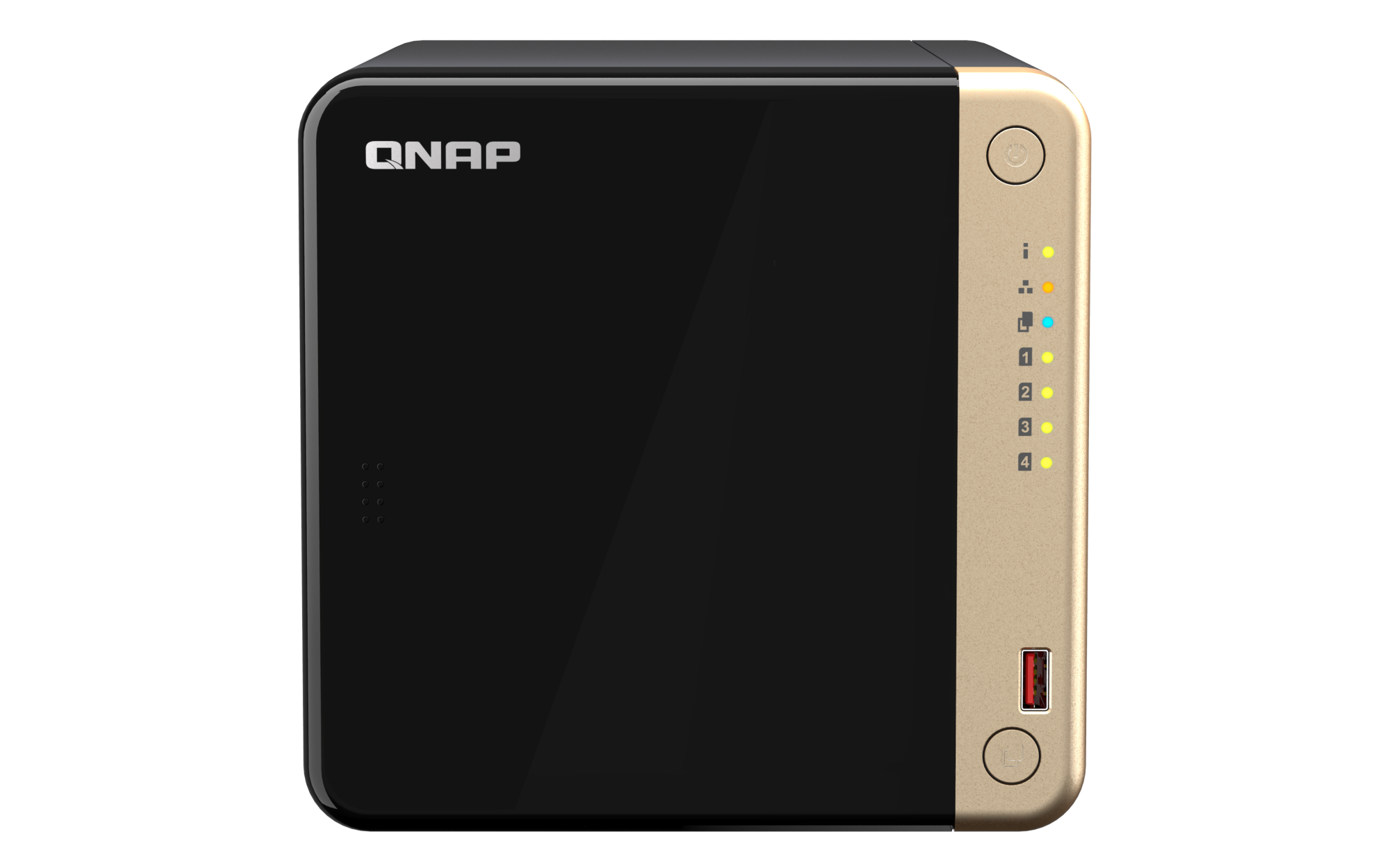

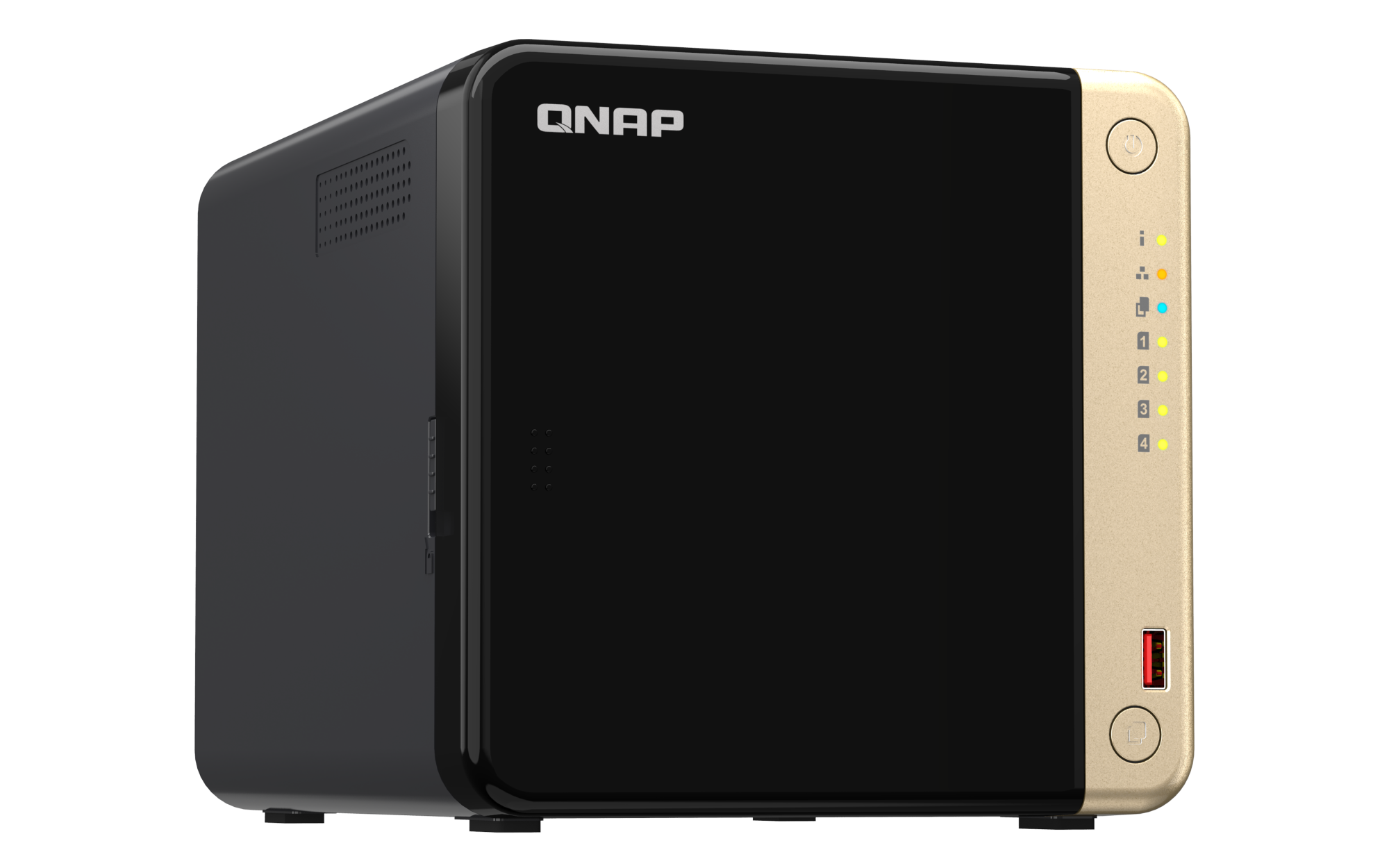

QNAP TS-464 NAS Tower Intel® Celeron® N5095 8 GB DDR4 64 TB HDD QNAP Turbo System Black, Gold

Roll over image to zoom inClick to Open expanded view

QNAP TS-464 NAS Tower Intel® Celeron® N5095 8 GB DDR4 64 TB HDD QNAP Turbo System Black, Gold

Name: QNAP TS-464 NAS Tower Intel® Celeron® N5095 8 GB DDR4 64 TB HDD QNAP Turbo System Black, Gold
Brand: QNAP
SKU: TS-464-8G/64TB-HC

SKU: TS-464-8G/64TB-HC

Log In to View Pricing

QNAP TS-464, NAS, Tower, Intel® Celeron®, N5095, 8 GB, DDR4

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
3 Years

SKU
TS-464-8G/64TB-HC

EAN
5050914246662

Bullet points

Point
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots

Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Fan diameter
12 cm

LED indicators
HDD, LAN, Power, Status, USB

Number of fans
1 fan(s)

Product colour
Black, Gold

Memory

Flash memory
4000 MB

Internal memory type
DDR4

Maximum RAM supported
8 GB

Memory Installed
8 GB

Network

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

External power adapter
Yes

Number of screws
24

Power cables quantity
1

Performance

Access Control List (ACL)
Yes

Backup button
Yes

Backup features
Cloud, USB drive, iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Built-in FTP server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Disk scan
Yes

Hot spare
Yes

Management protocols
SNMP

Multilingual support
Yes

Number of users
4096 user(s)

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH

Share folder
AFP, CIFS/SMB, FTP

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

USB copy function
Yes

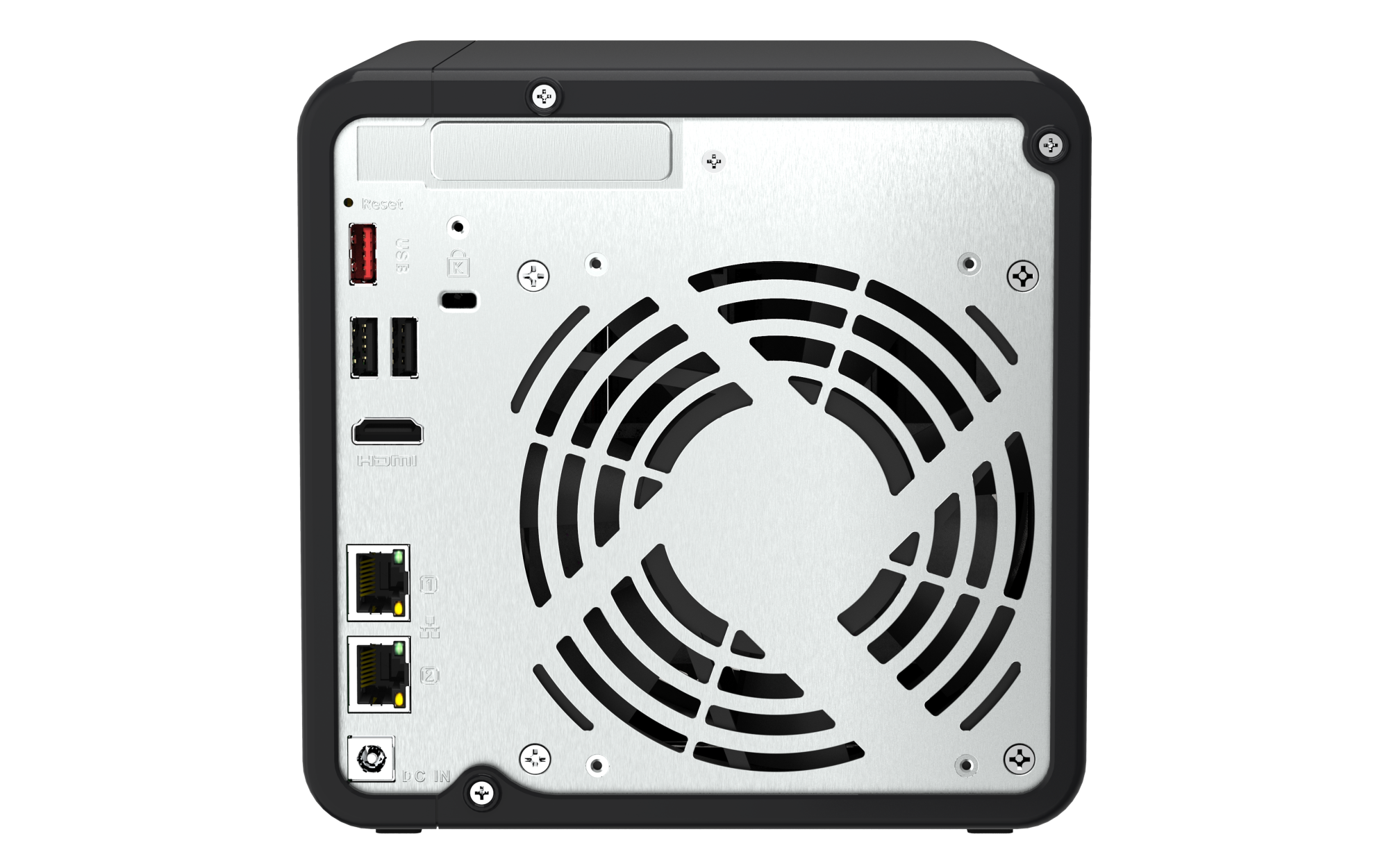

Ports & interfaces

Concurrent connections
1500

Ethernet LAN (RJ-45) ports
2

HDMI ports
1

HDMI version
2.1

PCI Express x2 (Gen 3.x) slots
1

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Number of power supply units
1

Power consumption (HDD standby)
21.618 W

Power consumption (typical)
40.536 W

Power supply location
External

Power supply unit (PSU) capacity
90 W

Processor

CPU configuration (max)
1

Number of Cores
4

Number of processors supported
1

On-board graphics card model
Intel® UHD Graphics

Processor
N5095

Processor boost frequency
2.9 GHz

Processor family
Intel® Celeron®

Processor frequency
2 GHz

Processor manufacturer
Intel

Processor threads
4

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Idle States
Yes

Intel 64
Yes

Intel Trusted Execution Technology
No

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Software

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Operating system installed
QNAP Turbo System

Operating system version
5.1.3

Other operating systems supported
Solaris 10

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Windows operating systems supported
Yes

Storage

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives supported
4

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID rebuild
Yes

RAID support
Yes

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
64 TB

Weight & dimensions

Depth
226.5 mm

Height
165 mm

Width
170 mm

Description

QNAP TS-464. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Intel® Celeron®, Processor model: N5095, Processor frequency: 2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 64 TB, Installed storage drive type: HDD. Operating system installed: QNAP Turbo System

Small & Medium Business NAS Tower Black, Gold
QNAP Turbo System 5.1.3
Total installed storage capacity: 64 TB Number of storage drives supported: 4 HDD & SSD Serial ATA III
Intel® Celeron® N5095 2 GHz Intel® UHD Graphics
8 DDR4
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, USB drive, iSCSI LUN 90 W
TS-464 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,647 MB/s transfer speed
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots
