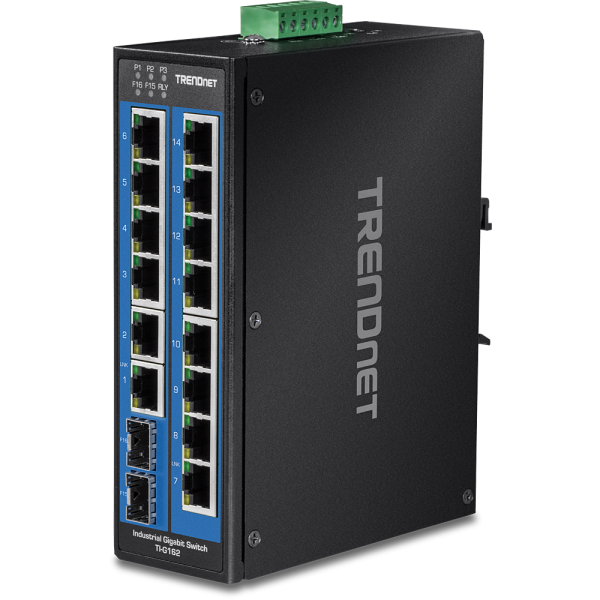

Trendnet TI-G162 network switch Gigabit Ethernet (10/100/1000) Black

Roll over image to zoom inClick to Open expanded view

Trendnet TI-G162 network switch Gigabit Ethernet (10/100/1000) Black

Name: Trendnet TI-G162 network switch Gigabit Ethernet (10/100/1000) Black
Brand: Trendnet
SKU: TI-G162

SKU: TI-G162

Log In to View Pricing

Trendnet TI-G162, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Add to compare

Product Properties

Manufacturer
Trendnet

Warranty
2 Years

SKU
TI-G162

EAN
0710931161854

Bullet points

Point

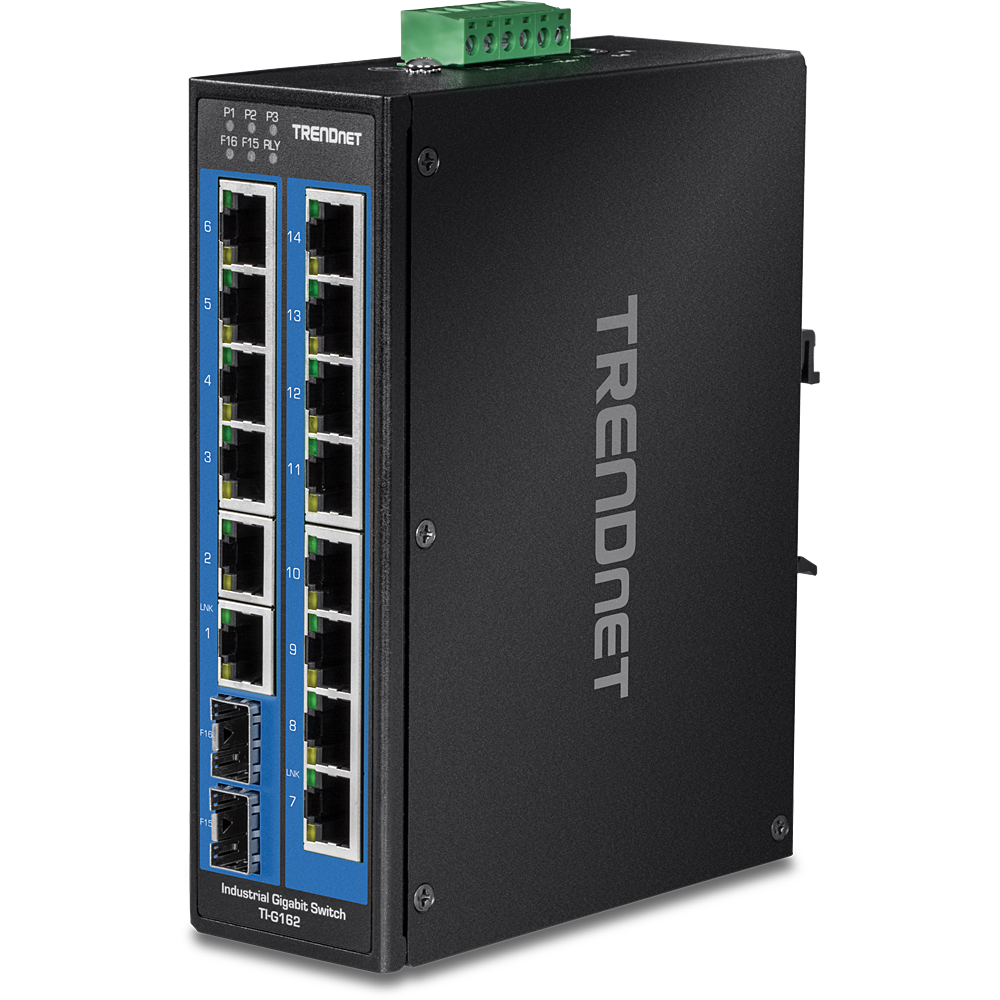

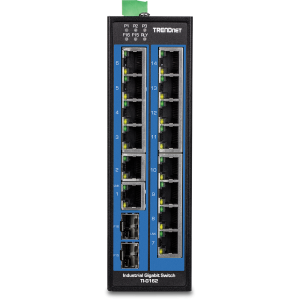

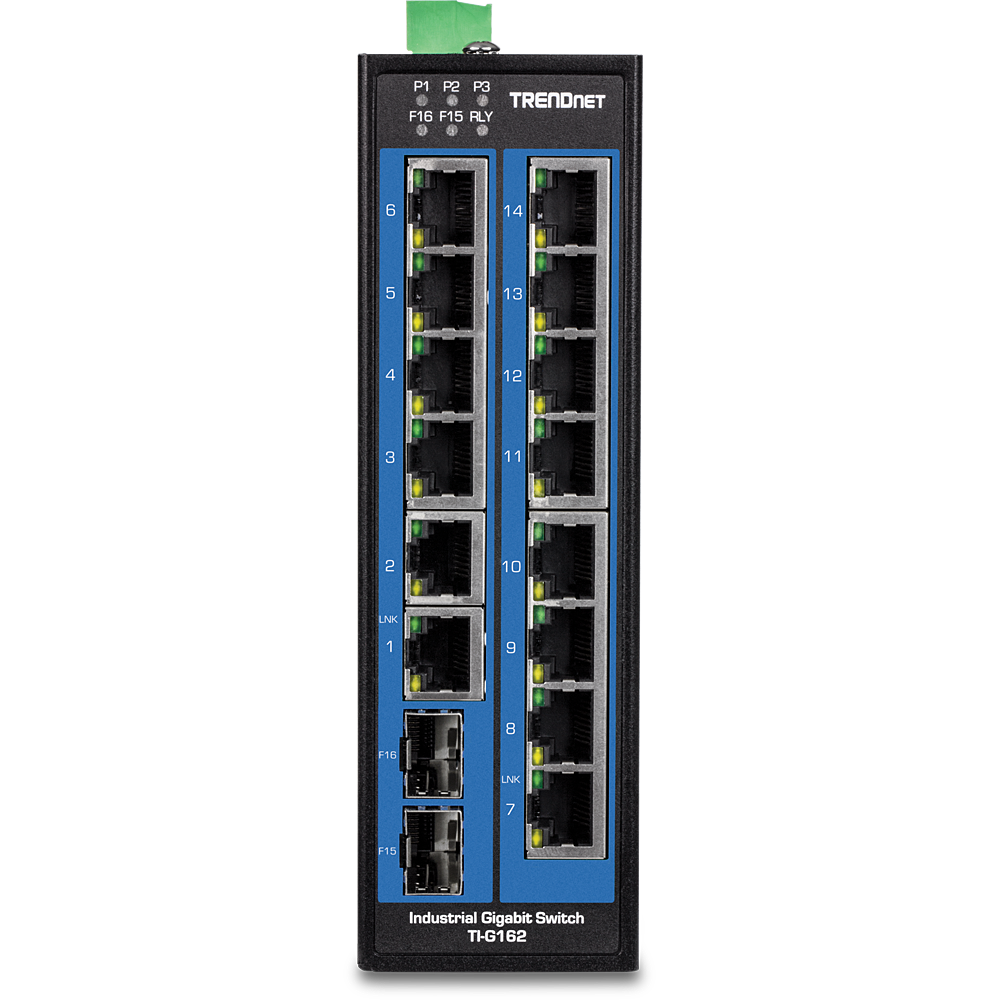

14 x Gigabit ports

2 x Gigabit SFP slots

32Gbps switching capacity

Alarm output triggered by power failure

Hardened IP30 rated metal switch

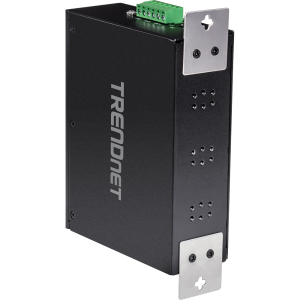

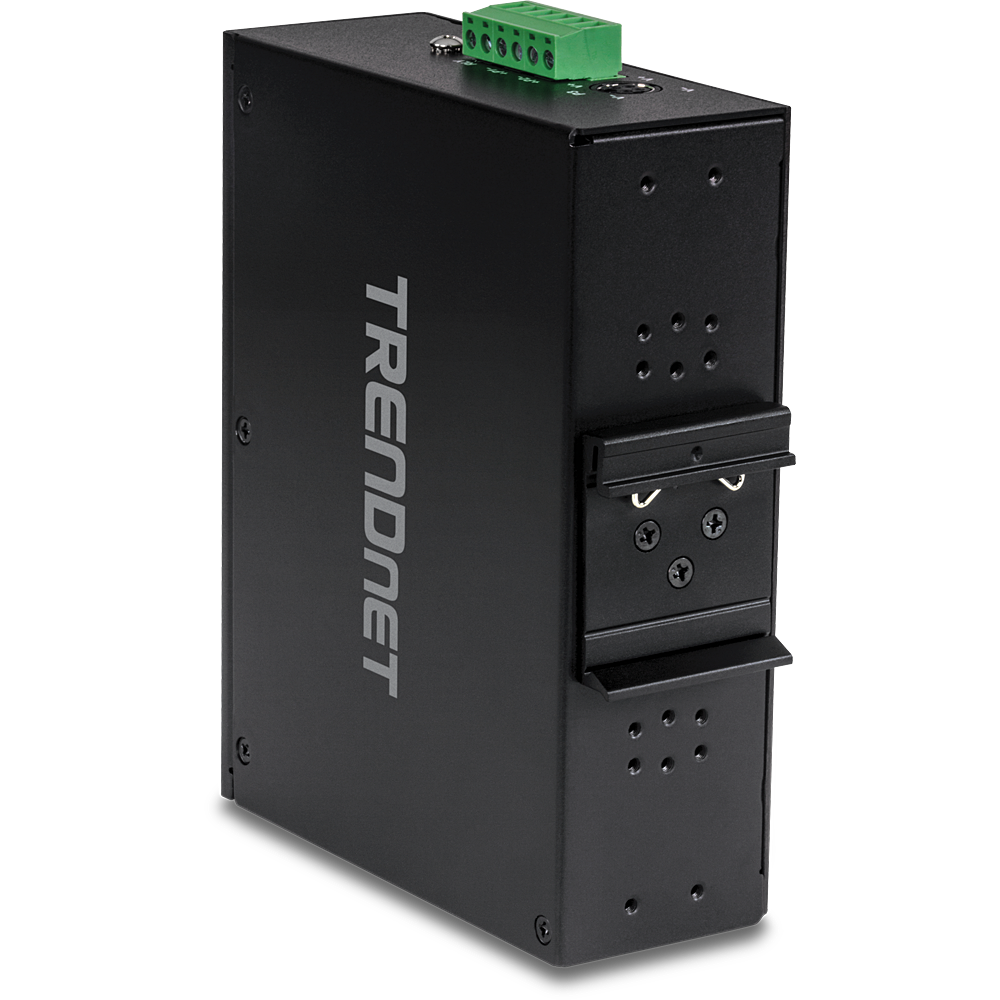

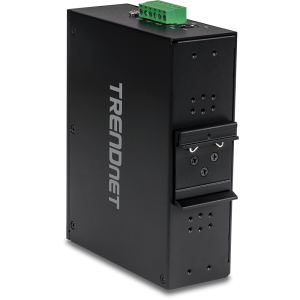

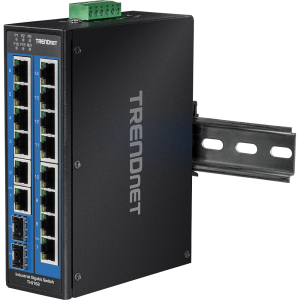

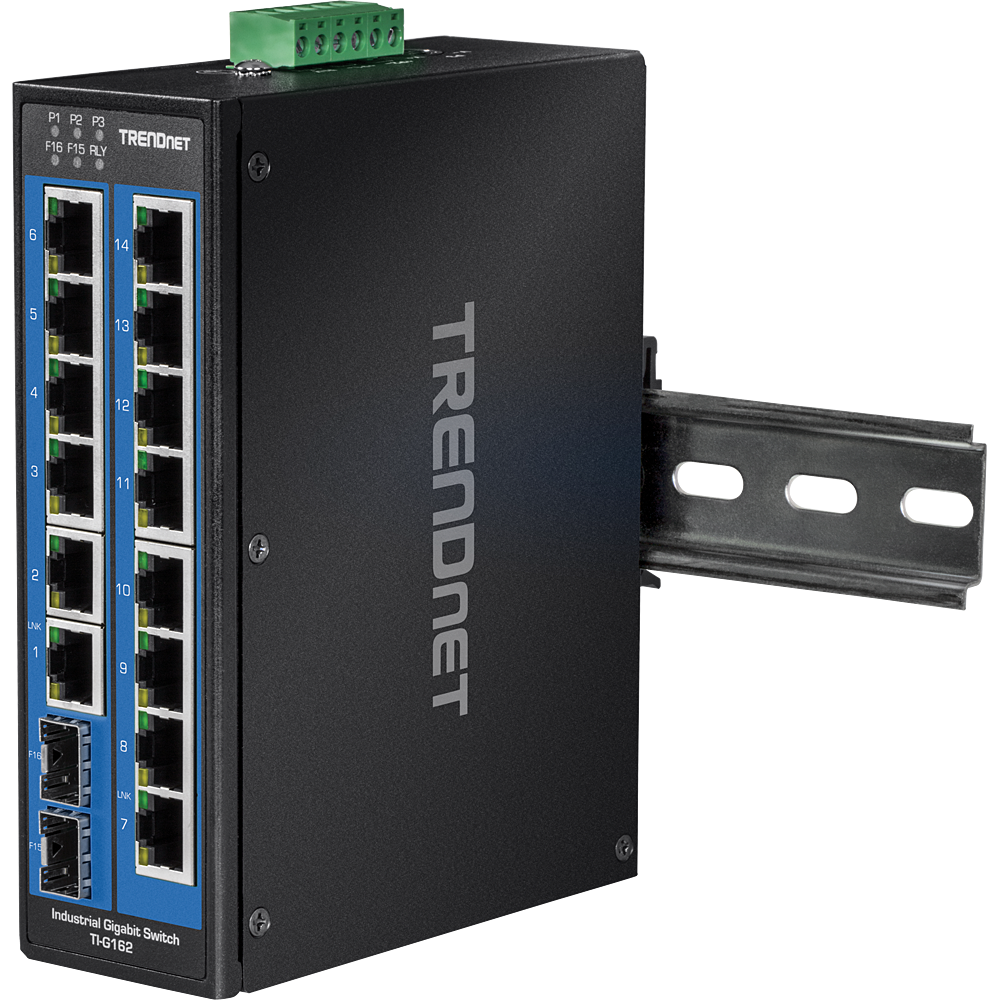

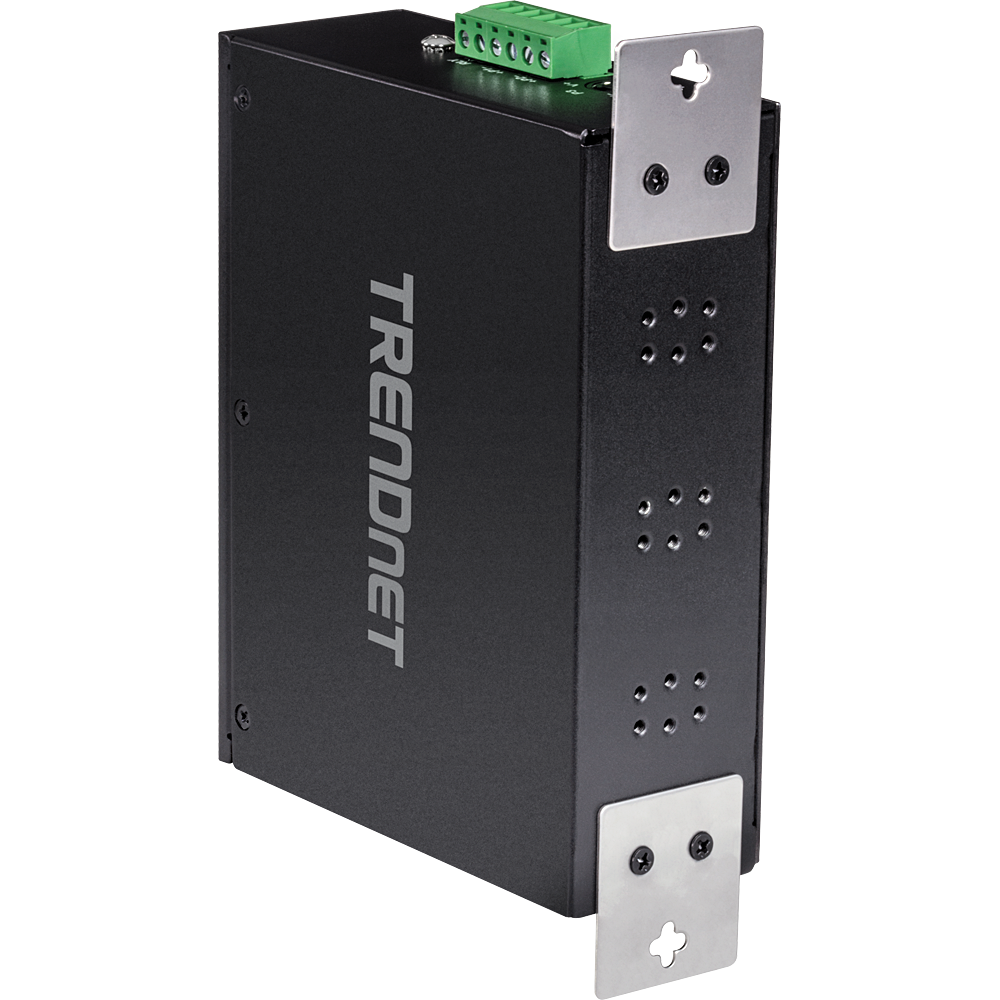

Includes DIN-Rail mount and wall mount brackets

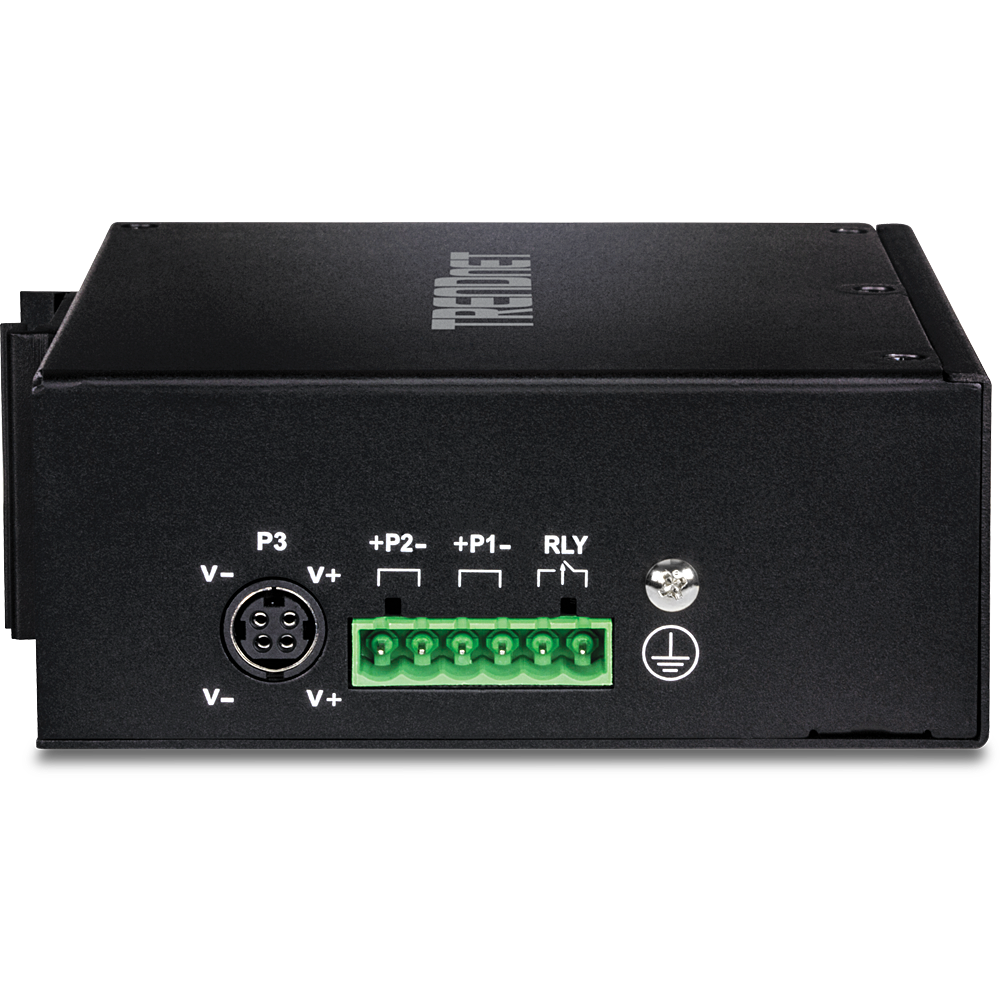

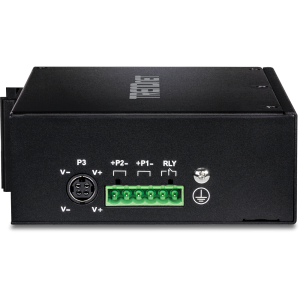

Multiple power inputs provide redundant power with overload current protection

Wide operating temperature range of -40° – 75°C (-40° – 167°F)

Data transmission

Forwarding rate
23.8 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8000 entries

Packet buffer memory
0.5 MB

Switching capacity
32 Gbit/s

Design

Certification
CE FCC MET IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

DIN rail mounting
Yes

Housing material
Metal

International Protection (IP) code
IP30

LED indicators
Yes

Product colour
Black

Rack mounting
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Network

10G support
No

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-40 - 75 °C

Packaging data

Quick start guide
Yes

Performance

Mean time between failures (MTBF)
514167 h

Ports & interfaces

SFP module slots quantity
2

Switch Number of Ports
14

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

DC input voltage
48 - 56 V

Input current
2 A

Power consumption (max)
13 W

Power supply included
No

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
155 mm

Height
48 mm

Weight
536 g

Width
120 mm

Description

Trendnet TI-G162. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 56 V. Wall mountable

14 x Gigabit ports
2 x Gigabit SFP slots
32Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° – 75°C (-40° – 167°F)
Multiple power inputs provide redundant power with overload current protection
Alarm output triggered by power failure
