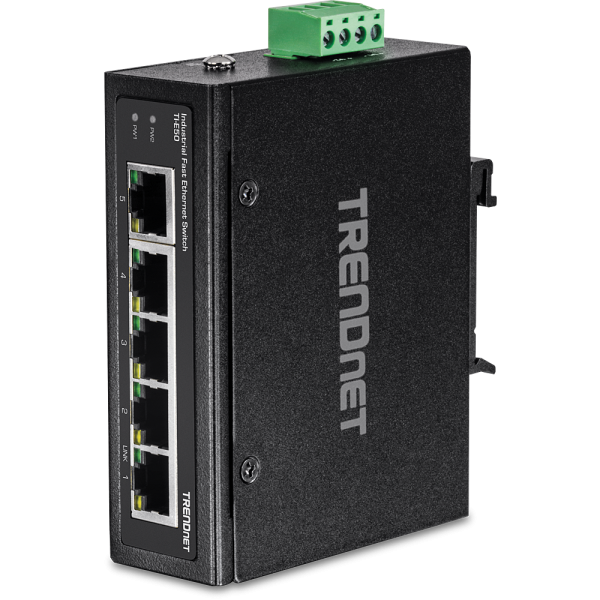

Trendnet TI-E50 network switch Unmanaged Fast Ethernet (10/100) Black

Roll over image to zoom inClick to Open expanded view

Trendnet TI-E50 network switch Unmanaged Fast Ethernet (10/100) Black

Name: Trendnet TI-E50 network switch Unmanaged Fast Ethernet (10/100) Black
Brand: Trendnet
SKU: TI-E50

SKU: TI-E50

Log In to View Pricing

Trendnet TI-E50, Unmanaged, Fast Ethernet (10/100), Full duplex, Wall mountable

Add to compare

Product Properties

Manufacturer
Trendnet

Warranty
2 Years

SKU
TI-E50

EAN
0710931161755

Bullet points

Point
1Gbps switching capacity

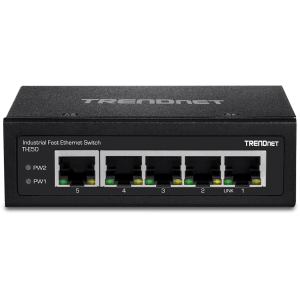

5 x Fast Ethernet ports

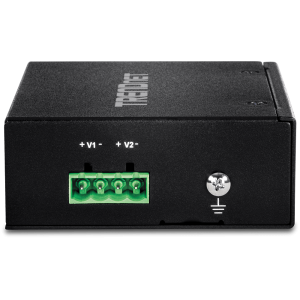

Dual inputs provide redundant power with overload current protection

Fanless design for silent operation

Hardened IP30 rated metal switch

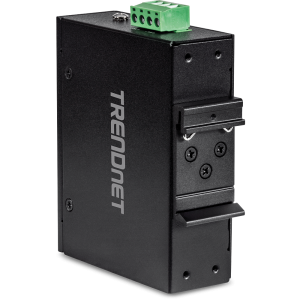

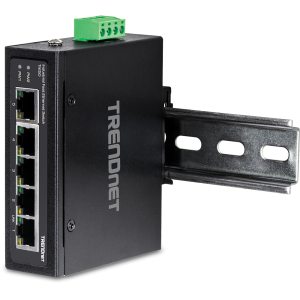

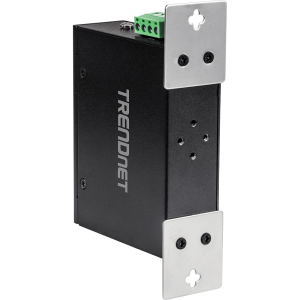

Includes DIN-Rail mount and wall mount brackets

Power supply sold separately (model: TI-M6024)

Wide operating temperature range of -40° – 75° C (-40° – 167° F)

Data transmission

Forwarding rate
0.744 Mpps

MAC address table
1000 entries

Packet buffer memory
0.056 MB

Switching capacity
1 Gbit/s

Design

Certification
CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5

DIN rail mounting
Yes

International Protection (IP) code
IP30

LED indicators
Yes

Product colour
Black

Rack mounting
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-40 - 75 °C

Packaging data

Quick start guide
Yes

Performance

Mean time between failures (MTBF)
510304 h

Ports & interfaces

Switch Number of Ports
5

Switch Port Speed
Fast Ethernet (10/100)

Power

DC input voltage
12 - 56 V

Power consumption (max)
2.24 W

Redundant power supply (RPS) support
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
82 mm

Height
32 mm

Weight
486 g

Width
104 mm

Description

Trendnet TI-E50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 56 V. Wall mountable

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 5
MAC address table: 1000 entries Switching capacity: 1 Gbit/s
5 x Fast Ethernet ports
1Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° – 75° C (-40° – 167° F)
Dual inputs provide redundant power with overload current protection
Power supply sold separately (model: TI-M6024)
Fanless design for silent operation
