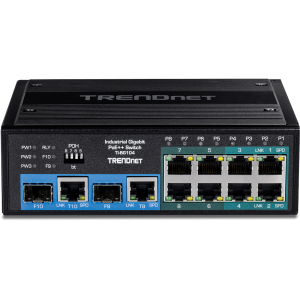

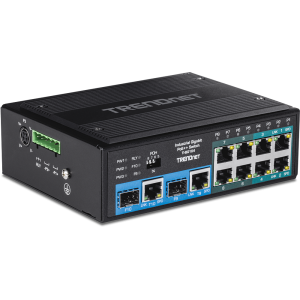

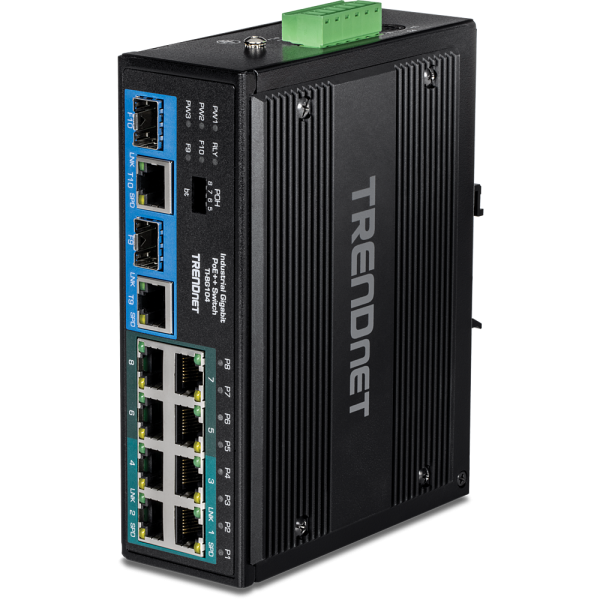

Trendnet TI-BG104 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Roll over image to zoom inClick to Open expanded view

Trendnet TI-BG104 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Trendnet TI-BG104 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TI-BG104

SKU: TI-BG104

Log In to View Pricing

Trendnet TI-BG104, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Trendnet

Warranty
2 Years

SKU
TI-BG104

EAN
0710931162295

Bullet points

Point
2 x Gigabit Share ports (SFP or RJ-45)

20Gbps switching capacity

360W power budget

4 x Gigabit PoE+ ports

4 x Gigabit PoE++ ports

Alarm output triggered by power failure

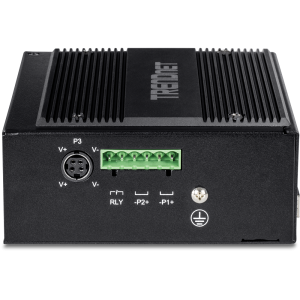

Dual power inputs for redundancy

Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

Hardened IP30 rated metal switch

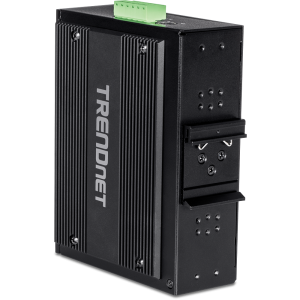

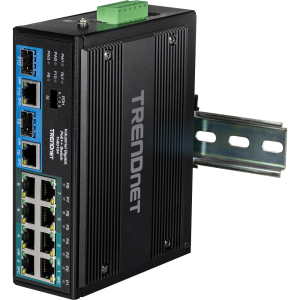

Includes DIN-Rail and wall mounts

NDAA / TAA compliant (U.S. and Canada only)

Power supply sold separately (TI-S48048)

Data transmission

Forwarding rate
8.9 Mpps

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
11000 entries

Packet buffer memory
2 MB

Store-and-forward
Yes

Switching capacity
20 Gbit/s

Design

Certification
FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5

DIN rail mounting
Yes

Housing material
Metal

International Protection (IP) code
IP30

LED indicators
Yes

Product colour
Black

Rack mounting
No

Management features

Switch type
Unmanaged

Network

10G support
No

Auto-negotiation
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Full duplex
Yes

MAC address auto-aging supported
Yes

MAC address auto-learning supported
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Packaging data

Quick start guide
Yes

Performance

Mean time between failures (MTBF)
510304 h

Ports & interfaces

Combo SFP ports quantity
2

Gigabit Ethernet (copper) ports quantity
10

Switch Number of Ports
10

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
2 A

Input voltage
48 - 56 V

Power consumption (max)
6.2 W

Power source
DC/PoE

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet 4PPoE (PoE++) ports quantity
4

Power over Ethernet plus (PoE+) ports quantity
4

Total Power over Ethernet (PoE) budget
360 W

Sustainability

Sustainability compliance
Yes

Technical details

Compliance certificates
CE

Weight & dimensions

Depth
48 mm

Height
158 mm

Weight
630 g

Width
122 mm

Description

Trendnet TI-BG104. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 11000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 10
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 11000 entries Switching capacity: 20 Gbit/s
DC/PoE Power over Ethernet (PoE)
4 x Gigabit PoE++ ports
4 x Gigabit PoE+ ports
2 x Gigabit Share ports (SFP or RJ-45)
360W power budget
20Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail and wall mounts
Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
Dual power inputs for redundancy
Alarm output triggered by power failure
Power supply sold separately (TI-S48048)
NDAA / TAA compliant (U.S. and Canada only)
