Trendnet TE-FP091 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Roll over image to zoom inClick to Open expanded view

Trendnet TE-FP091 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Name: Trendnet TE-FP091 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TE-FP091

SKU: TE-FP091

Log In to View Pricing

Trendnet TE-FP091, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable

Add to compare

Product Properties

Manufacturer
Trendnet

Warranty
2 Years

SKU
TE-FP091

EAN
0710931162004

Bullet points

Point
1.8Gbps switching capacity

60W PoE power budget

8 x Fast Ethernet PoE+ ports and 1 x Fast Ethernet port

EASY INSTALLATION

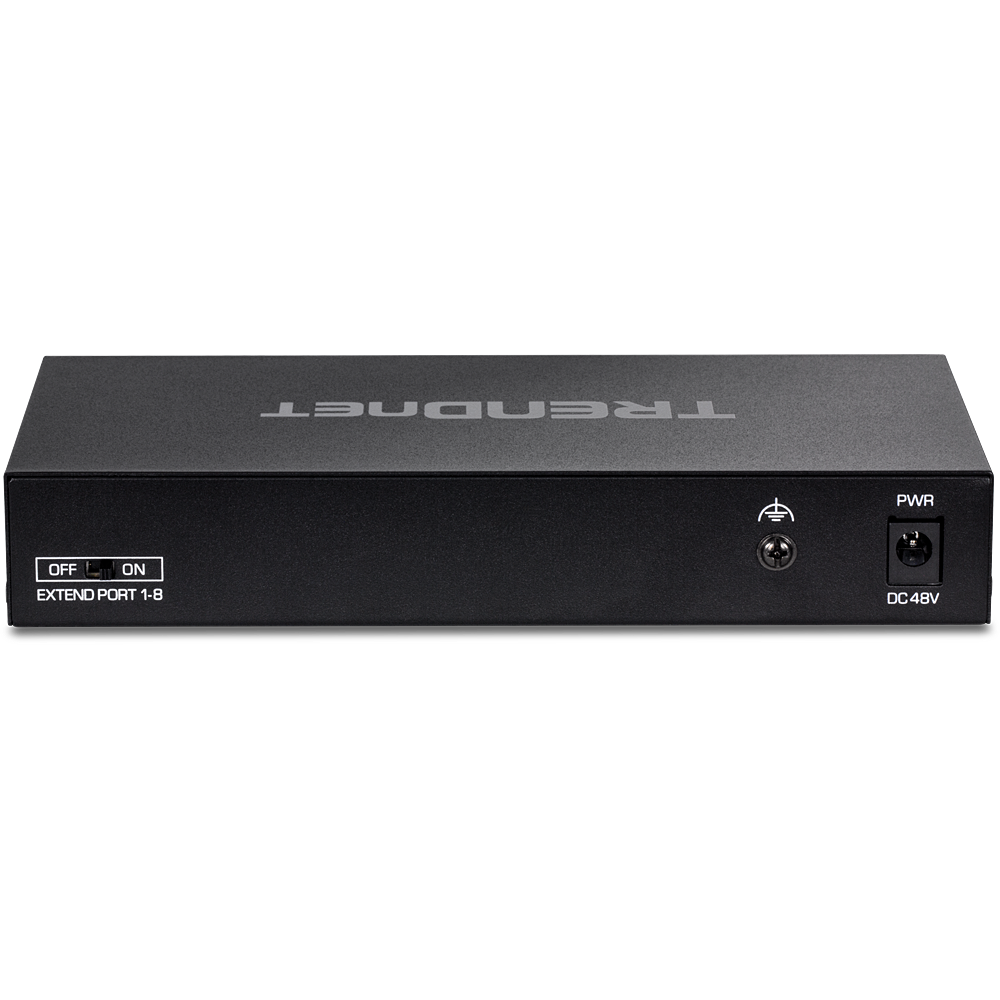

Enable DIP switch to extend PoE+ signal up to 250m (820ft.) at 10Mbps

Sturdy metal switch

Use with TRENDnet's PoE splitter to network and power non-PoE devices

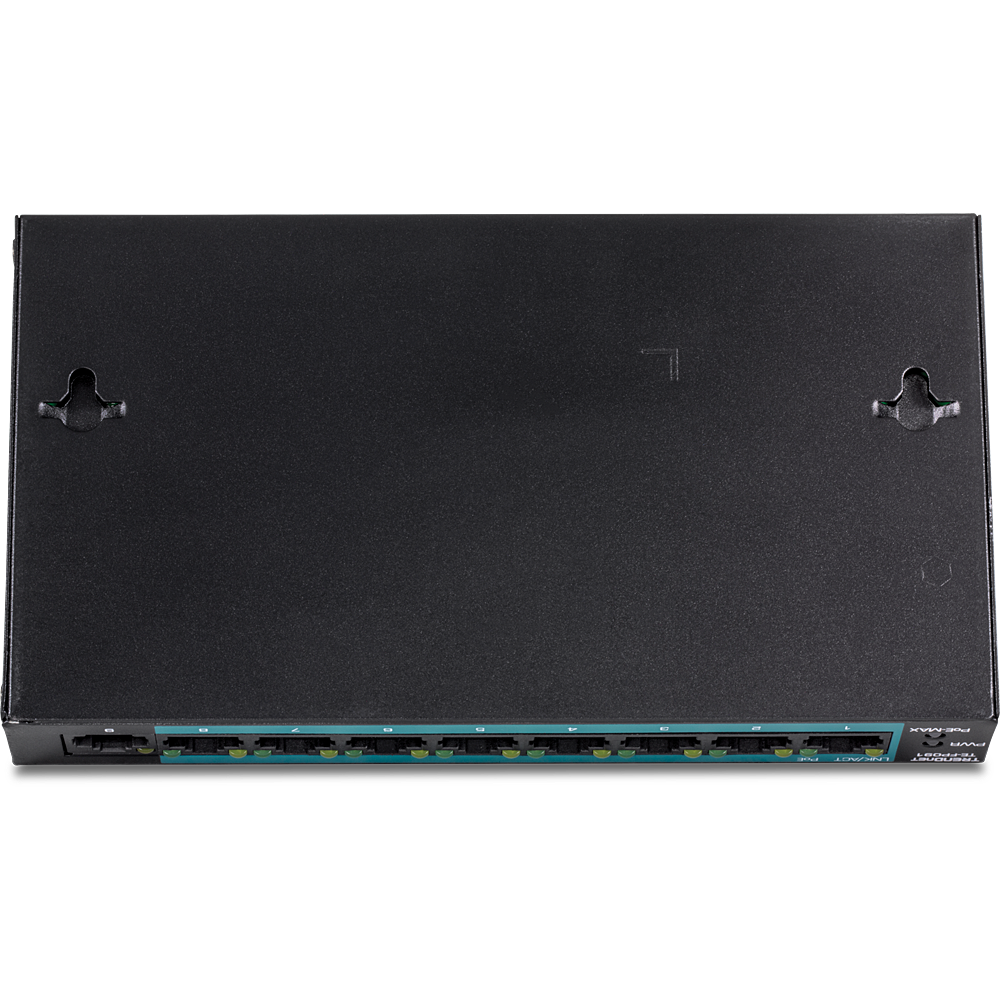

Wall mountable design

Data transmission

Forwarding rate
1.488 Mpps

MAC address table
2000 entries

Switching capacity
1.8 Gbit/s

Design

Certification
CE, FCC

Housing material
Metal

LED indicators
Yes

Product colour
Black

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

Ethernet LAN data rates
10,100 Mbit/s

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
0 - 95 °C

Packaging data

Quick start guide
Yes

Performance

Mean time between failures (MTBF)
612220 h

Ports & interfaces

Switch Number of Ports
9

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

DC input voltage
48 V

Input current
1.35 A

Power consumption (max)
4.8 W

Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
8

Total Power over Ethernet (PoE) budget
60 W

Weight & dimensions

Depth
93 mm

Height
28 mm

Weight
350 g

Width
170 mm

Description

Trendnet TE-FP091. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE). Wall mountable

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 9
MAC address table: 2000 entries Switching capacity: 1.8 Gbit/s
Power over Ethernet (PoE)
Easy installation
8 x Fast Ethernet PoE+ ports and 1 x Fast Ethernet port
Enable DIP switch to extend PoE+ signal up to 250m (820ft.) at 10Mbps
60W PoE power budget
1.8Gbps switching capacity
Wall mountable design
Sturdy metal switch
Use with TRENDnet's PoE splitter to network and power non-PoE devices
