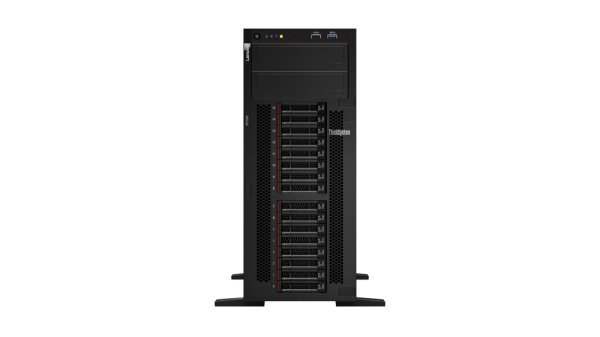

Name: ThinkSystem ST550, Xeon Silver 4110, 1x 16GB DDR4 2666MHz, 1x 930-8i 2GB Flash, 8x 3.5", 8x 3.5" SATA/SAS HS, Security Bezel/Chassis Intrusion Switch/TPM 1.2, XClarity Standard, 1x 750W Platinum
Brand: Lenovo
SKU: 7X10A01JEA

ThinkSystem ST550, Xeon Silver 4110, 1x 16GB DDR4 2666MHz, 1x 930-8i 2GB Flash, 8x 3.5", 8x 3.5" SATA/SAS HS, Security Bezel/Chassis Intrusion Switch/TPM 1.2, XClarity Standard, 1x 750W Platinum

Roll over image to zoom inClick to Open expanded view

Product Properties

Manufacturer
Lenovo

Device type
Server

Design

Chassis type
Tower

Expansion slots

PCI Express slots version
3.0

PCI Express x16 (Gen 3.x) slots
2

PCI Express x8 (Gen 3.x) slots
2

Filters

Machinecategory
Server

Graphics

On-board graphics card
Yes

On-board graphics card model
Matrox G200

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
16 GB

Memory layout (slots x size)
1 x 16 GB

Memory Slot Support
768 GB

Memory slots
12

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Yes

Operational conditions

Operating altitude
0 - 3048 m

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
8 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Flash memory
2048 MB

Performance

Performance management
XClarity Standard

Trusted Platform Module (TPM)
Yes

Trusted Platform Module (TPM) version
1.2

Ports & interfaces

USB 2.0 ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

VGA (D-Sub) ports quantity
1

Power

Number of main power supplies
1

Power supply
750 W

Power supply input frequency
50 - 60 Hz

Redundant power supply (RPS) support
Yes

Processor

Conflict-Free processor
Yes

ECC supported by processor
Yes

Embedded options available
Yes

Execute Disable Bit
Yes

Maximum internal memory supported by processor
768 GB

Maximum number of PCI Express lanes
48

Memory channels supported by processor
Hepta

Memory clock speeds supported by processor
2400 MHz

Memory types supported by processor
LPDDR4-SDRAM

Number of Cores
8

Number of processors installed
1

Processor
4110

Processor boost frequency
3 GHz

Processor cache
11 MB

Processor cache type
L3

Processor codename
Skylake

Processor family
Intel® Xeon®

Processor frequency
2.1 GHz

Processor generation
1st Generation Intel® Xeon® Scalable

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
76.0 x 56.5 mm

Processor socket
LGA 3647 (Socket P)

Processor threads
16

Scalability
2S

Supported instruction sets
AVX, AVX 2.0, AVX-512, SSE4.2

Tcase
77 °C

Thermal Design Power (TDP)
85 W

Processor special features

Enhanced Intel SpeedStep Technology
Yes

Intel 64
Yes

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® Turbo Boost Technology
2.0

Processor ARK ID
123547

Software

Compatible operating systems
Microsoft Windows Server 2016/2012 R2, Red Hat Enterprise Linux 7.3/6.9, SUSE, Linux Enterprise Server 12 SP2/11 SP4, VMware vSphere (ESXi) 6.5/6.0 U3

Storage

HDD interface
Serial ATA, Serial Attached SCSI (SAS)

Hot-Plug support
Yes

Hot-swap
Yes

Maximum storage capacity
61.44 TB

RAID levels
0, 1, 5, 6, 10, 50, 60

RAID support
Yes

Supported HDD sizes
2.5,3.5"

Supported RAID controllers
930-8i

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
666.4 mm

Height
425.5 mm

Width
175.8 mm

Memory

Internal memory type
DDR4-SDRAM

Memory clock speed
2666 MHz

Memory Installed
16 GB

Memory Slot Support
768 GB

Memory slots
12

Processor

Processor
4110

Processor generation
1st Generation Intel® Xeon® Scalable
