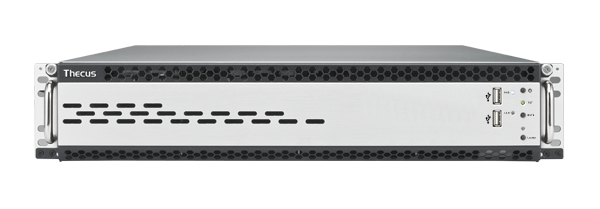

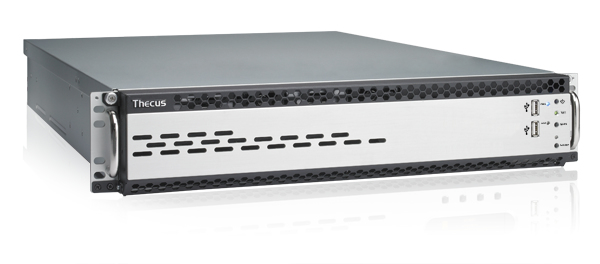

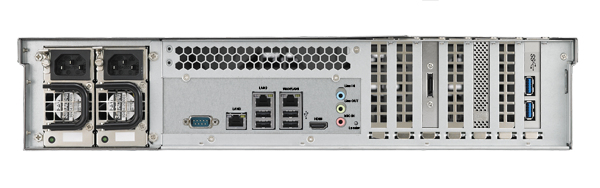

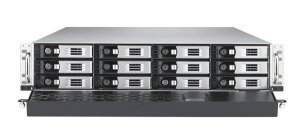

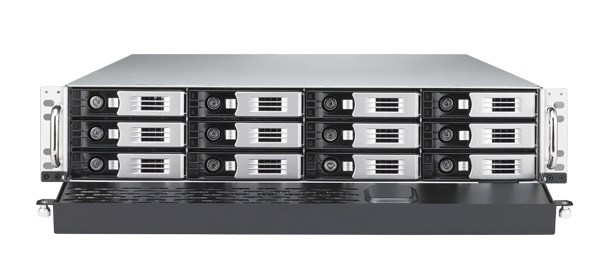

Thecus W12000 NAS/storage server Rack (2U) Ethernet LAN Black, Silver E3-1225

Roll over image to zoom inClick to Open expanded view

Thecus W12000 NAS/storage server Rack (2U) Ethernet LAN Black, Silver E3-1225

Name: Thecus W12000 NAS/storage server Rack (2U) Ethernet LAN Black, Silver E3-1225
Brand: Thecus
SKU: W12000

SKU: W12000

Log In to View Pricing

Thecus W12000, Storage server, Rack (2U), Intel® Xeon® E3 Family, E3-1225, 0.250 TB, Black, Silver

Add to compare

Product Properties

Manufacturer
Thecus

Warranty
1 Year

SKU
W12000

EAN
4712505092867

Certificates

Certification
CE, FCC

Design

Chassis type
Rack (2U)

Cooling type
Active

Housing material
Stainless steel

LED indicators
HDD, LAN, Power, Status, WAN

Number of fans
4 fan(s)

Product colour
Black, Silver

Graphics

Number of displays supported (on-board graphics)
2

On-board graphics card base frequency
850 MHz

On-board graphics card dynamic frequency (max)
1350 MHz

Memory

Internal memory type
DDR3

Maximum RAM supported
32 GB

Memory Installed
8 GB

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
5 - 40 °C

Other features

Connectivity LEDs
3

Data transfer rate
10 Gbit/s

Dimensions (WxDxH)
662 x 440 x 89 mm

Link/Act LED
Yes

Networking features
Auto MDI/MDI-X

Power LED
Yes

Power requirements
220V/50Hz

Processor ARK ID
52270

Size (imperial)
48.3 cm (19")

Packaging content

Cables included
AC, LAN (RJ-45)

Performance

Backup function
Yes

Compatible memory cards
Not supported

Device class
Small & Medium Business

Type
Storage server

Ports & interfaces

eSATA
Yes

eSATA ports quantity
1

Ethernet LAN (RJ-45) ports
3

FireWire 400
No

FireWire 800
No

HDMI ports
1

RS-232 ports
1

USB 2.0 ports quantity
6

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

WAN connection
Ethernet (RJ-45)

Power

Power supply location
Built-in

Power supply unit (PSU) capacity
500 W

Redundant power supply (RPS) support
Yes

Processor

Bus type
DMI

CPU configuration (max)
1

CPU multiplier (bus/core ratio)
31

ECC supported by processor
Yes

Maximum internal memory supported by processor
32 GB

Memory bandwidth supported by processor (max)
21 GB/s

Number of Cores
4

Number of processors installed
1

On-board graphics card model
Intel® HD Graphics P3000

PCI Express slots version
2.0

Processor
E3-1225

Processor boost frequency
3.4 GHz

Processor cache
6 MB

Processor cache type
Smart Cache

Processor code
SR00G

Processor codename
Sandy Bridge

Processor family
Intel® Xeon® E3 Family

Processor frequency
3.1 GHz

Processor lithography
32 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
37.5 x 37.5 mm

Processor socket
LGA 1155 (Socket H2)

Processor threads
4

Stepping
D2

System bus rate
5 GT/s

Tcase
72.6 °C

Thermal Design Power (TDP)
95 W

Processor special features

Embedded options available
Yes

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Demand Based Switching
Yes

Intel Dual Display Capable Technology
Yes

Intel Enhanced Halt State
Yes

Intel Fast Memory Access
Yes

Intel FDI Technology
Yes

Intel Flex Memory Access
Yes

Intel Identity Protection Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Clear Video HD Technology (Intel® CVT HD)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
No

Intel® Identity Protection Technology (Intel® IPT)
Yes

Intel® InTru™ 3D Technology
Yes

Intel® Quick Sync Video Technology
Yes

Intel® Smart Cache
Yes

Intel® Turbo Boost Technology
2.0

Intel® Wireless Display (Intel® WiDi)
No

Maximum number of PCI Express lanes
20

Memory channels supported by processor
Dual

Memory types supported by processor
DDR3-SDRAM

Thermal Monitoring Technologies
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Maximum supported storage capacity
48 TB

Number of storage drives installed
1

Number of storage drives supported
12

RAID support
Yes

Storage drive capacity
250 GB

Storage drive size
2.5"

Storage drives installed
No

Supported file systems
NTFS

Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III

Supported storage drive types
HDD

Total installed storage capacity
0.250 TB

Weight & dimensions

Depth
440 mm

Height
89 mm

Weight
15.8 kg

Width
662 mm

Description

Thecus W12000. Total installed storage capacity: 0.250 TB, Installed storage drive type: HDD, Supported storage drive types: HDD. Processor family: Intel® Xeon® E3 Family, Processor manufacturer: Intel, Processor model: E3-1225. Internal memory: 8 GB, Internal memory type: DDR3, Maximum RAM supported: 32 GB. Ethernet LAN data rates: 10,100,1000 Mbit/s. WAN connection: Ethernet (RJ-45)

Small & Medium Business Storage server Rack (2U) Black, Silver
Total installed storage capacity: 0.250 TB Number of storage drives supported: 12 HDD Serial ATA, Serial ATA II, Serial ATA III
Intel® Xeon® E3 Family E3-1225 3.1 GHz Intel® HD Graphics P3000
8 DDR3
Ethernet LAN
Cooling type: Active
500 W
