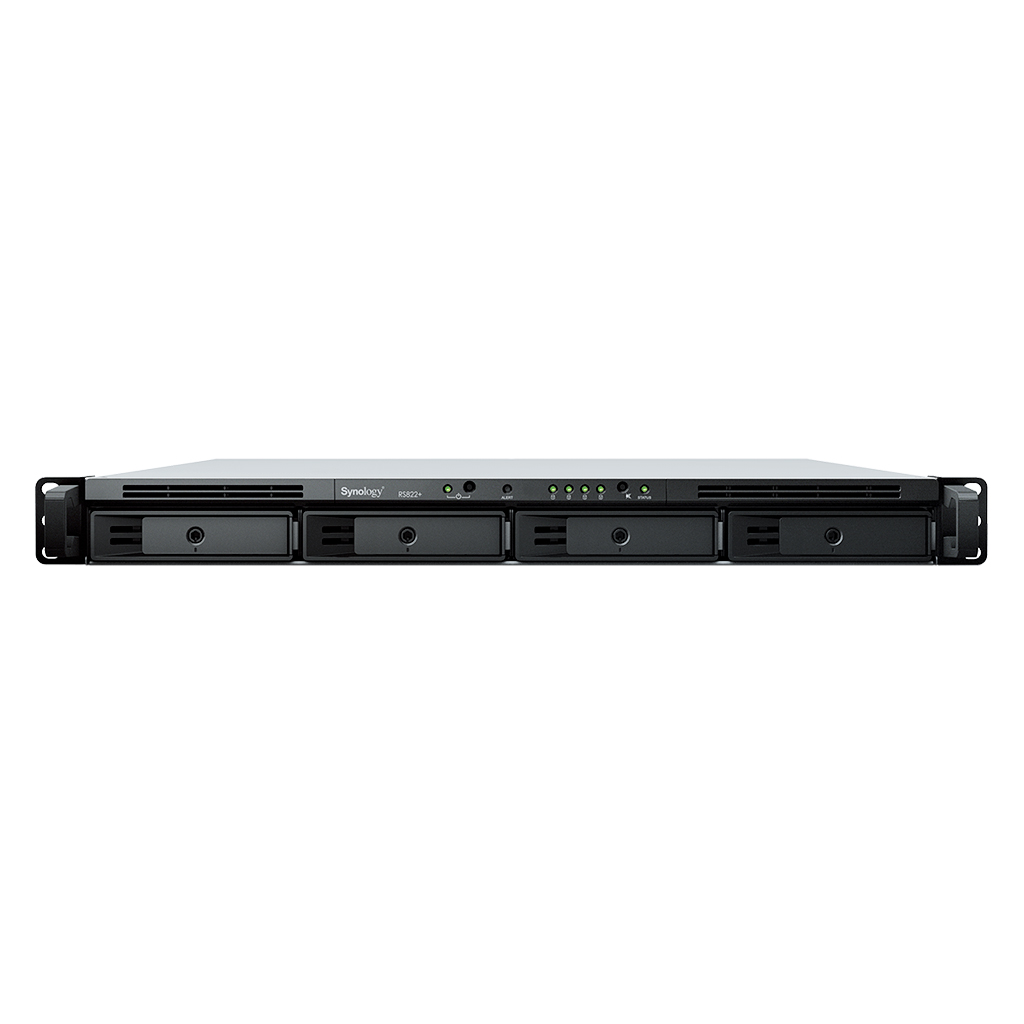

Synology RackStation RS822+ NAS Ryzen Embedded V1500B 2 GB DDR4 24 TB HDD DSM

Roll over image to zoom inClick to Open expanded view

Synology RackStation RS822+ NAS Ryzen Embedded V1500B 2 GB DDR4 24 TB HDD DSM

Name: Synology RackStation RS822+ NAS Ryzen Embedded V1500B 2 GB DDR4 24 TB HDD DSM
Brand: Synology
SKU: RS822+/24TB-IW

SKU: RS822+/24TB-IW

Log In to View Pricing

Synology RackStation RS822+, NAS, Ryzen Embedded, V1500B, 2 GB, DDR4, 24 TB

Add to compare

Product Properties

Manufacturer
Synology

Warranty
3 Years

Drive
With drives

SKU
RS822+/24TB-IW

EAN
5050914192488

Design

LED indicators
Alarm, Power, Status

Number of fans
3 fan(s)

Memory

Internal memory type
DDR4

Maximum RAM supported
32 GB

Memory form factor
SO-DIMM

Memory Installed
2 GB

Network

Supported network protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
8 - 80%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Other features

Certification
FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL

Packaging content

Cables included
AC

Performance

Access Control List (ACL)
Yes

Backup function
Yes

On/off switch
Yes

Reset button
Yes

Type
NAS

Ports & interfaces

eSATA ports quantity
1

Ethernet LAN (RJ-45) ports
4

PCI Express x8 (Gen 3.x) slots
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Processor

Number of Cores
4

Processor
V1500B

Processor family
Ryzen Embedded

Processor frequency
2.2 GHz

Processor generation
AMD Ryzen Embedded V1000 Series

Processor manufacturer
AMD

Processor threads
8

Software

Operating system installed
DSM

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Maximum supported storage capacity
108 TB

Number of storage drives installed
4

Number of storage drives supported
4

RAID levels
0, 1, 5, 6, 10, JBOD

RAID support
Yes

Storage drive capacity
6 TB

Storage drive size
2.5/3.5"

Storage drive sizes supported
2.5,3.5"

Storage drives installed
No

Supported file systems
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA

Supported storage drive types
HDD & SSD

Total installed storage capacity
24 TB

Weight & dimensions

Depth
457.6 mm

Height
44 mm

Weight
6.4 kg

Width
430.5 mm

Description

Synology RackStation RS822+. Type: NAS. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Total installed storage capacity: 24 TB, Installed storage drive type: HDD. Operating system installed: DSM

NAS
DSM
Total installed storage capacity: 24 TB Number of storage drives supported: 4 HDD & SSD Serial ATA
Ryzen Embedded V1500B 2.2 GHz
2 DDR4 SO-DIMM
Wake-on-LAN ready
