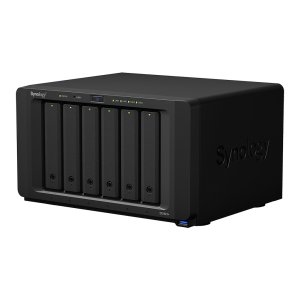

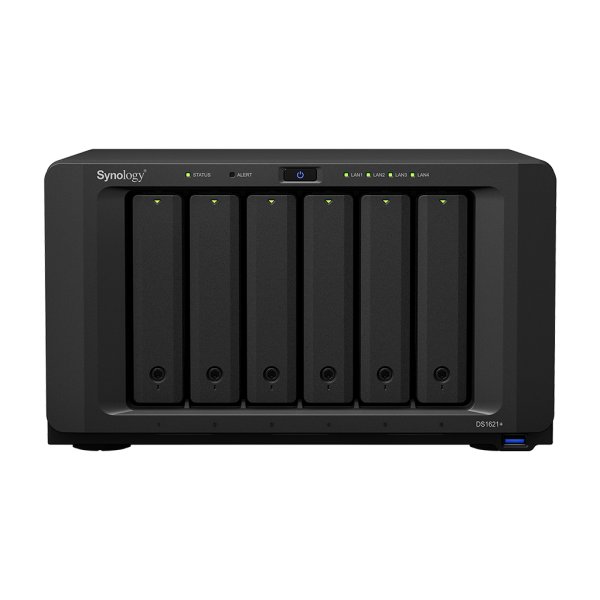

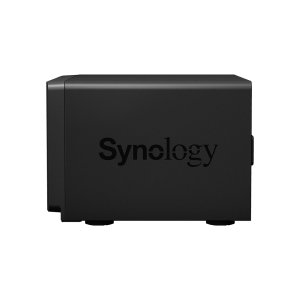

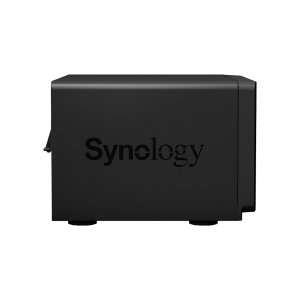

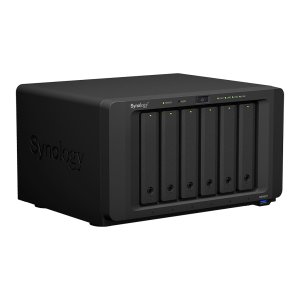

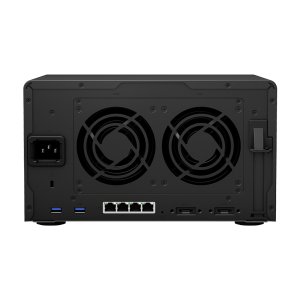

Synology DiskStation DS1621+ NAS/storage server Desktop Ryzen Embedded V1500B 4 GB DDR4 0 TB DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology DiskStation DS1621+ NAS/storage server Desktop Ryzen Embedded V1500B 4 GB DDR4 0 TB DiskStation Manager Black

Name: Synology DiskStation DS1621+ NAS/storage server Desktop Ryzen Embedded V1500B 4 GB DDR4 0 TB DiskStation Manager Black
Brand: Synology
SKU: DS1621

SKU: DS1621

Log In to View Pricing

Synology DiskStation DS1621+, NAS, Desktop, Ryzen Embedded, V1500B, 4 GB, DDR4

hypertec

Datasheets (Download)

Recovery Media Creation Guide (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
3 Years

Drive
Without Drives

SKU
DS1621

EAN
4711174723775

Design

Built-in display
Yes

Chassis type
Desktop

Cooling type
Active

Fan diameter
9.2 cm

Fan diameter 2
9.2 cm

LED indicators
Yes

Number of fans
2 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84714100

Memory

ECC
Yes

Internal memory type
DDR4

Maximum RAM supported
32 GB

Memory form factor
SO-DIMM

Memory Installed
4 GB

Memory slots
2

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Link aggregation
Yes

Supported network protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

Performance

Access Control List (ACL)
Yes

Backup function
Yes

Browser supported
Google Chrome, Firefox, Microsoft Edge, Internet Explorer 10, Safari

Device class
Small & Medium Business

Multilingual support
Yes

Number of users
2048 user(s)

On/off switch
Yes

Type
NAS

Ports & interfaces

eSATA ports quantity
2

Ethernet LAN (RJ-45) ports
4

Fiber ports quantity
0

PCI Express x8 (Gen 3.x) slots
1

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (HDD standby)
25.27 W

Power consumption (typical)
51.22 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

Number of Cores
4

On-board graphics card model
Not available

Processor
V1500B

Processor family
Ryzen Embedded

Processor frequency
2.2 GHz

Processor generation
AMD Ryzen Embedded V1000 Series

Processor manufacturer
AMD

Software

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Operating system installed
DiskStation Manager

Windows operating systems supported
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
No

Maximum supported storage capacity
108 TB

Number of M.2 (M & B) slots
2

Number of storage drives installed
0

Number of storage drives supported
6

RAID levels
0, 1, 5, 6, 10

RAID support
Yes

Storage drive capacity
0 GB

Storage drive sizes supported
2.5,3.5"

Storage drives installed
No

Supported file systems
BTRFS, ext4

Supported storage drive interfaces
M.2, Serial ATA

Supported storage drive types
HDD & SSD

Total installed storage capacity
0 TB

Weight & dimensions

Depth
243 mm

Height
166 mm

Weight
5.1 kg

Width
282 mm

Description

Synology DiskStation DS1621+. Type: NAS. Chassis type: Desktop. Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

Small & Medium Business NAS Desktop Black
DiskStation Manager
Number of storage drives supported: 6 HDD & SSD M.2, Serial ATA
Ryzen Embedded V1500B 2.2 GHz
4 DDR4 Memory slots: 2 SO-DIMM ECC
Ethernet LAN Wake-on-LAN ready
Cooling type: Active
250 W

pdf

Datasheets (Download)

Recovery Media Creation Guide (Download)
