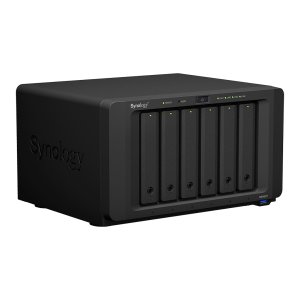

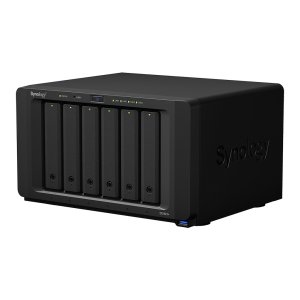

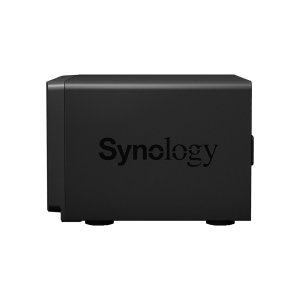

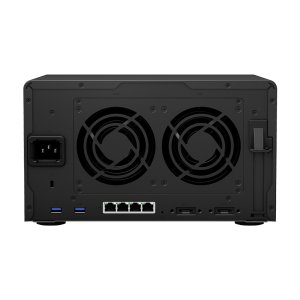

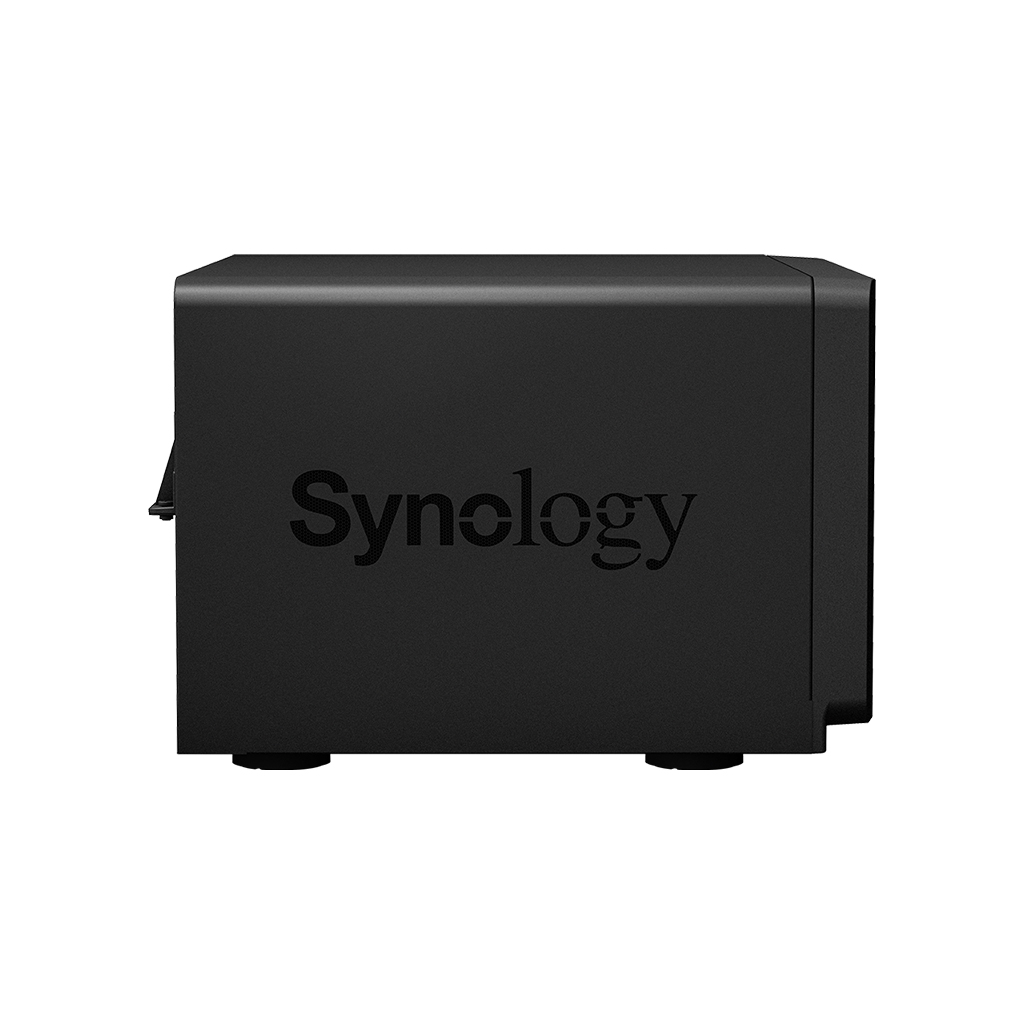

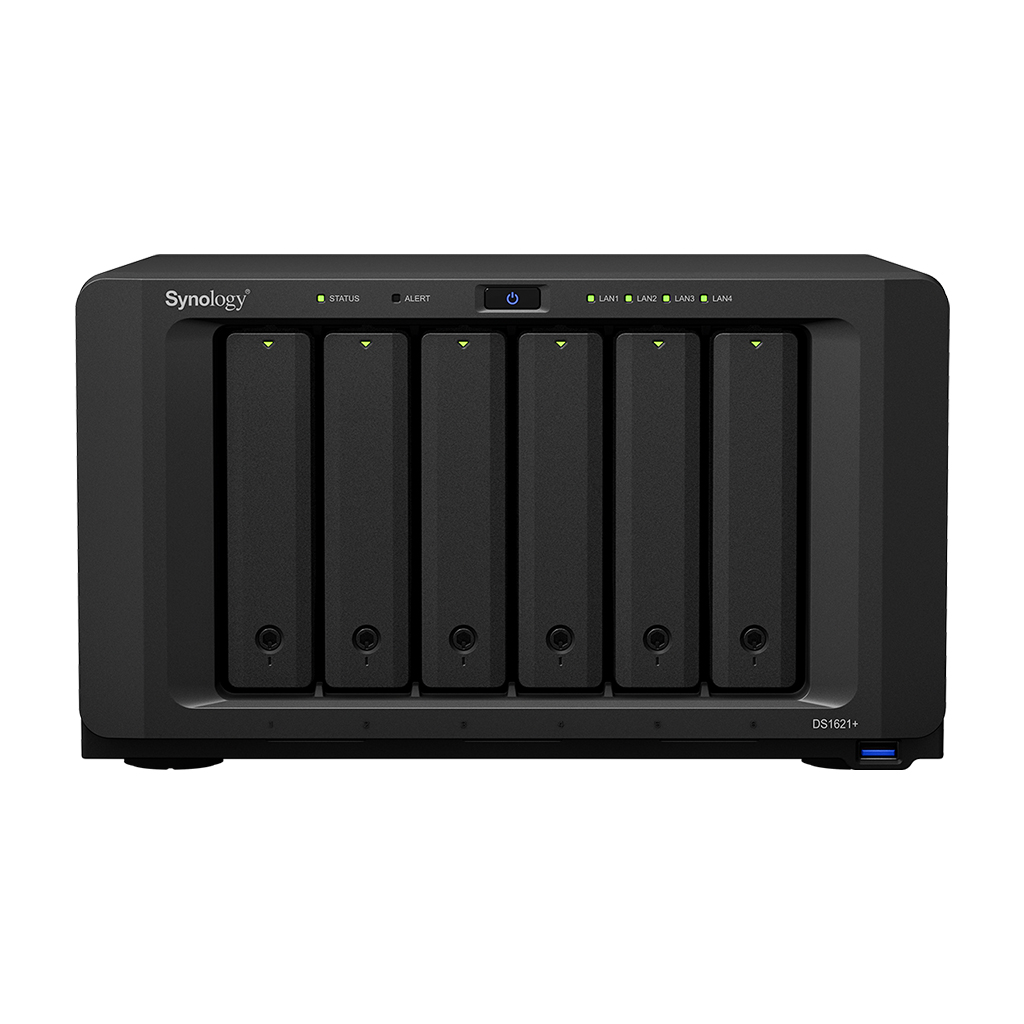

Synology DiskStation DS1621+ NAS Desktop Ryzen Embedded V1500B 4 GB DDR4 72 TB HDD DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology DiskStation DS1621+ NAS Desktop Ryzen Embedded V1500B 4 GB DDR4 72 TB HDD DiskStation Manager Black

Name: Synology DiskStation DS1621+ NAS Desktop Ryzen Embedded V1500B 4 GB DDR4 72 TB HDD DiskStation Manager Black
Brand: Synology
SKU: DS1621+/72TB-HAT33

SKU: DS1621+/72TB-HAT33

Log In to View Pricing

Synology DiskStation DS1621+, NAS, Desktop, Ryzen Embedded, V1500B, 4 GB, DDR4

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
3 Years

Drive
With drives

SKU
DS1621+/72TB-HAT33

EAN
5050914225162

Bullet points

Point
110K, 174% higher 4K random read IOPS

AMD Ryzen™ Quad-core 2.2 GHz

Dual M.2 2280 slots for NVMe Cache

Expand up to 16 drives with two DX517 expansion units

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Desktop

Cooling type
Active

Drive bay locking
Yes

Fan diameter
9.2 cm

LED indicators
Alarm, HDD, Power, Status

Number of fans
2 fan(s)

Product colour
Black

Memory

Internal memory type
DDR4

Maximum RAM supported
32 GB

Memory form factor
SO-DIMM

Memory Installed
4 GB

Memory slots
2

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

iSCSI support
Yes

Link aggregation
Yes

Load balancing system
Yes

Supported network protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Other features

Certification
FCC, BSMI, EAC, CCC, KC, VCCI, RCM

Compliance certificates
CE, RoHS

Packaging content

Cables included
AC, LAN (RJ-45)

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Google Chrome, Firefox, Microsoft Edge, Internet Explorer, Safari

Built-in FTP server
Yes

Built-in iTunes server
Yes

Device class
Home & Home Office

Hot spare
Yes

Multilingual support
Yes

Noise level
25.2 dB

Number of users
2048 user(s)

On/off switch
Yes

Reset button
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder
CIFS/AFP/NFS/FTP/WebDAV

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Ports & interfaces

eSATA ports quantity
2

Ethernet LAN (RJ-45) ports
4

PCI Express x8 (Gen 3.x) slots
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (HDD standby)
25.27 W

Power consumption (typical)
51.22 W

Power supply location
Built-in

Power supply unit (PSU) capacity
250 W

Processor

L2 cache
2 MB

L3 cache
4 MB

Number of Cores
4

Processor
V1500B

Processor family
Ryzen Embedded

Processor frequency
2.2 GHz

Processor manufacturer
AMD

Processor threads
8

Software

Mac operating systems supported
Yes

Operating system installed
DiskStation Manager

Windows operating systems supported
Yes

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Number of M.2 (M & B) slots
2

Number of storage drives installed
4

Number of storage drives supported
6

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, JBOD

RAID support
Yes

Storage drive capacity
18 TB

Storage drive interface
Serial ATA II, Serial ATA III

Storage drive size
2.5/3.5"

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
72 TB

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
243 mm

Height
166 mm

Width
282 mm

Description

Synology DiskStation DS1621+. Type: NAS. Chassis type: Desktop. Device class: Home & Home Office. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 72 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Home & Home Office NAS Desktop Black
DiskStation Manager
Total installed storage capacity: 72 TB Number of storage drives supported: 6 HDD & SSD Serial ATA II, Serial ATA III
Ryzen Embedded V1500B 2.2 GHz
4 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 250 W
AMD Ryzen™ Quad-core 2.2 GHz
Dual M.2 2280 slots for NVMe Cache
110K, 174% higher 4K random read IOPS
Expand up to 16 drives with two DX517 expansion units
