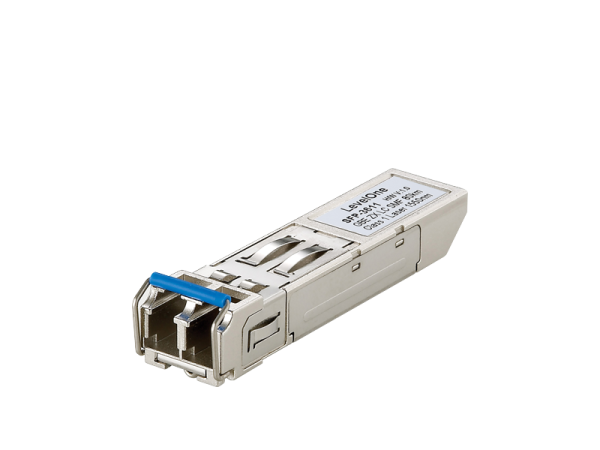

LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm

Roll over image to zoom inClick to Open expanded view

LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm

Name: LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm
Brand: LevelOne
SKU: SFP-3611

SKU: SFP-3611

LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, 80000 m

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
SFP-3611

EAN
5050914832612

Certificates

Certification
CE, FCC

Compliance certificates
RoHS

Safety
EN 60825-1

Features

Hot-swap
Yes

Plug and Play
Yes

Logistics data

Harmonized System (HS) code
85369010

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 70 °C

Storage temperature (T-T)
-40 - 85 °C

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package depth
20 mm

Package height
65 mm

Package weight
35 g

Package width
106 mm

Performance

Duplex system
Full

Fiber cable diameters supported (core/cladding)
9/125 µm

Fiber optic connector
LC

Fiber ports quantity
1

Interface type
SFP

Link budget
23 dB

Maximum data transfer rate
1250 Mbit/s

Maximum transfer distance
80000 m

Networking standards
IEEE 802.3z

SFP transceiver type
Fiber optic

Single-mode fiber (SMF) supported
Yes

Tx power (max)
5 dBmW

Wavelength
1550 nm

Power

Input voltage
3.3 V

Maximum current
300 A

Maximum voltage
6 V

Weight & dimensions

Depth
12 mm

Height
13.7 mm

Weight
20 g

Width
57 mm

Description

LevelOne 1.25Gbps Single-mode SFP Transceiver, 80km, 1550nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 300 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Quantity per pack: 1 pc(s)

SFP Fiber optic 1250 Mbit/s
Wavelength: 1550 nm
Hot-swap
Input voltage: 3.3 V
