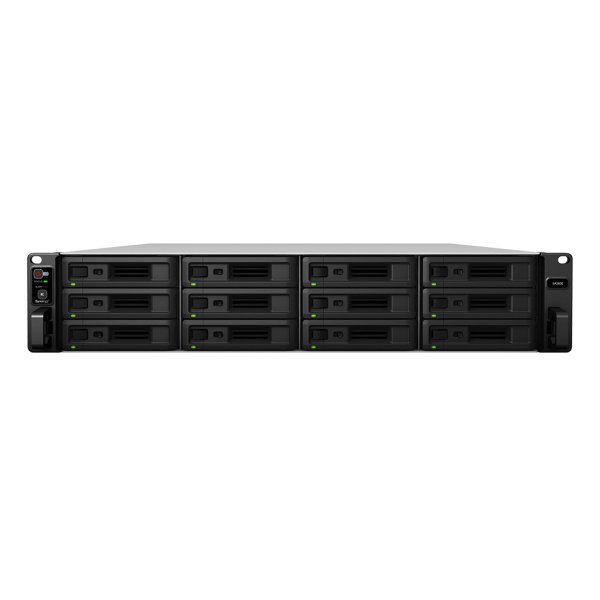

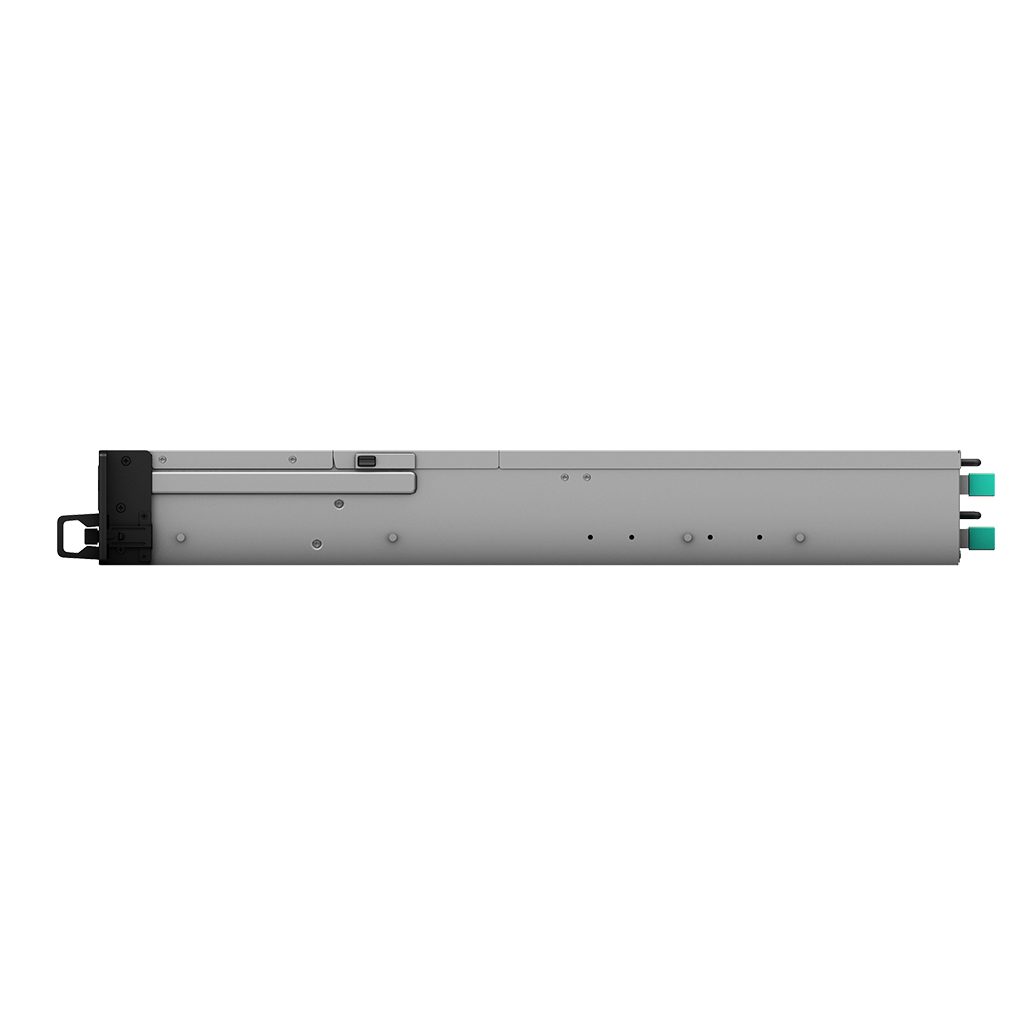

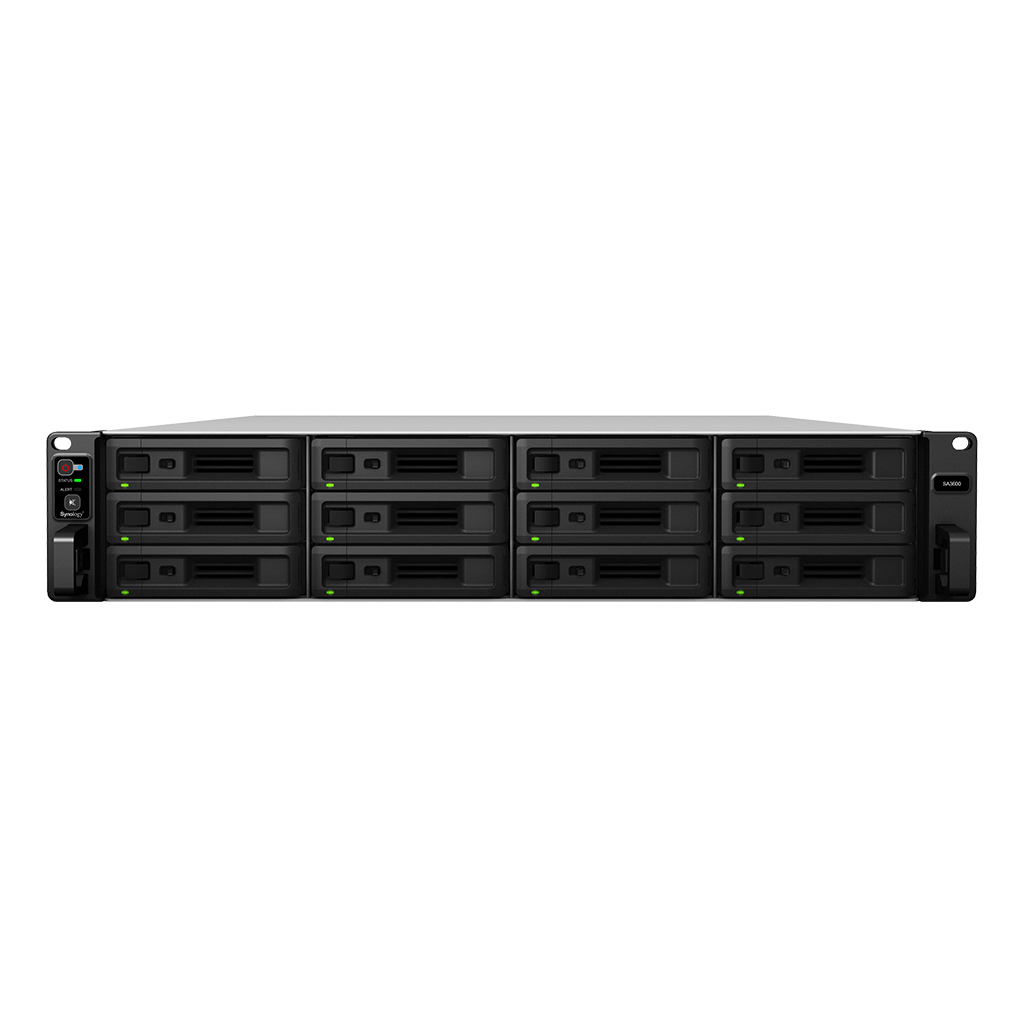

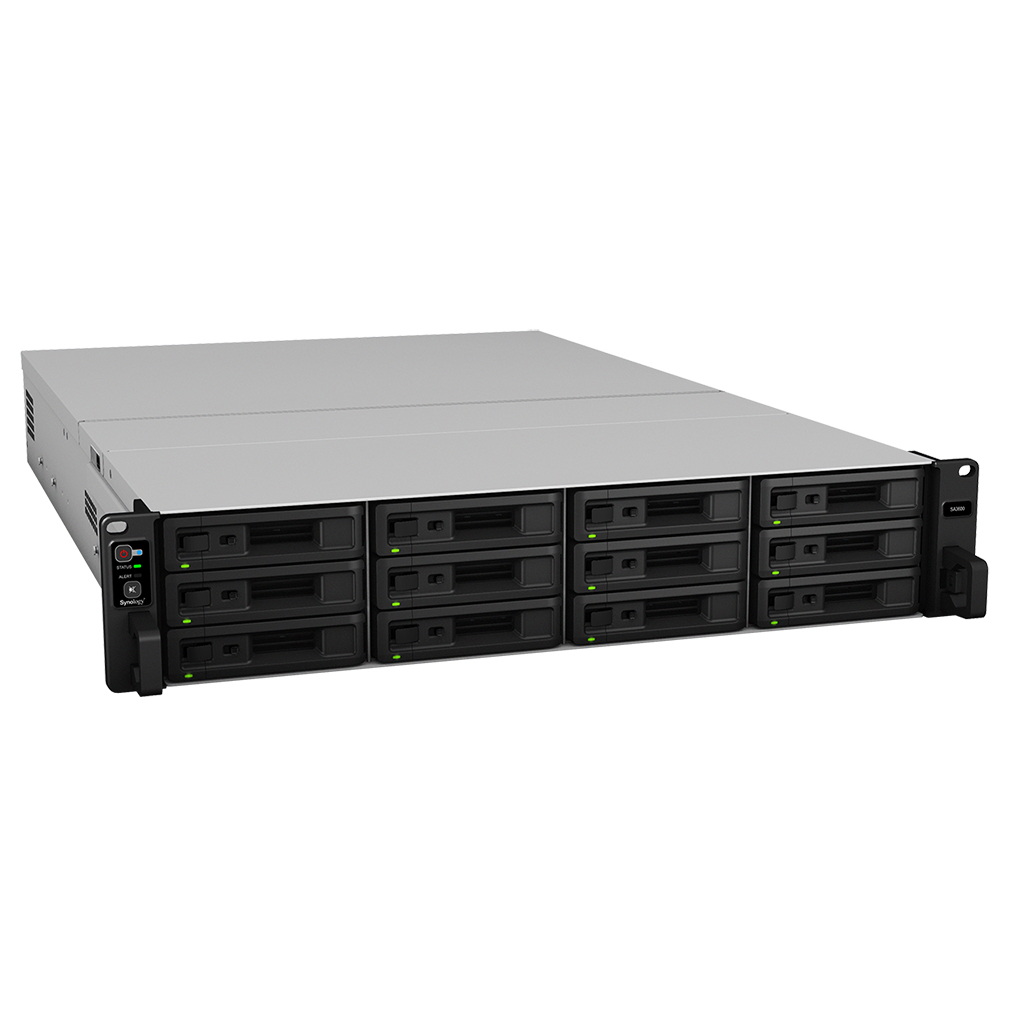

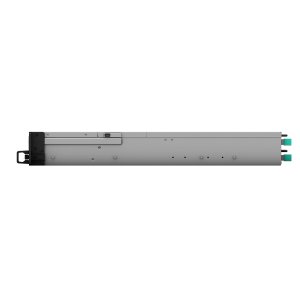

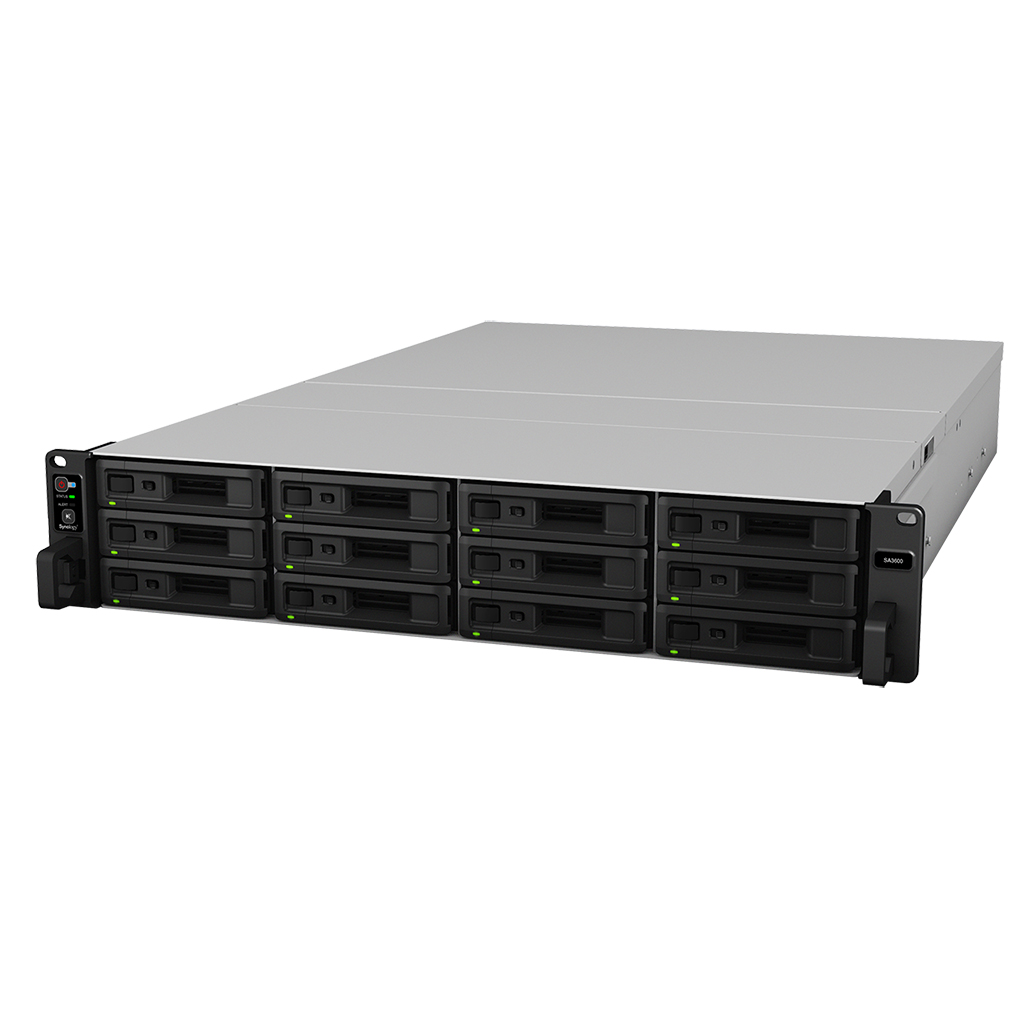

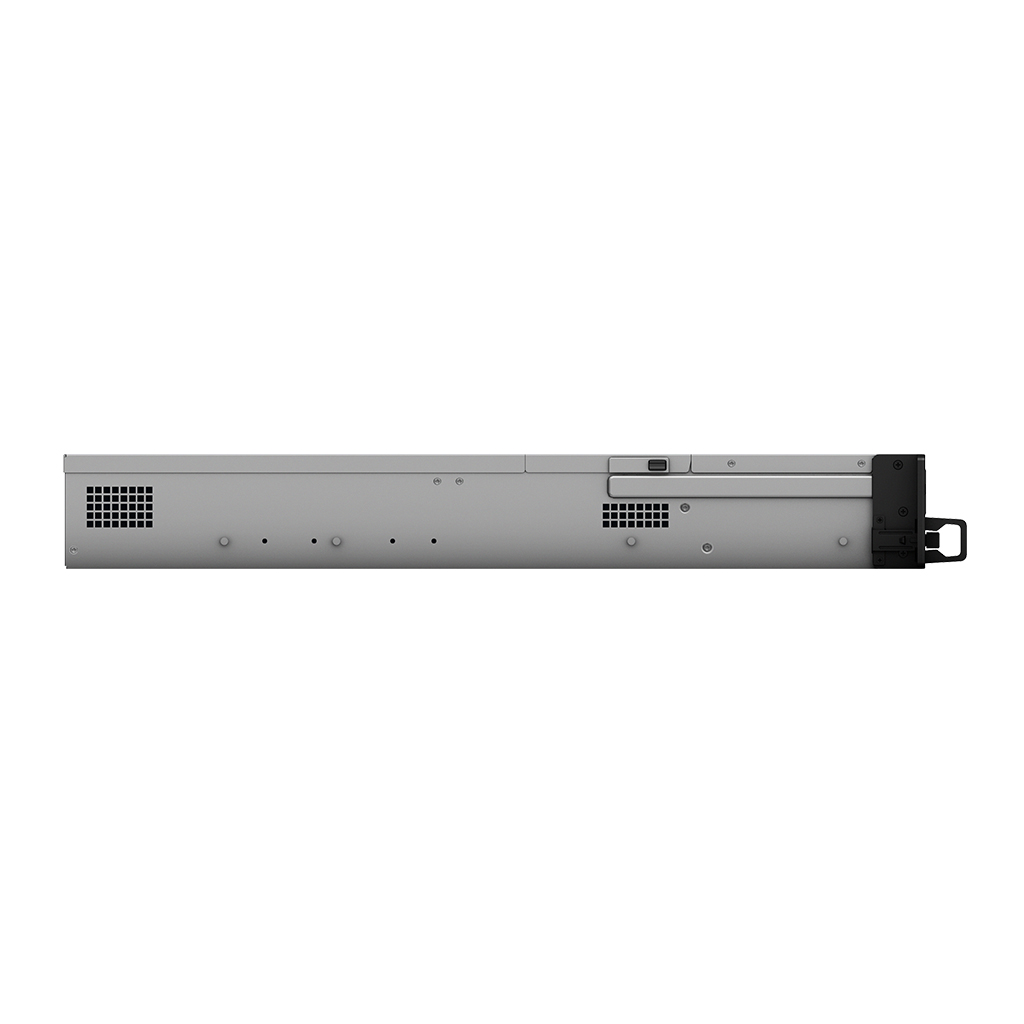

Synology SA SA3600 NAS Rack (2U) Intel® Xeon® D D-1567 16 GB DDR4 120 TB HDD DiskStation Manager Black

Roll over image to zoom inClick to Open expanded view

Synology SA SA3600 NAS Rack (2U) Intel® Xeon® D D-1567 16 GB DDR4 120 TB HDD DiskStation Manager Black

Name: Synology SA SA3600 NAS Rack (2U) Intel® Xeon® D D-1567 16 GB DDR4 120 TB HDD DiskStation Manager Black
Brand: Synology
SKU: SA3600/120TB-REDPRO

SKU: SA3600/120TB-REDPRO

Log In to View Pricing

Synology SA SA3600, NAS, Rack (2U), Intel® Xeon® D, D-1567, 16 GB, DDR4

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
Synology

Warranty
5 Years

Drive
With drives

SKU
SA3600/120TB-REDPRO

EAN
5050914124915

Bullet points

Point
16 GB DDR4 ECC RDIMM, up to 128 GB

2 x PCIe 3.0 for optional network adapter cards

Intel® Xeon® D-1567 12-core 2.1 GHz

Up to 180/96 SAS/SATA drives2

Design

Chassis type
Rack (2U)

Cooling type
Active

Fan diameter
8 cm

LED indicators
Yes

Number of fans
4 fan(s)

Product colour
Black

Memory

Internal memory type
DDR4

Maximum RAM supported
128 GB

Memory form factor
RDIMM

Memory Installed
16 GB

Memory slots
4

Network

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
10,100,1000,1200,2500,5000,10000 Mbit/s

iSCSI support
Yes

Link aggregation
Yes

Supported network protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN

Wake-on-LAN ready
Yes

Operational conditions

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 60 °C

Other features

Compliance certificates
RoHS

Digital Living Network Alliance (DLNA) certified
Yes

Processor ARK ID
93356

Packaging content

Cables included
AC

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Chrome, Firefox, Edge, Internet Explorer, Safari

Built-in FTP server
Yes

Built-in iTunes server
Yes

Buzzer
Yes

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

Noise level
49.8 dB

Number of users
16000 user(s)

On/off switch
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Web-based management
Yes

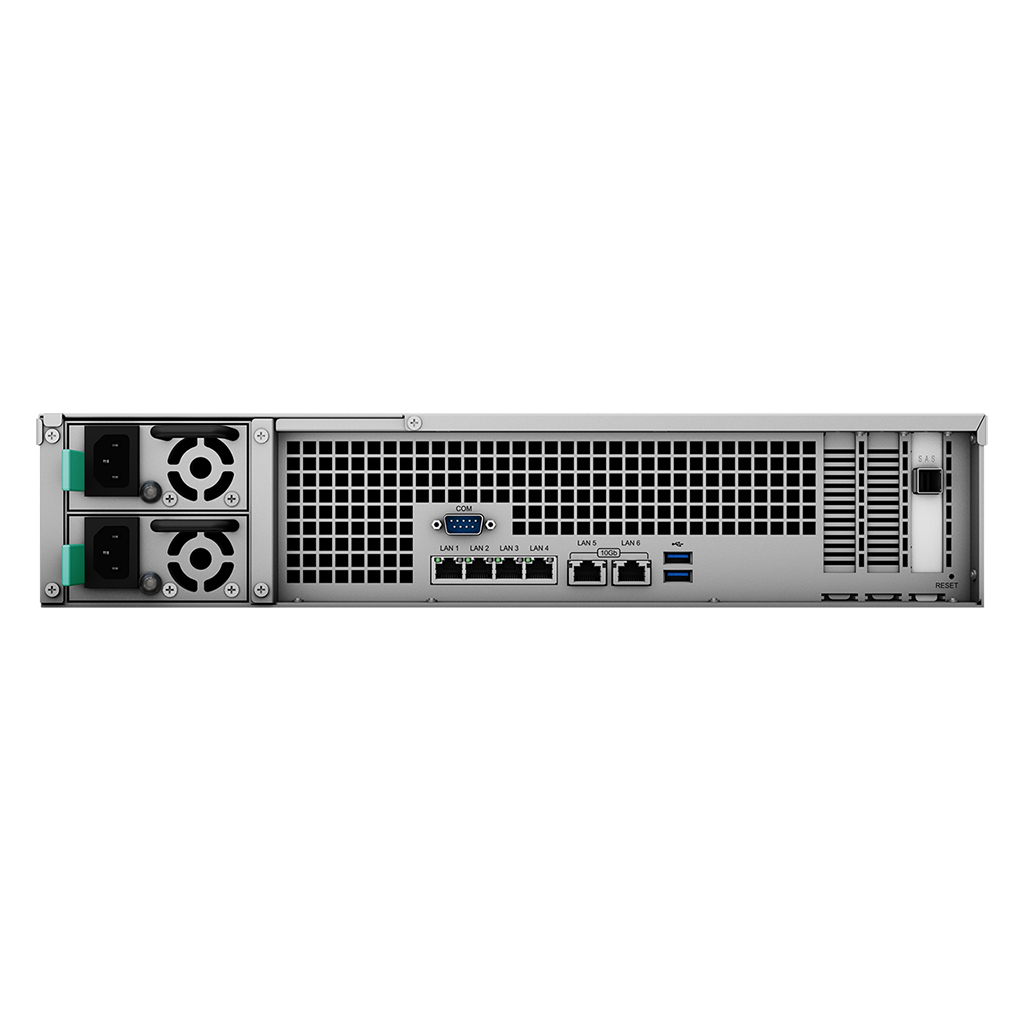

Ports & interfaces

Ethernet LAN (RJ-45) ports
6

PCI Express x8 (Gen 3.x) slots
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB port
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (HDD standby)
72.37 W

Power consumption (typical)
156.23 W

Power supply location
Built-in

Power supply unit (PSU) capacity
500 W

Redundant power supply (RPS) support
Yes

Processor

Conflict-Free processor
Yes

CPU configuration (max)
1

Maximum internal memory supported by processor
128 GB

Number of Cores
12

PCI Express configurations
1x16, 1x4, 1x8

PCI Express slots version
2.0, 3.0

Processor
D-1567

Processor boost frequency
2.7 GHz

Processor cache
18 MB

Processor cache type
L3

Processor code
SR2M3

Processor codename
Broadwell

Processor family
Intel® Xeon® D

Processor frequency
2.1 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor package size
37.5 x 37.5 mm

Processor series
Intel Xeon D-1500

Processor socket
BGA 1667

Processor threads
24

Scalability
1S

Stepping
Y0

Thermal Design Power (TDP)
65 W

Processor special features

Embedded options available
Yes

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Enhanced Halt State
Yes

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Maximum number of PCI Express lanes
32

Memory types supported by processor
DDR3-SDRAM, DDR4-SDRAM

Thermal Monitoring Technologies
Yes

UART
Yes

Software

Mac operating systems supported
Yes

Operating system installed
DiskStation Manager

Server operating systems supported
Windows Server 2016

Windows operating systems supported
Windows 10, Windows 7

Storage

Hot-swap drive bays
Yes

Installed storage drive type
HDD

Maximum supported storage capacity
192 TB

Number of storage drives installed
12

Number of storage drives supported
12

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, F1, JBOD

RAID support
Yes

Storage drive capacity
10 TB

Storage drive size
2.5/3.5"

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
Serial ATA, Serial Attached SCSI (SAS)

Supported storage drive types
HDD & SSD

Total installed storage capacity
120 TB

Weight & dimensions

Depth
724 mm

Height
88 mm

Width
482 mm

Description

Synology SA SA3600. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D, Processor model: D-1567, Processor frequency: 2.1 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 120 TB, Installed storage drive type: HDD. Operating system installed: DiskStation Manager

Small & Medium Business NAS Rack (2U) Black
DiskStation Manager
Total installed storage capacity: 120 TB Number of storage drives supported: 12 HDD & SSD Serial ATA, Serial Attached SCSI (SAS)
Intel® Xeon® D D-1567 2.1 GHz
16 DDR4 Memory slots: 4 RDIMM
Ethernet LAN 10000 iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 500 W
Intel® Xeon® D-1567 12-core 2.1 GHz
16 GB DDR4 ECC RDIMM, up to 128 GB
Up to 180/96 SAS/SATA drives2
2 x PCIe 3.0 for optional network adapter cards
