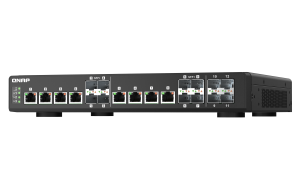

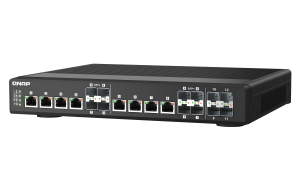

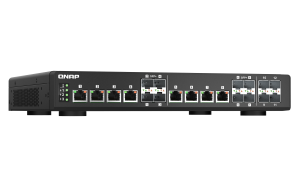

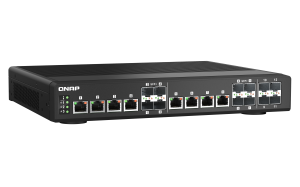

QNAP QSW-IM1200-8C network switch Managed L2 Black
Roll over image to zoom inClick to Open expanded view
QNAP QSW-IM1200-8C network switch Managed L2 Black
QNAP QSW-IM1200-8C network switch Managed L2 Black
QNAP QSW-IM1200-8C network switch Managed L2 Black
QNAP QSW-IM1200-8C network switch Managed L2 Black
QNAP QSW-IM1200-8C network switch Managed L2 Black
QNAP QSW-IM1200-8C network switch Managed L2 Black

QNAP QSW-IM1200-8C network switch Managed L2 Black

SKU: QSW-IM1200-8C
QNAP QSW-IM1200-8C, Managed, L2, Full duplex, Rack mounting
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • Drive
  • Without Drives
  • SKU
  • QSW-IM1200-8C
  • EAN
  • 4713213519042
  • Data transmission
  • Jumbo frames support
  • Yes
  • Design
  • Logistics data
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Web-based management
  • Yes
  • Network
  • Flow control support
  • Yes
  • Operational conditions
  • Packaging data
  • Cables included
  • AC
  • Performance
  • Firmware upgradeable
  • Yes
  • Ports & interfaces
  • Combo SFP ports quantity
  • 8
  • Gigabit Ethernet (copper) ports quantity
  • 1
  • SFP+ module slots quantity
  • 4
  • Switch Port Speed
  • No
  • Power
  • Power consumption (max)
  • 78 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • Access Control List (ACL)
  • Yes
  • Weight & dimensions

Description

QNAP QSW-IM1200-8C. Switch type: Managed, Switch layer: L2. Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... DC input voltage: 9 - 54 V. Rack mounting
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Console port: RS-232
  • 10G support 10GBASE-T, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T, 2500BASE-T
  • MAC address table: 16000 entries Switching capacity: 240 Gbit/s
  • Access Control List (ACL)
  • Rack mounting

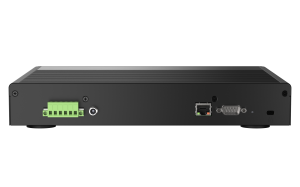

  • DC Power supply included
  • With an industrial hardened IP20 metal case, fanless design and ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius. The redundant DC power supply and circuit breaker also guarantees continuous operation
  • The QSW-IM1200-8C is equipped with eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-IM1200-8C offers higher transmission speeds when used with existing cables
  • The QSW-IM1200-8C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for users to efficiently control network bandwidth and enhance security
  • Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central industrial network management intuitive and easy
  • Supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention
  • Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-IM1200-8C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections
