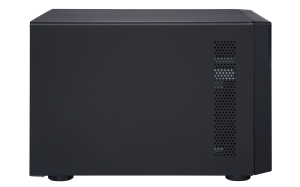

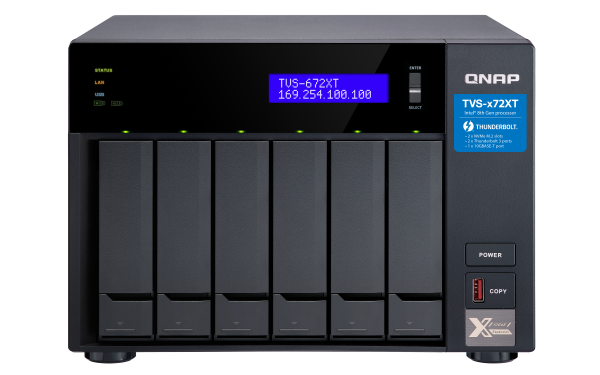

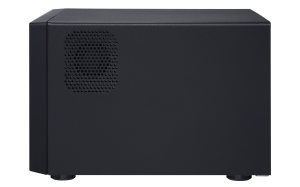

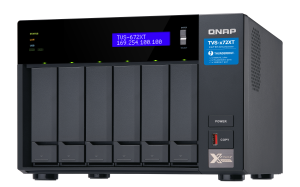

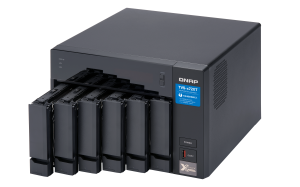

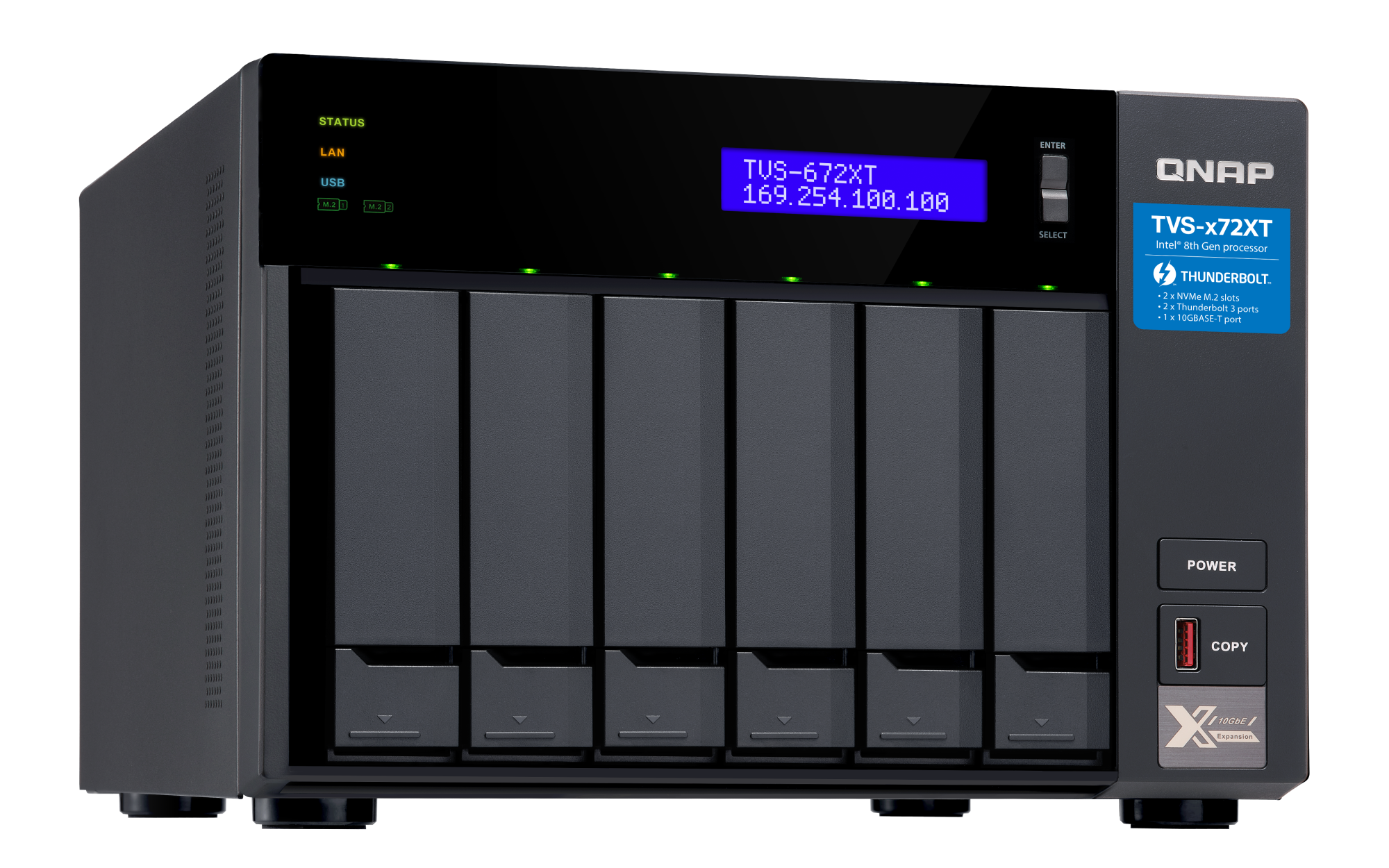

QNAP TVS-672XT NAS Tower Ethernet LAN Black

Roll over image to zoom inClick to Open expanded view

QNAP TVS-672XT NAS Tower Ethernet LAN Black

Name: QNAP TVS-672XT NAS Tower Ethernet LAN Black
Brand: QNAP
SKU: TVS-672XT-I3-8G

SKU: TVS-672XT-I3-8G

QNAP TVS-672XT, NAS, Tower, Intel® Core™ i3, Black

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
Without Drives

SKU
TVS-672XT-I3-8G

EAN
4713213514535

Design

Built-in display
Yes

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
Tower

Cooling type
Active

Fan diameter
9.2 cm

Fan diameter 2
6 cm

LED indicators
HDD, LAN, Status, USB

Number of fans
4 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84714100

Memory

Flash memory
5000 MB

Internal memory type
DDR4

Maximum RAM supported
64 GB

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory slots
2

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Load balancing system
Yes

Supported network protocols
TCP/IP, IPv4, IPv6

Wake-on-LAN ready
Yes

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
36

Power cables quantity
1

Quick installation guide
Yes

Performance

Access Control List (ACL)
Yes

Backup features
iSCSI LUN

Backup function
Yes

Browser supported
Apple Safari, Google Chrome, Microsoft Internet Explorer, Mozilla Firefox

Built-in FTP server
Yes

Built-in iTunes server
Yes

Buzzer
Yes

Device class
Home & Home Office

Hot spare
Yes

Management protocols
SNMP 2/3

Multilingual support
Yes

Noise level
23.8 dB

On/off switch
Yes

Remotely operated
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH

Share folder
CIFS/SMB

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

USB copy function
Yes

Web-based management
Yes

Ports & interfaces

Concurrent connections
2500

Ethernet LAN (RJ-45) ports
3

HDMI ports
1

HDMI version
2.0

PCI Express x16 (Gen 3.x) slots
1

PCI Express x4 (Gen 3.x) slots
1

Thunderbolt 3 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB port
Yes

Power

AC input voltage
100 - 240 V

Fan voltage
12 V

Power consumption (HDD standby)
26.52 W

Power consumption (typical)
45.6 W

Power supply unit (PSU) capacity
250 W

Processor

On-board graphics card model
Intel® UHD Graphics 630

PCI Express configurations
1x8+2x4, 1x16, 2x8

Processor family
Intel® Core™ i3

Processor generation
8th gen Intel® Core™ i3

Processor manufacturer
Intel

Software

Linux operating systems supported
CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS

Operating system installed
QNAP QTS

Operating system version
5.0.0

Other operating systems supported
IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Storage

Auto-rebuild
Yes

Bad block scan
Yes

Disk roaming
Yes

Hot-swap drive bays
Yes

Installed storage drive type
No

Number of M.2 (M & B) slots
2

Number of storage drives supported
6

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5, 6, 10, 50, JBOD

RAID support
Yes

Storage drive sizes supported
2.5,3.5,M.2

Storage drives installed
No

Supported file systems
FAT32, HFS+, NTFS, exFAT, ext3, ext4

Supported storage drive interfaces
M.2, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
279.6 mm

Height
188.2 mm

Package weight
8.07 kg

Weight
6.55 kg

Width
264.3 mm

Description

QNAP TVS-672XT. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: M.2, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5,M.2. Processor family: Intel® Core™ i3, Processor manufacturer: Intel, Processor generation: 8th gen Intel® Core™ i3. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: TCP/IP, IPv4, IPv6. Chassis type: Tower, Cooling type: Active, Product colour: Black

Home & Home Office NAS Tower Black
QNAP QTS 5.0.0
Number of storage drives supported: 6 HDD & SSD M.2, Serial ATA II, Serial ATA III
Intel® Core™ i3 Intel® UHD Graphics 630
8 DDR4 Memory slots: 2 SO-DIMM
Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: iSCSI LUN 250 W
High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices
PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance
Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency
4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
