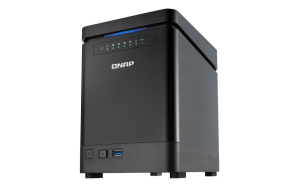

QNAP TS-453mini NAS Desktop Intel® Celeron® 8 GB DDR3L 32 TB HDD QNAP Turbo System Black

Roll over image to zoom inClick to Open expanded view

QNAP TS-453mini NAS Desktop Intel® Celeron® 8 GB DDR3L 32 TB HDD QNAP Turbo System Black

Name: QNAP TS-453mini NAS Desktop Intel® Celeron® 8 GB DDR3L 32 TB HDD QNAP Turbo System Black
Brand: QNAP
SKU: TS-453MINI-8G-32TB-EC

SKU: TS-453MINI-8G-32TB-EC

Log In to View Pricing

QNAP TS-453mini, NAS, Desktop, Intel® Celeron®, 8 GB, DDR3L, 32 TB

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
1 Year

Drive
With drives

SKU
TS-453MINI-8G-32TB-EC

EAN
5050914929336

Bullet points

Point
Enhanced data security with high-performance AES 256-bit encryption and anti-virus

Manage, share, and back up business data with Real-time Remote Replication (RTRR)

NAS and iSCSI-SAN unified storage solution for server virtualization

Run multiple Windows/Linux/UNIX/Android -based virtual machines with the Virtualization Station

Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features

Transcode Full HD videos on-the-fly or offline with QNAP’s unique transcoding technology *

Use the TS-453mini as a PC with exclusive QvPC Technology

Design

Chassis type
Desktop

Cooling type
Active

LED indicators
LAN, Power, Status

Product colour
Black

Memory

Flash memory
512 MB

Internal memory type
DDR3L

Maximum RAM supported
8 GB

Memory clock speed
1600 MHz

Memory form factor
SO-DIMM

Memory Installed
8 GB

Network

DHCP client
Yes

DHCP server
Yes

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Supported network protocols
CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Wake-on-LAN ready
Yes

Wi-Fi
No

WLAN adapter supported
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 35 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
12

Quick installation guide
Yes

Remote control included
Yes

Performance

Access Control List (ACL)
Yes

Backup button
Yes

Backup features
Cloud, USB drive, iSCSI LUN

Backup function
Yes

Browser supported
Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox, Apple Safari

Device class
Small & Medium Business

Hot spare
Yes

Management protocols
SNMP

Multilingual support
Yes

Noise level
15.9 dB

On/off switch
Yes

Remotely operated
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH

Share folder access right management
Yes

Snapshot
Yes

System log
Yes

Type
NAS

Universal Plug and Play (UPnP)
Yes

USB copy function
Yes

Web-based management
Yes

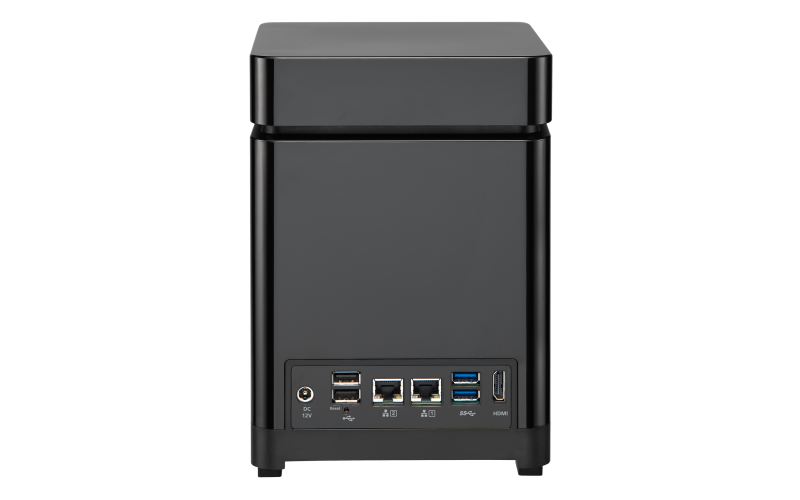

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

HDMI ports
1

HDMI version
1.4a

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB port
Yes

Power

AC input voltage
100 - 240 V

Number of power supply units
1

Power consumption (HDD standby)
17.18 W

Power consumption (sleep)
1.04 W

Power consumption (typical)
32.23 W

Power supply location
External

Power supply unit (PSU) capacity
90 W

Processor

Number of Cores
4

On-board graphics card model
Intel® HD Graphics

Processor family
Intel® Celeron®

Processor frequency
2 GHz

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operating system installed
QNAP Turbo System

Operating system version
4.1

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Storage

Bad block scan
Yes

Installed storage drive type
HDD

Number of storage drives supported
4

Online RAID expansion
Yes

Online RAID migration
Yes

RAID levels
0, 1, 5+HS, 5, 6, 10, JBOD

RAID support
Yes

Storage drive interface
Serial ATA III

Storage drive sizes supported
2.5,3.5"

Storage drives installed
Yes

Supported file systems
FAT32, HFS+, NTFS, ext3, ext4

Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III

Supported storage drive types
HDD & SSD

Total installed storage capacity
32 TB

Weight & dimensions

Depth
200 mm

Height
210 mm

Package weight
3.4 kg

Weight
2 kg

Width
151 mm

Description

QNAP TS-453mini. Type: NAS. Chassis type: Desktop. Device class: Small & Medium Business. Processor family: Intel® Celeron®, Processor frequency: 2 GHz. Internal memory: 8 GB, Internal memory type: DDR3L. Total installed storage capacity: 32 TB, Installed storage drive type: HDD. Operating system installed: QNAP Turbo System

Small & Medium Business NAS Desktop Black
QNAP Turbo System 4.1
Total installed storage capacity: 32 TB Number of storage drives supported: 4 HDD & SSD Serial ATA, Serial ATA II, Serial ATA III
Intel® Celeron® 2 GHz Intel® HD Graphics
8 DDR3L 1600 MHz SO-DIMM
Ethernet LAN DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, USB drive, iSCSI LUN 90 W
Use the TS-453mini as a PC with exclusive QvPC Technology
Manage, share, and back up business data with Real-time Remote Replication (RTRR)
NAS and iSCSI-SAN unified storage solution for server virtualization
Enhanced data security with high-performance AES 256-bit encryption and anti-virus
Run multiple Windows/Linux/UNIX/Android -based virtual machines with the Virtualization Station
Transcode Full HD videos on-the-fly or offline with QNAP’s unique transcoding technology *
Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
Expand the total raw storage capacity up to 96TB with the economical UX-800P QNAP expansion enclosure
