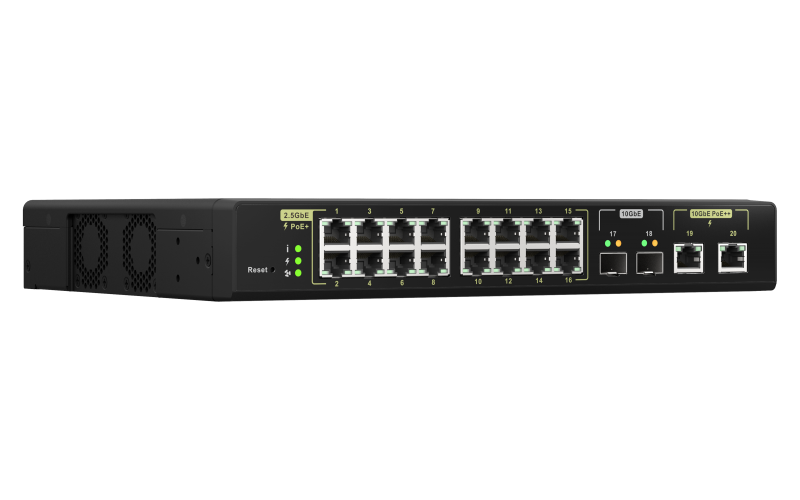

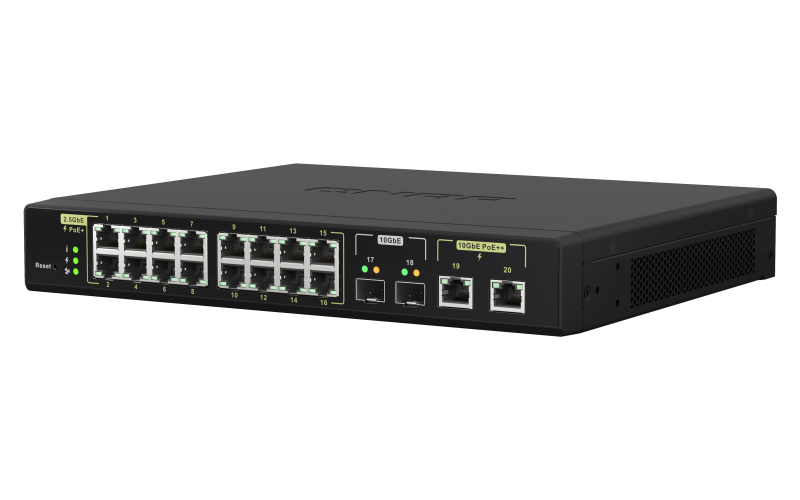

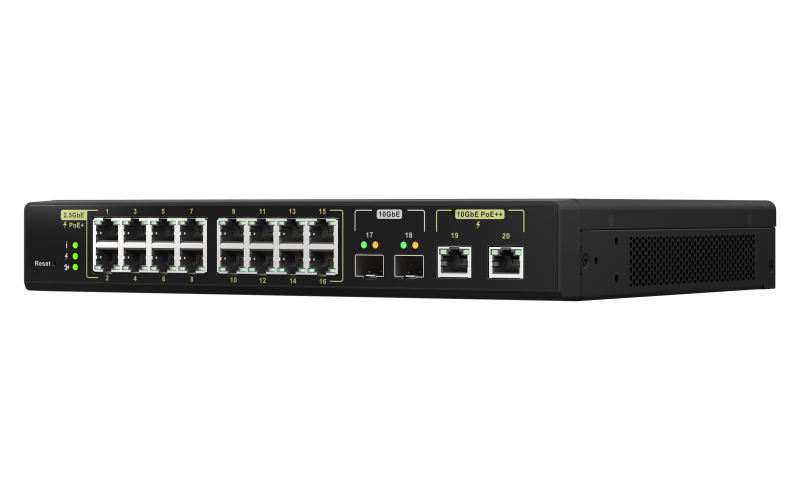

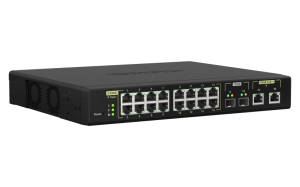

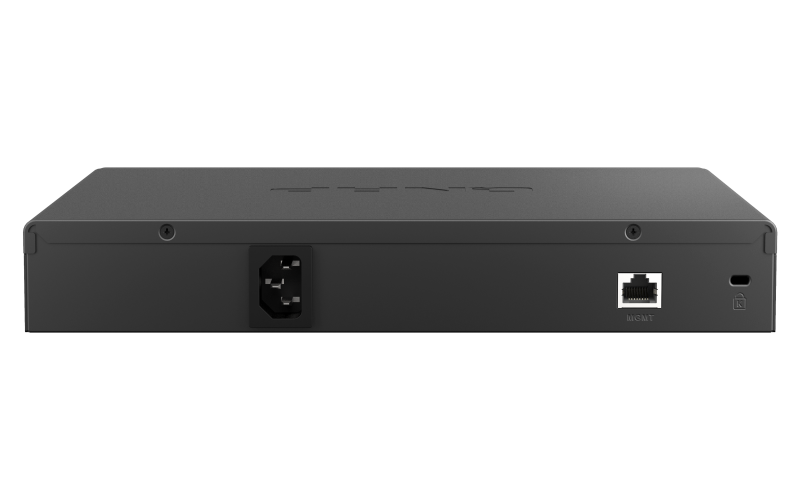

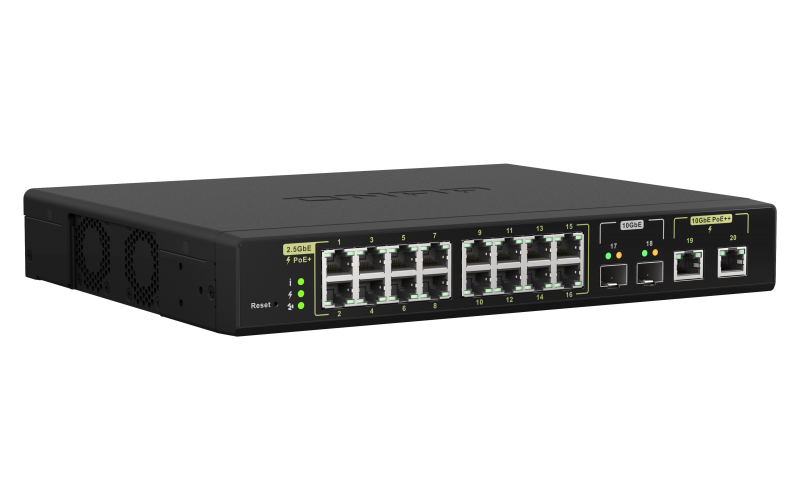

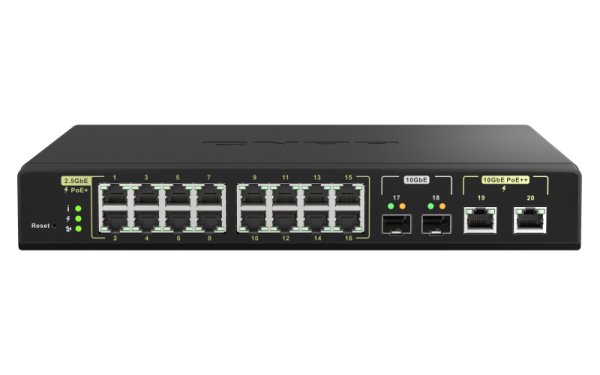

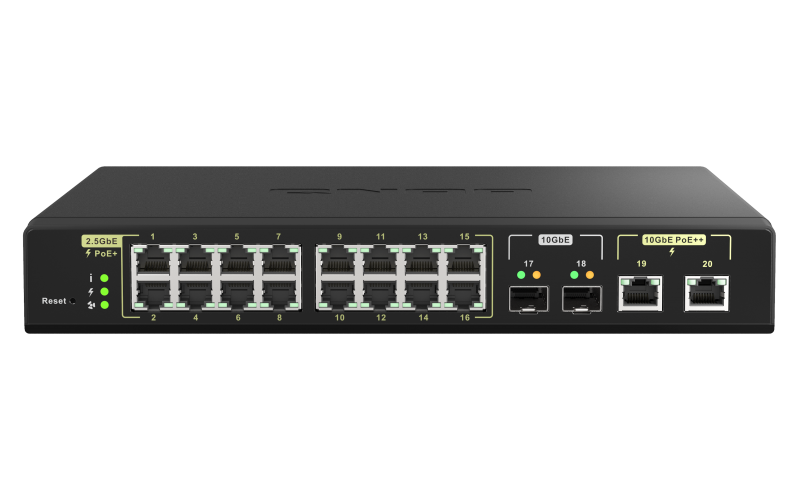

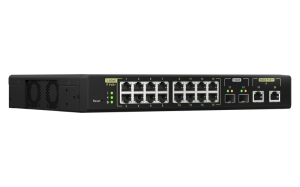

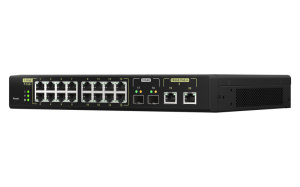

QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black
QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black
QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black
QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black
QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black
QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black

QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black

SKU: QSW-M2116P-2T2S
QNAP QSW-M2116P-2T2S, Managed, L2, 2.5G Ethernet, Full duplex, Power over Ethernet (PoE), Rack mounting
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • Drive
  • Without Drives
  • SKU
  • QSW-M2116P-2T2S
  • EAN
  • 4713213518861
  • Data transmission
  • Jumbo frames support
  • Yes
  • Design
  • Logistics data
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Web-based management
  • Yes
  • Network
  • Flow control support
  • Yes
  • Operational conditions
  • Packaging data
  • Cables included
  • AC
  • Performance
  • Firmware upgradeable
  • Yes
  • Ports & interfaces
  • 10G Ethernet (copper) ports quantity
  • 2
  • 2.5G Ethernet (copper) ports quantity
  • 16
  • SFP+ module slots quantity
  • 2
  • Switch Number of Ports
  • 16
  • Power
  • Number of power supply units
  • 1
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 16
  • Total Power over Ethernet (PoE) budget
  • 280 W
  • Security
  • Access Control List (ACL)
  • Yes
  • Technical details
  • Compliance certificates
  • CE
  • Weight & dimensions

Description

QNAP QSW-M2116P-2T2S. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet, Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
  • 10G support
  • MAC address table: 32000 entries Switching capacity: 160 Gbit/s
  • Access Control List (ACL)
  • Rack mounting
  • AC Power supply included Power over Ethernet (PoE)
  • Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 2-port 90-watt and 16-port 30-watt PoE capabilities. Can supply a total power budget of 280 watts to meet the demands of high-powered devices (PDs)
  • Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M2116P-2T2S offers higher transmission speeds when used with existing cables
  • Two 10GbE SFP+ ports can connect to the Internet, Routers, core switches, and NAS to fulfill the high bandwidth demands of backbone network or data centers
  • Offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy
  • Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface
  • QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security
