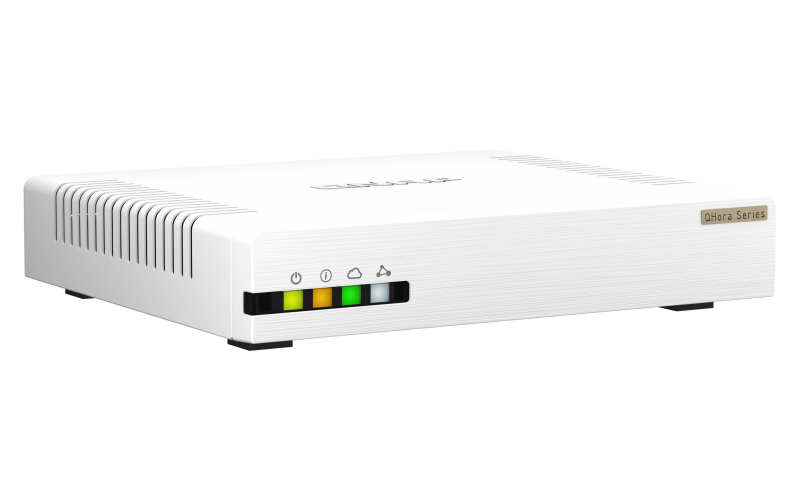

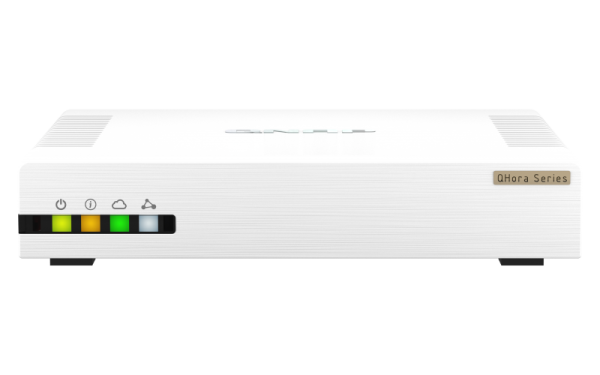

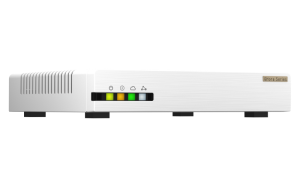

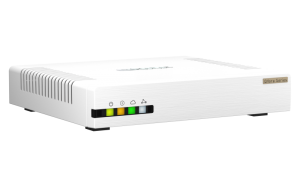

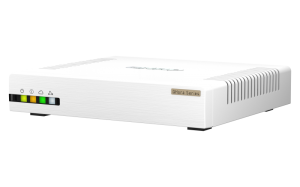

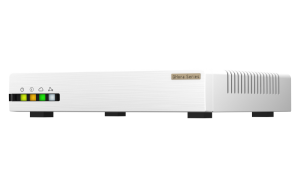

QNAP QHora-321 wired router 2.5 Gigabit Ethernet White

Roll over image to zoom inClick to Open expanded view

QNAP QHora-321 wired router 2.5 Gigabit Ethernet White

Name: QNAP QHora-321 wired router 2.5 Gigabit Ethernet White
Brand: QNAP
SKU: QHORA-321

SKU: QHORA-321

QNAP QHora-321, Ethernet WAN, 2.5 Gigabit Ethernet, White

hypertec

Product manual (Download)

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
2 Years

Drive
Without Drives

SKU
QHORA-321

EAN
4713213519967

Bullet points

Point
Enterprise-grade VPN

Highly flexible software routing configuration

Intuitive management interface

Mesh VPN

Simple initialization settings

WAN/LAN Deployment

Design

LED indicators
Yes

Product colour
White

Features

Built-in processor
Yes

Certification
CE / FCC / VCCI / BSMI / RCM / CCC / UKCA

Flash memory
4 MB

Internal memory
4096 MB

Internal memory type
DDR4

Internal storage capacity
4 GB

Processor frequency
2.2 MHz

Processor manufacturer
Marvell

Processor model
CN9130

Storage media
Flash

Management features

Quality of Service (QoS) support
Yes

Reset button
Yes

Network

Concurrent connections
50000

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN data rates
100,1000,2500 Mbit/s

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Port forwarding
Yes

Traffic control
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Packaging data

AC adapter included
Yes

Cables included
AC, LAN (RJ-45)

Package weight
1.35 kg

Quick installation guide
Yes

Ports & interfaces

DC-in jack
Yes

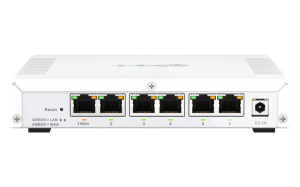

Ethernet LAN (RJ-45) ports
6

Power

Output voltage
12 V

Power consumption (typical)
36 W

Power source type
DC

Protocols

DMZ support
Yes

Security

Firewall
Yes

Firewall security
TCP, UDP, ICMP, TCP+UDP

Network address translation (NAT)
Yes

System event log
Yes

VPN support
L2TP, WireGuard, OpenVPN, QBelt

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SFP WAN
No

SIM card slot
No

Weight & dimensions

Depth
145.7 mm

Height
29.9 mm

Weight
810 g

Width
166.4 mm

Description

QNAP QHora-321. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 100,1000,2500 Mbit/s. Firewall security: TCP, UDP, ICMP, TCP+UDP, VPN support: L2TP, WireGuard, OpenVPN, QBelt. Processor manufacturer: Marvell, Processor model: CN9130, Processor frequency: 2.2 MHz. Product colour: White. Power consumption (typical): 36 W, Power source type: DC, Output voltage: 12 V

Ethernet WAN
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
2.5 Gigabit Ethernet
Highly flexible software routing configuration
WAN/LAN Deployment
Mesh VPN
Enterprise-grade VPN
Intuitive management interface
Simple initialization settings
