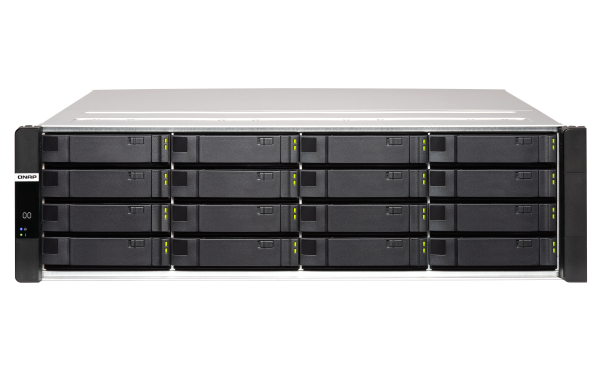

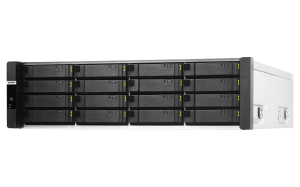

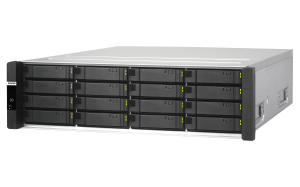

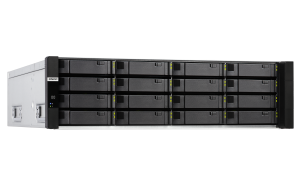

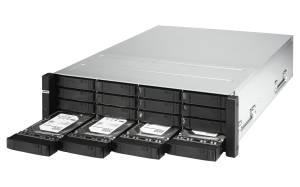

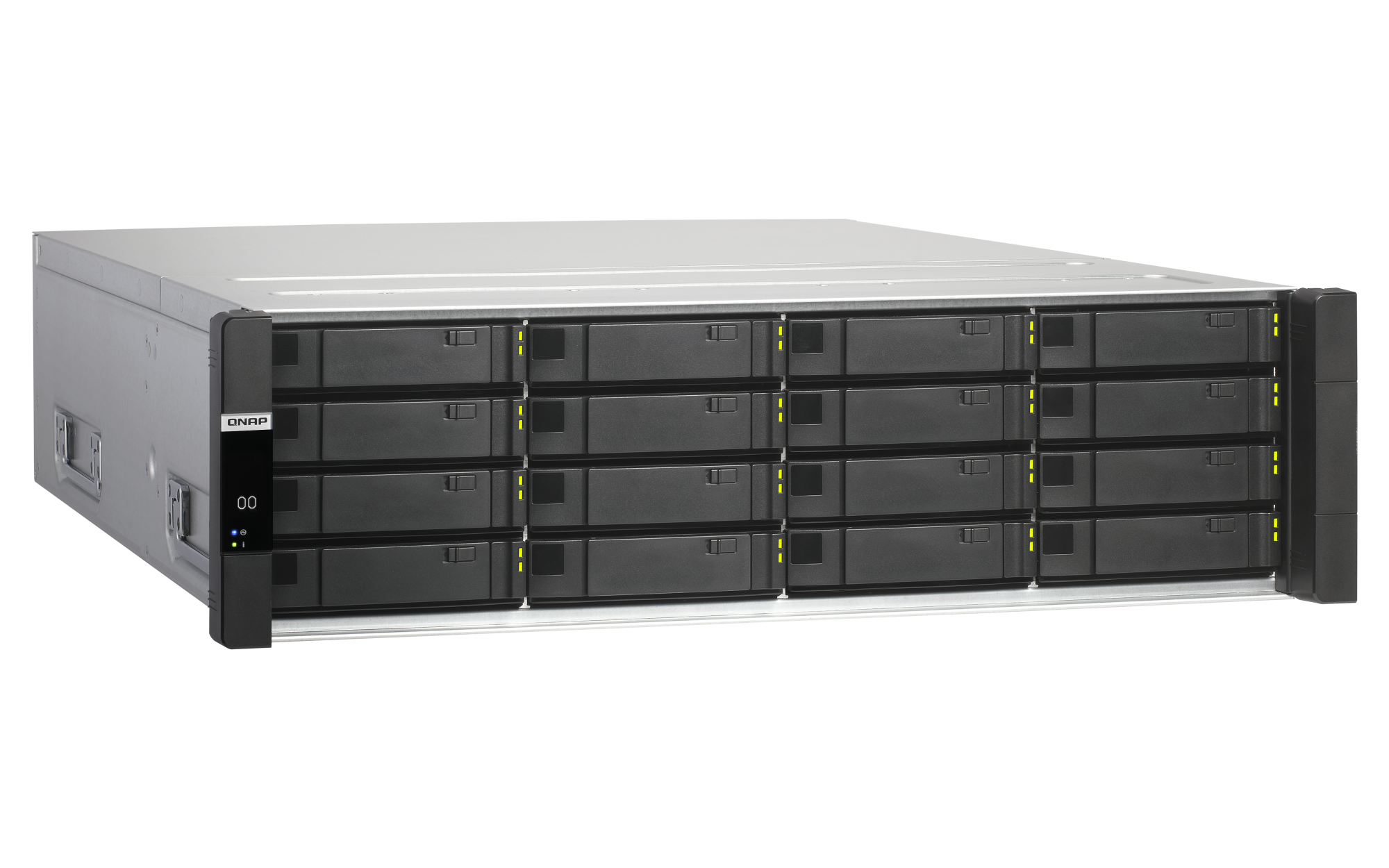

QNAP ES1686dc NAS Rack (3U) Intel® Xeon® D D-2145NT 64 GB DDR4 QNAP QES Black, Grey

Roll over image to zoom inClick to Open expanded view

QNAP ES1686dc NAS Rack (3U) Intel® Xeon® D D-2145NT 64 GB DDR4 QNAP QES Black, Grey

Name: QNAP ES1686dc NAS Rack (3U) Intel® Xeon® D D-2145NT 64 GB DDR4 QNAP QES Black, Grey
Brand: QNAP
SKU: ES1686DC-2145NT-128G

SKU: ES1686DC-2145NT-128G

Log In to View Pricing

QNAP ES1686dc, NAS, Rack (3U), Intel® Xeon® D, D-2145NT, 64 GB, DDR4

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
QNAP

Warranty
5 Years

Drive
Without Drives

SKU
ES1686DC-2145NT-128G

EAN
4713213515709

Bullet points

Point
Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer

Two M.2 SSD slots allow for implementing SSD cache acceleration

Design

Chassis type
Rack (3U)

Cooling type
Active

Fan diameter
6 cm

LED indicators
Error, Power, Status, System

Number of fans
3 fan(s)

Product colour
Black, Grey

Logistics data

Harmonized System (HS) code
84714100

Memory

Flash memory
4000 MB

Internal memory type
DDR4

Maximum RAM supported
512 GB

Memory form factor
RDIMM/LRDIMM

Memory Installed
64 GB

Memory slots
8

Network

Ethernet LAN
Yes

Ethernet LAN data rate supported (max)
10000 Mbit/s

Ethernet LAN data rates
10,100,1000,10000 Mbit/s

iSCSI support
Yes

Jumbo frames support
Yes

Link aggregation
Yes

Quality of Service (QoS) support
Yes

Supported network protocols
TCP/IP, CIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC

Wake-on-LAN ready
Yes

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Other features

Certification
FCC A (USA) CE Mark ( EN55022 A, EN55024) EN60950 BSMI VCCI CB LVD

Processor ARK ID
136433

Packaging content

Cables included
AC, LAN (RJ-45)

Number of screws
128

Quick installation guide
Yes

Performance

Access Control List (ACL)
Yes

Backup features
Cloud, iSCSI LUN

Backup function
Yes

Browser supported
Google Chrome, Microsoft Internet Explorer, Mozilla Firefox, Apple Safari

Built-in FTP server
Yes

Device class
Small & Medium Business

Hot spare
Yes

Multilingual support
Yes

Noise level
55.8 dB

On/off switch
Yes

Reset button
Yes

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SNMP, SNMPv3, SSH, SSL/TLS

Snapshot
Yes

System log
Yes

Type
NAS

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
3

Fiber optic connector
SFP+

Fiber ports quantity
4

PCI Express x8 (Gen 3.x) slots
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB port
Yes

Power

AC input voltage
90 - 264 V

Fan voltage
12 V

Number of power supply units
1

Power consumption (typical)
500.87 W

Power supply location
Built-in

Power supply unit (PSU) capacity
770 W

Redundant power supply (RPS) support
Yes

Processor

Bus type
UPI

Conflict-Free processor
Yes

CPU configuration (max)
1

Maximum internal memory supported by processor
512 GB

Number of Cores
8

PCI Express slots version
3.0

Processor
D-2145NT

Processor boost frequency
3 GHz

Processor cache
11 MB

Processor code
SR3ZT

Processor codename
Skylake

Processor family
Intel® Xeon® D

Processor frequency
1.9 GHz

Processor lithography
14 nm

Processor manufacturer
Intel

Processor operating modes
64-bit

Processor socket
BGA 2518

Processor threads
16

Scalability
1S

Stepping
M1

Thermal Design Power (TDP)
65 W

Processor special features

Embedded options available
Yes

Enhanced Intel SpeedStep Technology
Yes

Execute Disable Bit
Yes

Idle States
Yes

Intel 64
Yes

Intel Enhanced Halt State
Yes

Intel QuickAssist Technology
Yes

Intel Secure Key Technology version
1.00

Intel Trusted Execution Technology
Yes

Intel TSX-NI
Yes

Intel TSX-NI version
1.00

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel® AES New Instructions (Intel® AES-NI)
Yes

Intel® Hyper Threading Technology (Intel® HT Technology)
Yes

Intel® OS Guard
Yes

Intel® Secure Key
Yes

Intel® Turbo Boost Technology
2.0

Maximum number of PCI Express lanes
32

Memory types supported by processor
DDR4-SDRAM

Thermal Monitoring Technologies
Yes

Software

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Operating system installed
QNAP QES

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Windows operating systems supported
Windows 10, Windows 7

Storage

Hot-swap drive bays
Yes

Installed storage drive type
No

Number of M.2 (M & B) slots
2

Number of storage drives supported
16

RAID levels
0, 1, 5, 6, 10, 50, 60

RAID support
Yes

Storage drive sizes supported
2.5,3.5"

Storage drives installed
No

Supported file systems
ZFS

Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
630.6 mm

Height
132 mm

Package weight
32.7 kg

Weight
25.8 kg

Width
483.1 mm

Description

QNAP ES1686dc. Type: NAS. Chassis type: Rack (3U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D, Processor model: D-2145NT, Processor frequency: 1.9 GHz. Internal memory: 64 GB, Internal memory type: DDR4. Operating system installed: QNAP QES

Small & Medium Business NAS Rack (3U) Black, Grey
QNAP QES
Number of storage drives supported: 16 HDD & SSD Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Intel® Xeon® D D-2145NT 1.9 GHz
64 DDR4 Memory slots: 8 RDIMM/LRDIMM
Ethernet LAN 10000 Jumbo frames support iSCSI support Wake-on-LAN ready
Cooling type: Active
Backup features: Cloud, iSCSI LUN 770 W
Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability
Battery-protected DRAM write to cache data protection and Flash read acceleration provides industry-leading random access performance
Two M.2 SSD slots allow for implementing SSD cache acceleration
Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer
Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time
Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments
