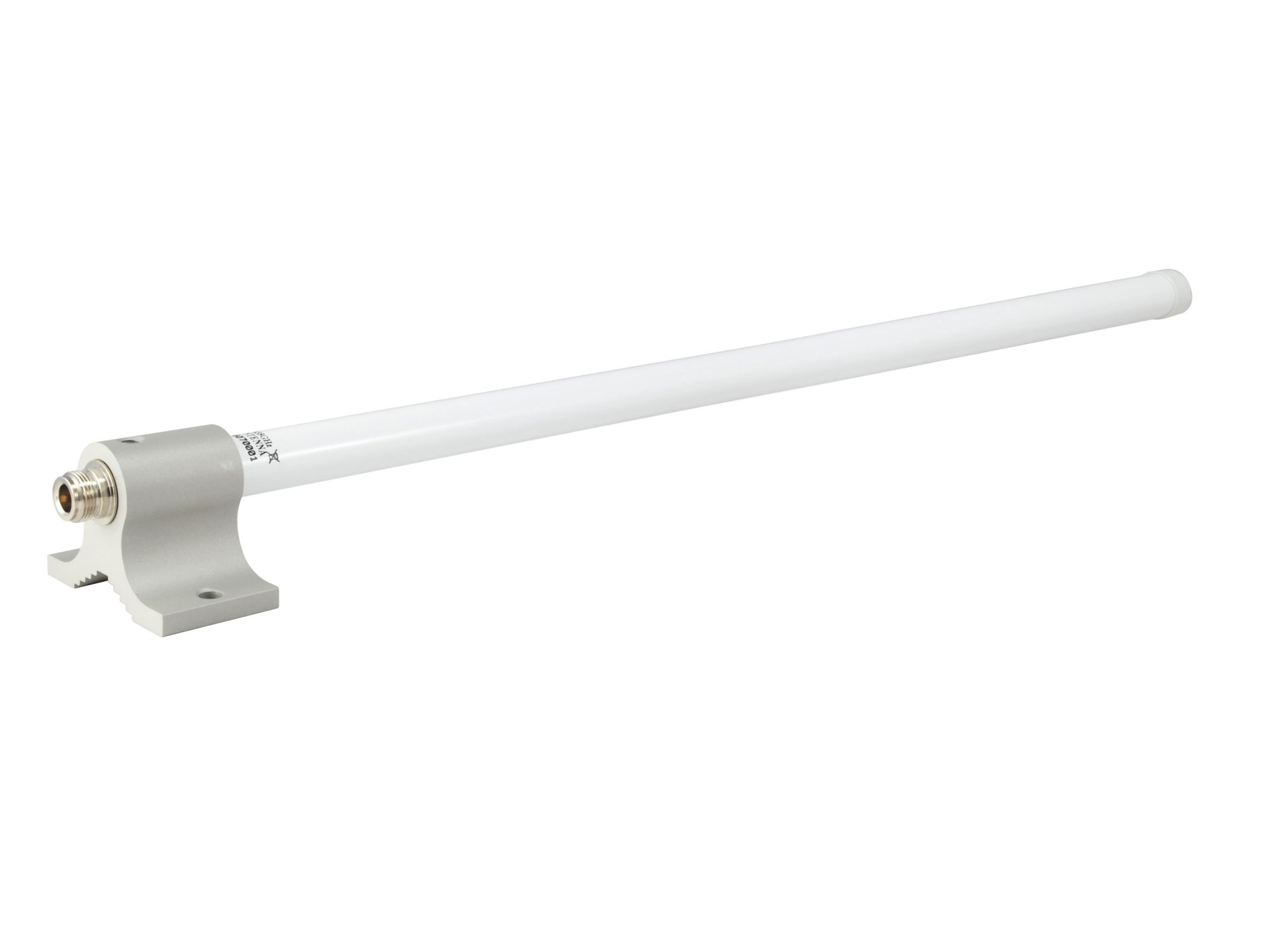

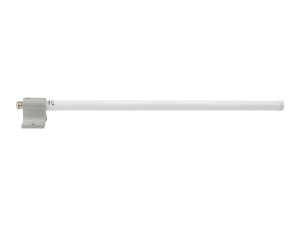

LevelOne 12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor

Name: LevelOne 12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: OAN-4121

SKU: OAN-4121

LevelOne 12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor, 12 dBi, 5.45 ~ 5.835 GHz, IEEE 802.11a, IEEE 802.11n, 50 Ω, 360°, 17.5°

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
OAN-4121

EAN
4015867203200

Features

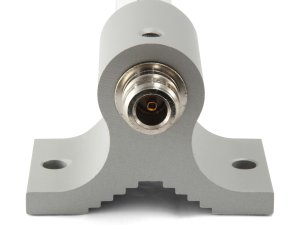

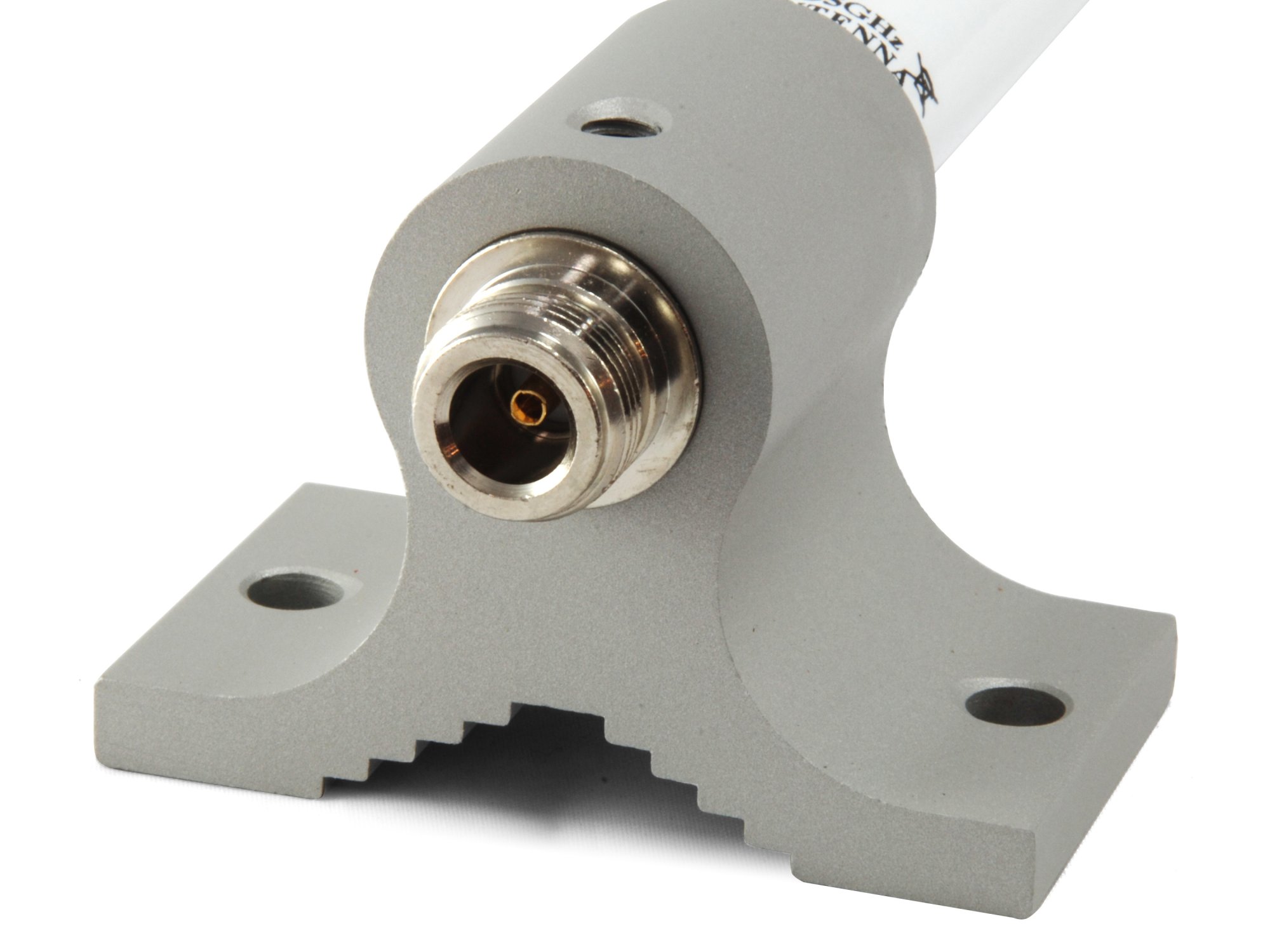

Antenna connector type
N-type

Antenna type
Omni-directional antenna

Country of origin
Taiwan

Maximum cable loss with connectors
-10 dB

Mounting
Pole

Polarization
Vertical polarization

Product colour
White

Protection features
Dust resistant, Snow resistant, Water resistant

Purpose
Indoor & outdoor

Survival wind speed
180 km/h

Voltage Standing Wave Ratio (VSWR)
2.0

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
6 kg

Master (outer) case height
670 mm

Master (outer) case length
205 mm

Master (outer) case width
385 mm

Products per master (outer) case
10 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

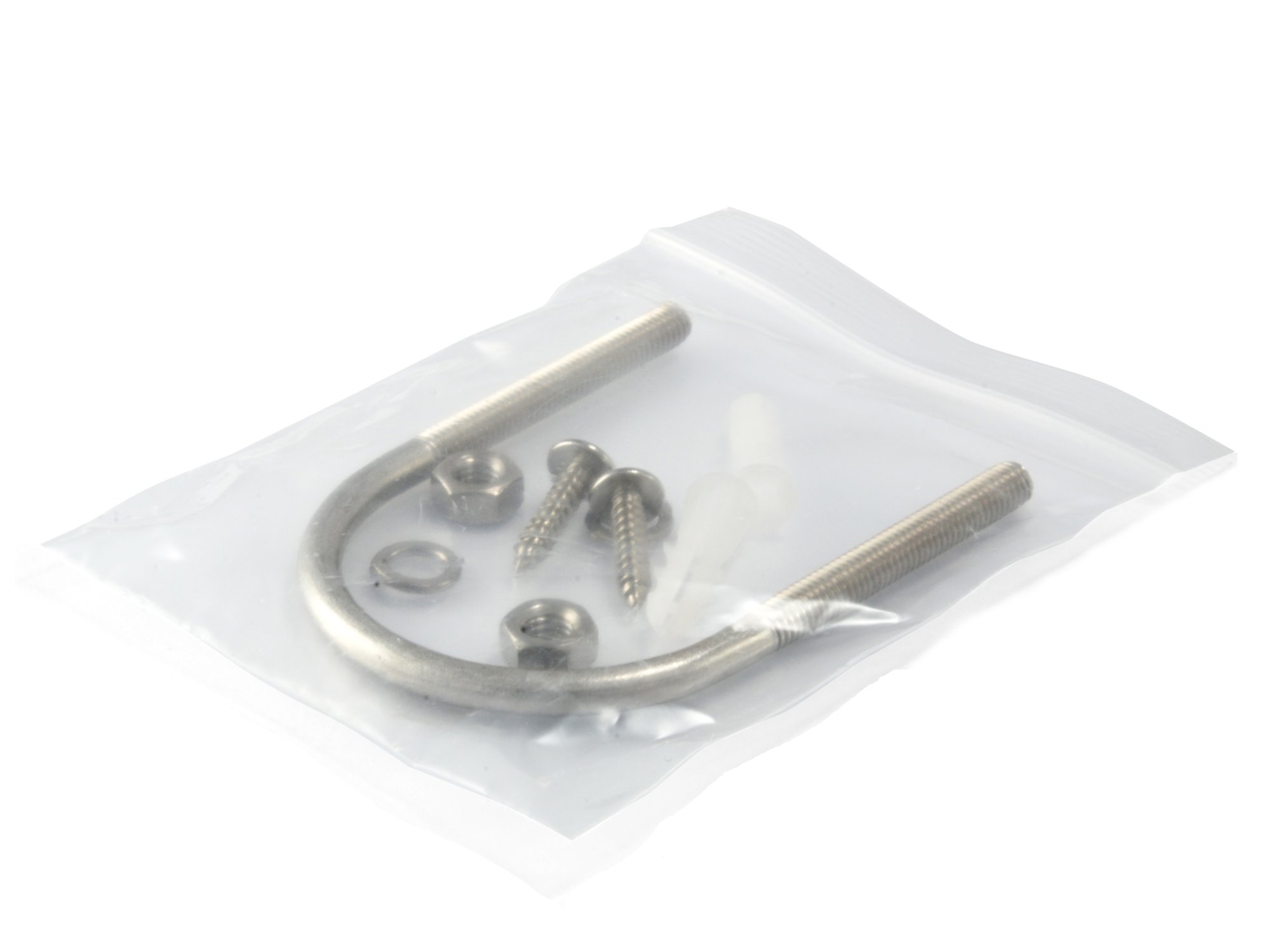

Mounting kit
Yes

Package type
Box

Quick installation guide
Yes

Performance

Antenna gain level (max)
12 dBi

Frequency band
5.45 ~ 5.835 GHz

Horizontal beam width
360°

Impedance
50 Ω

Networking standards
IEEE 802.11a, IEEE 802.11n

Vertical beam width
17.5°

Weight & dimensions

Depth
558.5 mm

Height
53 mm

Package depth
650 mm

Package height
72 mm

Package weight
504 g

Package width
83 mm

Weight
300 g

Width
70 mm

Description

LevelOne 12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor. Antenna gain level (max): 12 dBi, Frequency band: 5.45 ~ 5.835 GHz, Networking standards: IEEE 802.11a, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 70 mm, Depth: 558.5 mm, Height: 53 mm. Package type: Box. Master (outer) case width: 385 mm, Master (outer) case length: 205 mm, Master (outer) case height: 670 mm

Omni-directional antenna N-type White
12 dBi
5.45 ~ 5.835 GHz
50 Ω
Vertical polarization
Survival wind speed: 180 km/h
Pole
