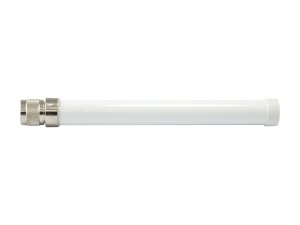

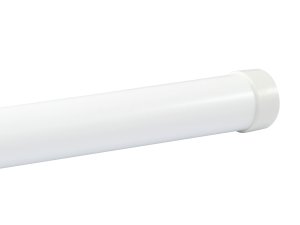

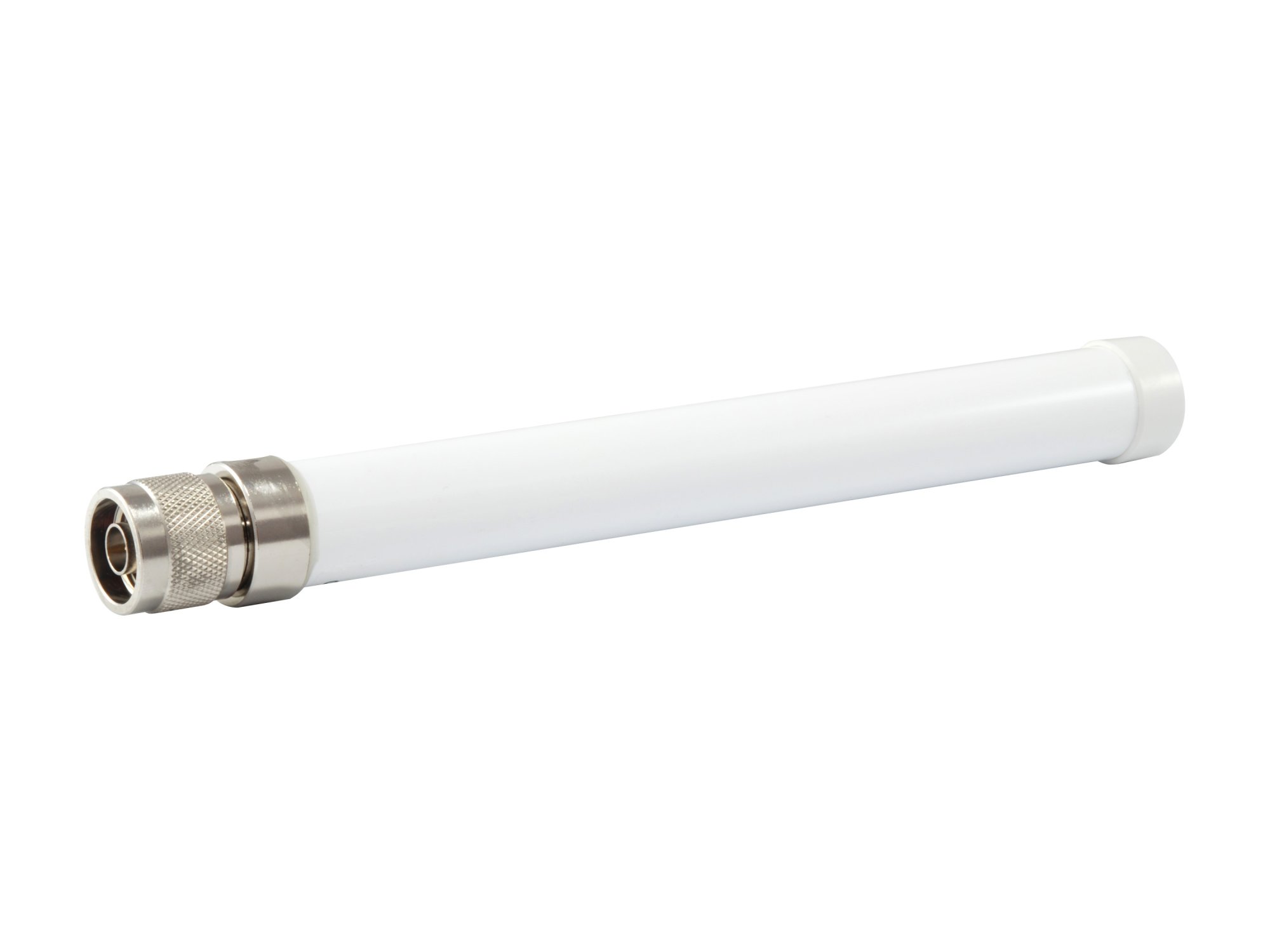

LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor

Name: LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: OAN-4058

SKU: OAN-4058

LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor, 8 dBi, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 5 / 8 dBi, 5 dBi, 8 dBi

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
OAN-4058

EAN
4015867205020

Bullet points

Features

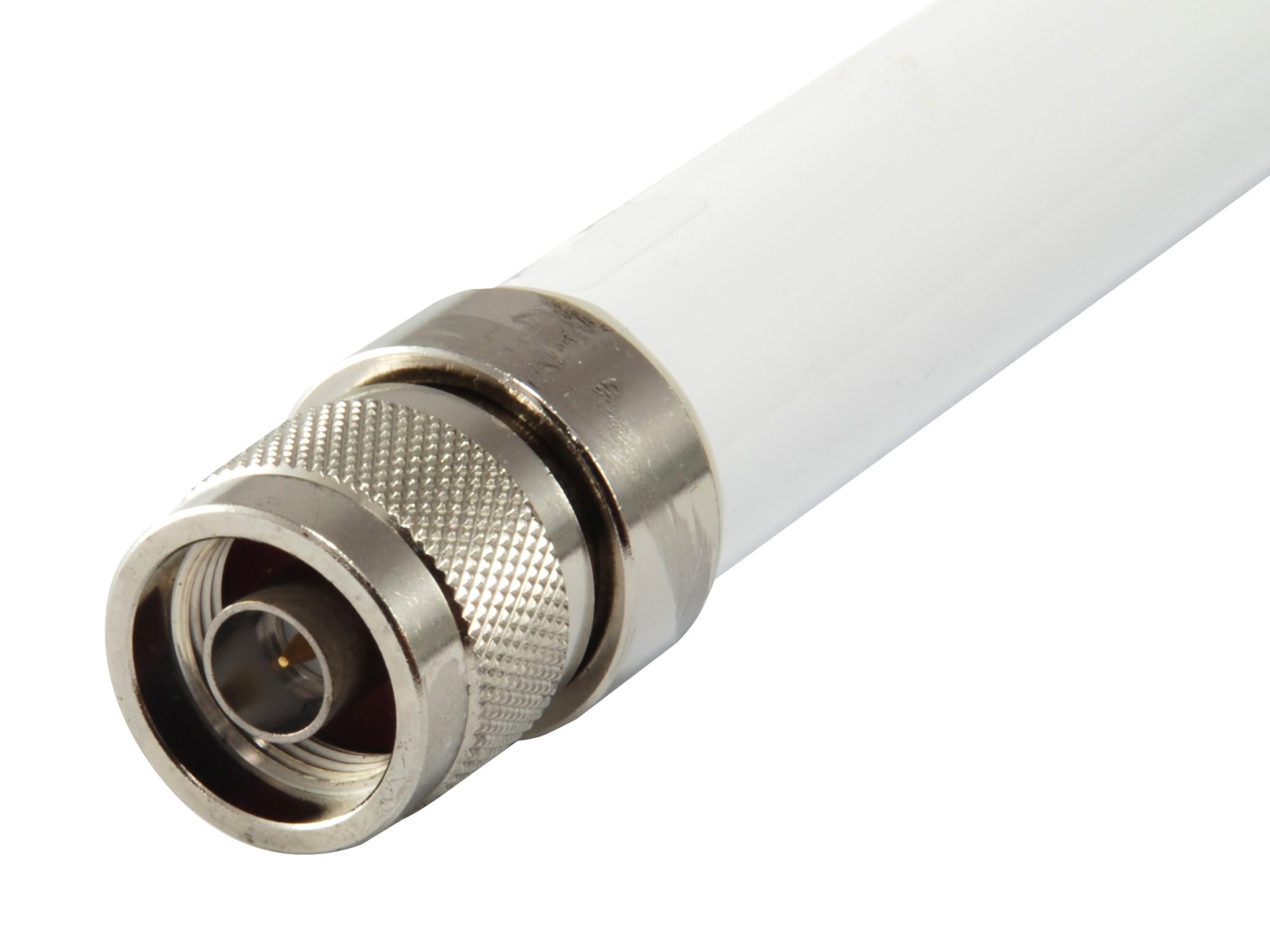

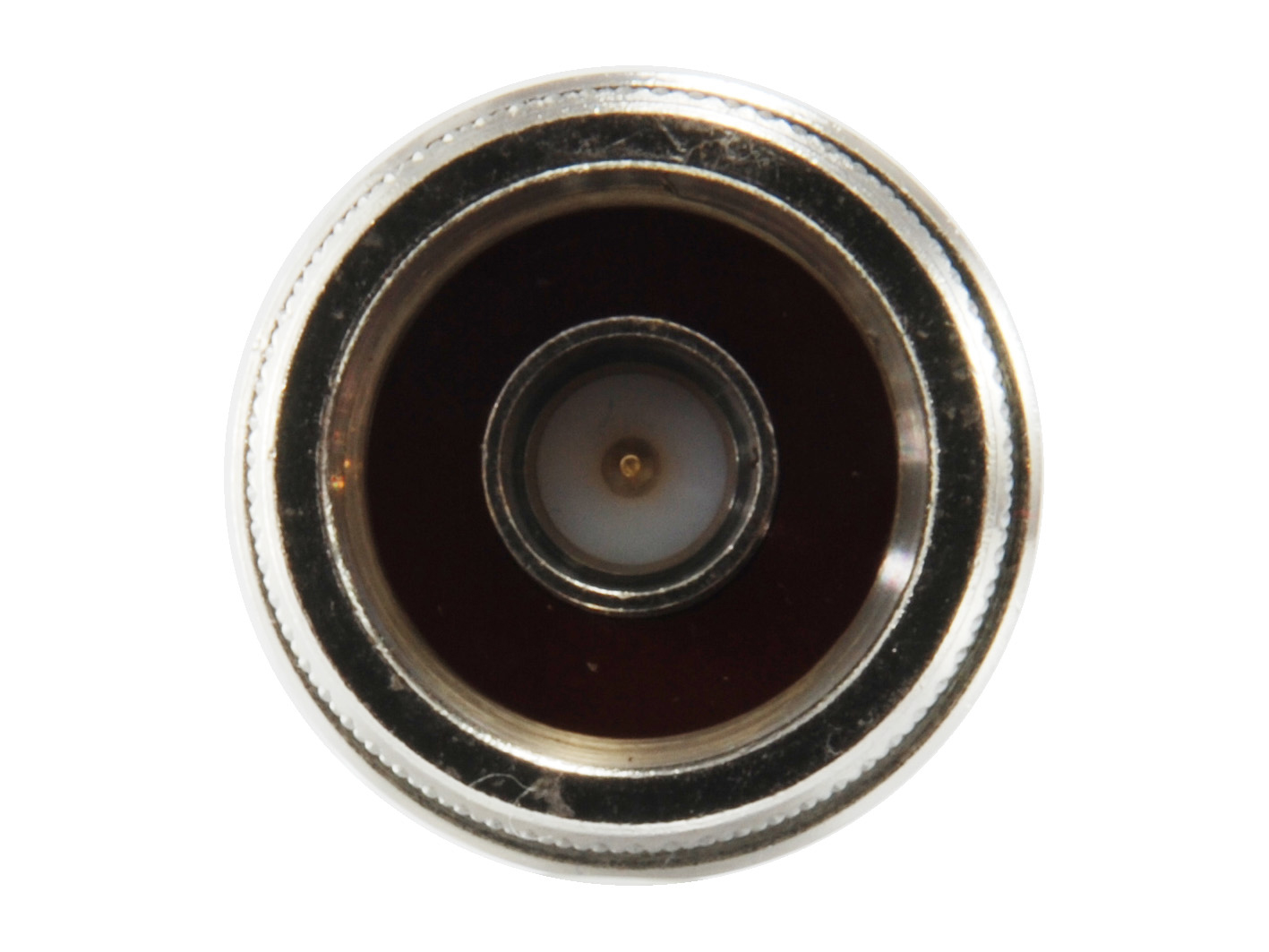

Antenna connector type
N-type

Antenna type
Omni-directional antenna

Connector gender
Female

Country of origin
Taiwan

Polarization
Vertical polarization

Product colour
White

Voltage Standing Wave Ratio (VSWR)
2

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
11 kg

Master (outer) case height
290 mm

Master (outer) case length
560 mm

Master (outer) case volume
50 cm³

Master (outer) case width
480 mm

Products per master (outer) case
50 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

Package type
Blister

Quantity per pack
1 pc(s)

Performance

Antenna gain (2.4 GHz)
5 dBi

Antenna gain (5 GHz)
8 dBi

Antenna gain level (max)
8 dBi

Frequency band
2.4 - 5 GHz

Gain
5 / 8 dBi

Horizontal beam width (2.4 GHz)
360°

Horizontal beam width (5 GHz)
360°

Impedance
50 Ω

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Vertical beam width (2.4 GHz)
51.7°

Vertical beam width (5 GHz)
27.7°

Weight & dimensions

Depth
203 mm

Height
22 mm

Package depth
60 mm

Package height
265 mm

Package weight
192 g

Package width
70 mm

Weight
860 g

Width
22 mm

Description

LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor. Antenna gain level (max): 8 dBi, Frequency band: 2.4 - 5 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 22 mm, Depth: 203 mm, Height: 22 mm. Quantity per pack: 1 pc(s), Package type: Blister. Master (outer) case width: 480 mm, Master (outer) case length: 560 mm, Master (outer) case height: 290 mm

Omni-directional antenna N-type White
8 dBi
2.4 - 5 GHz
50 Ω
Vertical polarization Female
Provides 5dBi/8dBi omnidirectional operation
For IEEE 802.11a/b/g/n/ac Wireless applications in 2.4/5 GHz frequency range
Low wind loading
30°C to 60°C operating temperature range
