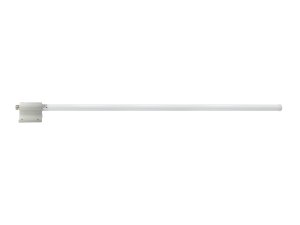

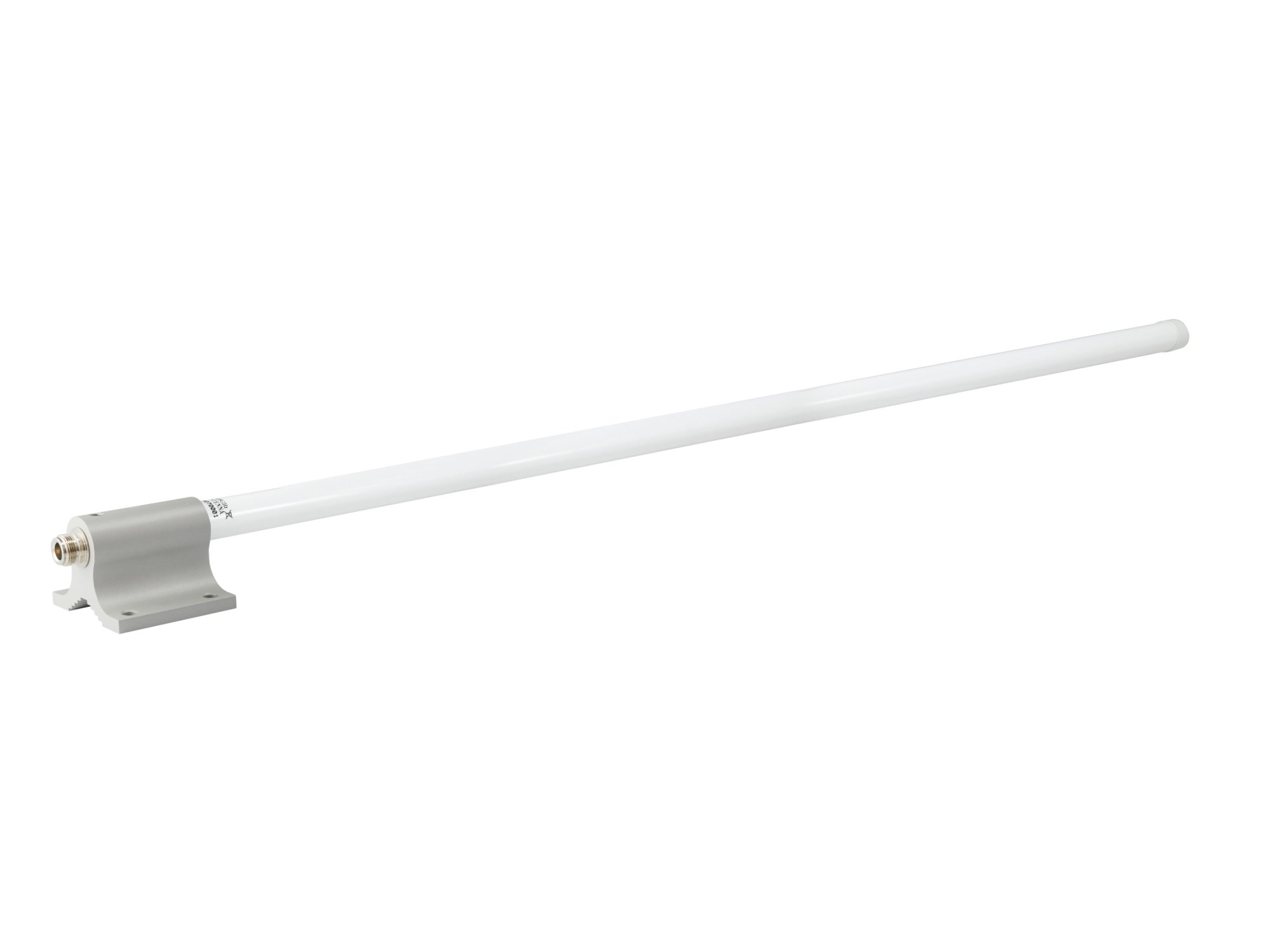

LevelOne 12dBi 2.4GHz Omnidirectional Antenna, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne 12dBi 2.4GHz Omnidirectional Antenna, Indoor/Outdoor

Name: LevelOne 12dBi 2.4GHz Omnidirectional Antenna, Indoor/Outdoor
Brand: LevelOne
SKU: OAN-2121

SKU: OAN-2121

LevelOne 12dBi 2.4GHz Omnidirectional Antenna, Indoor/Outdoor, 12 dBi, 2.4 GHz, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 50 Ω, 360°, 9.7°

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
OAN-2121

EAN
4015867203187

Features

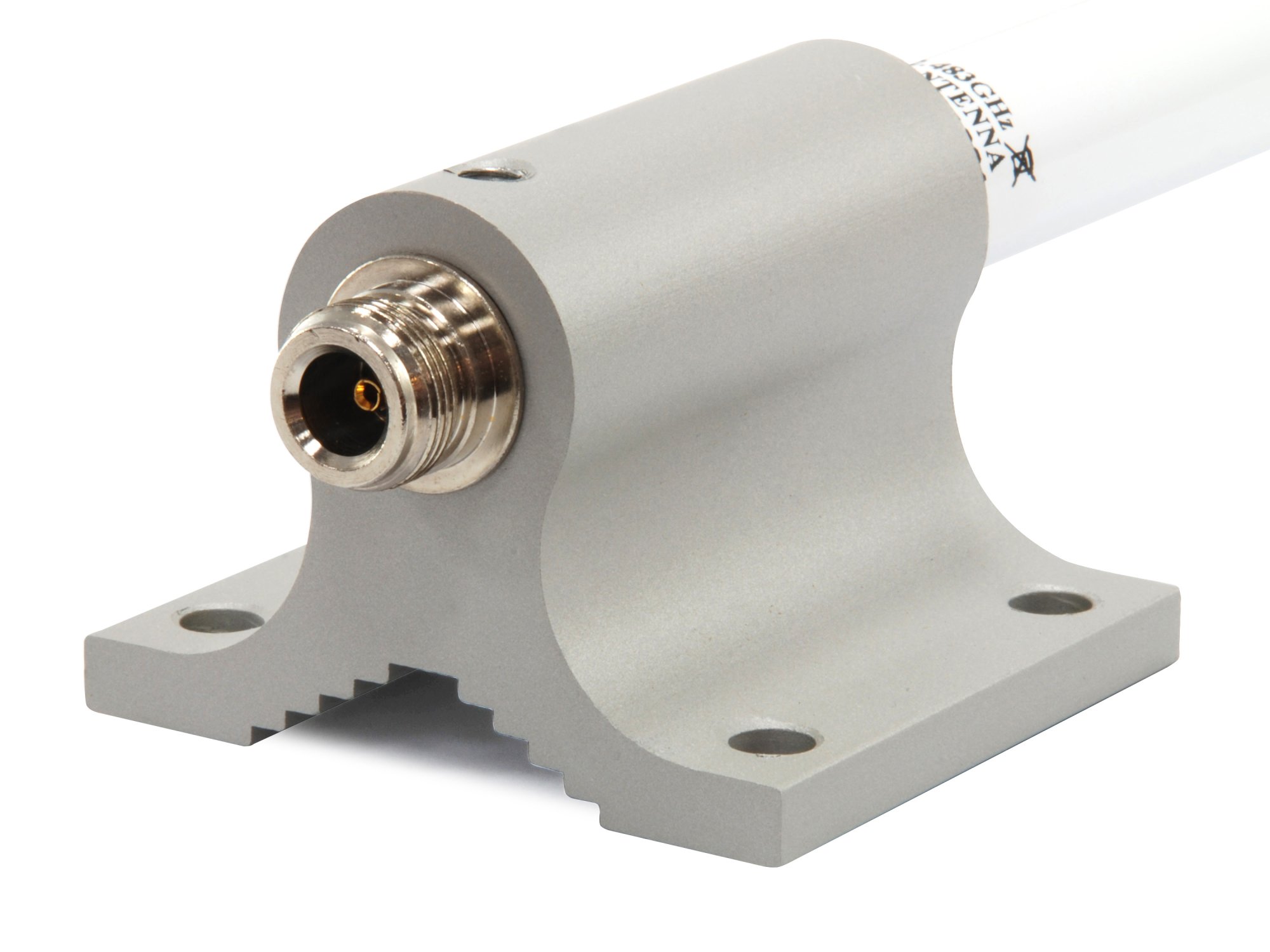

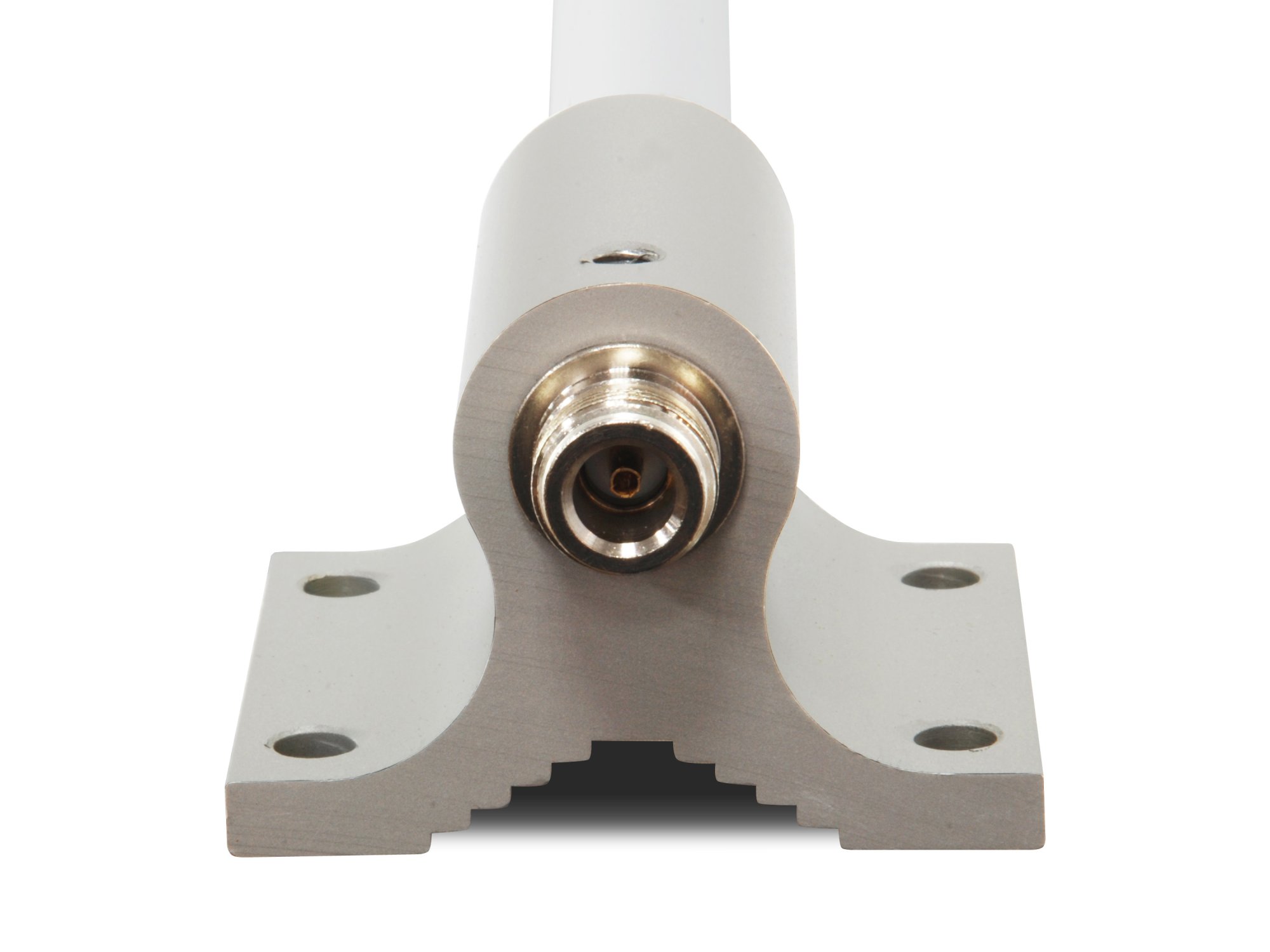

Antenna connector type
N-type

Antenna type
Omni-directional antenna

Country of origin
Taiwan

Maximum cable loss with connectors
-10 dB

Mounting
Pole

Polarization
Vertical polarization

Product colour
White

Protection features
Dust resistant, Snow resistant, Water resistant

Purpose
Indoor & outdoor

Survival wind speed
180 km/h

Voltage Standing Wave Ratio (VSWR)
2.0

Logistics data

Harmonized System (HS) code
85177100

Master (outer) case gross weight
10 kg

Master (outer) case height
1030 mm

Master (outer) case length
220 mm

Master (outer) case width
445 mm

Products per master (outer) case
10 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Packaging content

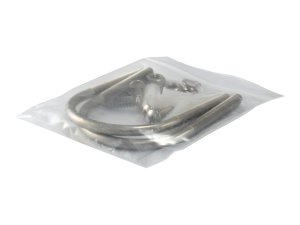

Mounting kit
Yes

Package type
Box

Quick installation guide
Yes

Performance

Antenna gain level (max)
12 dBi

Frequency band
2.4 GHz

Horizontal beam width
360°

Impedance
50 Ω

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Vertical beam width
9.7°

Weight & dimensions

Depth
960 mm

Height
53 mm

Package depth
1000 mm

Package height
78 mm

Package weight
866 g

Package width
88 mm

Weight
476 g

Width
70 mm

Description

LevelOne 12dBi 2.4GHz Omnidirectional Antenna, Indoor/Outdoor. Antenna gain level (max): 12 dBi, Frequency band: 2.4 GHz, Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 70 mm, Depth: 960 mm, Height: 53 mm. Package type: Box. Master (outer) case width: 445 mm, Master (outer) case length: 220 mm, Master (outer) case height: 1030 mm

Omni-directional antenna N-type White
12 dBi
2.4 GHz
50 Ω
Vertical polarization
Survival wind speed: 180 km/h
Pole
