LevelOne GEMINI 16-Channel Network Video Recorder, H.265

Roll over image to zoom inClick to Open expanded view

LevelOne GEMINI 16-Channel Network Video Recorder, H.265

Name: LevelOne GEMINI 16-Channel Network Video Recorder, H.265
Brand: LevelOne
SKU: NVR-1316

SKU: NVR-1316

LevelOne GEMINI 16-Channel Network Video Recorder, H.265, 16 channels, 3840 x 2160 pixels, 128 user(s), H.264, H.264+, H.265, MPEG4, Embedded LINUX, 256 Mbit/s

hypertec

Datasheets (Download)

Product manual (Download)

EU Declaration of Conformity (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
NVR-1316

EAN
4015867199121

Bullet points

Features

Certification
CE, FCC, UL

Country of origin
China

LED indicators
Power

On/off switch
Yes

Product colour
Black

Logistics data

Master (outer) case gross weight
6 kg

Master (outer) case height
522 mm

Master (outer) case length
340 mm

Master (outer) case width
523 mm

Products per master (outer) case
1 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-10 - 55 °C

Packaging content

Cables included
AC

CD manual
Yes

Performance

Alarm input channels
4

Alarm output channels
8

Maximum resolution
3840 x 2160 pixels

Number of users
128 user(s)

Operating system installed
Embedded LINUX

Throughput data rate
256 Mbit/s

Video formats supported
H.264, H.264+, H.265, MPEG4

Video input channels
16 channels

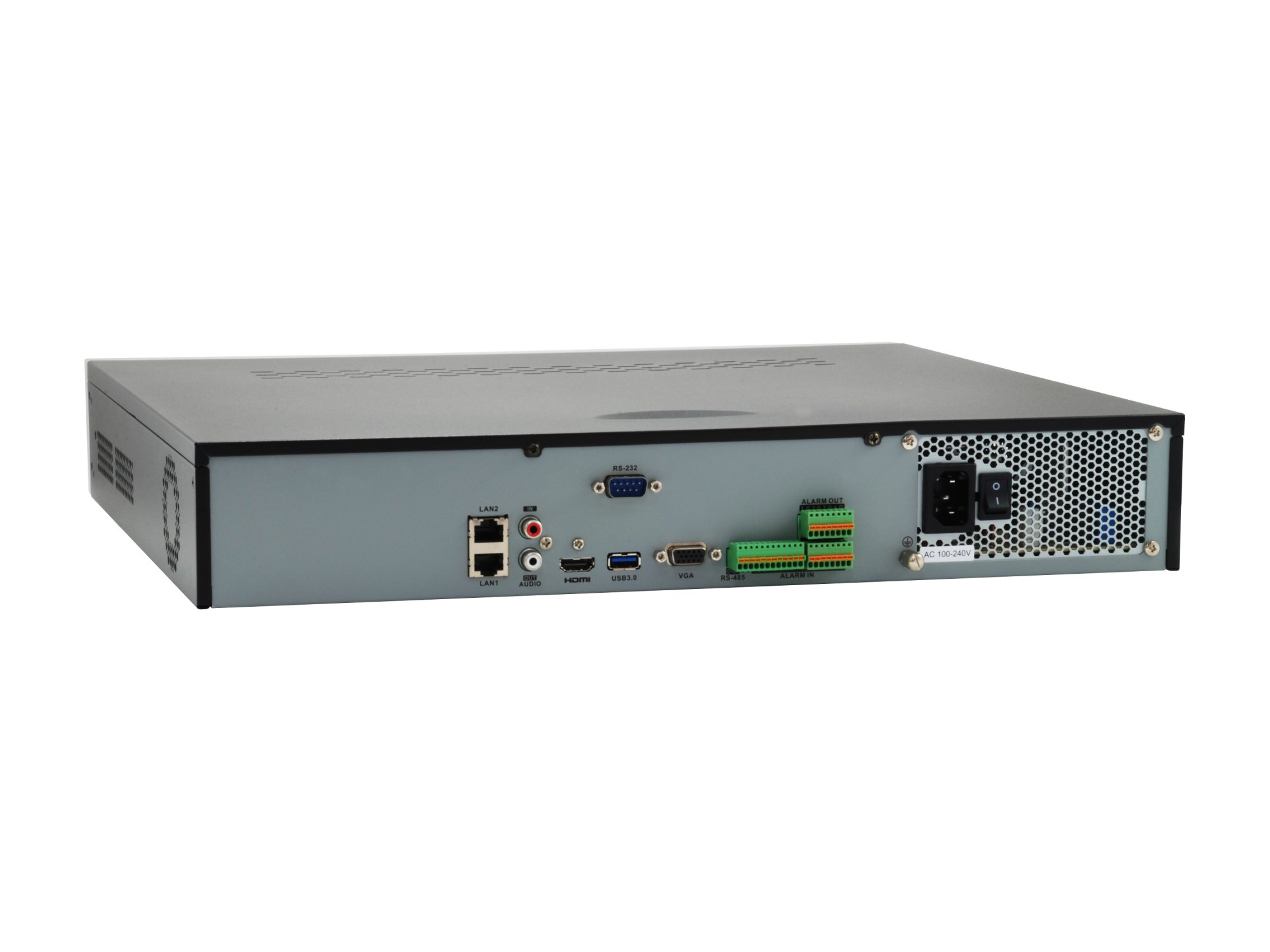

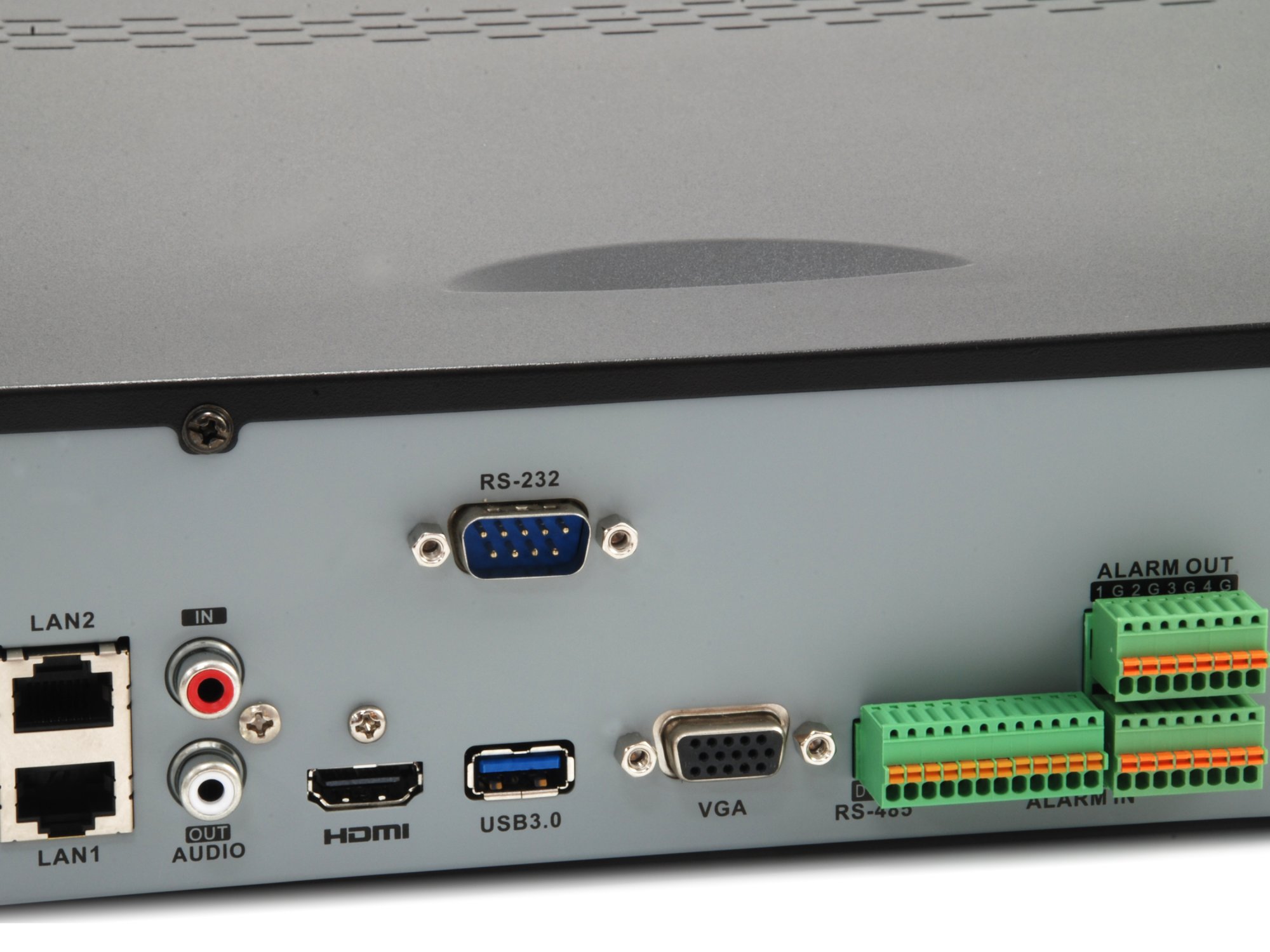

Ports & interfaces

Audio RCA inputs
1

Audio RCA outputs
1

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

HDMI output
Yes

HDMI ports
1

RS-232 interface
Yes

RS-485 ports
1

Supported network protocols
TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

VGA (D-Sub) output ports
1

Power

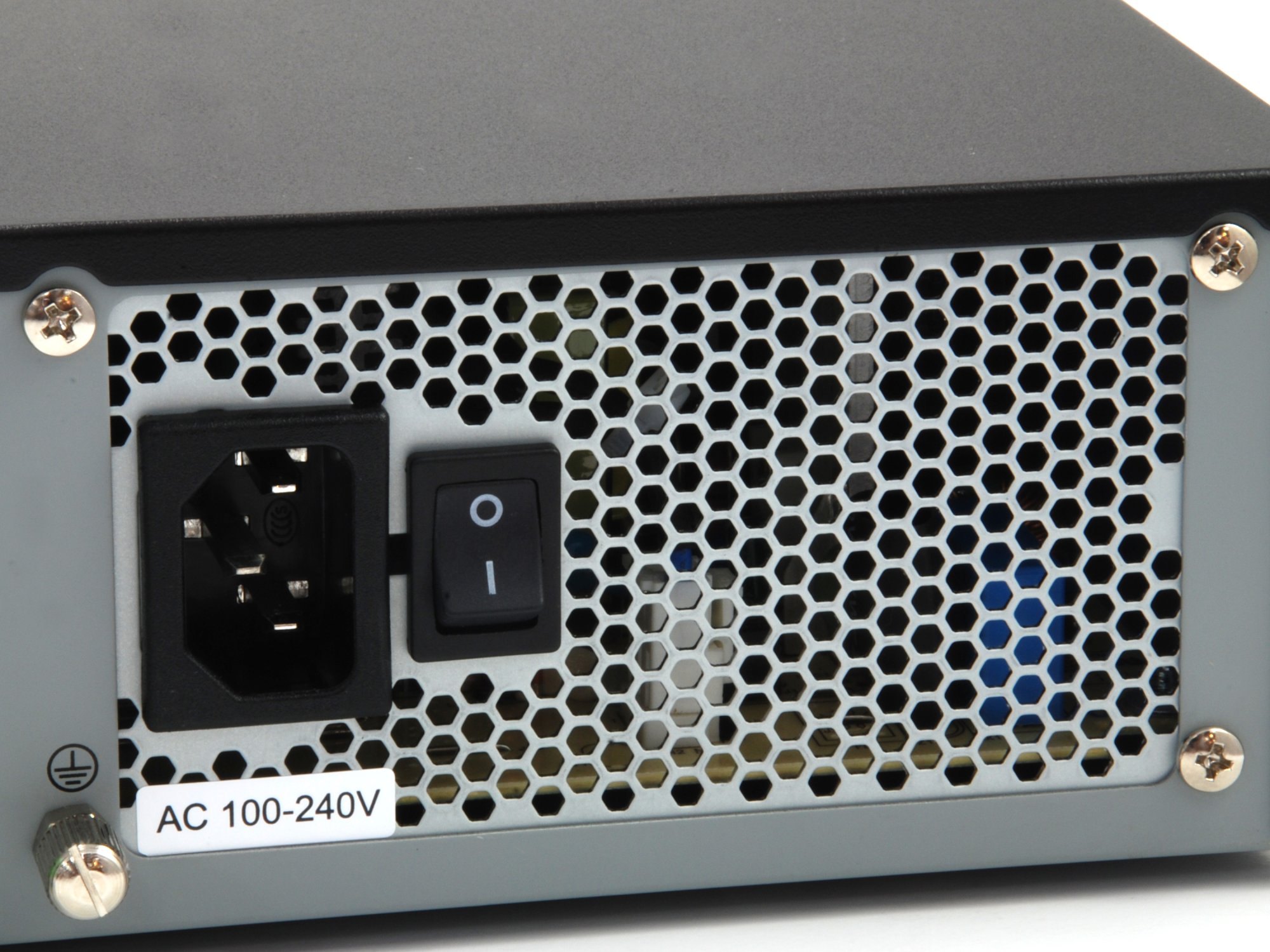

AC input voltage
100 - 240 V

Power consumption (typical)
20 W

Storage

HDD size
3.5"

Maximum storage capacity
24 TB

Number of HDDs supported
4

System requirements

Browser supported
Internet Explorer 9+

Weight & dimensions

Depth
70 mm

Height
445 mm

Package depth
158 mm

Package height
495 mm

Package type
Box

Package weight
5.5 kg

Package width
502 mm

Weight
5 kg

Width
390 mm

Description

LevelOne GEMINI 16-Channel Network Video Recorder, H.265. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of users: 128 user(s). Maximum storage capacity: 24 TB, HDD size: 3.5". Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP. LED indicators: Power, Product colour: Black, Country of origin: China. Power consumption (typical): 20 W, AC input voltage: 100 - 240 V

Video input channels: 16 channels
3840 x 2160 pixels
Number of users: 128 user(s)
Maximum storage capacity: 24 TB
Ethernet LAN (RJ-45) ports: 1
Black
Supports video resolutions up to 12 megapixels
Video compression: H.265, H.264, MPEG4
Supports 4k2k HDMI local display
Display mode: Live view/playback/full screen
4 x 3.5" hard drive bays support disk capacity of up to 6TB
Free CMS (Central Management System) software with 64-channel license
