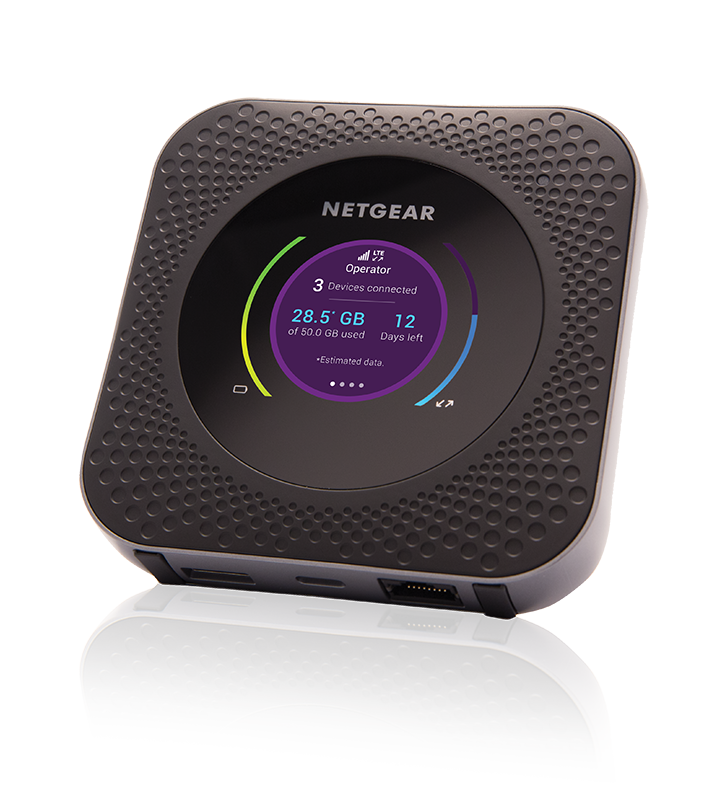

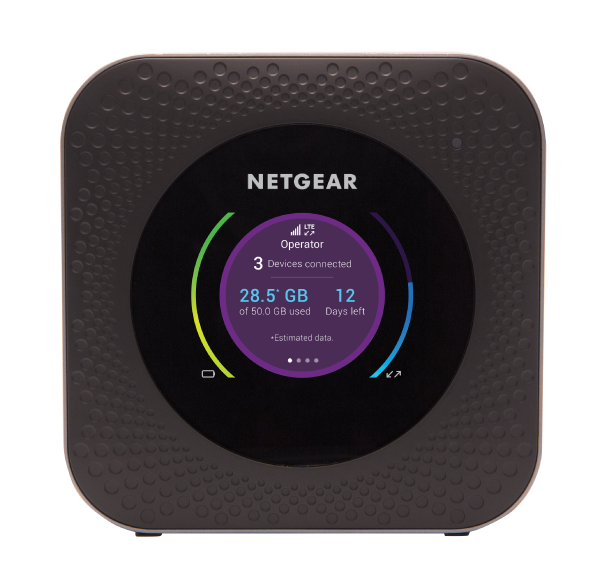

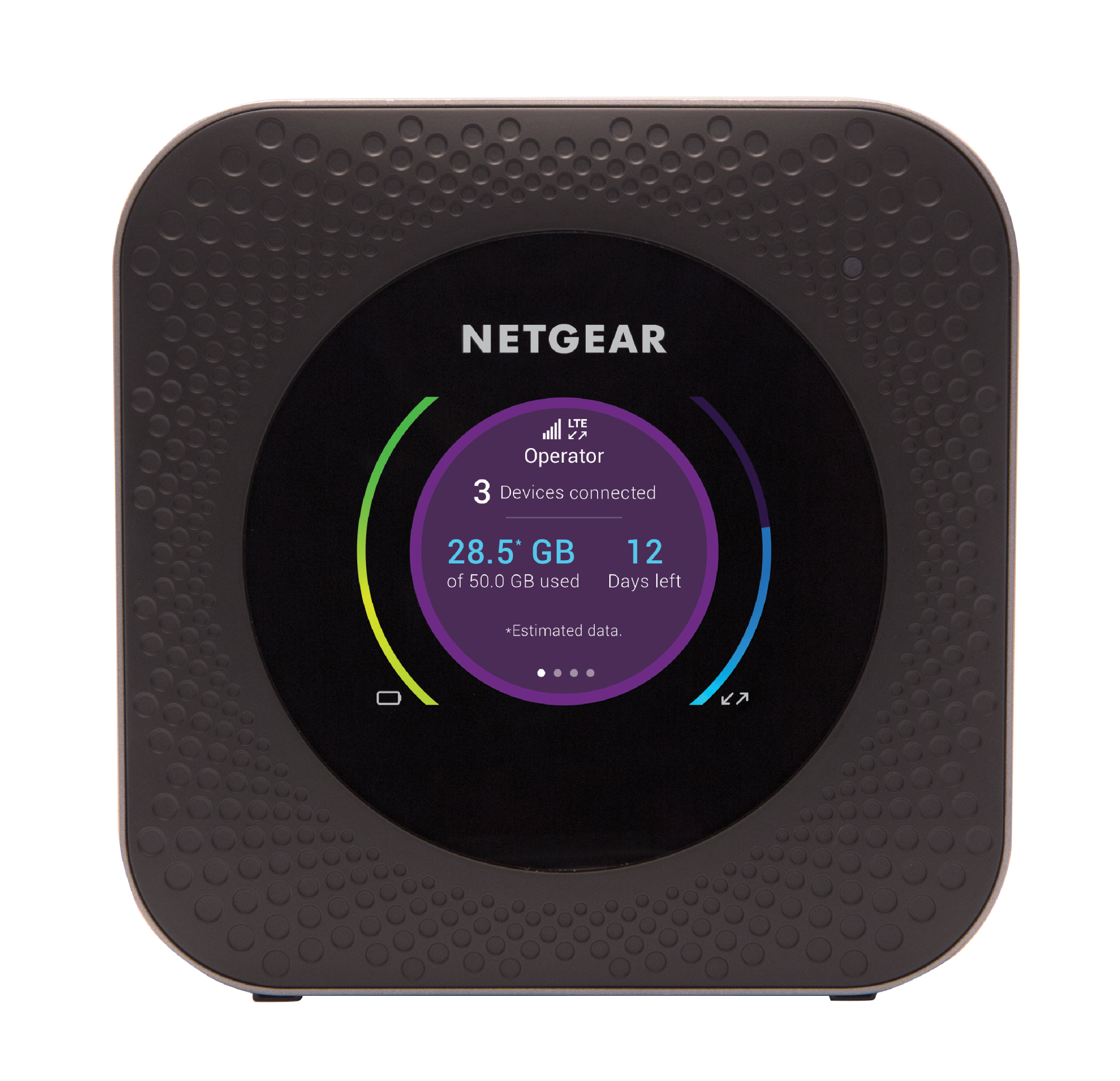

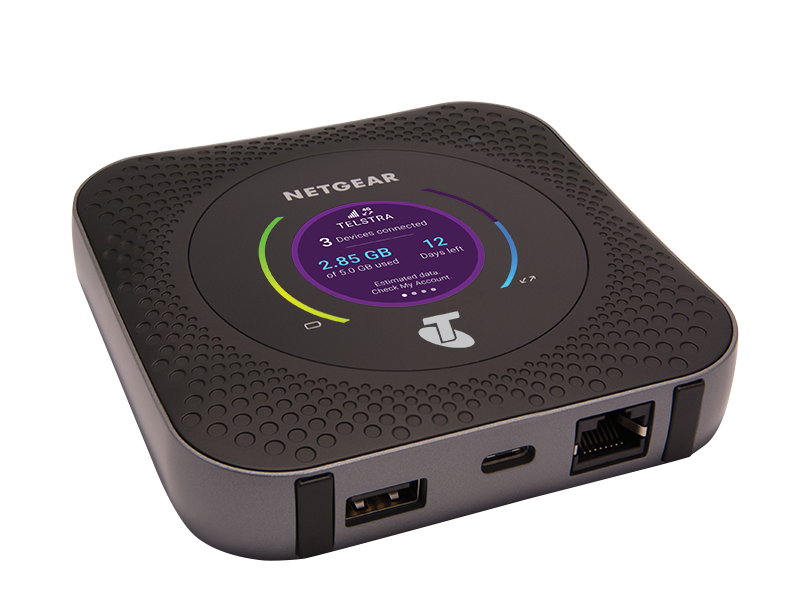

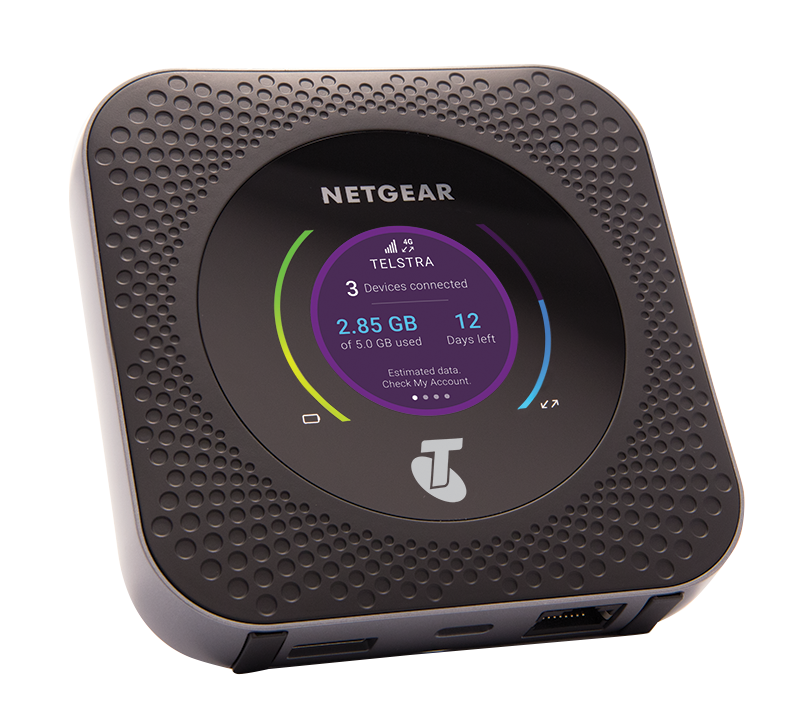

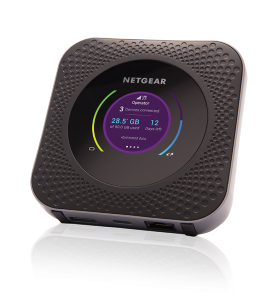

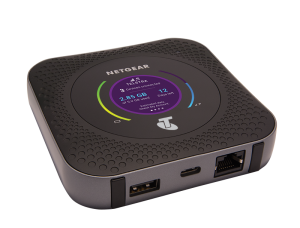

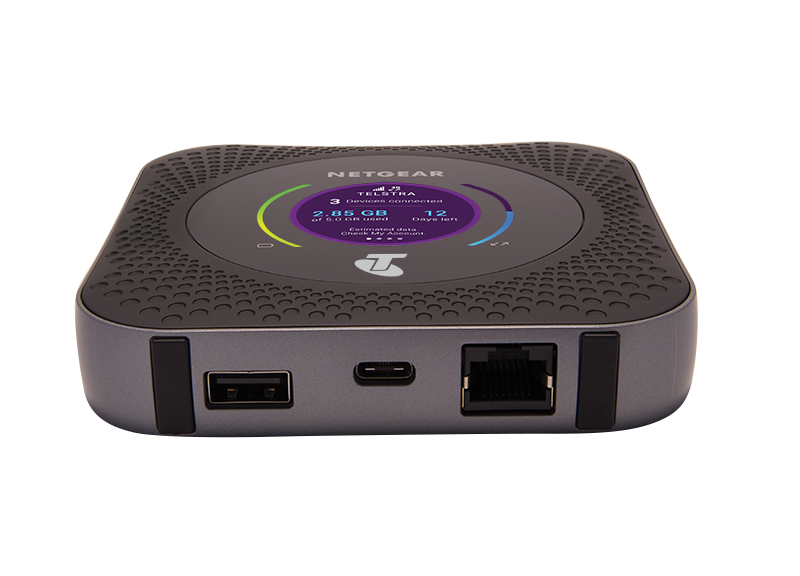

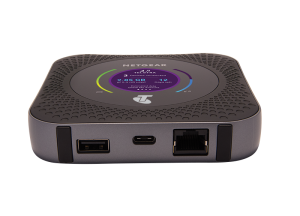

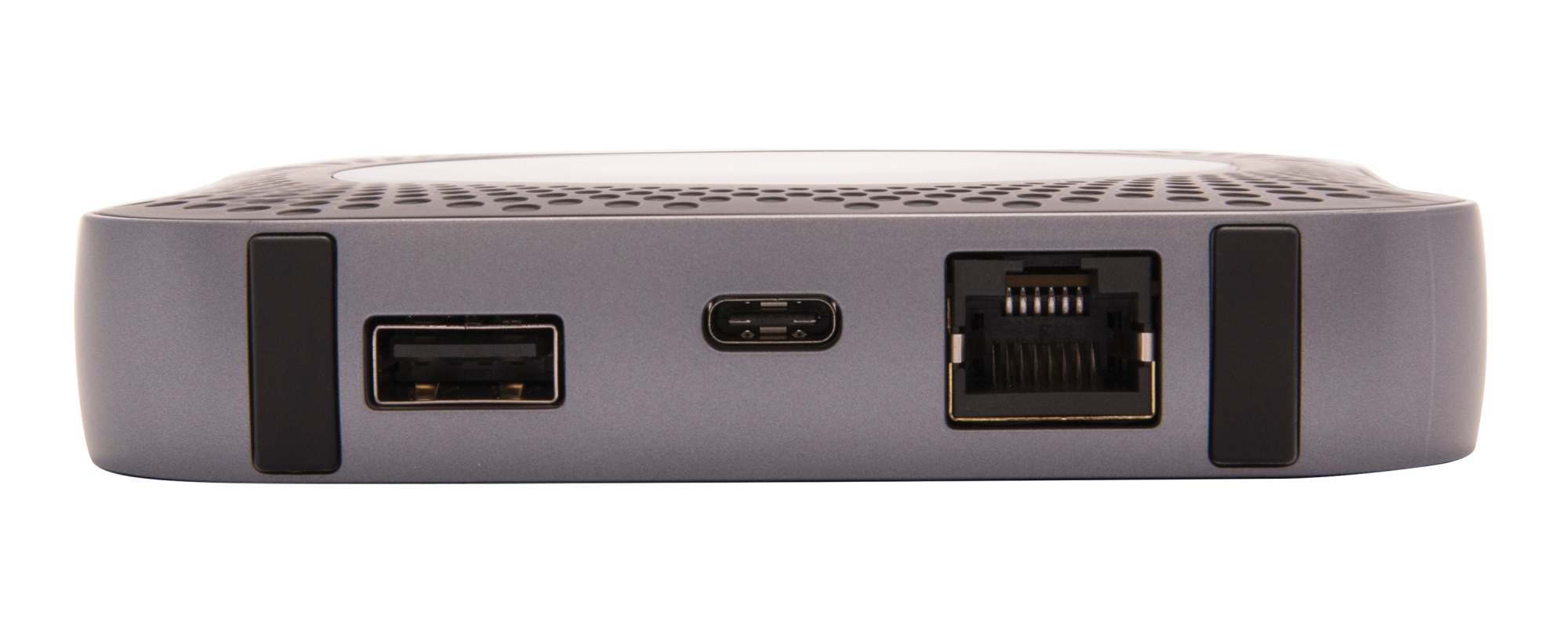

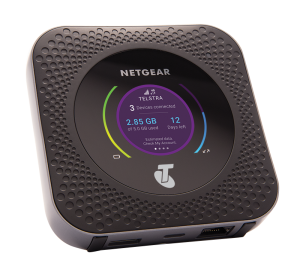

NETGEAR MR1100 Cellular network router

Name: NETGEAR MR1100 Cellular network router
Brand: Netgear
SKU: MR1100-100EUS

SKU: MR1100-100EUS

Log In to View Pricing

NETGEAR MR1100, Cellular network router, Black, Portable, LCD, 6.1 cm (2.4"), Gigabit Ethernet

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
2 Years

SKU
MR1100-100EUS

EAN
606449128666

Antenna

Antenna connector type
TS-9

Antenna type
Internal

Bullet points

Point
Always-on 4G LTE connection you can count on and share with up to 20 WiFi devices on-the-go

Improved JumpBoost feature to charge smartphones and small portable USB devices

Media Streaming from microSD, USB Type-C or external hard drive to all connected devices

Powerful, long-lasting battery for all day continuous use*

Secure, private WiFi

Simple, intuitive User Experience

Supports 4G LTE Advanced Pro Category 16 with 4X4 MIMO and 4-band Carrier Aggregation

Travel Router with WiFi/Ethernet offloading capabilities

Unlocked device will accept all SIM cards; works best on AT&T and T-Mobile networks

Design

Device type
Cellular network router

Display diagonal
6.1 cm (2.4")

Display type
LCD

Market positioning
Portable

Product colour
Black

Ethernet LAN features

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Supported network protocols
IPv6

Logistics data

Harmonized System (HS) code
85176990

Mobile network

3G standards
WCDMA

4G standard
LTE

Data network
3G, 4G, LTE

Data transfer rate (LTE) (download)
1000 Mbit/s

Data transfer rate (LTE) (upload)
150 Mbit/s

Packaging data

Cables included
USB Type-C

Performance

Built-in processor
Yes

Processor model
Qualcomm Atheros

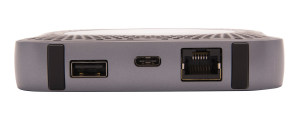

Ports & interfaces

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash)

Ethernet LAN (RJ-45) ports
1

USB 2.0 ports quantity
2

USB port
Yes

USB port type
USB Type A/USB Type-C

Power

Battery capacity
5040 mAh

Battery technology
Lithium-Ion (Li-Ion)

Built-in battery
Yes

External power adapter
Yes

Power source type
Battery

Weight & dimensions

Depth
105.5 mm

Height
20.4 mm

Weight
240 g

Width
105.5 mm

Wireless LAN features

Wi-Fi
Yes

Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

WLAN data transfer rates supported
150 Mbit/s

Description

NETGEAR MR1100. Device type: Cellular network router, Product colour: Black, Market positioning: Portable. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: IPv6. Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), WLAN data transfer rates supported: 150 Mbit/s. Data network: 3G, 4G, LTE, 3G standards: WCDMA, 4G standard: LTE. USB port type: USB Type A/USB Type-C, Compatible memory cards: MicroSD (TransFlash)

Portable Cellular network router
Ethernet LAN Wi-Fi
3G standards: WCDMA
4G standard: LTE
Antenna type: Internal TS-9
Black
Always-on 4G LTE connection you can count on and share with up to 20 WiFi devices on-the-go
Secure, private WiFi: manage and control access with password protected WiFi, guest access, block selected devices and content filtering
Superfast Mobile Broadband Internet to deliver incredible download speeds up to 1 Gbps and 150 Mbps upload
Unlocked device will accept all SIM cards; works best on AT&T and T-Mobile networks
Supports 4G LTE Advanced Pro Category 16 with 4X4 MIMO and 4-band Carrier Aggregation
Increase network performance and reduce interference with 802.11ac and Dual-Band 2.4GHz/5GHz dual concurrent WiFi
Travel Router with WiFi/Ethernet offloading capabilities
Media Streaming from microSD, USB Type-C or external hard drive to all connected devices
Simple, intuitive User Experience : use the NETGEAR Mobile App to monitor data usage, manage device and network settings
Powerful, long-lasting battery for all day continuous use*
Improved JumpBoost feature to charge smartphones and small portable USB devices
