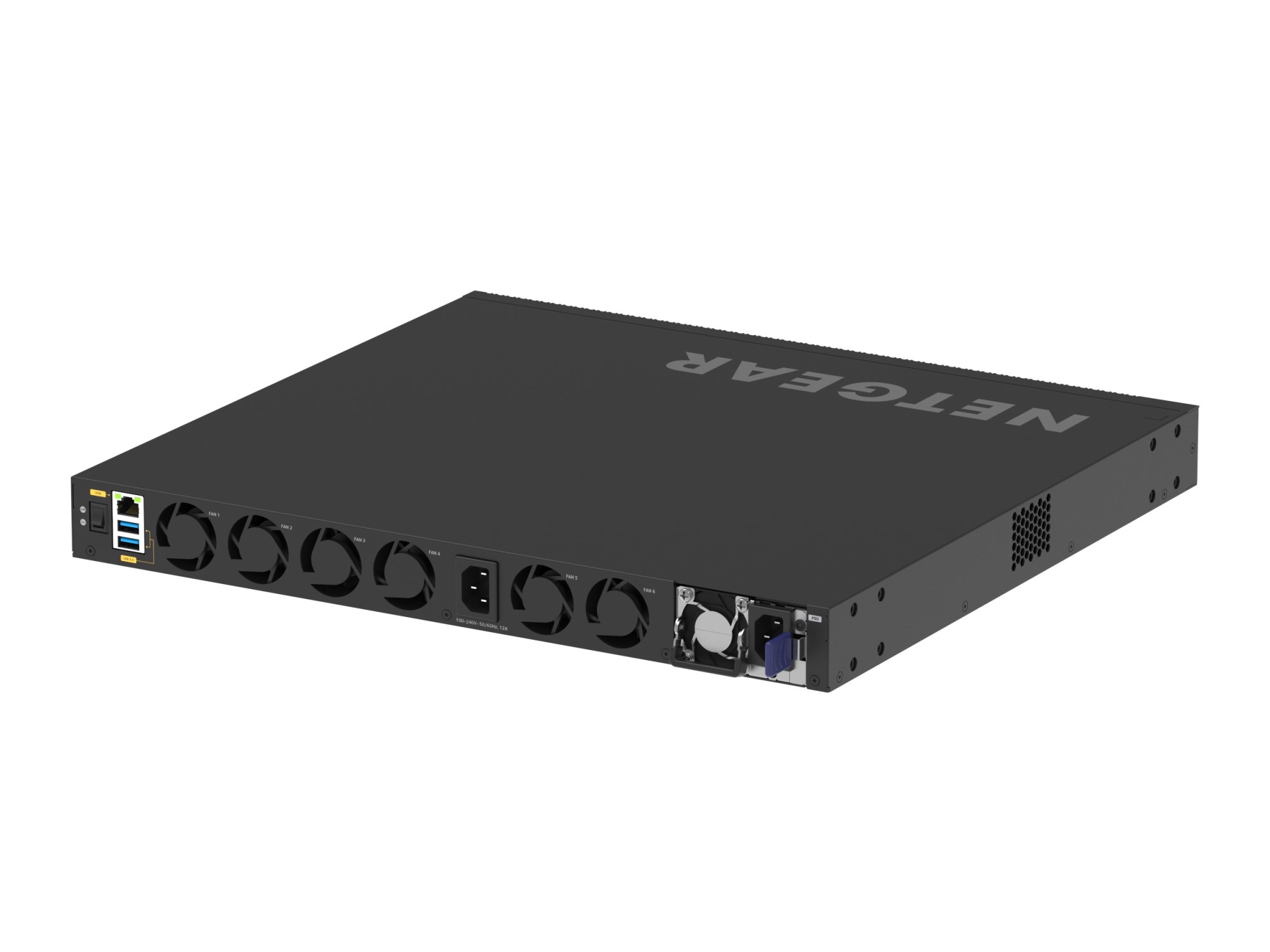

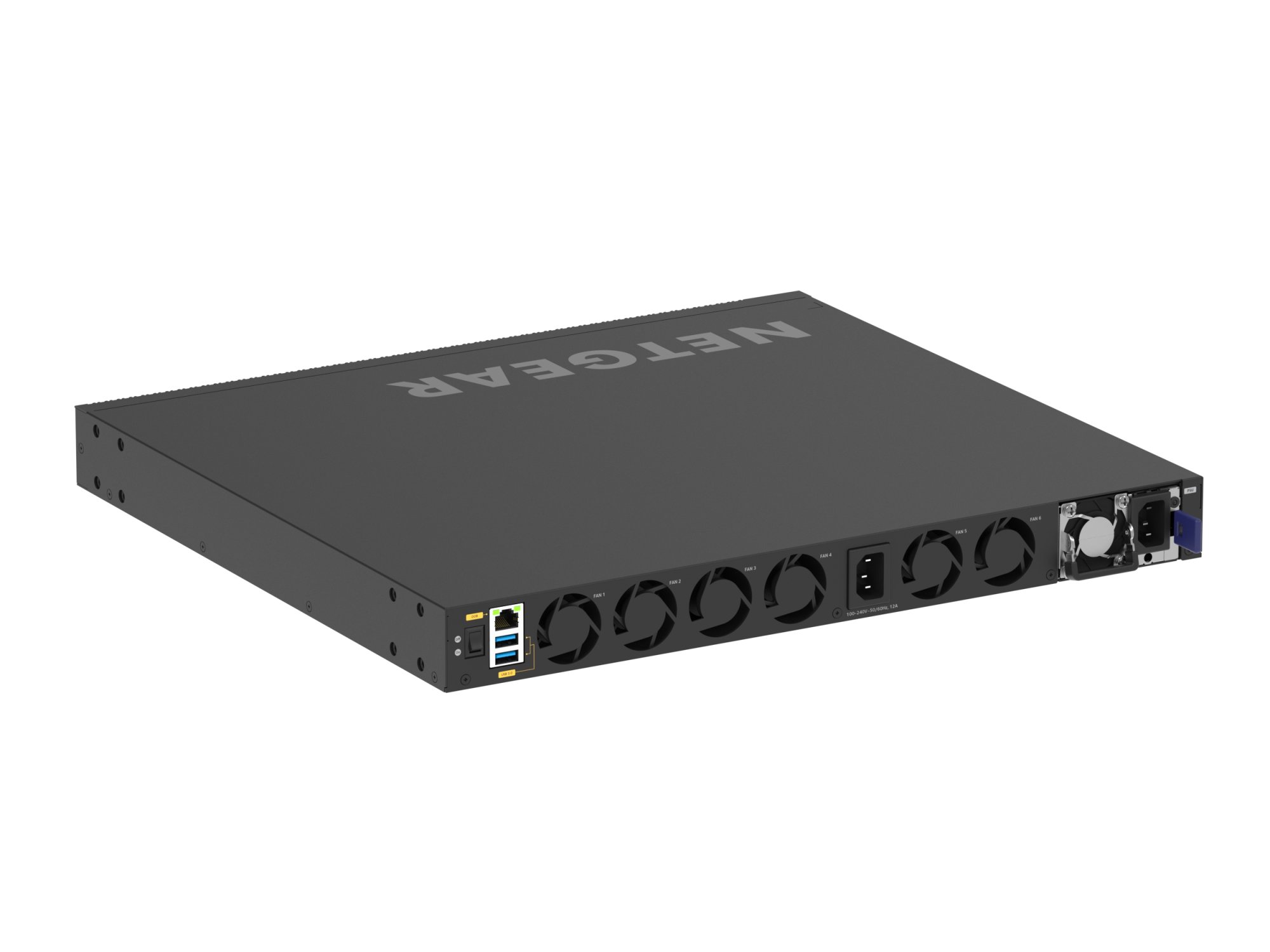

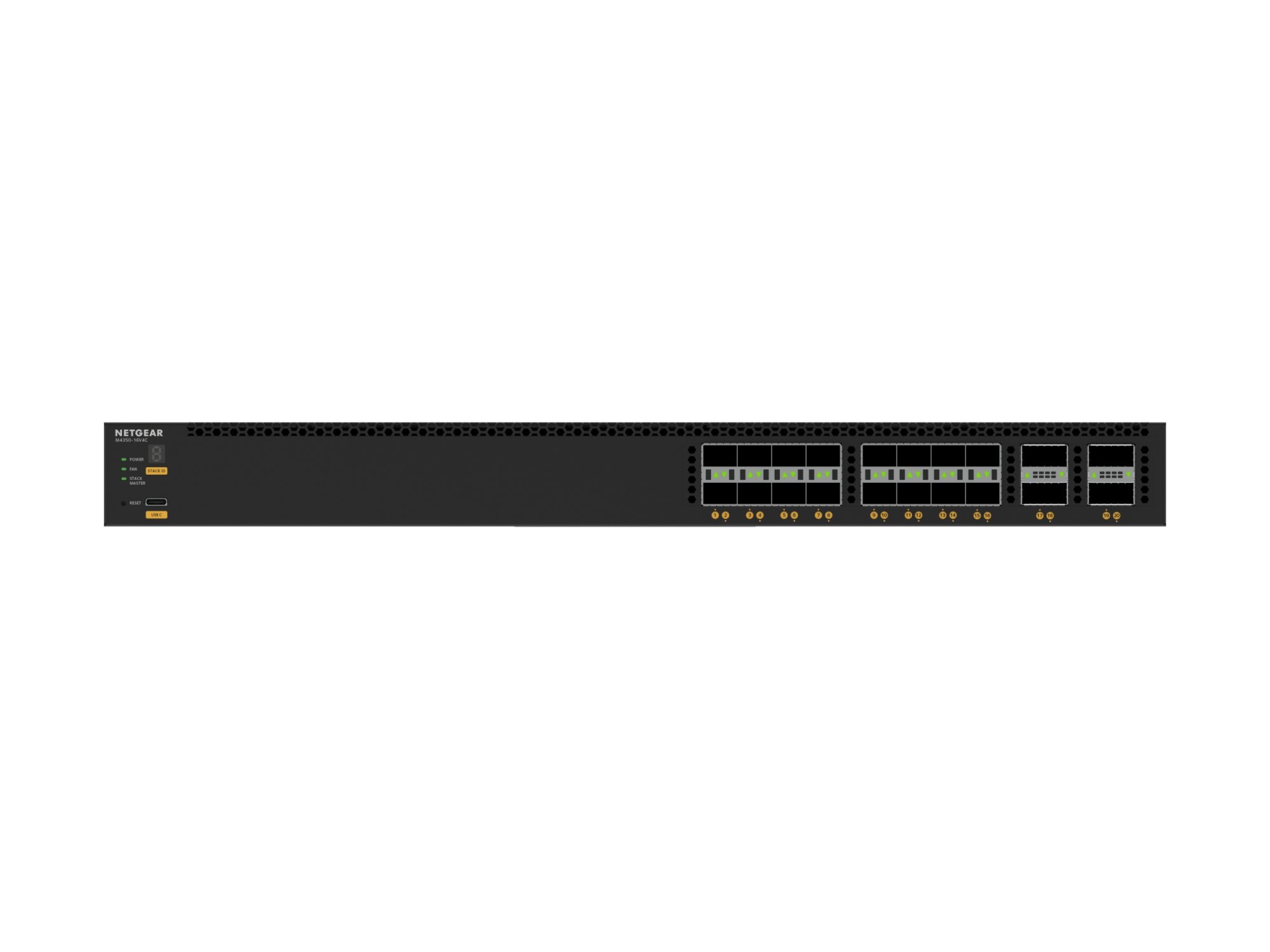

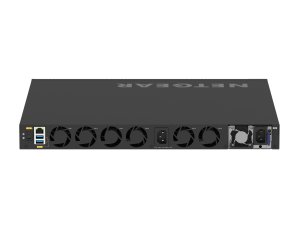

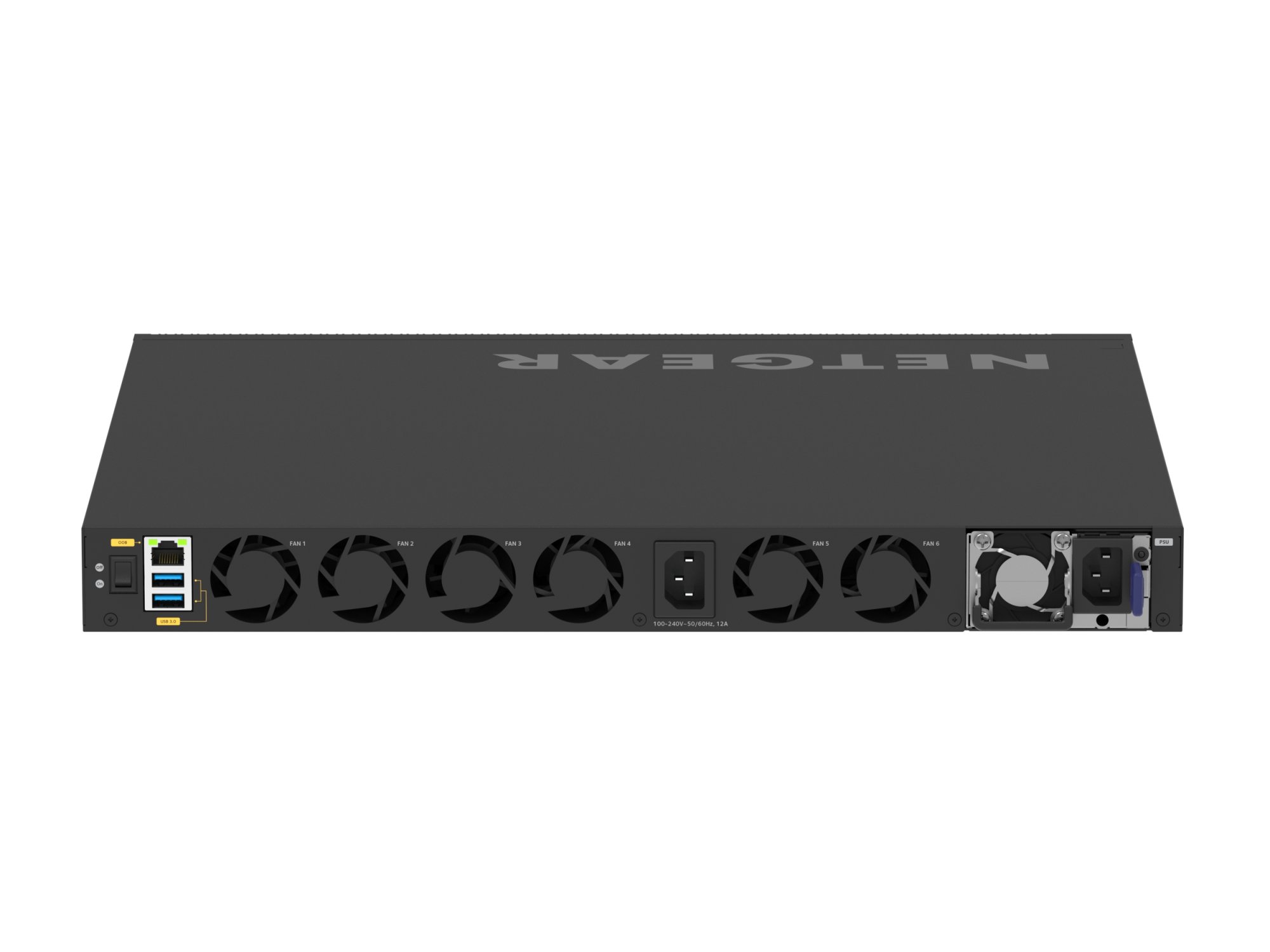

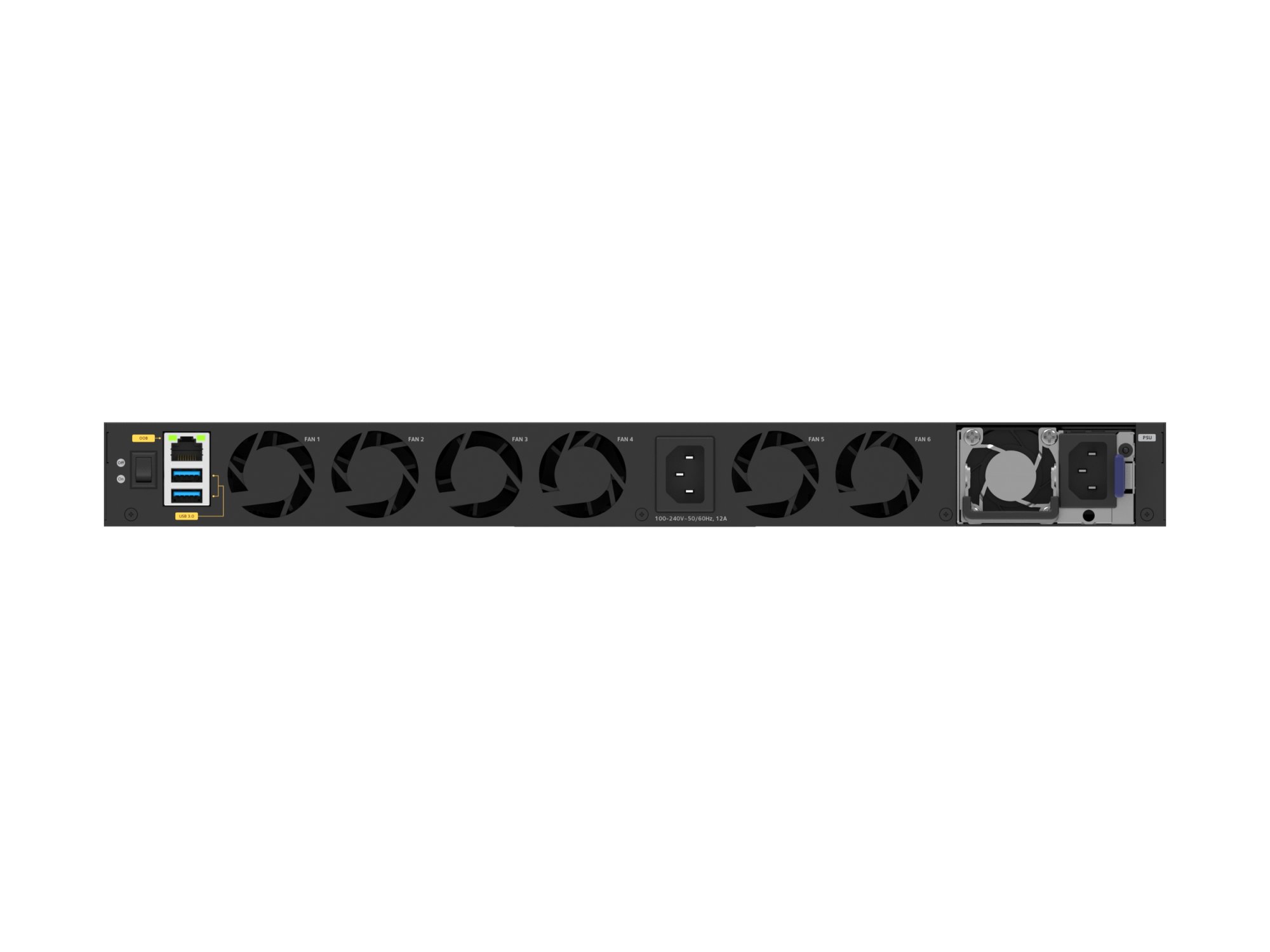

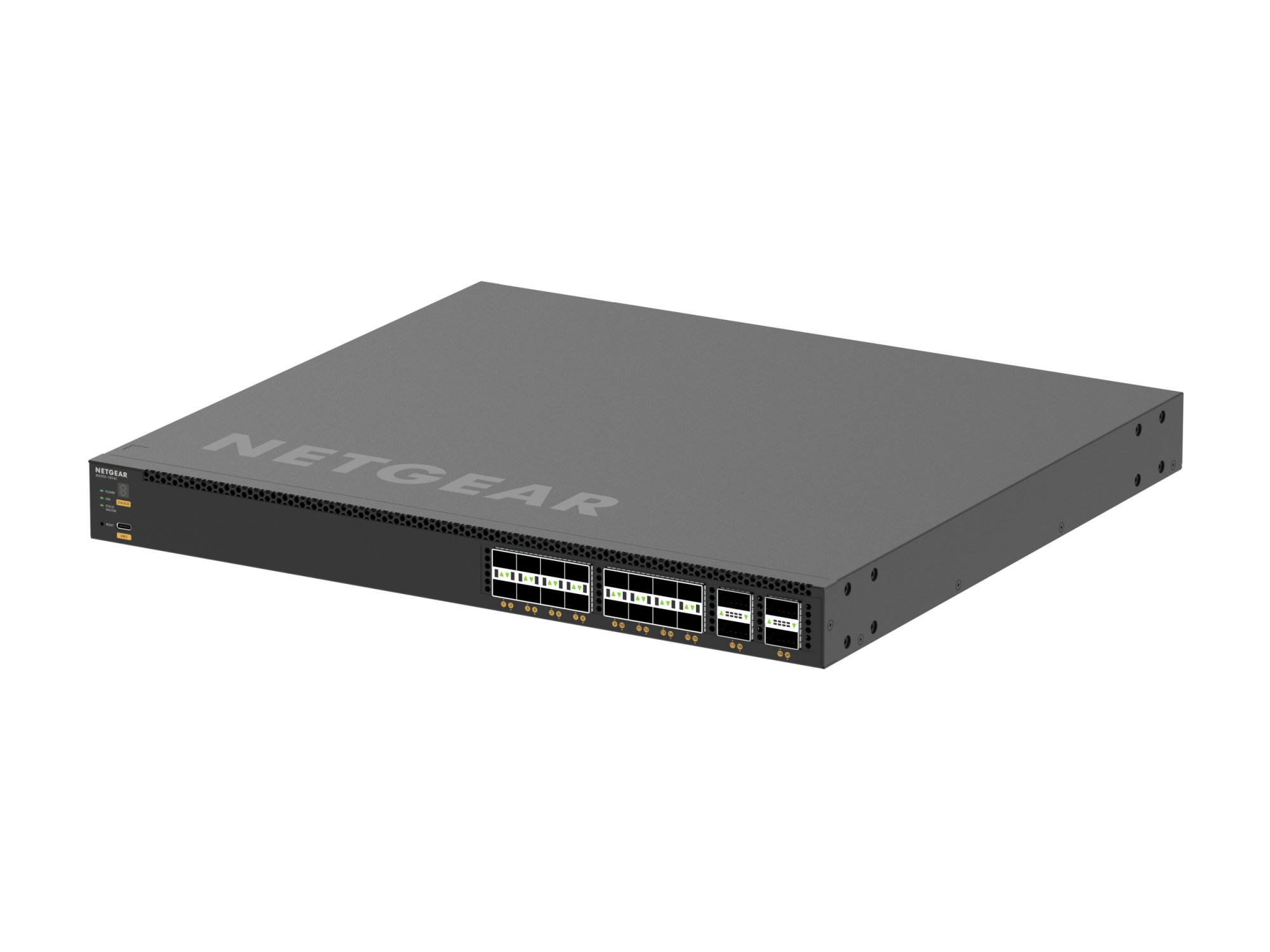

NETGEAR M4350-16V4C Managed L3 Black

Name: NETGEAR M4350-16V4C Managed L3 Black
Brand: Netgear
SKU: VSM4320C-100NES

SKU: VSM4320C-100NES

Log In to View Pricing

NETGEAR M4350-16V4C, Managed, L3, Full duplex, Rack mounting

hypertec

Datasheets (Download)

Brochure (Download)

Product Brief (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
VSM4320C-100NES

EAN
606449165074

Bullet points

Point
1 slot for modular power supply (1+1 redundancy)

16 25GBASE-X SFP28 ports with 4 100GBASE-X QSFP28 uplinks

420W internal power supply

Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used

Layer 3 feature set includes static, policy-based, and dynamic routing

NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover

Data transmission

Jumbo frames
12000

Jumbo frames support
Yes

Latency (10 Gbps)
2.71 µs

MAC address table
16000 entries

Packet buffer memory
256 MB

Store-and-forward
Yes

Switching capacity
1600 Gbit/s

Throughput
1190.4 Mpps

Design

Airflow direction
Front-to-back airflow

LED indicators
Yes

Product colour
Black

Rack mounting
Yes

Stackable
Yes

Management features

ARP inspection
Yes

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
Y

Multicast support
Yes

Network

10G support
Yes

6to4 tunnel
Yes

Broadcast storm control
Yes

Flow control support
Yes

Full duplex
Yes

IPv4 routes
512

IPv6 routes
256

Link aggregation
Yes

Number of VLANs
4093

Policy-based routing
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
MAC address-based VLAN, Private VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Non-operating altitude
0 - 3000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Other features

Power supply
420 W

Packaging data

Cables included
AC, USB Type-C

Included power plug types
EU, UK, NA

Quick start guide
Yes

Rack mount kit
Yes

Performance

Built-in processor
Yes

Flash memory
512 MB

Internal memory
4096 MB

Memory type
DDR4-SDRAM

Processor frequency
1800 MHz

Processor model
ARM Cortex-A57

sFlow
Yes

Ports & interfaces

Power connector
AC-in jack

QSFP28 ports quantity
4

SFP28 ports quantity
16

Switch Port Speed
No

Power

Power consumption (typical)
143.4 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Management protocols
SNMP V1, V2, V3

Routing protocols
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Security

Access Control List (ACL)
Yes

Access Control List (ACL) egress
1023

Access Control List (ACL) ingress
511

Authentication
Guest VLAN, MAC-based authentication

Authentication type
RADIUS, TACACS+

BPDU filtering/protection
Yes

DHCP features
DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

DoS attack prevention
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Loop protection
Yes

MAC address filtering
Yes

Password protection
Yes

Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Root protection
Yes

Static port security
Yes

Sustainability

Sustainability compliance
Yes

Technical details

Compliance certificates
BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Weight & dimensions

Depth
400 mm

Height
43.2 mm

Weight
7.15 kg

Width
440 mm

Description

NETGEAR M4350-16V4C. Switch type: Managed, Switch layer: L3. Full duplex. MAC address table: 16000 entries, Switching capacity: 1600 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting

Managed L3 Web-based management SNMP V1, V2, V3
Quality of Service (QoS) support
10G support
MAC address table: 16000 entries Switching capacity: 1600 Gbit/s
Access Control List (ACL)
Rack mounting Stackable
AC Power supply included
16 25GBASE-X SFP28 ports with 4 100GBASE-X QSFP28 uplinks
420W internal power supply
1 slot for modular power supply (1+1 redundancy)
Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
Layer 3 feature set includes static, policy-based, and dynamic routing
NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
