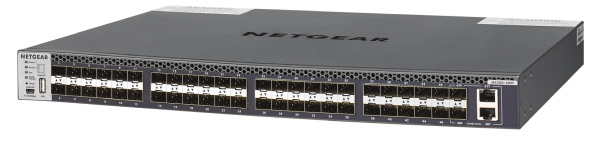

NETGEAR M4300-48XF Managed L3 Black
Roll over image to zoom inClick to Open expanded view

NETGEAR M4300-48XF Managed L3 Black

SKU: XSM4348FS-100NES
NETGEAR M4300-48XF, Managed, L3, Rack mounting
Specifications
More Information
PDF

Product Properties

  • Warranty
  • Lifetime
  • SKU
  • XSM4348FS-100NES
  • EAN
  • 606449142532
  • Bullet points
  • Data transmission
  • Jumbo frames support
  • Yes
  • Number of queues
  • 8
  • Number of static routes
  • 64
  • Design
  • Logistics data
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Multicast features
  • Number of multicast groups filtered
  • 4000
  • Network
  • Operational conditions
  • Packaging data
  • Performance
  • Physical stacking (units)
  • 8
  • Ports & interfaces
  • SFP+ module slots quantity
  • 48
  • USB 2.0 ports quantity
  • 1
  • Power
  • Number of power supply units
  • 1
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • BPDU filtering/protection
  • Yes
  • Weight & dimensions

Description

NETGEAR M4300-48XF. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 128000 entries, Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Rack mounting
  • Managed L3
  • Quality of Service (QoS) support
  • Console port: RJ-45/Mini-USB
  • 10G support
  • MAC address table: 128000 entries Switching capacity: 960 Gbit/s
  • Access Control List (ACL)
  • Rack mounting Stackable
  • Power supply included
  • 48-port 10GBASE-X (SFP+)
  • 2-port 10GBASE-T (RJ45) (shared)
  • 960Gbps non-blocking fabric across 48 ports
  • Out-of-band 1G Ethernet Management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Full width form factor with one-unit rack mount kit
  • Ships with one modular APS250W PSU in first power supply slot
  • Ship with a blank cover in the second power supply slot
  • Low acoustics (42.4dB @25°C / 77°F)
