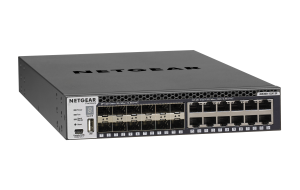

NETGEAR M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

Roll over image to zoom inClick to Open expanded view

NETGEAR M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

Name: NETGEAR M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Brand: Netgear
SKU: XSM4324S-100NES

SKU: XSM4324S-100NES

Log In to View Pricing

NETGEAR M4300-12X12F, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

hypertec

(Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
Lifetime

SKU
XSM4324S-100NES

EAN
606449110036

Data transmission

Forwarding rate
357 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of static routes
64

Packet buffer memory
32 MB

Store-and-forward
Yes

Switching capacity
480 Gbit/s

Design

Electromagnetic compatibility
CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024

Form factor
1U

LED indicators
Activity, Power, Speed

Product colour
Black

Rack mounting
Yes

Safety
CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950

Stackable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

ARP inspection
Yes

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Number of multicast groups filtered
4000

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Auto-sensing
Yes

Flow control support
Yes

IP routing
Yes

Link aggregation
Yes

Networking standards
IEEE 802.3ad, IEEE 802.3az

Number of VLANs
4000

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
Private VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
36775 BTU/h

Non-operating altitude
0 - 3000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Optical fiber

Fiber ethernet cabling technology
10GBASE-LR, 10GBASE-LRM, 10GBASE-SR

Packaging data

Cables included
AC, LAN (RJ-45), Mini-USB

Rack mount kit
Yes

Resource CD
Yes

Rubber feet
Yes

User guide
Yes

Performance

Built-in processor
Yes

Flash memory
256 MB

Internal memory
1024 MB

Mean time between failures (MTBF)
192898 h

Noise level
36.9 dB

Processor frequency
800 MHz

Ports & interfaces

Fiber optic connector
SFP+

SFP+ module slots quantity
12

Switch Number of Ports
12

Switch Port Speed
10G Ethernet (100/1000/10000)

USB 2.0 ports quantity
1

Power

AC input voltage
110 - 230 V

Number of power supply units
1

Power consumption (max)
97 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

Access Control List (ACL)
Yes

BPDU filtering/protection
Yes

DHCP features
DHCP server, DHCP client

IGMP snooping
Yes

Security algorithms
HTTPS, SNMP, SSH

SSH/SSL support
Yes

Weight & dimensions

Depth
345 mm

Height
44 mm

Weight
3.69 kg

Width
212 mm

Description

NETGEAR M4300-12X12F. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3az. Rack mounting, Form factor: 1U

Managed L2/L3 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 12
10G support
MAC address table: 16000 entries Switching capacity: 480 Gbit/s
Access Control List (ACL)
1U Rack mounting Stackable
Power supply included
