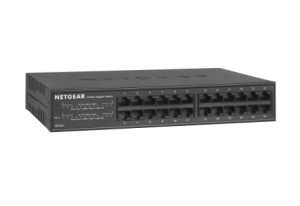

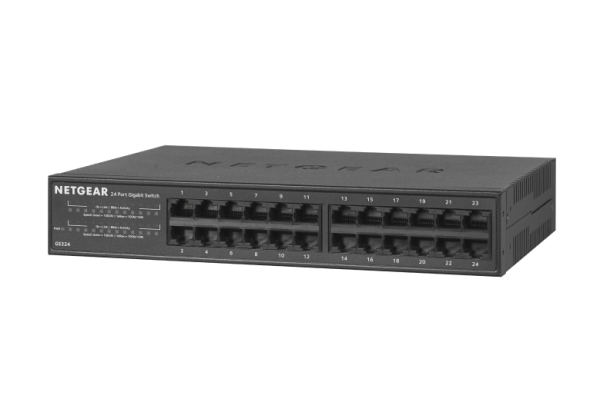

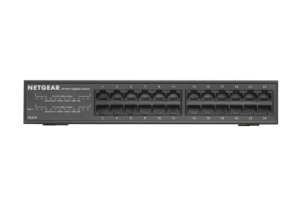

NETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) Black

Roll over image to zoom inClick to Open expanded view

NETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) Black

Name: NETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) Black
Brand: Netgear
SKU: GS324-200EUS

SKU: GS324-200EUS

Log In to View Pricing

NETGEAR GS324, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting, Wall mountable

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
Netgear

Warranty
3 Years

SKU
GS324-200EUS

EAN
606449152012

Bullet points

Point
Auto-MDI/MDIX eliminates the need for crossover cables

Choice of Fast Ethernet and Gigabit Ethernet connectivity

Desktop, wall or rackmountable

Energy-efficient technology for power savings

Non-blocking switching architecture for maximum throughput at wire speed

Data transmission

Jumbo frames
9216

Jumbo frames support
Yes

Latency (1 Gbps)
4.7 µs

MAC address table
8000 entries

Packet buffer memory
0.512 MB

Packet forwarding rate (1 Gbps)
1448000 pps

Switching capacity
48 Gbit/s

Design

Certification
CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD

Housing material
Metal

LED indicators
Activity, Link, Power, Speed

Product colour
Black

Rack mounting
Yes

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

Auto MDI/MDI-X
Yes

Auto-sensing
Yes

Cable types supported
Cat5

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
37.96 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging data

Cables included
AC

Manual
Yes

Performance

Fanless
Yes

Mean time between failures (MTBF)
620798 h

Ports & interfaces

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
110 - 240 V

Input current
1 A

Power consumption (max)
11.1 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
180 mm

Height
44 mm

Weight
1.31 kg

Width
252 mm

Description

NETGEAR GS324. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE.... Wall mountable, Rack mounting

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24
Cat5
MAC address table: 8000 entries Switching capacity: 48 Gbit/s
Rack mounting
Power supply included
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Desktop, wall or rackmountable
