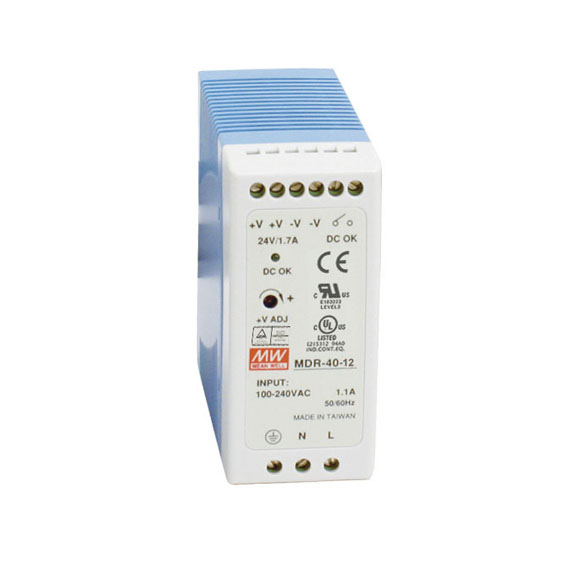

Black Box MDR-40-12 power supply unit 40 W Blue, White
Roll over image to zoom inClick to Open expanded view

Black Box MDR-40-12 power supply unit 40 W Blue, White

SKU: MDR-40-12
Black Box MDR-40-12, 40 W, 85 - 264 V, 47 - 63 Hz, 1.1 A, 1.1 A, 0.7 A
Specifications
More Information

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • MDR-40-12
  • Bullet points
  • Design
  • Operational conditions
  • Other features
  • Voltage tolerance
  • 1%
  • Performance
  • Power
  • Maximum input current (@110V)
  • 1.1 A
  • Maximum input current (@220V)
  • 0.7 A
  • Weight & dimensions

Description

Black Box MDR-40-12. Total power: 40 W, AC input voltage: 85 - 264 V, AC input frequency: 47 - 63 Hz. Certification: cUL, CE. Product colour: Blue, White. Width: 40 mm, Depth: 100 mm, Height: 90 mm. Voltage tolerance: 1%, Rise time: 500 ms
  • Compact DIN rail mount power supply measuring less than an 2,5cm wide.
  • Power industrial devices such as Heavy Duty Edge Switches and Media Converter Switches.
  • LED indicates DC power.
  • Universal 85–264VAC input. It also accepts, but is not certified for, 120–370VDC power.
  • Extended operating temperature range of -20 to +70° C .
  • Finger-safe terminals.
  • Protection from short circuits, overload, and over-voltage.
  • cUL, CE approved.
