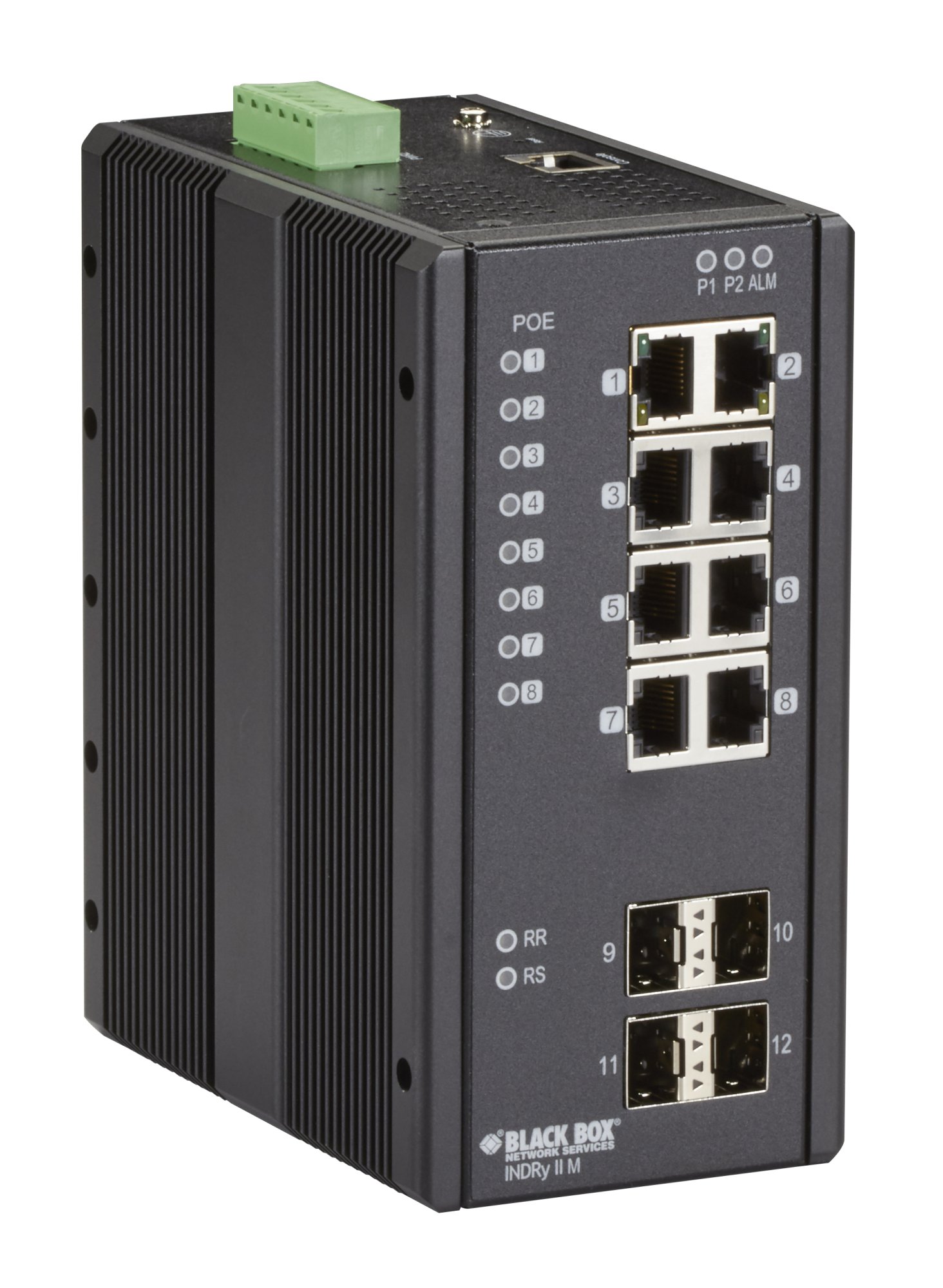

Black Box LIE1014A network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Roll over image to zoom inClick to Open expanded view

Black Box LIE1014A network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

SKU: LIE1014A
Black Box LIE1014A, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • LIE1014A
  • EAN
  • 0822088079620
  • Bullet points
  • Data transmission
  • Jumbo frames support
  • Design
  • International Protection (IP) code
  • Logistics data
  • Management features
  • Quality of Service (QoS) support
  • Multicast features
  • Network
  • Flow control support
  • Spanning tree protocol
  • Operational conditions
  • Performance
  • Ports & interfaces
  • SFP module slots quantity
  • Switch Number of Ports
  • Power
  • Power consumption (max)
  • Redundant power supply (RPS) support
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Security
  • Weight & dimensions

Description

Black Box LIE1014A. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
  • Managed
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
  • MAC address table: 8000 entries
  • Power over Ethernet (PoE)

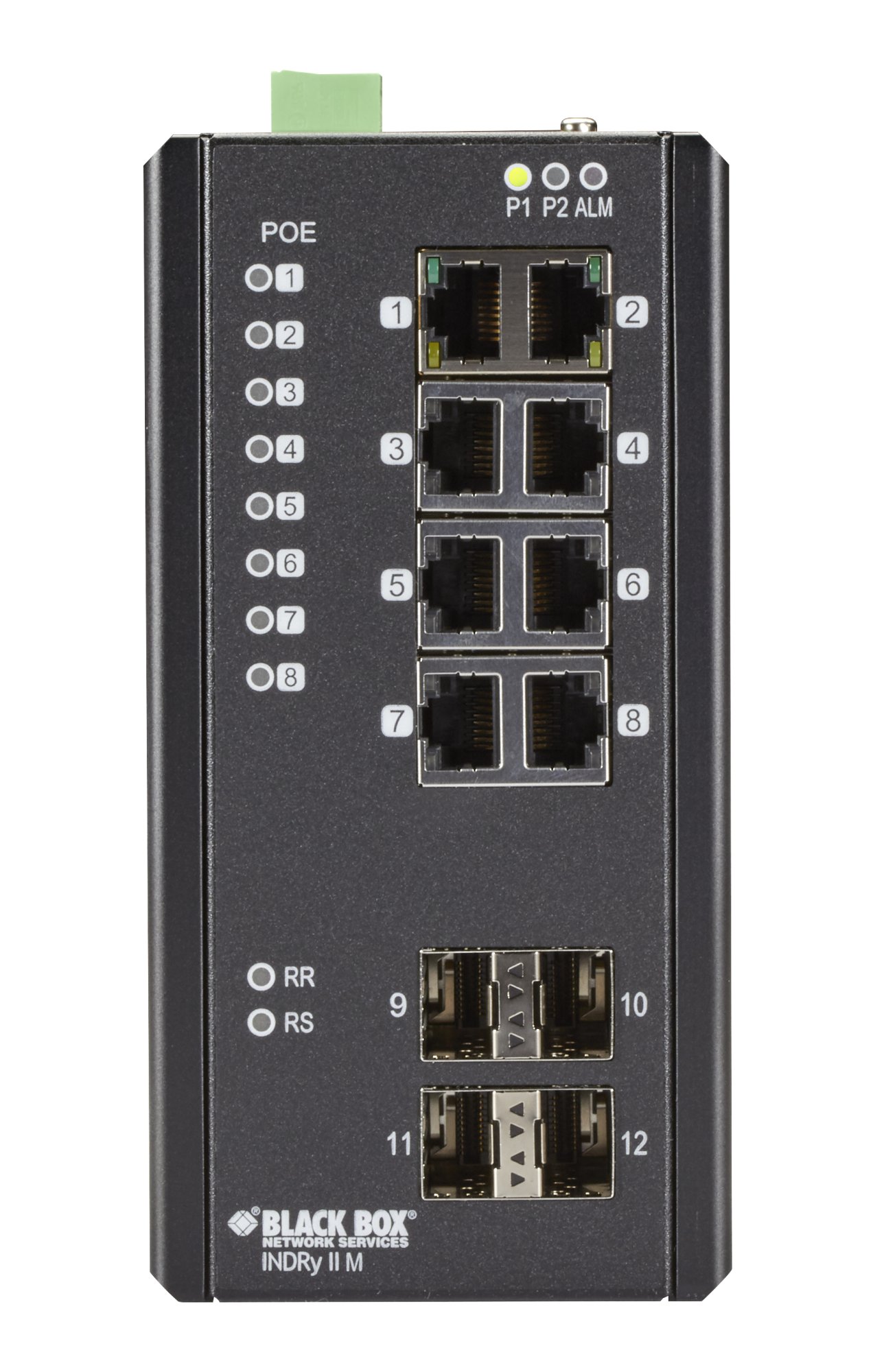

  • Provides eight 10/100/1000-Mbps PoE+ RJ-45 ports and four multispeed Gigabit SFP slots.
  • Use to connect and power security cameras and access points.
  • Offers link loss recovery of <20-msec.
  • DIN rail or wall mount.
  • PoE 802.3af and PoE+ 802.3at compatible. Delivers up to 30W per port.
  • SFP ports enable single-mode or multimode Gigabit fiber uplinks over long distances.
  • Rated for extreme temperatures of -40 to +75° C.

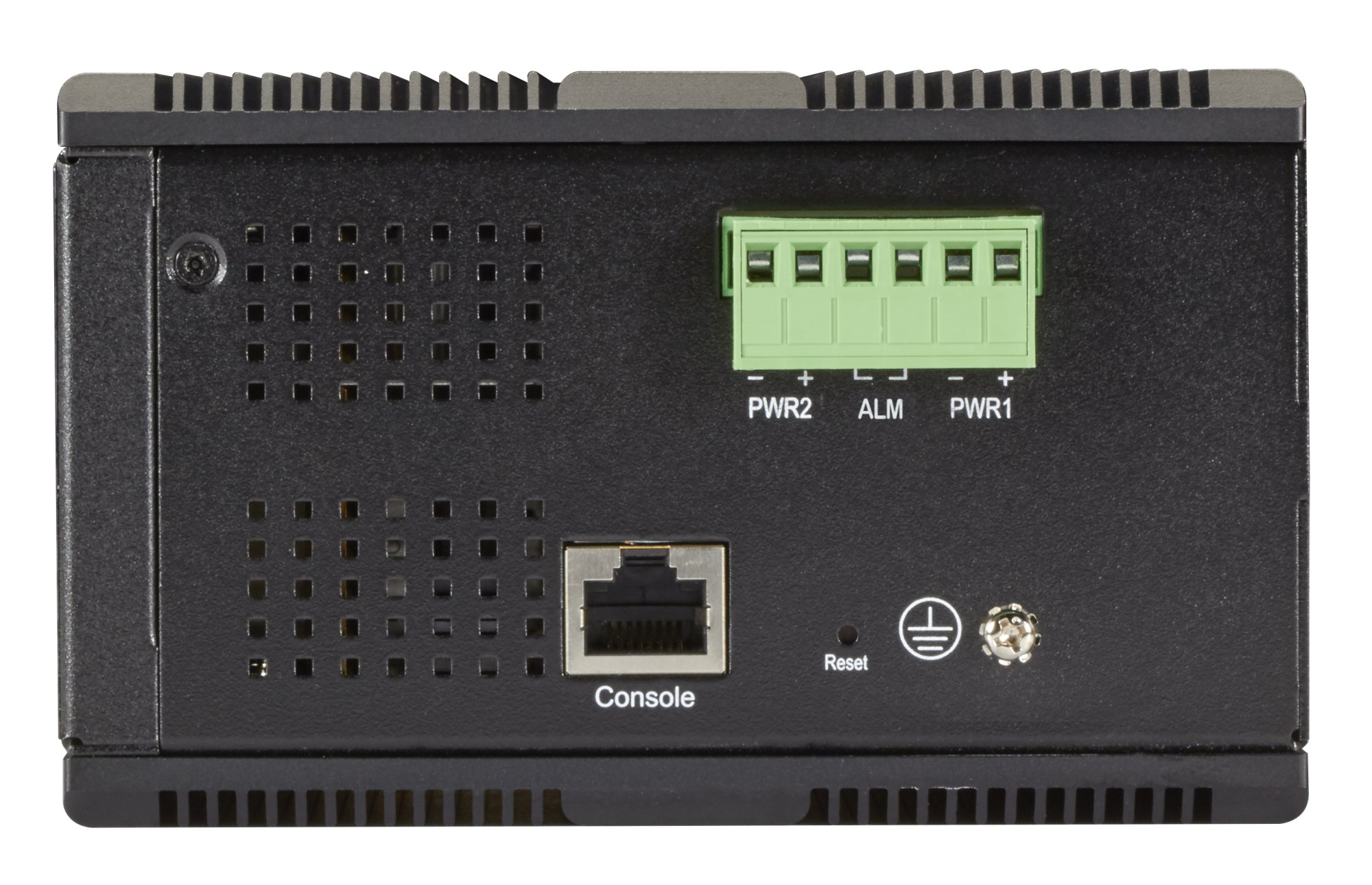

  • Dual DC power inputs for redundancy.
  • IP30-rated housing is also rated for shock and vibration protection.
  • Manage through a Web interface, SNMP, or command-line interface (CLI).
