LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
Roll over image to zoom inClick to Open expanded view
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km

LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km

SKU: GVT-2003
LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km, 1000 Mbit/s, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-TX, 1000BASE-T
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • GVT-2003
  • EAN
  • 4015867231234
  • Bullet points
  • Design
  • Logistics data
  • Network
  • Flow control support
  • Yes
  • Jumbo frames support
  • Yes
  • Link Fault Pass-through (LFP)
  • Yes
  • Link Loss Carry Forward (LLCF) supported
  • Yes
  • Link Loss Return (LLR) supported
  • Yes
  • Operational conditions
  • Packaging content
  • AC adapter included
  • Yes
  • Quick installation guide
  • Yes
  • Packaging data
  • Performance
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Fiber optic connector
  • ST
  • Power
  • Power consumption (typical)
  • 5 W
  • Technical details
  • Compliance certificates
  • CE
  • Sustainability compliance
  • Yes
  • Weight & dimensions

Description

LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-LX, 1000Base-SX, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Link, Power, Product colour: Black, Country of origin: China. Power consumption (typical): 5 W
  • Wired
  • 1000 Mbit/s 20000 m 1310 nm
  • 10BASE-T, 100BASE-TX, 1000BASE-T

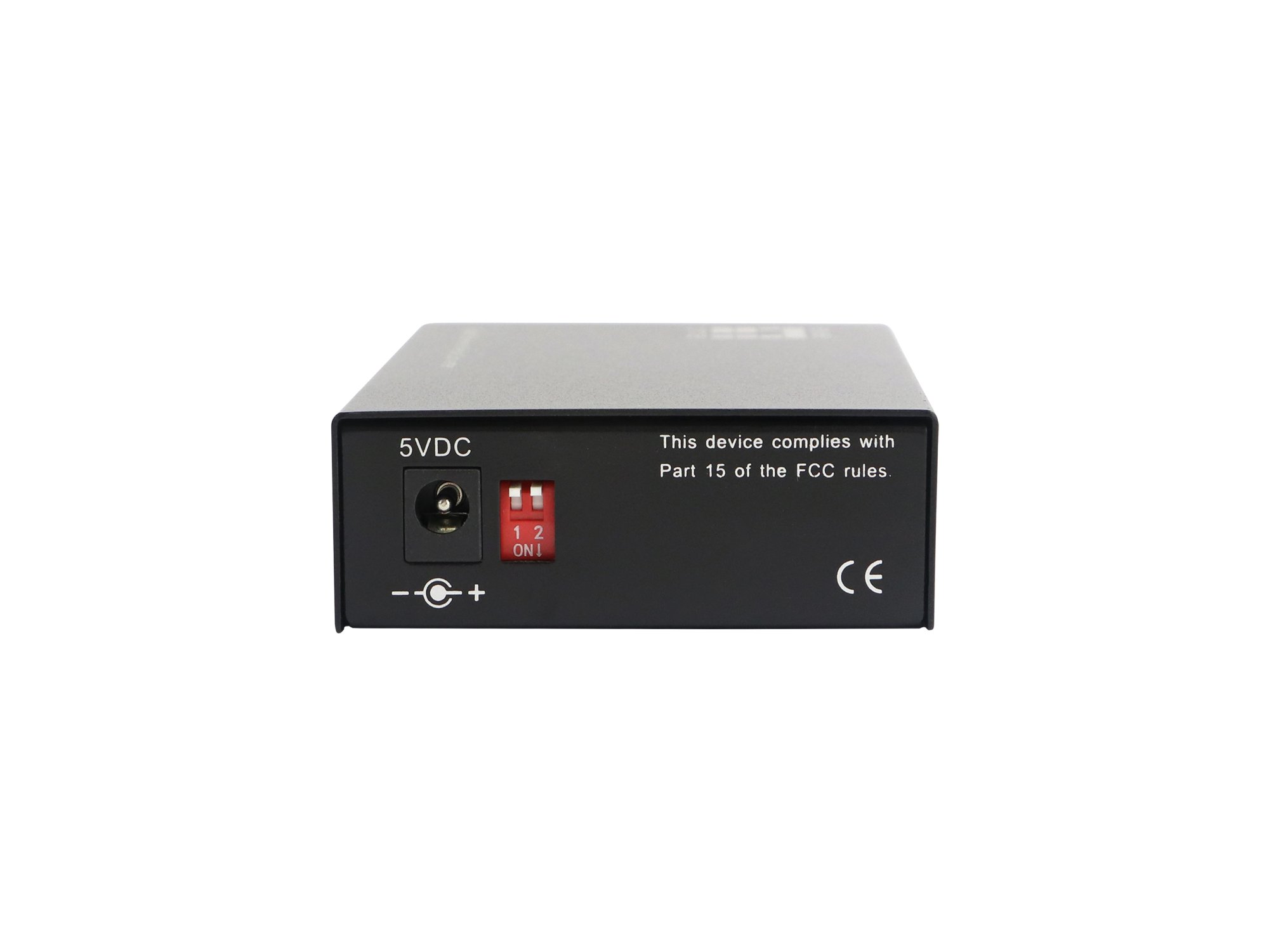

  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Single-mode ST
  • Black
  • Single-mode fiber with ST connector for transmission of up to 20km
  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • 9K jumbo frames to increase data transfer rates
  • Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Dip switches for customized configuration
  • Supports low-time lag transmission
  • 10°C to 55°C operating temperature range
