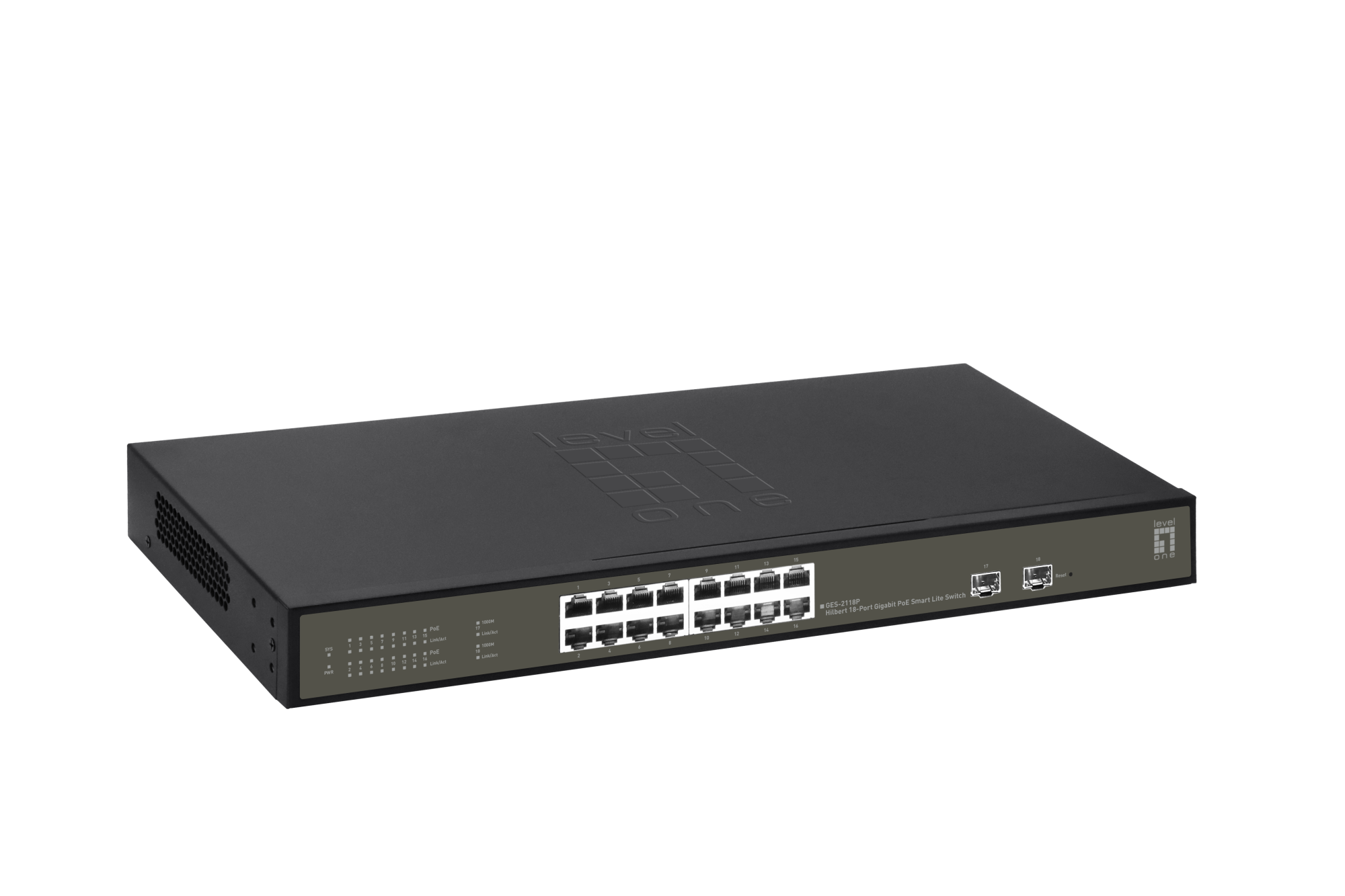

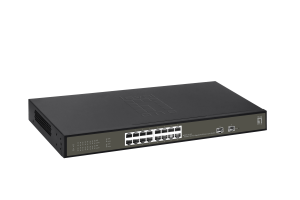

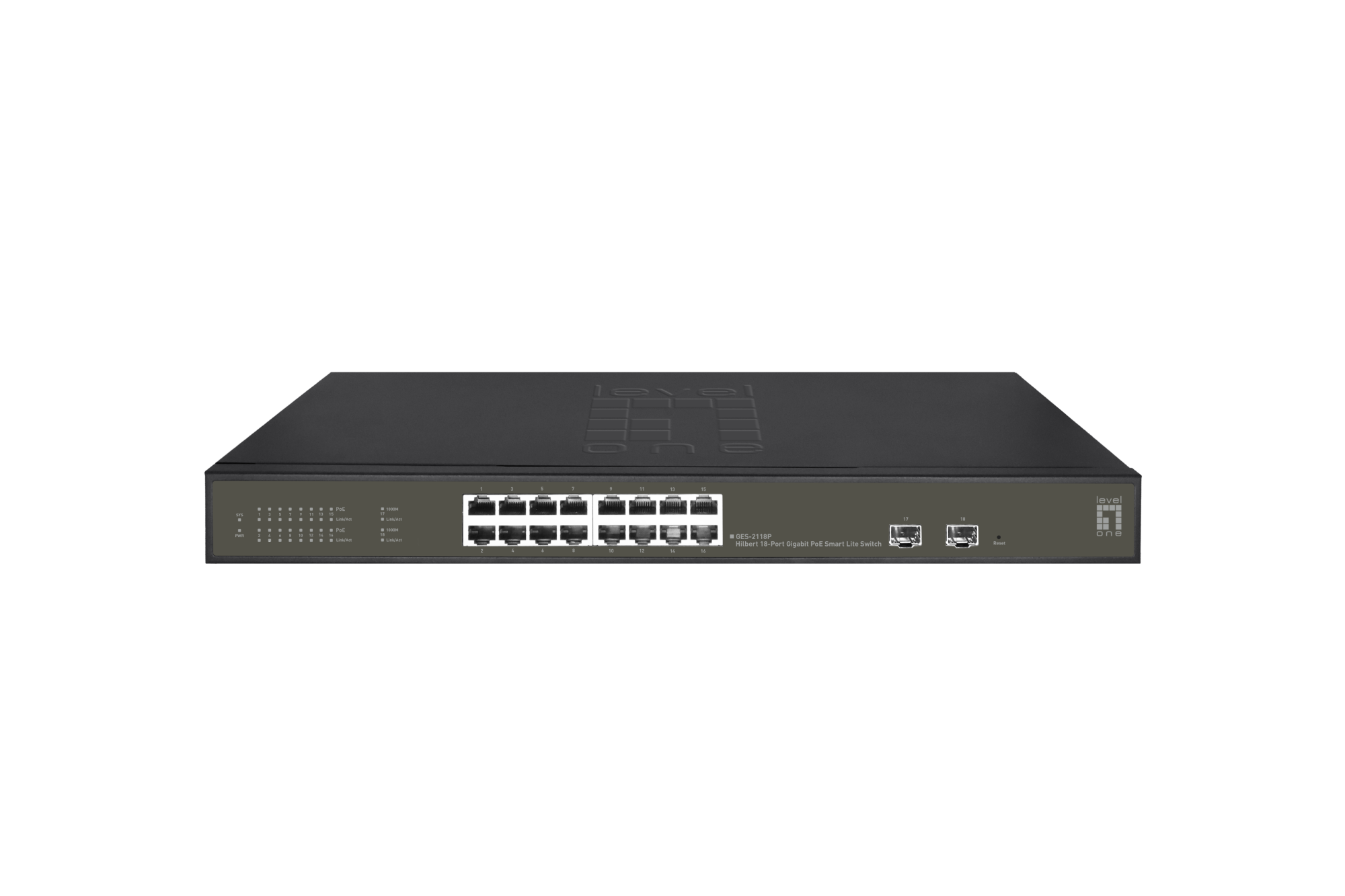

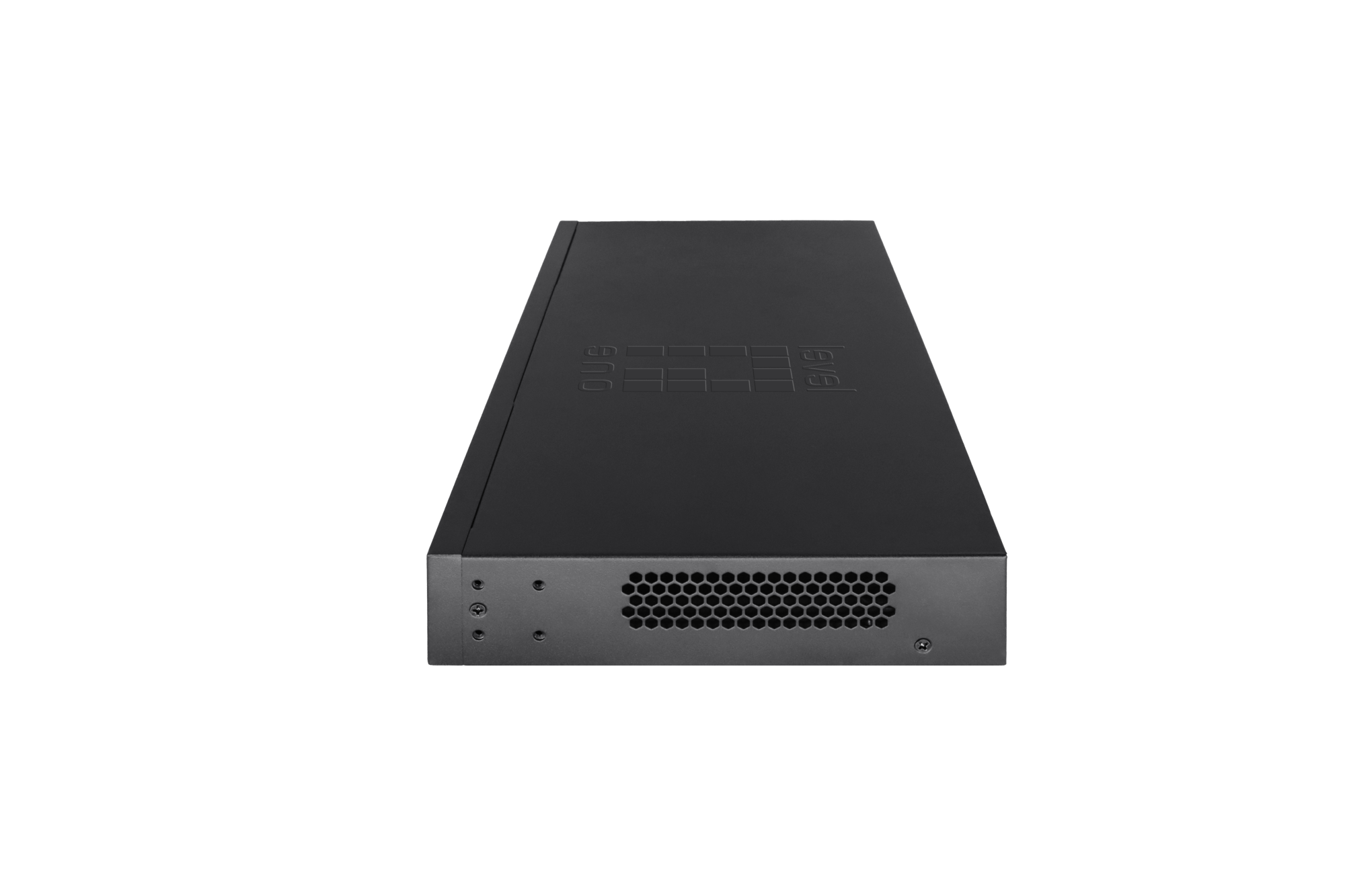

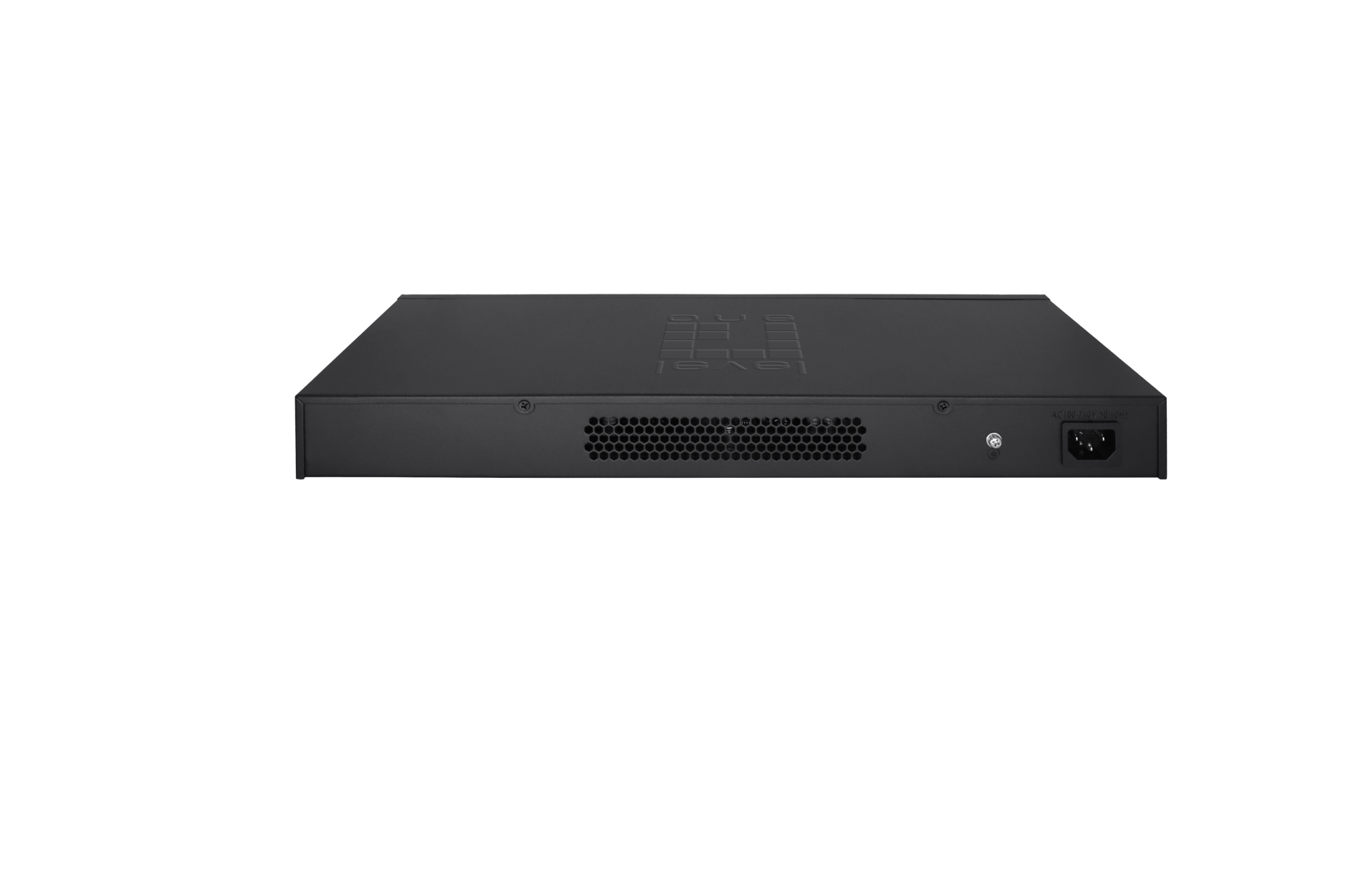

LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget
Roll over image to zoom inClick to Open expanded view
LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget
LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget
LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget
LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget

LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget

SKU: GES-2118P
LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 2 Years
  • SKU
  • GES-2118P
  • EAN
  • 4015867229224
  • Bullet points
  • Data transmission
  • Jumbo frames support
  • Yes
  • Number of queues
  • 4
  • Design
  • Logistics data
  • Master (outer) case net weight
  • 750 g
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Network
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • MAC address auto-aging supported
  • Yes
  • MAC address auto-learning supported
  • Yes
  • Number of VLANs
  • 32
  • Operational conditions
  • Packaging data
  • Cables included
  • AC
  • Performance
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 16
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 16
  • Power
  • Surge protection voltage
  • 8 kV
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 16
  • Total Power over Ethernet (PoE) budget
  • 230 W
  • Security
  • Sustainability
  • Sustainability compliance
  • Yes
  • Technical details
  • Weight & dimensions

Description

LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 36 Gbit/s
  • Rack mounting
  • AC/PoE Power over Ethernet (PoE)
  • 16 PoE-Plus Gigabit Ethernet ports supports PoE Watchdog and 2 Gigabit SFP slots
  • Total PoE power budget: 230W, up to 30W per port
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management
