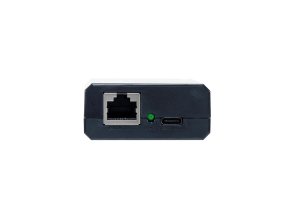

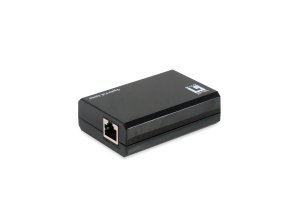

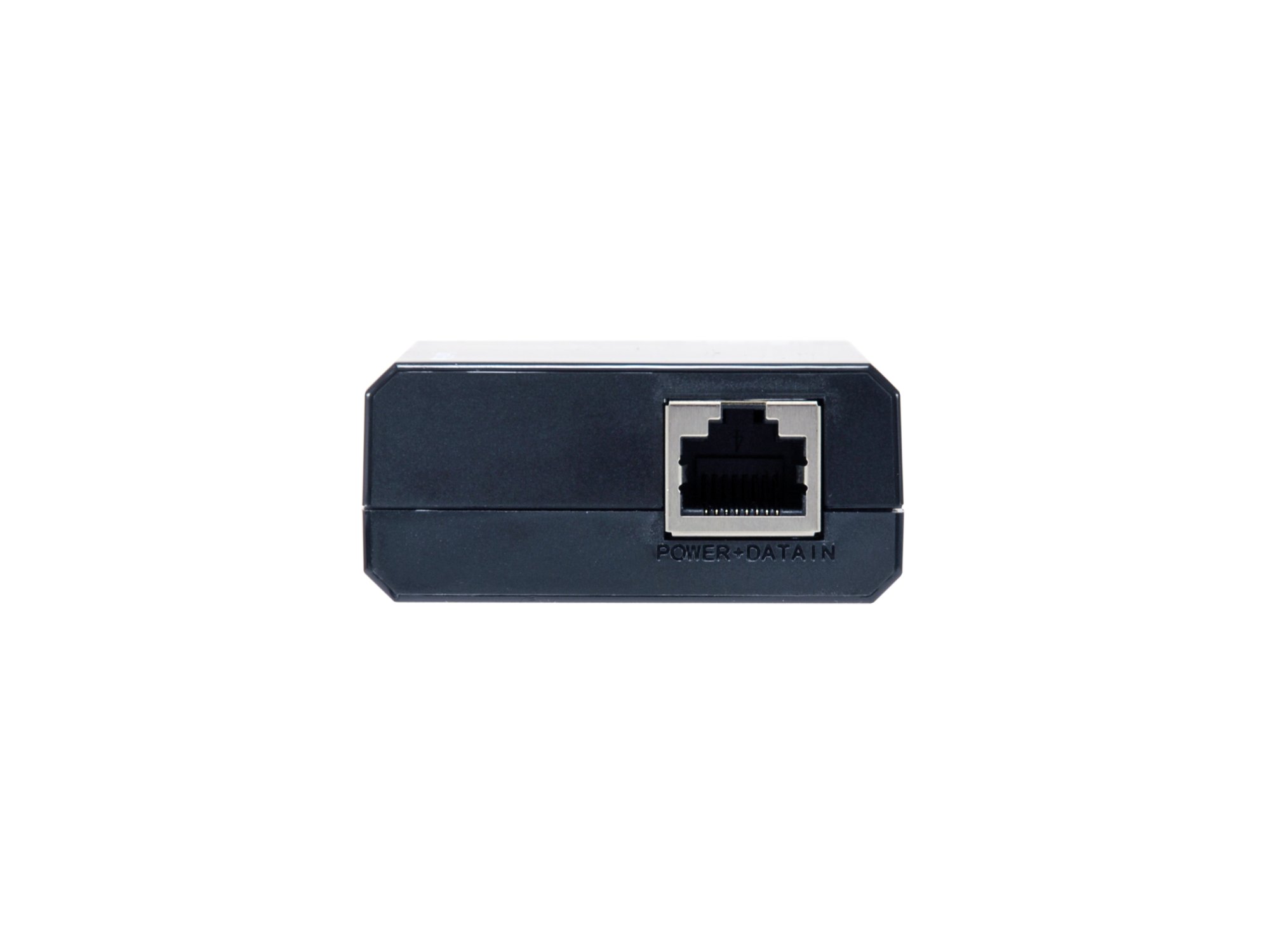

LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter
Roll over image to zoom inClick to Open expanded view
LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter
LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter
LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter
LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter

LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter

SKU: POS-5001
LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, 10/100/1000Base-T(X), Black, Activity, Link, Power, China, 5V, 12V, 24V
Specifications
More Information
PDF

Product Properties

  • Warranty
  • 1 Year
  • SKU
  • POS-5001
  • EAN
  • 4015867231128
  • Bullet points
  • Design
  • Logistics data
  • Master (outer) case gross weight
  • 5 kg
  • Operational conditions
  • Performance
  • Ports & interfaces
  • RJ-45 input ports
  • 1
  • RJ-45 output ports
  • 1
  • USB Type-C output ports
  • 1
  • Power
  • Power over Ethernet (PoE)
  • Yes
  • USB Power Delivery revision
  • 3.0
  • Technical details
  • Sustainability compliance
  • Yes
  • Weight & dimensions

Description

LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Cabling technology: 10/100/1000Base-T(X). Product colour: Black, LED indicators: Activity, Link, Power, Country of origin: China. DC output voltage: 5V, 12V, 24V, Output power: 50 W. Width: 53 mm, Depth: 24 mm, Height: 80 mm. Pallet gross length: 80 cm, Pallet gross width: 120 cm, Pallet gross height: 170 cm
  • 10/100/1000Base-T(X)
  • LED indicators: Activity, Link, Power
  • Power over Ethernet (PoE)
  • DC output voltage: 5V, 12V, 24V
  • Black
  • Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt.​
  • Data speed 10/100/1000Mbps​
  • Auto-Sensing Algorithm enables taking power from PSE.​
  • Splits the Data and Power from PoE to Type-C devices.​
  • Wide input voltage range 36Vdc to 57Vdc.​
  • Maximum power output up to 50W.​
  • Output PD3.0 Fast charge DC5V/3A, 9VDC/3A, 12VDC/3A, 15V3A, 20V2.25A.​
  • Thermal cut off.​
  • Over voltage protection (OVP)
  • Over current protection (OCP).​
  • Short circuit protection (SCP).​
  • High efficiency DC/DC converter
