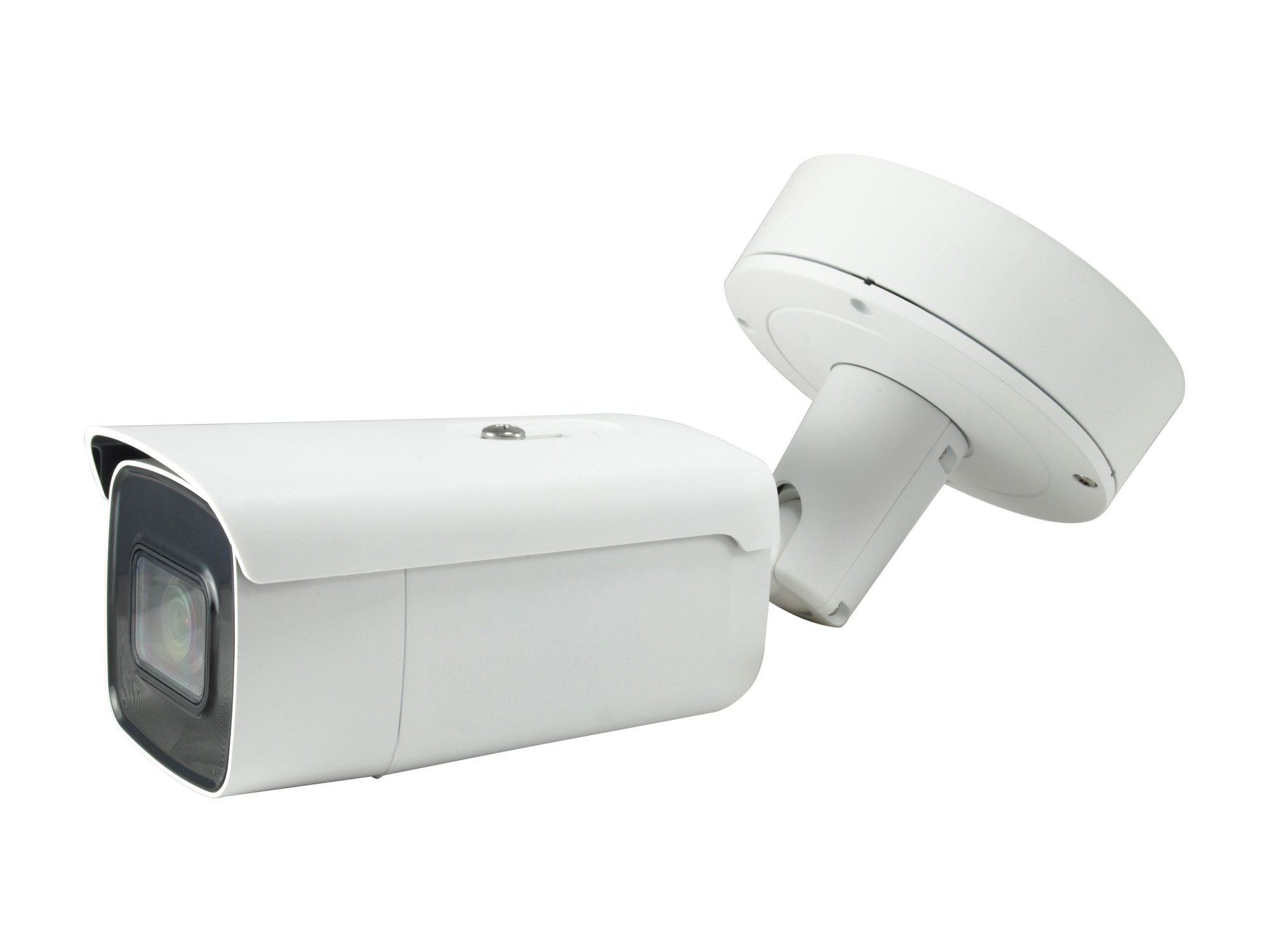

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof

Roll over image to zoom inClick to Open expanded view

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof

Name: LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof
Brand: LevelOne
SKU: FCS-5096

SKU: FCS-5096

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof, IP security camera, Indoor & outdoor, Wired, CE/FCC, Ceiling/wall, White

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
FCS-5096

EAN
4015867205334

Audio

Audio codecs
G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Audio input channels
1 channels

Audio output channels
1 channels

Bullet points

Camera

Camera shutter speed
1/3 - 1/100000 s

Lens viewing angle, diagonal
126°

Lens viewing angle, horizontal
105°

Lens viewing angle, vertical
56°

Minimum illumination
0.005 lx

White balance
Auto

Design

Country of origin
China

Form factor
Bullet

IK code
IK10

International Protection (IP) code
IP67

LED indicators
Power

Mounting type

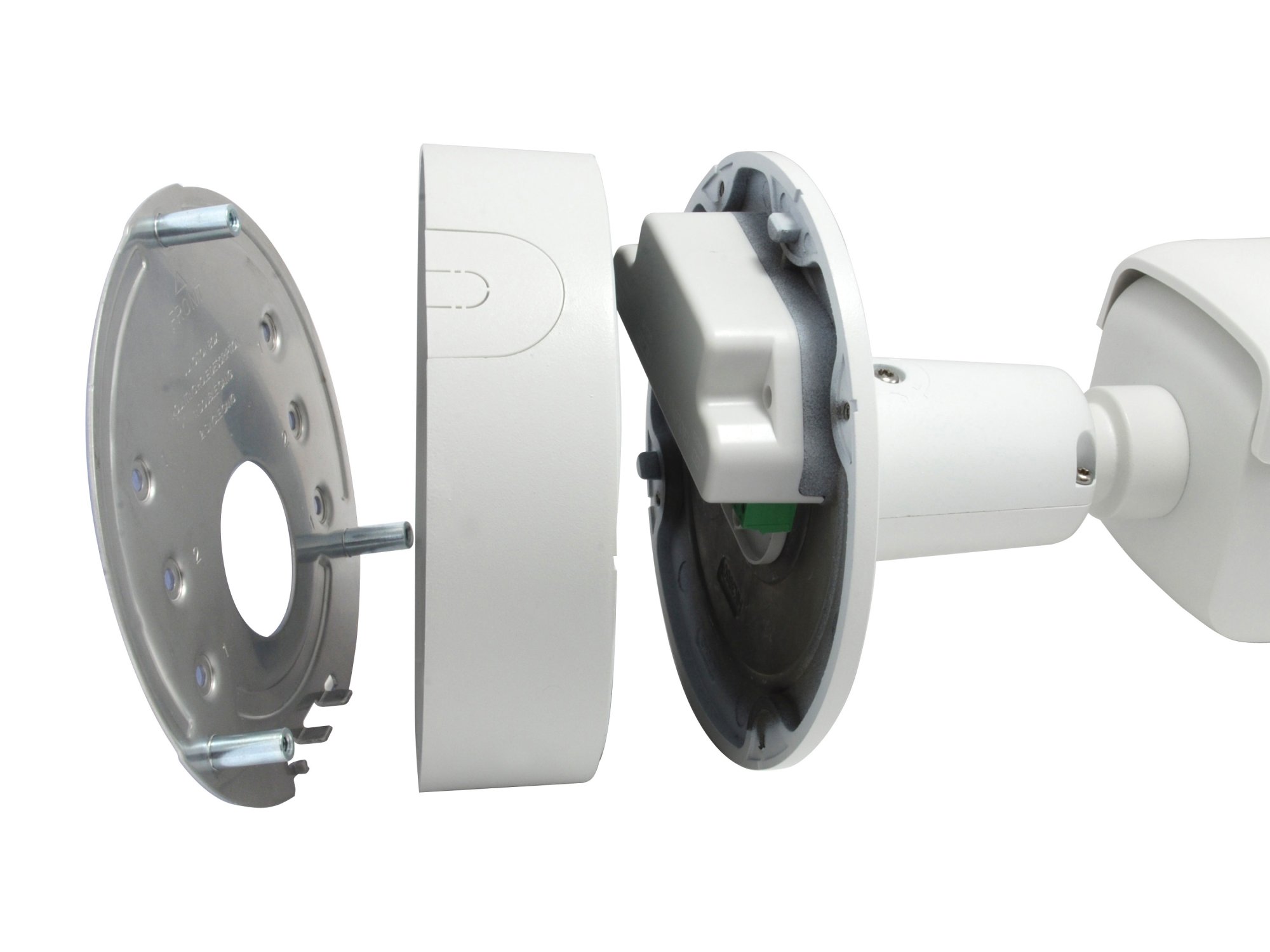

Ceiling/wall

Product colour
White

Protection features
Dust resistant, Water resistant

Image sensor

Optical sensor size
25.4 / 2.8 mm (1 / 2.8")

Progressive scan
Yes

Sensor type
CMOS

Lens system

Focal length range
2.8 - 12 mm

Number of lenses
1

Optical zoom
4.3x

Zoom capability
Yes

Logistics data

Harmonized System (HS) code
85258900

Master (outer) case gross weight
15.5 kg

Master (outer) case height
595 mm

Master (outer) case length
410 mm

Master (outer) case width
570 mm

Products per master (outer) case
9 pc(s)

Management features

Behavior analysis
Intrusion detection, Line crossing detection

Reset button
Yes

Network

Bluetooth
No

Cabling technology
10/100Base-T(X)

Ethernet interface type
Fast Ethernet

Ethernet LAN
Yes

Networking standards
IEEE 802.3at

Number of users
32 user(s)

Quality of Service (QoS) support
Yes

Supported network protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour

Wi-Fi
No

Night vision

LED type
IR

Night vision
Yes

Night vision distance
50 m

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Other features

Browser supported
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Packaging content

Number of cameras
1

Resource CD
Yes

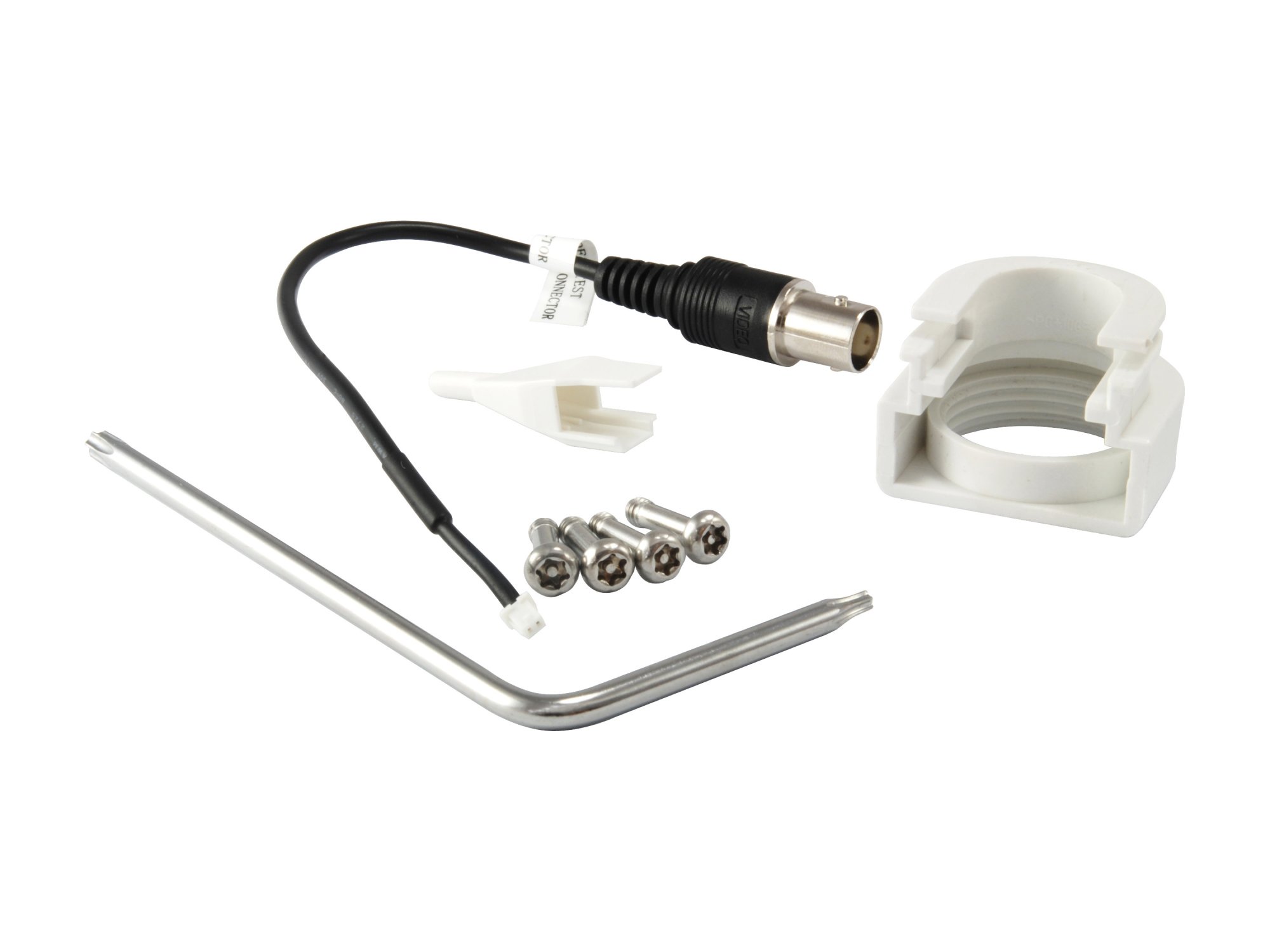

Screws included
Yes

Performance

Alarm input/output
Yes

Certification
CE/FCC

Connectivity technology
Wired

Day/night mode
Yes

Infrared (IR) cut-off filter
Yes

Placement supported
Indoor & outdoor

PTZ control
Yes

Type
IP security camera

Wide Dynamic Range (WDR)
Yes

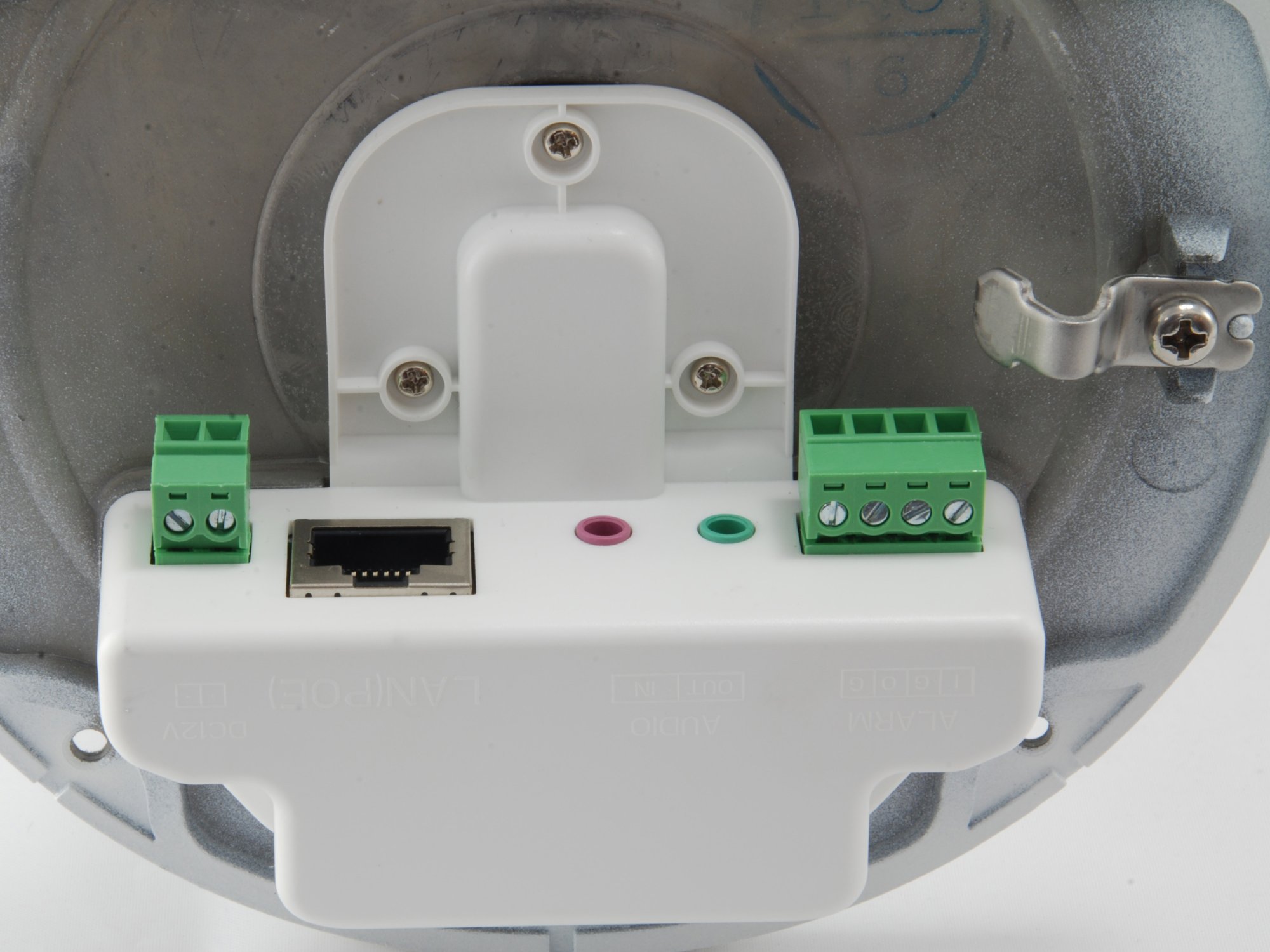

Ports & interfaces

Composite video out
1

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Interface
RJ-45

Terminal block port
Yes

Power

DC output current
1.3 A

DC output voltage
12

Power consumption (max)
15.5 W

Power consumption (Power over Ethernet (PoE))
17.5 W

Power source type
DC, PoE

Security

Anti-flicker
Yes

Digital watermark
Yes

Heartbeat
Yes

Intelligent Video Surveillance (IVS) system features
Face detection

Mirror
Yes

Password protection
Yes

Video motion detection
Yes

Storage

Built-in HDD
No

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash), SDHC, SDXC

Maximum memory card size
128 GB

Video

3D NR (Noise Reduction)
Yes

Back Light Compensation (BLC)
Yes

Frame rate
60 fps

Full HD
Yes

Image quality adjustment
Brightness, Contrast, Saturation, Sharpness

Maximum resolution
1920 x 1080 pixels

Privacy masking
Yes

Supported graphics resolutions
320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Supported video modes
240p, 360p, 480p, 720p, 960p, 1080p

Total megapixels
2 MP

Video compression formats
H.264, H.265, M-JPEG

Video formats supported
AVI

Weight & dimensions

Depth
332.7 mm

Height
144.1 mm

Package depth
200 mm

Package height
385 mm

Package type
Box

Package weight
2.28 kg

Package width
185 mm

Weight
1.89 kg

Width
332.7 mm

Description

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, H.265, 802.3at PoE, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, Vandalproof. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 105°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4.3x, Focal length range: 2.8 - 12 mm

Indoor & outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels
Wired Ethernet LAN
Night vision 50 m IR
Optical zoom: 4.3x
Bullet Ceiling/wall Dust resistant, Water resistant
IP67 IK10
White
1.89 kg
60 fps High Frame Rate (HFR) video in 1080p
Video compression: H.264, H.265
Supports 4.3X optical zoom
Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
Vandal-proof IK10-rated housing
Weatherproof IP67-rated housing
Built-in infrared LEDs for night viewing up to 50m

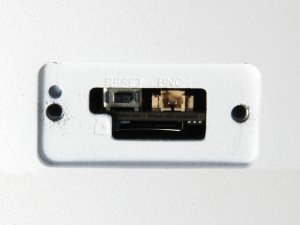

Built-in Micro SDHC/SDXC card slot for local storage
