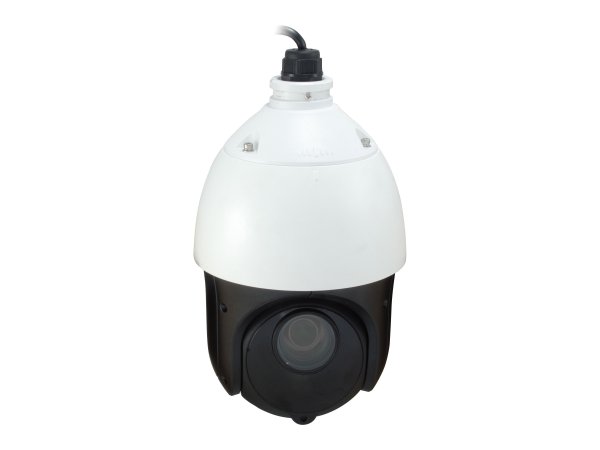

LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE

Roll over image to zoom inClick to Open expanded view

LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE

Name: LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE
Brand: LevelOne
SKU: FCS-4051

SKU: FCS-4051

LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE, IP security camera, Indoor & outdoor, Wired, CE/FCC, Ceiling, Black, White

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
FCS-4051

EAN
4015867202913

Audio

Audio codecs
G.711/G.722/G.726/MP2L2

Audio input channels
1 channels

Audio output channels
1 channels

Bullet points

Camera

Auto flip
Yes

Camera shutter speed
1 - 1/10000 s

Field of view (FOV) angle
58.3°

Minimum illumination
0.01 lx

Pan range
0 - 360°

Pan speed
80 °/sec

Tilt angle range
-15 - 90°

Tilt preset speed
80 °/sec

Design

Country of origin
China

Form factor
Dome

International Protection (IP) code
IP66

LED indicators
Power

Mounting type
Ceiling

Product colour
Black, White

Weatherproof
Yes

Image sensor

Optical sensor size
25.4 / 2.8 mm (1 / 2.8")

Progressive scan
Yes

Sensor type
CMOS

Lens system

Focal length range
4.7 - 94 mm

Maximum aperture number
3.5

Minimum aperture number
1.6

Number of lenses
1

Optical zoom
20x

Logistics data

Harmonized System (HS) code
85258900

Master (outer) case gross weight
9.5 kg

Master (outer) case height
460 mm

Master (outer) case length
405 mm

Master (outer) case width
460 mm

Products per master (outer) case
4 pc(s)

Management features

Reset button
Yes

Web browser
Yes

Network

Bluetooth
No

Cabling technology
10/100Base-T(X)

Ethernet interface type
Fast Ethernet

Ethernet LAN
Yes

Networking standards
IEEE 802.3at

Number of users
16 user(s)

Quality of Service (QoS) support
Yes

Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Wi-Fi
No

Night vision

LED type
IR

Night vision
Yes

Night vision distance
50 m

Operational conditions

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
-30 - 65 °C

Other features

Browser supported
Internet Explorer 9+

Data transfer rate
16 Mbit/s

Packaging content

Number of cameras
1

Quick installation guide
Yes

Resource CD
Yes

Performance

Certification
CE/FCC

Connectivity technology
Wired

Day/night mode
Yes

Infrared (IR) cut-off filter
Yes

Placement supported
Indoor & outdoor

PTZ control
Yes

Type
IP security camera

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Interface
RJ-45

Power

DC output voltage
12

Power consumption (Power over Ethernet (PoE))
20 W

Power over Ethernet (PoE)
Yes

Power source type
DC, PoE

Security

Anti-flicker
Yes

Digital watermark
Yes

Heartbeat
Yes

IP address filtering
Yes

Mirror
Yes

Password protection
Yes

Storage

Built-in HDD
No

Card reader integrated
Yes

Compatible memory cards
SD, SDHC, SDXC

Maximum memory card size
128 GB

System requirements

Windows operating systems supported
Windows 10, Windows 7, Windows 8

Technical details

Pallet net height
140 cm

Pallet net length
80 cm

Pallet net width
120 cm

Video

Digital Wide Dynamic Range (DWDR)
Yes

Frame rate
60 fps

Full HD
Yes

Image quality adjustment
Brightness, Contrast, Saturation, Sharpness

Maximum resolution
1920 x 1080 pixels

Privacy masking
Yes

Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Total megapixels
2 MP

Video compression formats
H.264, M-JPEG

Video formats supported
AVI

Weight & dimensions

Diameter
16.4 cm

Package depth
384 mm

Package height
218 mm

Package type
Box

Package weight
2.2 kg

Package width
218 mm

Weight
2 kg

Width
295 mm

Description

LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Field of view (FOV) angle: 58.3°, Tilt angle range: -15 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 20x, Focal length range: 4.7 - 94 mm

Indoor & outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels
Wired Ethernet LAN
Night vision 50 m IR
Optical zoom: 20x
Dome Ceiling
IP66 Weatherproof
Black, White
2 kg
2-Megapixel (1920 x 1080) high-definition resolution
Video compression: H.264/MJPEG
Supports PTZ/preset point/preset sequence
Built-in infrared LEDs for night viewing up to 100m
Built-in Micro SD/SDHC card slot for local storage
Supports 20X optical zoom
