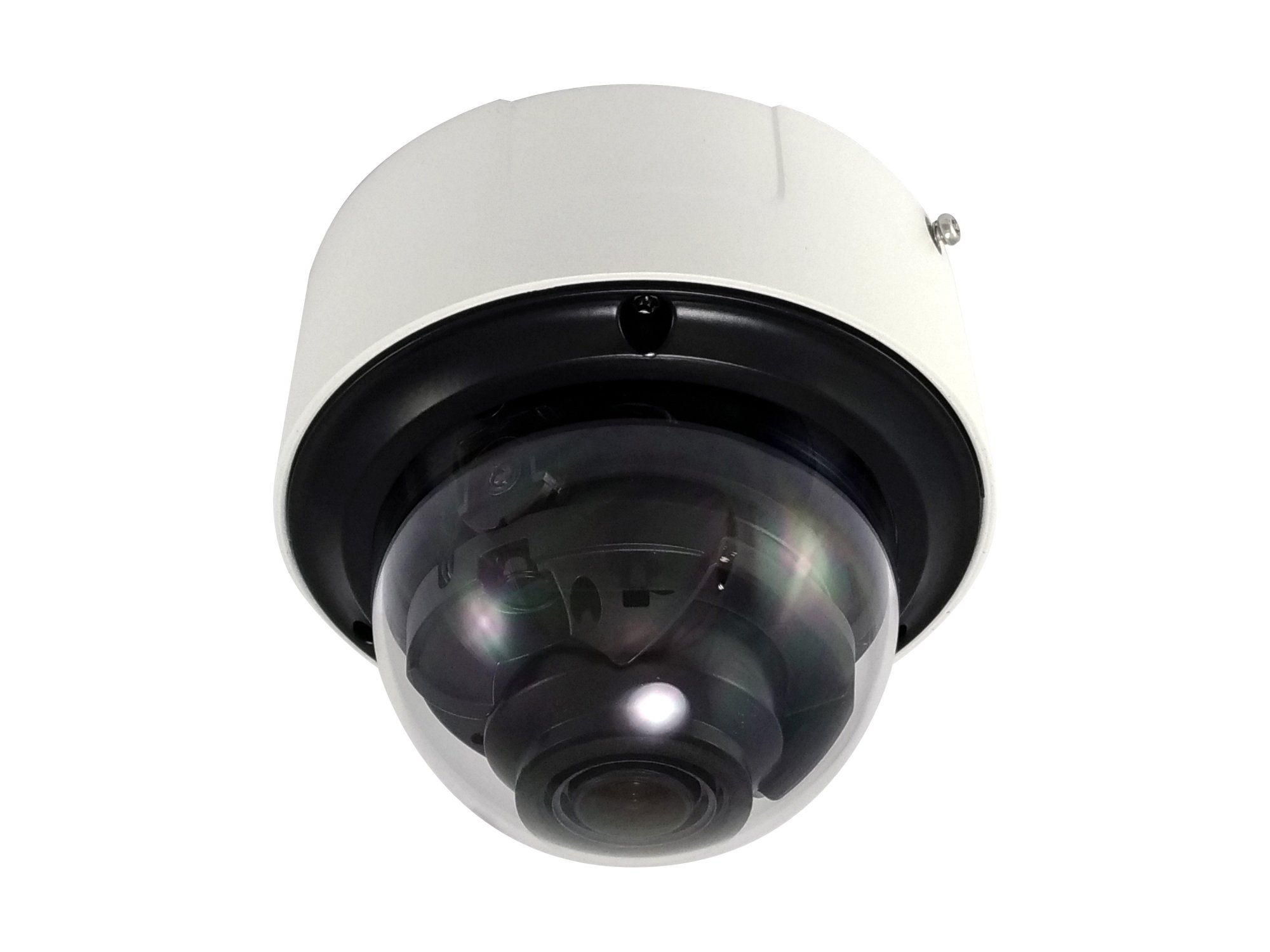

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, 60fps HFR, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor

Roll over image to zoom inClick to Open expanded view

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, 60fps HFR, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor

Name: LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, 60fps HFR, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor
Brand: LevelOne
SKU: FCS-3406

SKU: FCS-3406

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, 60fps HFR, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor, IP security camera, Indoor & outdoor, Wired, 140 dB, CE/FCC/UL, Ceiling

hypertec

Datasheets (Download)

Product manual (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
FCS-3406

EAN
401586720909

Audio

Voice codecs
G.711, G.722, G.722.1, G.726, MP2L2

Bullet points

Camera

Camera shutter speed
1 - 1/100000 s

Lens viewing angle, diagonal
124°

Lens viewing angle, horizontal
103°

Lens viewing angle, vertical
54°

White balance
Auto

Design

Country of origin
China

Form factor
Dome

IK code
IK10

International Protection (IP) code
IP67

Mounting type
Ceiling

Product colour
White

Weatherproof
Yes

Image sensor

Optical sensor size
25.4 / 1.8 mm (1 / 1.8")

Progressive scan
Yes

Sensor type
CMOS

Lens system

Optical zoom
4.3x

Zoom capability
Yes

Logistics data

Harmonized System (HS) code
85258900

Master (outer) case gross weight
13.7 kg

Master (outer) case height
504 mm

Master (outer) case length
372 mm

Master (outer) case width
365 mm

Products per master (outer) case
8 pc(s)

Management features

Reset button
Yes

Network

Bluetooth
No

Ethernet LAN
Yes

Live view
Yes

Number of simultaneous live view channels
20 channels

Supported network protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP,IGMP,802.1X, QoS, IPv6, Bonjour

Wi-Fi
No

Night vision

LED type
IR

Night vision
Yes

Night vision distance
150 m

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-30 - 60 °C

Other features

Browser supported
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Packaging content

Number of cameras
1

Resource CD
Yes

Screws included
Yes

Performance

Alarm input/output
Yes

Certification
CE/FCC/UL

Connectivity technology
Wired

Dynamic range
140 dB

Infrared (IR) cut-off filter
Yes

Placement supported
Indoor & outdoor

Type
IP security camera

Wide Dynamic Range (WDR)
Yes

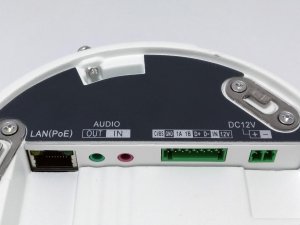

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Headphone outputs
1

Microphone in
Yes

Power

Power consumption (Power over Ethernet (PoE))
8 W

Power over Ethernet (PoE)
Yes

Power source type
DC, PoE

Security

Anti-flicker
Yes

Digital watermark
Yes

Intelligent Video Surveillance (IVS) system features
Crossing line, Defocus, Face detection, Intrusion, Region entrance detection, Region exiting detection

IP address filtering
Yes

Mirror
Yes

Password protection
Yes

Video motion detection
Yes

Storage

Built-in HDD
No

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash), SD, SDHC, SDXC

Maximum memory card size
256 GB

Video

Back Light Compensation (BLC)
Yes

Bit rate
32Kbps~16Mbps

Frame rate
60 fps

Gain control type
Auto

Image quality adjustment
Brightness, Contrast, Saturation, Sharpness

Maximum resolution
1920 x 1080 pixels

Noise reduction
Yes

Noise reduction technology
3D noise reduction

Privacy masking
Yes

Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Total megapixels
2 MP

Video formats supported
H.264, H.265, M-JPEG

Weight & dimensions

Depth
153.4 mm

Height
153.4 mm

Package depth
173 mm

Package height
244 mm

Package type
Box

Package weight
1.71 kg

Package width
174 mm

Weight
1.29 kg

Width
133.1 mm

Description

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, 60fps HFR, 4.3X Optical Zoom, IR LEDs, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 54°, Lens viewing angle, diagonal: 124°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 4.3x

Indoor & outdoor IP security camera
CMOS 25.4 / 1.8 mm (1 / 1.8") 2 MP 1920 x 1080 pixels
Wired Ethernet LAN
Night vision 150 m IR
Optical zoom: 4.3x
Dome Ceiling
IP67 IK10 Weatherproof
White
1.29 kg
Built-in infrared LEDs for night viewing up to 150m
5-Megapixel high-definition resolution
Built-in infrared LEDs for night viewing up to 30m
60 fps High Frame Rate (HFR) video in 1080p
Video compression: H.264, H.265
Vandal-proof IK10-rated housing
Weatherproof IP67-rated housing
Supports 4.3X optical zoom
