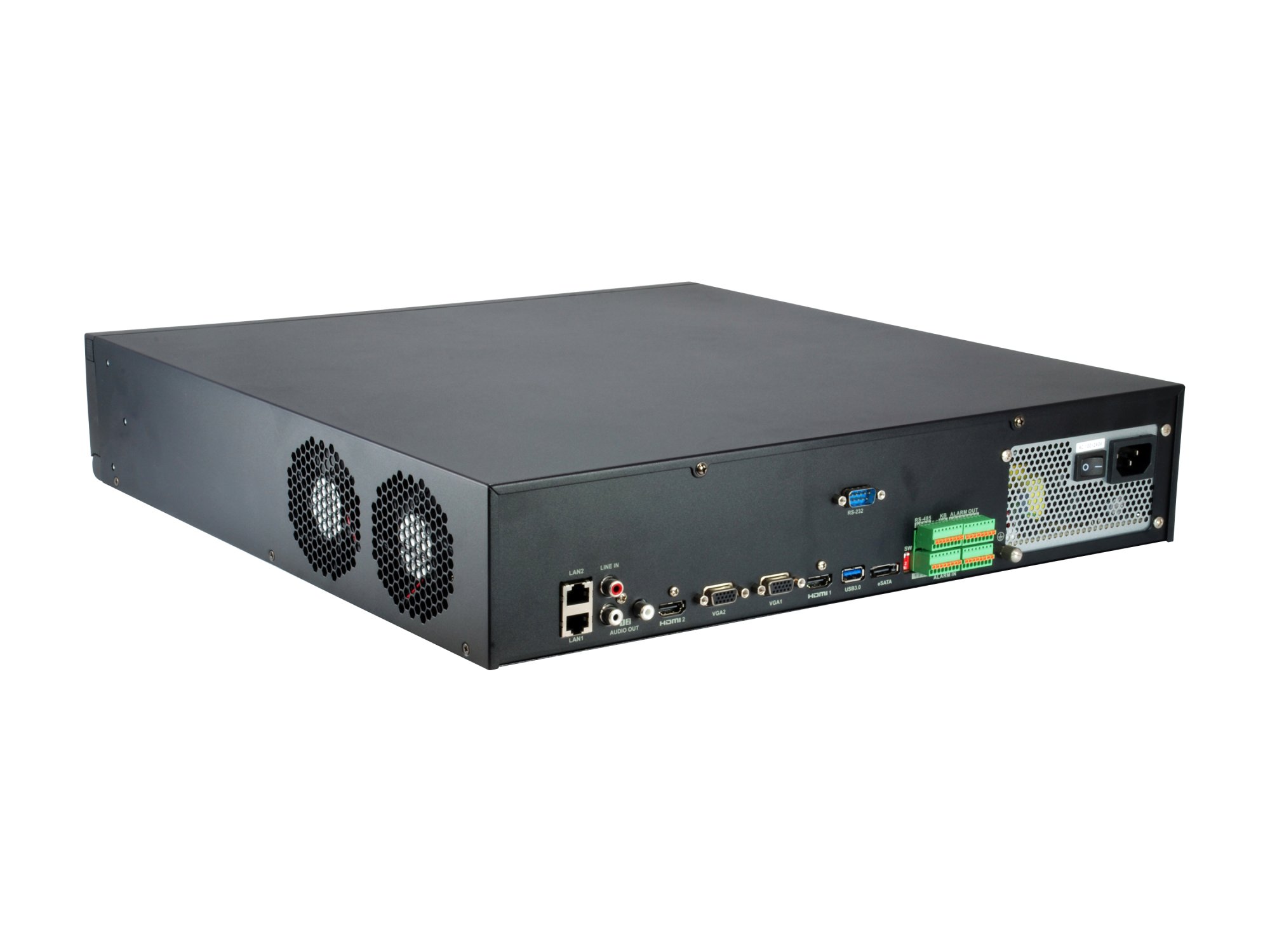

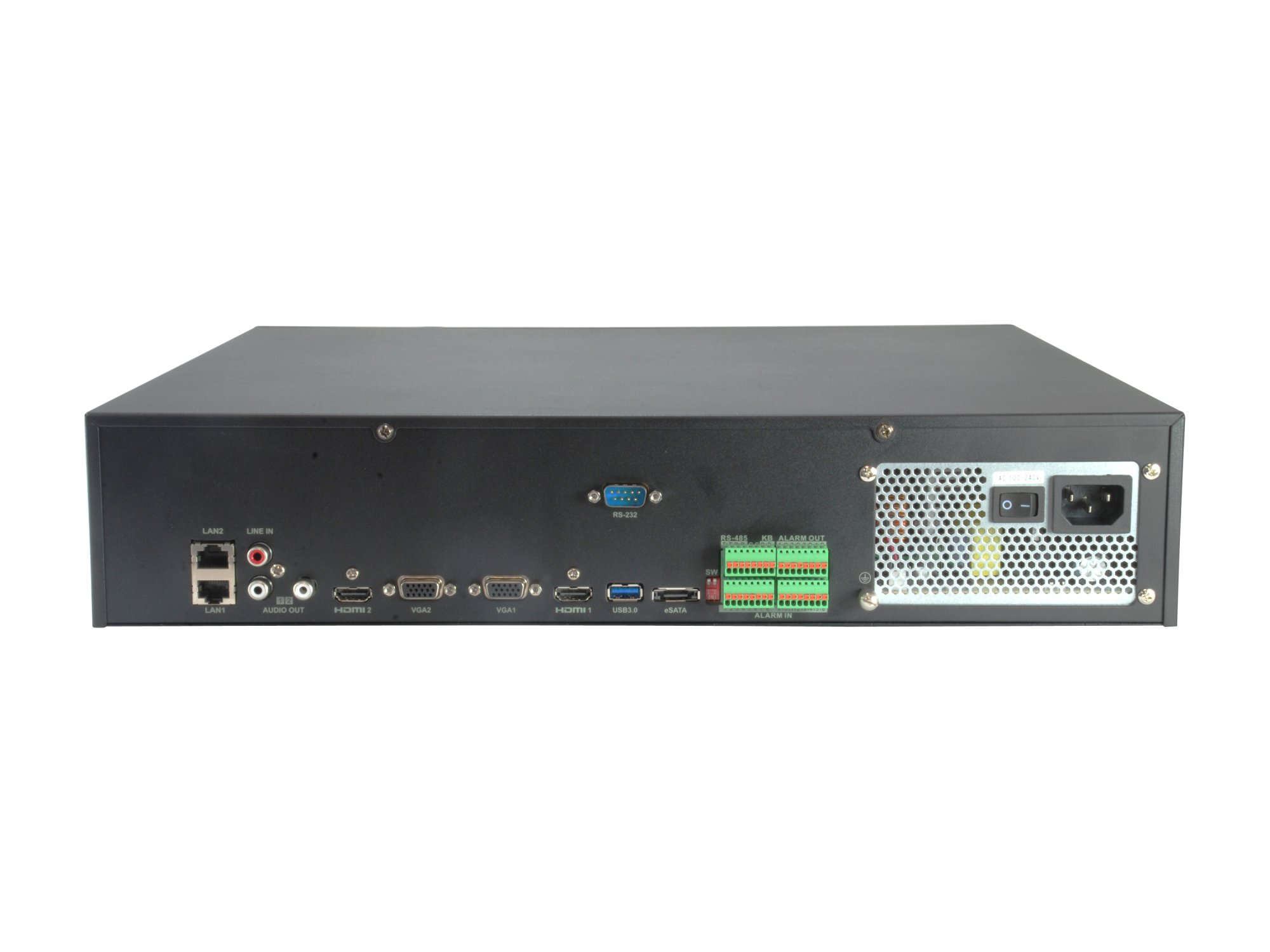

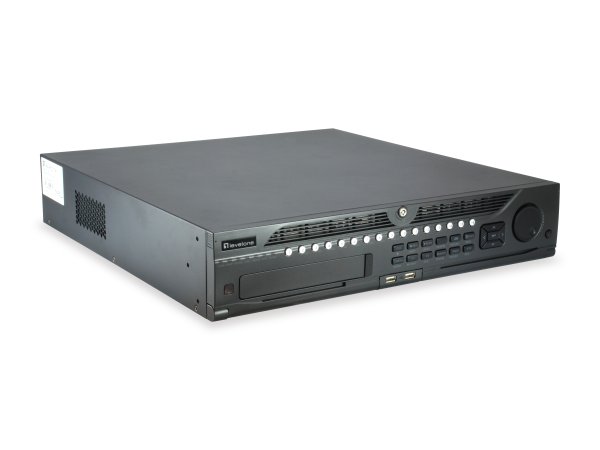

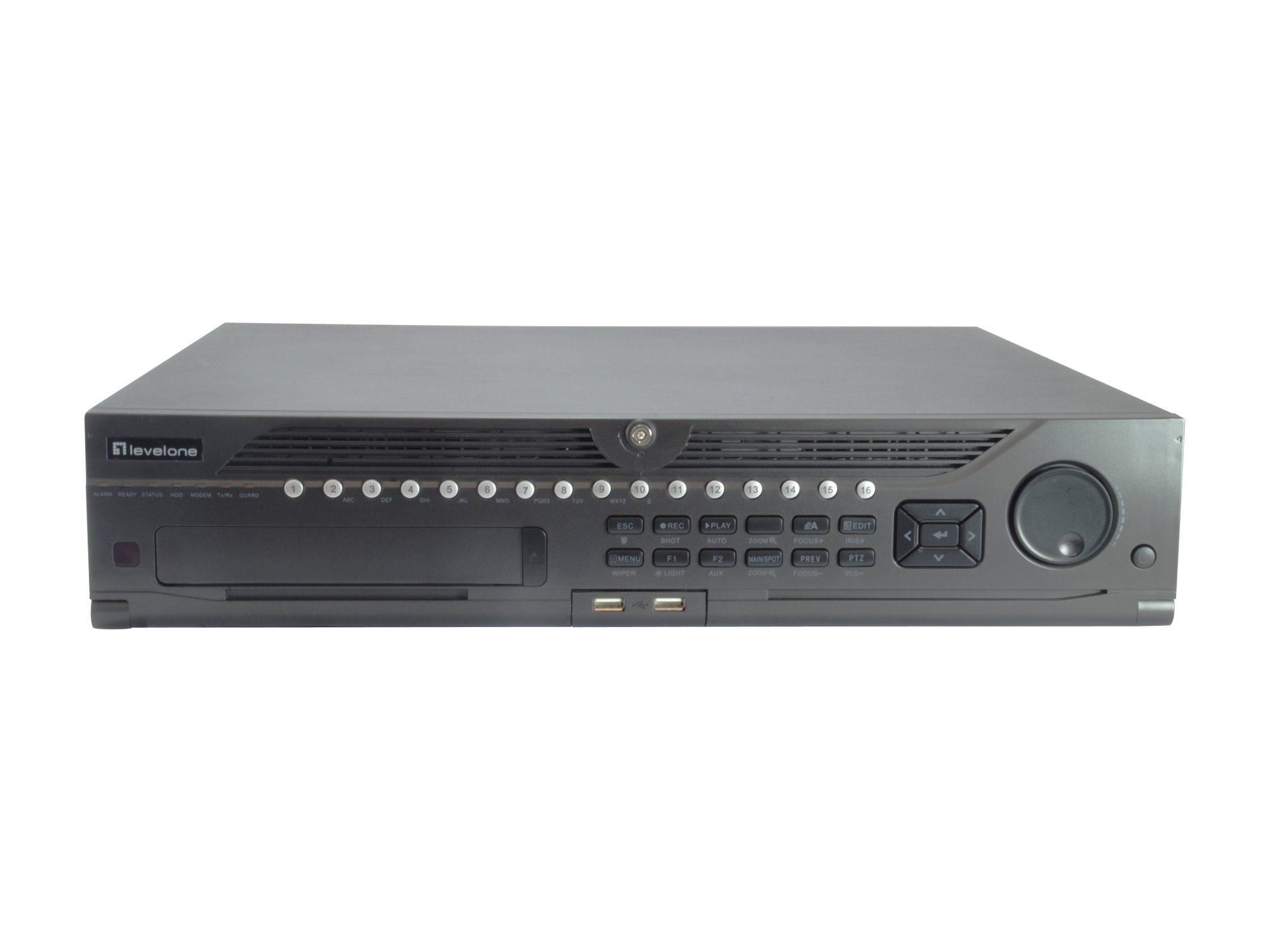

LevelOne GEMINI 32-Channel Network Video Recorder, RAID, H.265, HDMI, VGA

Roll over image to zoom inClick to Open expanded view

LevelOne GEMINI 32-Channel Network Video Recorder, RAID, H.265, HDMI, VGA

Name: LevelOne GEMINI 32-Channel Network Video Recorder, RAID, H.265, HDMI, VGA
Brand: LevelOne
SKU: NVR-0732

SKU: NVR-0732

LevelOne GEMINI 32-Channel Network Video Recorder, RAID, H.265, HDMI, VGA, 32 channels, 3840 x 2160 pixels, 720p, 1080p, 128 user(s), H.264, H.264+, H.265, Embedded LINUX

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
2 Years

SKU
NVR-0732

EAN
4015867203880

Features

Certification
CF/FCC,UL,ISO 9001

Country of origin
China

LED indicators
Power

Product colour
Black

Rack mounting
Yes

Hard drive

HDD interface
Serial ATA

Maximum storage capacity
48 TB

Number of HDDs supported
8

RAID levels
0, 1, 5, 10

RAID support
Yes

Logistics data

Master (outer) case gross weight
12.7 kg

Master (outer) case height
510 mm

Master (outer) case length
180 mm

Master (outer) case width
520 mm

Products per master (outer) case
1 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-10 - 55 °C

Packaging content

Cables included
AC

CD manual
Yes

Remote control included
Yes

Performance

Maximum resolution
3840 x 2160 pixels

Number of users
128 user(s)

Operating system installed
Embedded LINUX

Throughput data rate
320 Mbit/s

Video formats supported
H.264, H.264+, H.265

Video input channels
32 channels

Video recording modes
720p, 1080p

Ports & interfaces

Audio output
2 x RCA

eSATA
Yes

Ethernet LAN (RJ-45) ports
2

Ethernet LAN data rates
10,100,1000 Mbit/s

HDMI ports
2

Line-in
Yes

RS-232 interface
Yes

Supported network protocols
TCP, UDP, IPv4, IPv6, Http, Https, SMTP, NTP, SNTP

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

VGA (D-Sub) output ports
2

Power

AC input voltage
100 - 240 V

Power consumption (max)
200 W

Power consumption (typical)
30 W

System requirements

Browser supported
IE 9.0+

Technical details

Compliance certificates
RoHS

Weight & dimensions

Depth
90 mm

Height
445 mm

Package depth
110 mm

Package height
450 mm

Package type
Box

Package weight
12 kg

Package width
510 mm

Weight
10 kg

Width
470 mm

Wireless LAN features

Wi-Fi
No

Description

LevelOne GEMINI 32-Channel Network Video Recorder, RAID, H.265, HDMI, VGA. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p. Maximum storage capacity: 48 TB, HDD interface: Serial ATA, RAID levels: 0, 1, 5, 10. Ethernet LAN data rates: 10,100,1000 Mbit/s, Audio output: 2 x RCA, Supported network protocols: TCP, UDP, IPv4, IPv6, Http, Https, SMTP, NTP, SNTP. LED indicators: Power, Product colour: Black, Country of origin: China. Power consumption (max): 200 W, Power consumption (typical): 30 W, AC input voltage: 100 - 240 V

Video input channels: 32 channels
3840 x 2160 pixels
Number of users: 128 user(s)
Maximum storage capacity: 48 TB HDD interface: Serial ATA
Ethernet LAN (RJ-45) ports: 2 Rack mounting
200 W
Black
