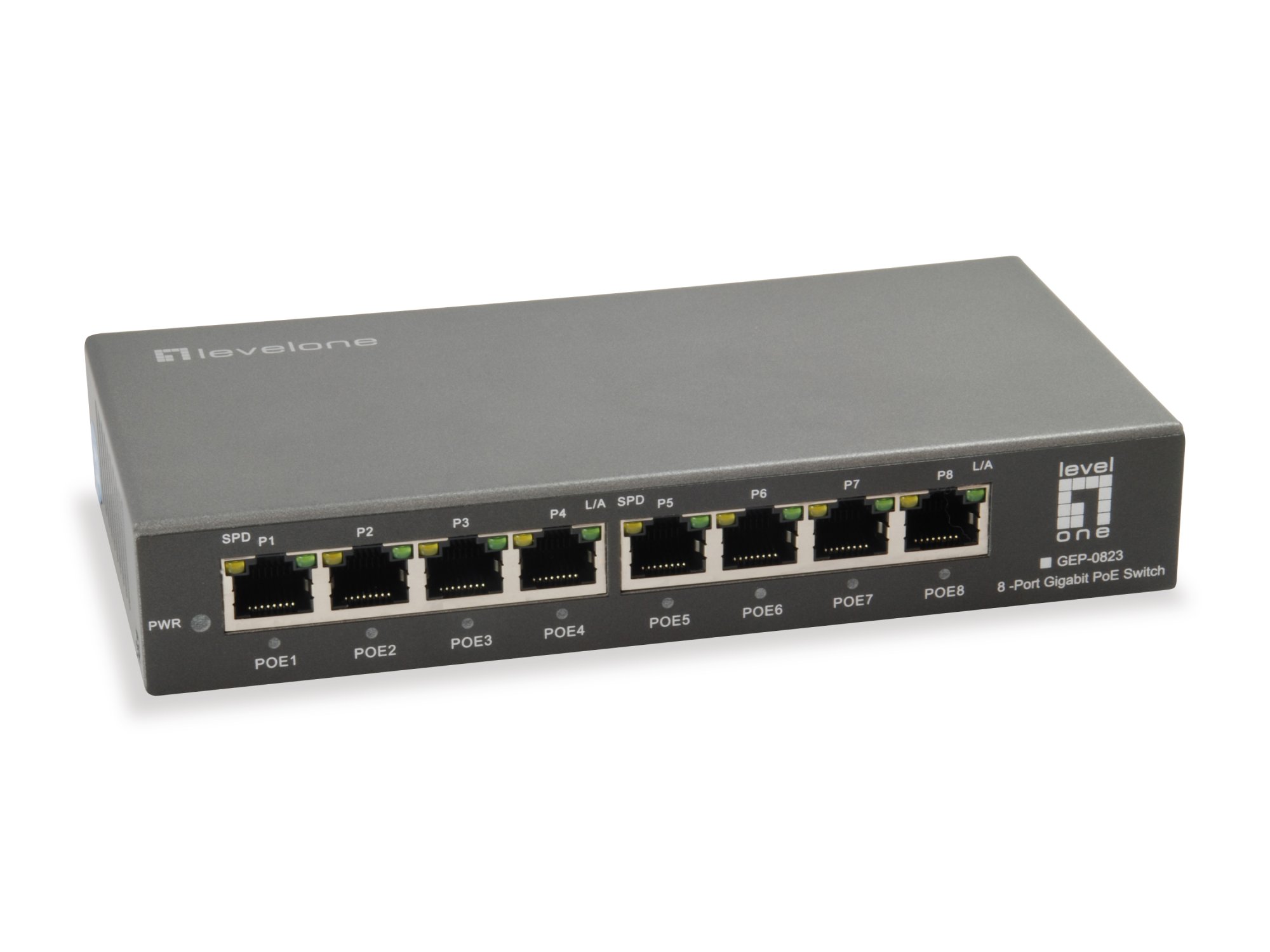

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W

Roll over image to zoom inClick to Open expanded view

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W

Name: LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W
Brand: LevelOne
SKU: GEP-0823

SKU: GEP-0823

Log In to View Pricing

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

hypertec

Datasheets (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
GEP-0823

EAN
4015867207444

Bullet points

Point
10/100/1000Mbps wire speed transmission and reception

Auto-detection and protection of non-standard PoE devices

IEEE 802.3af/at PoE compliant to simplify deployment and installation

IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Total PoE power budget: 120W, up to 30W per port

Data transmission

Jumbo frames
9126

Jumbo frames support
Yes

MAC address table
8000 entries

Store-and-forward
Yes

Switching capacity
16 Gbit/s

Design

Certification
CE,FCC

Country of origin
China

Housing material
Metal

LED indicators
Activity, LAN, Power

Product colour
Black

Stackable
No

Logistics data

Harmonized System (HS) code
85176990

Network

10G support
No

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
-20 - 70 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 70 °C

Packaging data

AC adapter included
Yes

Package depth
60 mm

Package height
290 mm

Package weight
950 g

Package width
230 mm

Quick start guide
Yes

Performance

Buffer size
8 KB

Internal memory
1 MB

Mean time between failures (MTBF)
30000 h

Ports & interfaces

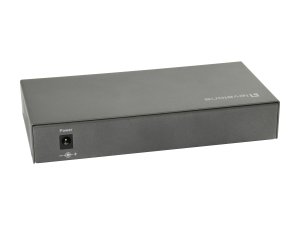

Power connector
DC-in jack

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Input current
2.5 A

Input voltage
52 V

Power consumption (typical)
10 W

Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
8

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
120 W

Weight & dimensions

Depth
30 mm

Height
176 mm

Weight
450 g

Width
86 mm

Description

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Basic switching RJ-45 Ethernet ports quantity: 8
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 16 Gbit/s
Power over Ethernet (PoE)
IEEE 802.3af/at PoE compliant to simplify deployment and installation
10/100/1000Mbps wire speed transmission and reception
Auto-detection and protection of non-standard PoE devices
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Total PoE power budget: 120W, up to 30W per port
