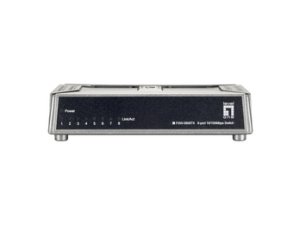

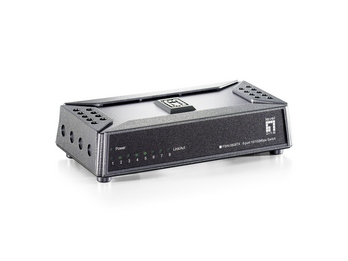

LevelOne 8-Port Fast Ethernet Switch

Name: LevelOne 8-Port Fast Ethernet Switch
Brand: LevelOne
SKU: FSW-0808TX

SKU: FSW-0808TX

Log In to View Pricing

LevelOne 8-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex

hypertec

Generated PDF (Download)

Add to compare

Product Properties

Manufacturer
LevelOne

Warranty
1 Year

SKU
FSW-0808TX

EAN
5050914833688

Data transmission

MAC address table
1024 entries

Packet forwarding rate (10 Mbps)
14880 pps

Packet forwarding rate (100 Mbps)
148000 pps

Store-and-forward
Yes

Switching capacity
1.6 Gbit/s

Design

Certification
FCC, CE, RoHS

Country of origin
China

LED indicators
Activity, Link, Power

Product colour
Grey

Rack mounting
No

Stackable
No

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

AC adapter included
Yes

Package depth
130 mm

Package height
90 mm

Package weight
300 g

Package width
75 mm

Quick start guide
Yes

Performance

Buffer size
96 KB

Ports & interfaces

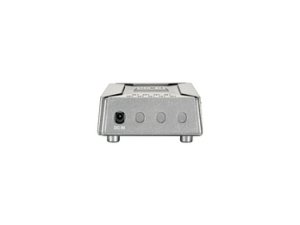

Power connector
DC-in jack

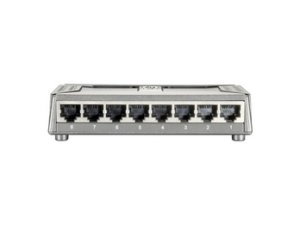

Switch Number of Ports
8

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Output current
1 A

Output voltage
5 V

Power consumption (typical)
2.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
69 mm

Height
30 mm

Width
125 mm

Description

LevelOne 8-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
10BASE-T, 100BASE-TX
MAC address table: 1024 entries Switching capacity: 1.6 Gbit/s
